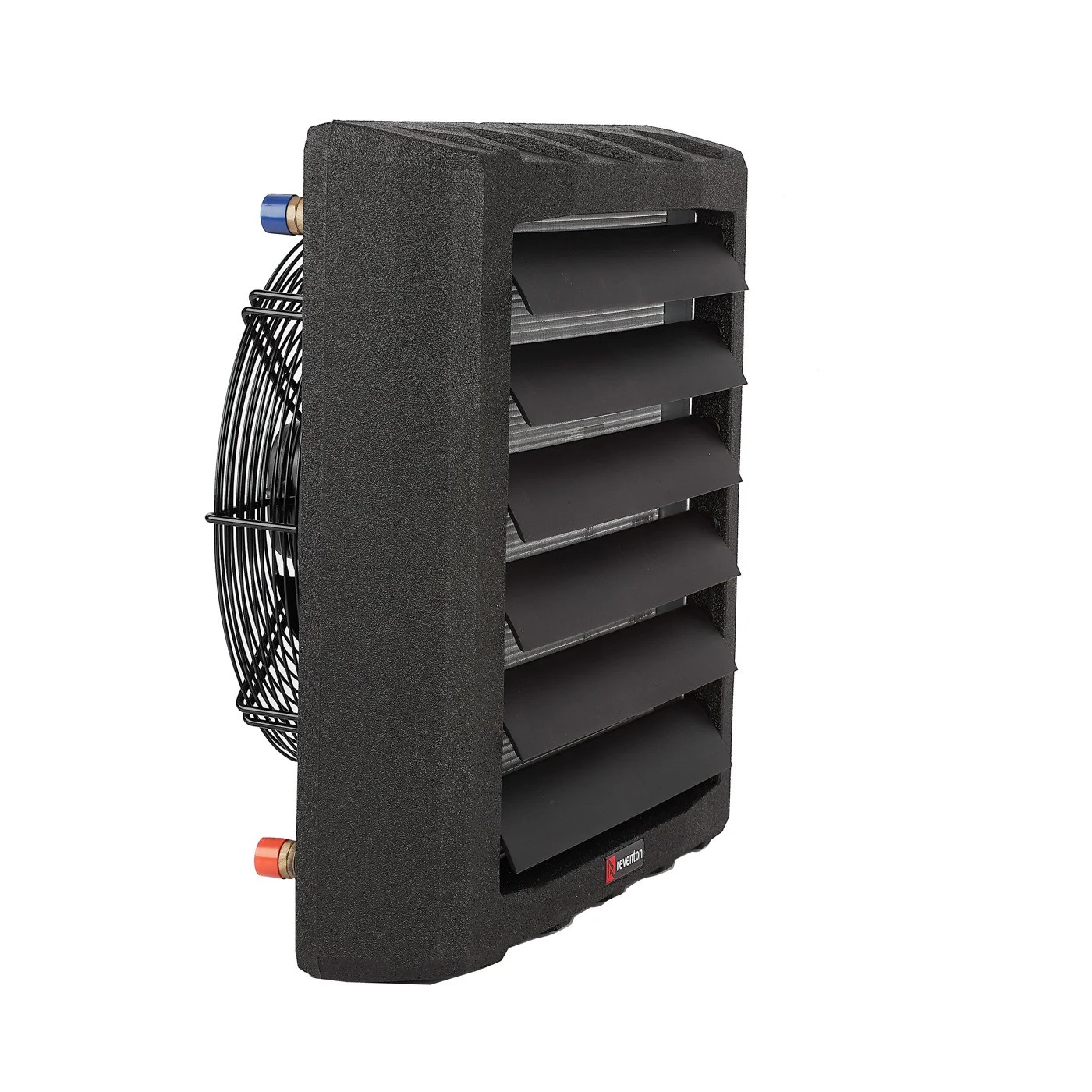

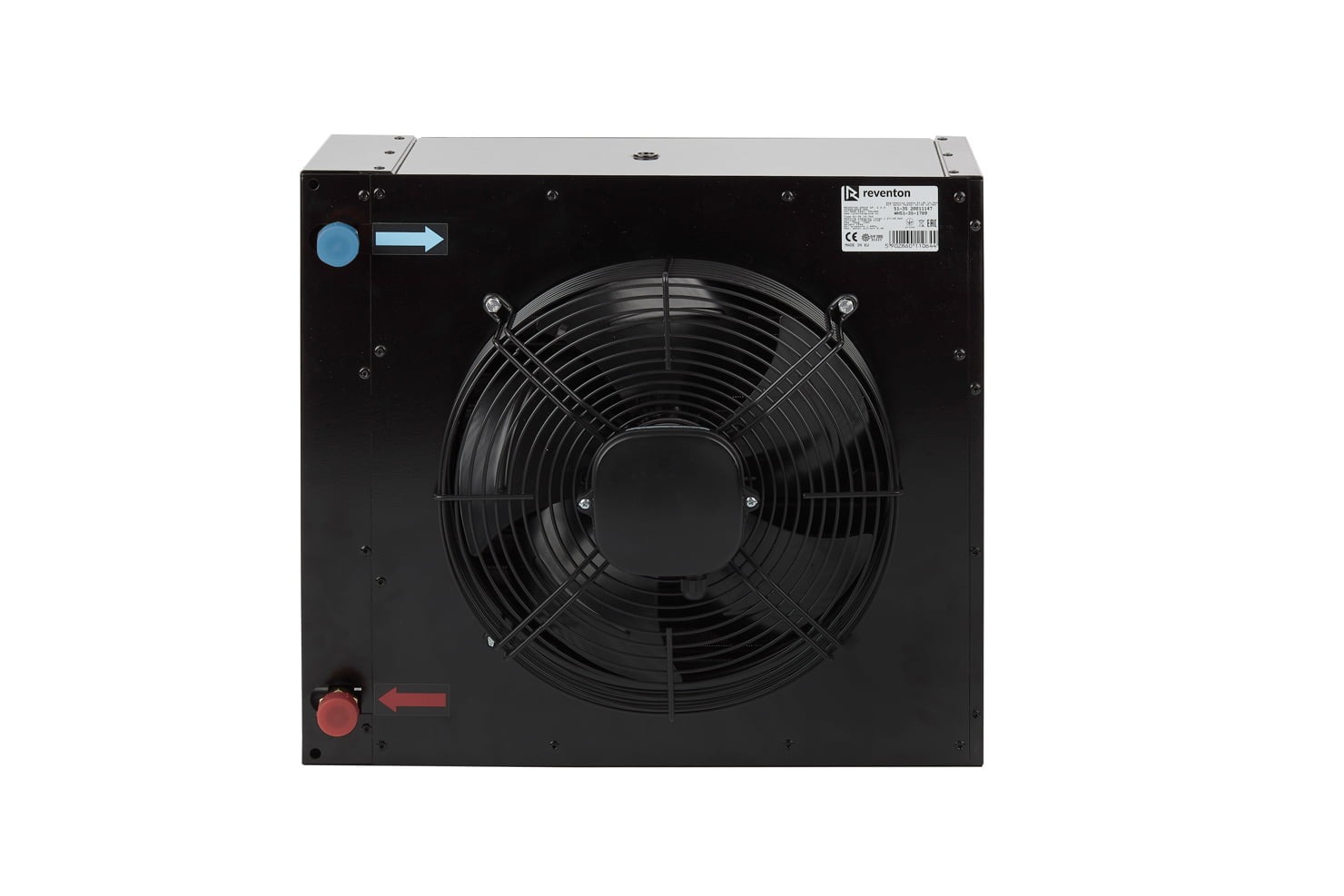

Water/air heater with EPP casing, HC 230V AC HC70-3S series The HC-3S series water heater is designed for industrial buildings with a central heating system. The device is equipped with an EPP housing (expanded polypropylene), which makes it suitable for use in harsh environments, e.g. in high humidity. Another advantage of the EPP housing is that it muffles the operating noise of the device and thus ensures quiet operation. The housing is made from environmentally friendly material that is 100% recyclable.Application: The HC-3S water/air heater successfully ensures thermal comfort in: Production halls Storage rooms Sales halls Auto workshops Garages Drivers' cabins Technical data: General features of the series: Power range: 1.55 – 91.5 kW Weight: 13 – 24 kg Features: EPP Special for this device: Nominal heat output [kW]: 60.6 / 40.1 / 32.7 (3 speeds/2 speeds/1 gear) Heating output range [kW]: 5.0 - 80.1 Maximum air flow rate [m³/h]: 3400 / 1900 / 1450 (3 speed/2 speed/1 gear) Maximum isothermal current range [m]: 18 Number of rows: 3 Water capacity [dm³]: 2.85 Maximum temperature of the heating fluid [°C]: 120 Maximum pressure of the heating fluid [MPa]: 1.6 Diameter of the connections [cal]: 3/4 Voltage/frequency [V/Hz]: 230/50 Nominal motor amperage [A]: 1.08/ 0.86/ 0.7 (3 speeds/2 speeds/1 gear) Nominal engine speed [rpm]: 1360/ 1050/ 750 (3 speeds/2 speeds/1 gear) Nominal motor power [W]: 240/ 190/ 160 (3 speeds/2 speeds/1 gear) Motor protection class: IP 54 Net weight [kg]: 19.5 Dimensions incl. packaging (LxDxH): 760x370x720 mm Sound level [dB]: 58/ 53/ 49 (3 speeds/2 speeds/1 gear) Advantages & benefits: Quiet and reliable operation Environmentally friendly, robust EPP casing 3-speed fan motor Easy installation Modern design Special control technology equipment The HC-3S series water/air heater is an efficient and environmentally friendly solution for thermal comfort in various industrial applications.

V-WP-ECO: Air-to-water monobloc heat pump The V-WP-ECO air-to-water monobloc heat pump from the Decarbo ECO series offers an efficient and reliable heating solution for your home. With a focus on energy efficiency, environmental friendliness and user-friendliness, this heat pump sets new standards in heating technology.Technical details: Powerful: 100% heat output at -25°C* Efficient: Energy efficiency class A+++ (35°C) / A++ (55°C) Monobloc design (all-in-one appliance) Large power range with 4 models from 8.3 to 22 kW Certified quality Eligible models Environmentally friendly refrigerant R290 Optimised defrosting Powder-coated housing Silenced compressor High-performance circulation pump Pressure and flow sensor in the hydraulic circuit Innovative control panel with touch function Energy and consumption recording Controllable via app Automatic, seasonal temperature adjustment SG-Ready Advantages and benefits: The V-WP-ECO heat pump not only offers powerful heating, but also a wide range of benefits for the user. With a high energy efficiency class and a maximum SCOP of 5.29, it ensures an efficient and cost-saving heat supply. The environmentally friendly refrigerant R290 not only ensures sustainable use, but also a future-proof investment in your heating system. Thanks to its simple installation and intuitive operation, the V-WP-ECO is an ideal solution for both installers and end users.With the V-WP-ECO, you are ideally equipped for an environmentally friendly, efficient and reliable heat supply in your home. See the quality and performance of this outstanding heat pump for yourself.

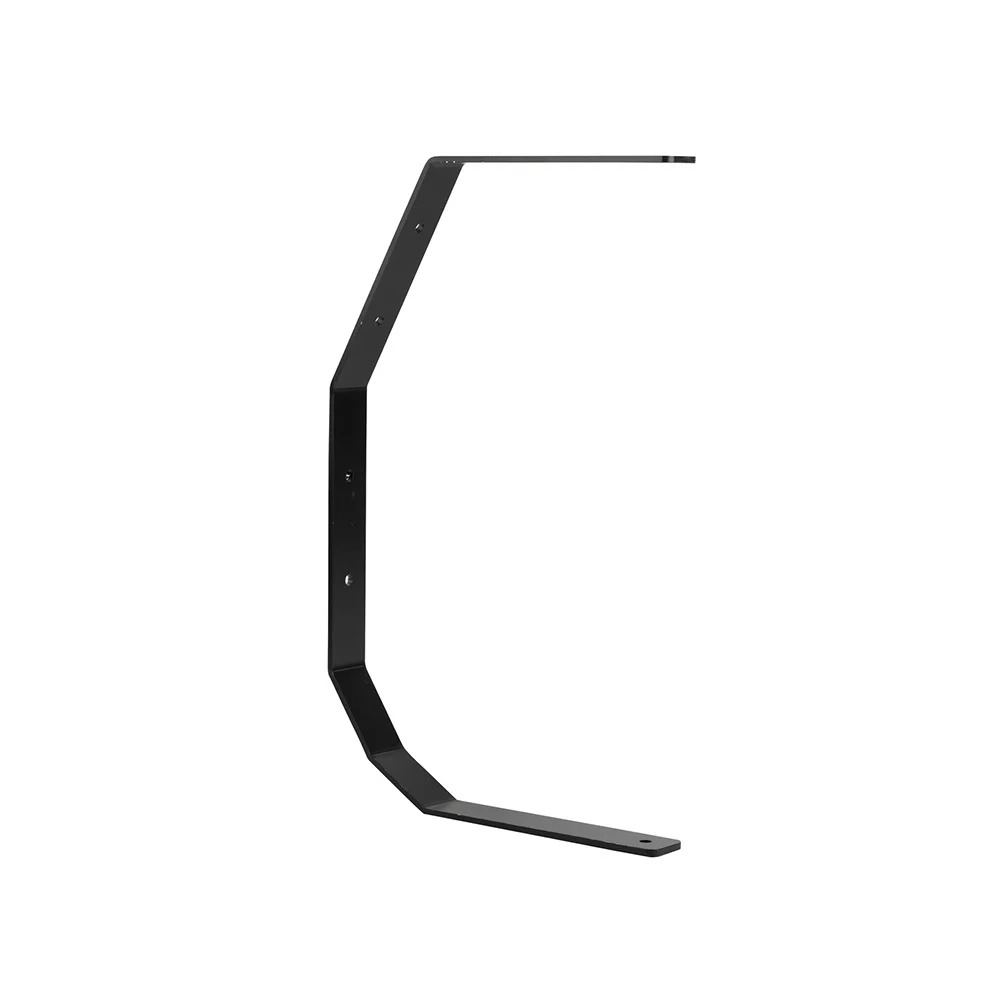

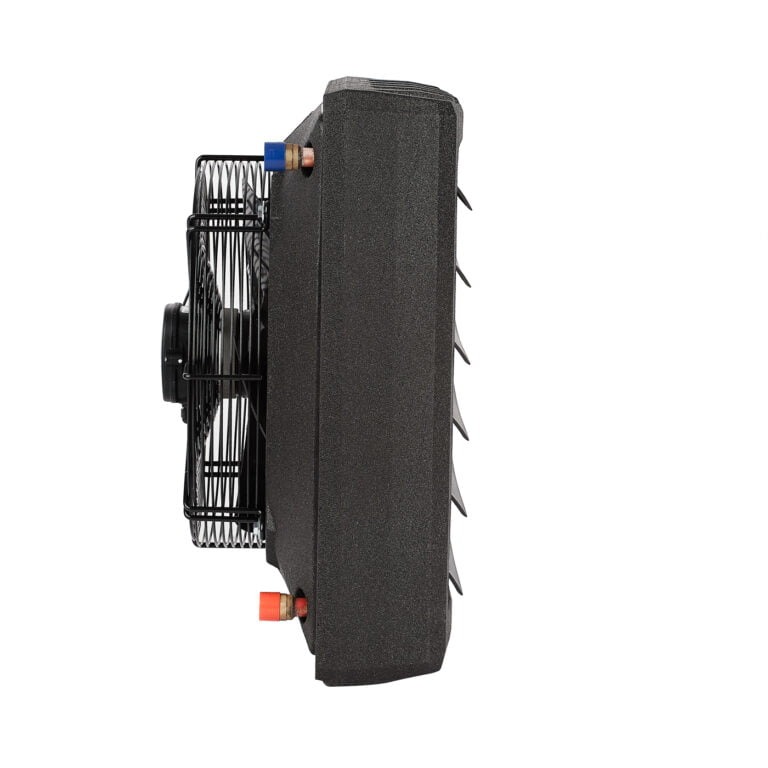

Set HC Standard (water/air heater + rotary console + 3-stage controller with room thermostat HC3S) Set HC3S HC20-3S The HC-3S series water/air heater is designed for industrial buildings with a central heating system. The device is equipped with an EPP housing (expanded polypropylene), which makes it suitable for use in harsh environments, e.g. in high humidity. Another advantage of the EPP housing is that it muffles the operating noise of the device and thus ensures quiet operation. The housing is made from environmentally friendly material that is 100% recyclable.Application areas:The HC-3S water/air heater successfully ensures thermal comfort in: Production halls Storage rooms Sales halls Auto workshops Garages Drivers' cabins Technical data: General features of the series: Power range: 1.55 – 91.5 kW Features: EPP HC20-3S: Nominal heat output [kW]: 21.4 / 17.3 / 13.3 (3 speeds/2 speeds/1 gear) Heating output range [kW]: 1.55 - 28.4 Maximum air flow rate [m³/h]: 3200 / 2150 / 1350 (3 speed/2 speed/1 gear) Maximum isothermal current range [m]: 19 Number of rows: 1 Water capacity [dm³]: 0.65 Maximum temperature of the heating fluid [°C]: 120 Maximum pressure of the heating fluid [MPa]: 1.6 Diameter of the connections [inch]: 3/4 Voltage/frequency [V/Hz]: 230/50 Nominal motor amperage [A]: 0.84/ 0.65/ 0.54 (3 speeds/2 speeds/1 gear) Nominal engine speed [rpm]: 1400/ 1050/ 750 (3 speeds/2 speeds/1 gear) Nominal motor power [W]: 190/ 150/ 120 (3 speeds/2 speeds/1 gear) Motor protection class: IP 54 Noise level [dB]: 55/ 49/ 47 (3 speeds/2 speeds/1 gear) HC rotary console 20-45: The swivel bracket is a mounting element for HC series air heaters. It allows the device to be rotated horizontally, depending on the current needs of the user. 3-stage controller with room thermostat HC3S: The controller is designed for devices equipped with three-speed fan motors. It has a three-stage speed control and a built-in thermostat enables the appliance to be switched off once the set temperature has been reached. In addition, the controller controls the operation of the actuators installed on the control valve. It is suitable for both heating and cooling operation. Power / frequency: 230 V alternating current / 50 ~ 60 Hz Maximum current: 3 A Control range: 10 °C ~ 30 °C Operating mode: Continuous or thermostatic Control accuracy: <1 °C Protection class: IP 30 Dimensions: 130 x 85 x 40 mm Weight: 210 g Advantages & benefits: Quiet and reliable operation Environmentally friendly, robust EPP casing 3-speed fan motor Easy installation Modern design Flexibility due to rotatable mounting Precise temperature control thanks to 3-step controller The HC Standard set, consisting of the HC20-3S water/air heater, the HC 20-45 rotary console and the HC3S 3-stage controller with room thermostat, offers a comprehensive solution for thermal comfort in industrial applications that combines efficiency, flexibility and environmental friendliness.

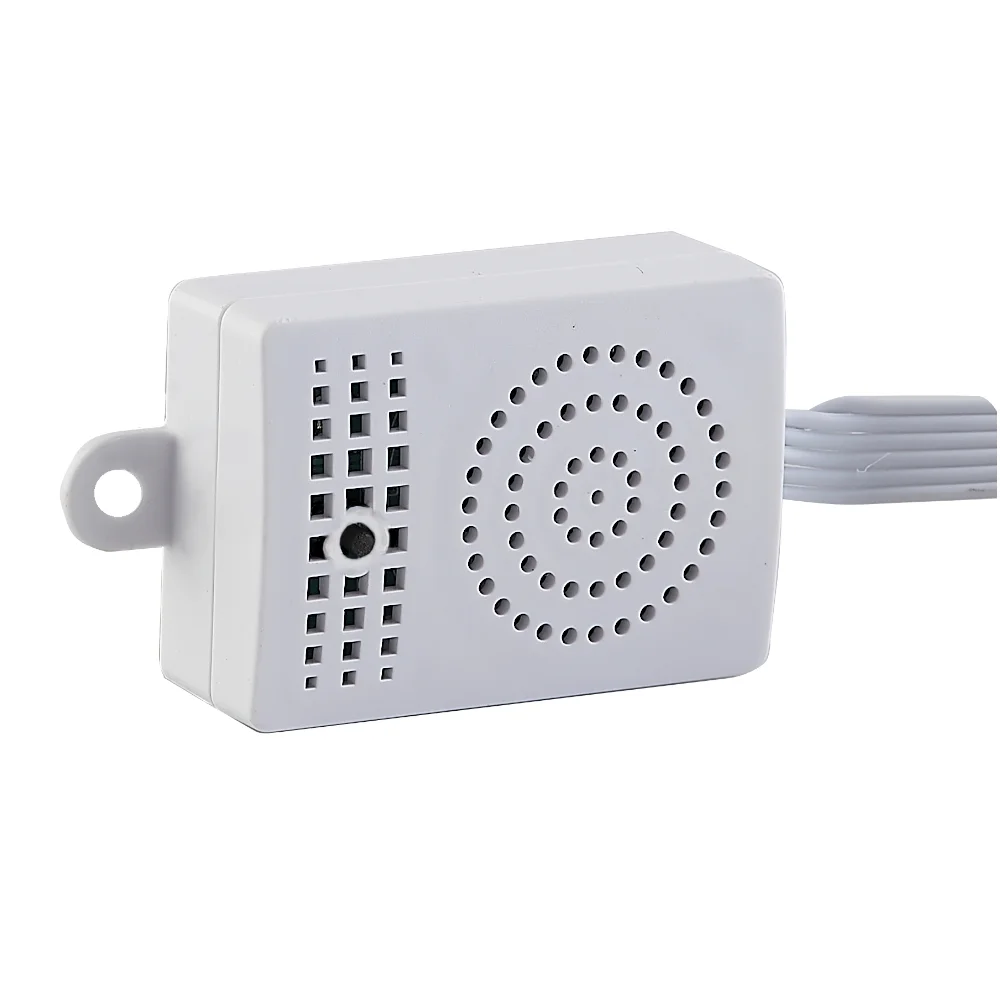

Controller for VERTIC/VERTIC ENTHALPY series WIFI module VERTIC The controller for the VERTIC/VERTIC ENTHALPY series WIFI module VERTIC is a high-quality and reliable product for the control and regulation of cooling systems, air conditioning systems and ventilation technology. This controller offers a simple and effective solution for optimising the indoor climate and ensures a pleasant environment in living and working areas.Technical details: Dimensions: 260x170x65 mm WIFI module: 55x20x40 mm Compatible with VERTIC and VERTIC ENTHALPY series Easy installation and operation Robust housing for long service life Advantages and benefits: 1. easy installation: the controller can be easily integrated into existing systems and enables quick commissioning 2. efficient control: With the WIFI module, you can conveniently control and adjust your climate system from anywhere, resulting in an optimal indoor climate. 3. Reliable performance: The controller ensures precise and stable control to improve the comfort and efficiency of your HVAC system.

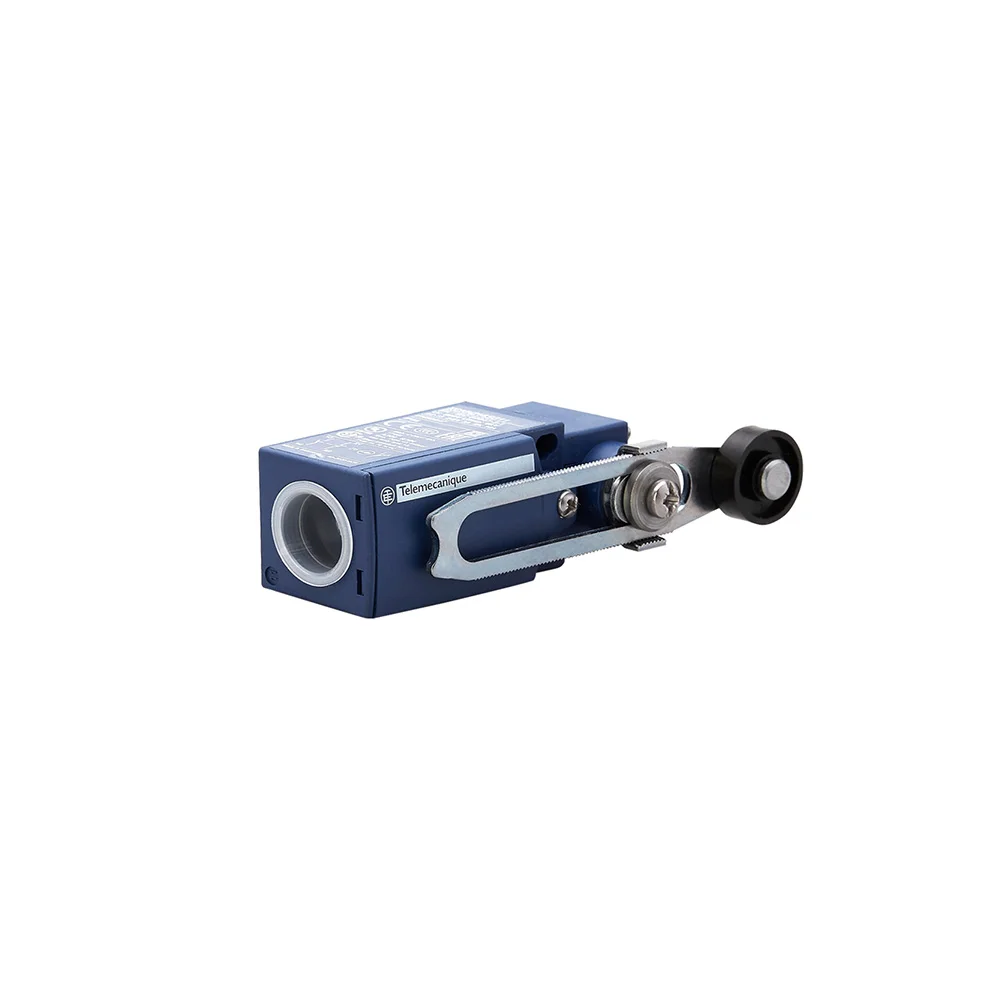

Control for HUMMER series 230V door sensor HUMMER The control for HUMMER 230V series door sensor HUMMER is an innovative product that has been specially developed for use in cooling, air conditioning and ventilation technology as well as heat pumps. With this door sensor, you can precisely regulate the temperature in your room and efficiently reduce energy costs.Technical details: Dimensions: 105x95x25 mm Weight: 110 g Voltage: 230V Range of detection: 45x30 mm Advantages and benefits: 1. energy efficiency: thanks to the precise control of the door sensor, you can optimise the energy consumption of your air conditioning system or heat pump and thus save costs 2. convenient control: With the HUMMER door sensor, you can easily set the desired temperature and air-condition your room according to your individual needs. 3. reliable quality: The control for HUMMER 230V series door sensor HUMMER impresses with its high-quality workmanship and long-lasting performance, so that you will enjoy your product for a long time.

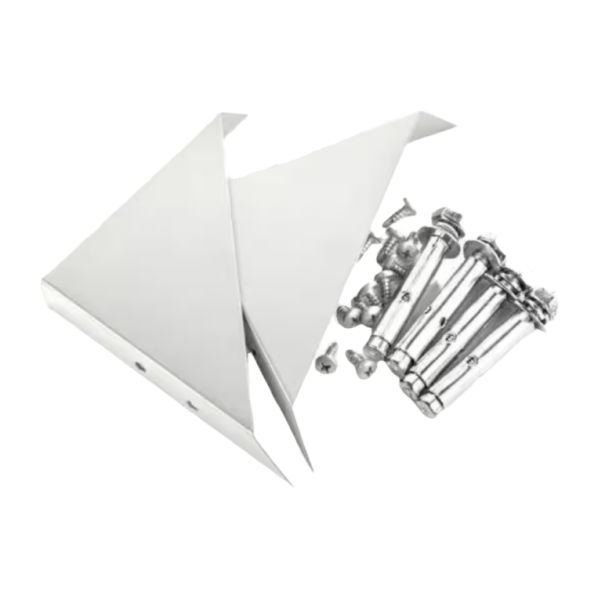

Mounting elements for ceiling fan with HC-3S warm air recirculation The mounting elements for the HC-3S ceiling fan with warm air recirculation are the perfect addition to your heating and ventilation system. With the rotatable mounting bracket, you can install the fan flexibly and distribute the warm air efficiently in the room.Technical details: Product: Mounting elements for ceiling fan with warm air recirculation HC-3S Voltage: 230V AC Dimensions of mounting bracket: 105x130x125 mm Fan dimensions: 740x430x50 mm Advantages and benefits: 1. efficient warm air recirculation: the ceiling fan can be optimally positioned thanks to the rotatable mounting bracket to distribute the warm air evenly in the room and save heating costs 2. flexible design: The mounting elements are compact and easy to install, so you can put the ceiling fan into operation quickly and easily. 3. energy-saving: The ceiling fan with warm air recirculation ensures efficient heat distribution, which means you can reduce the strain on your heating system and cut energy costs.
