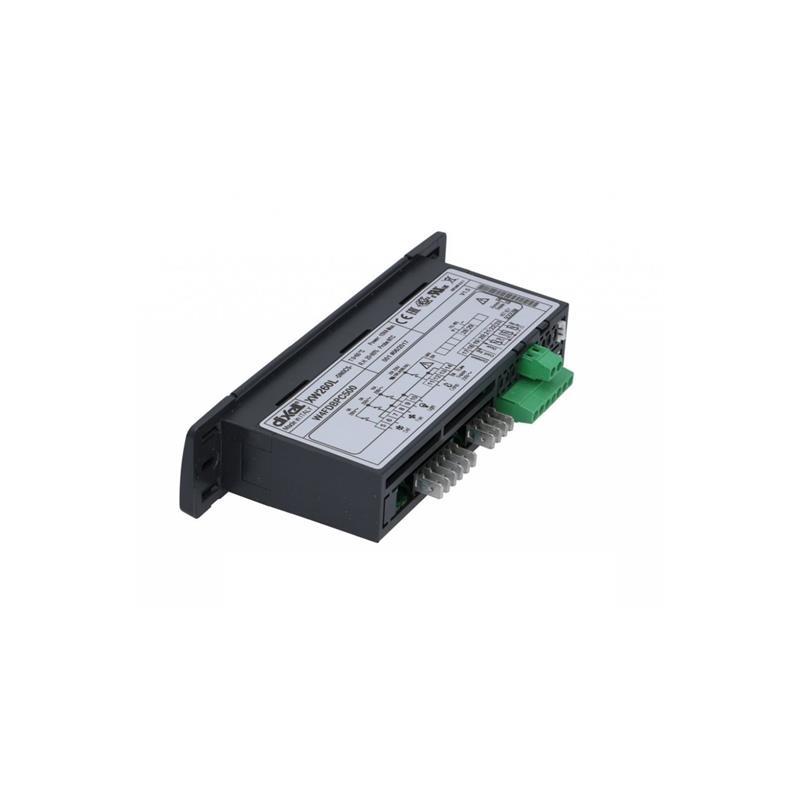

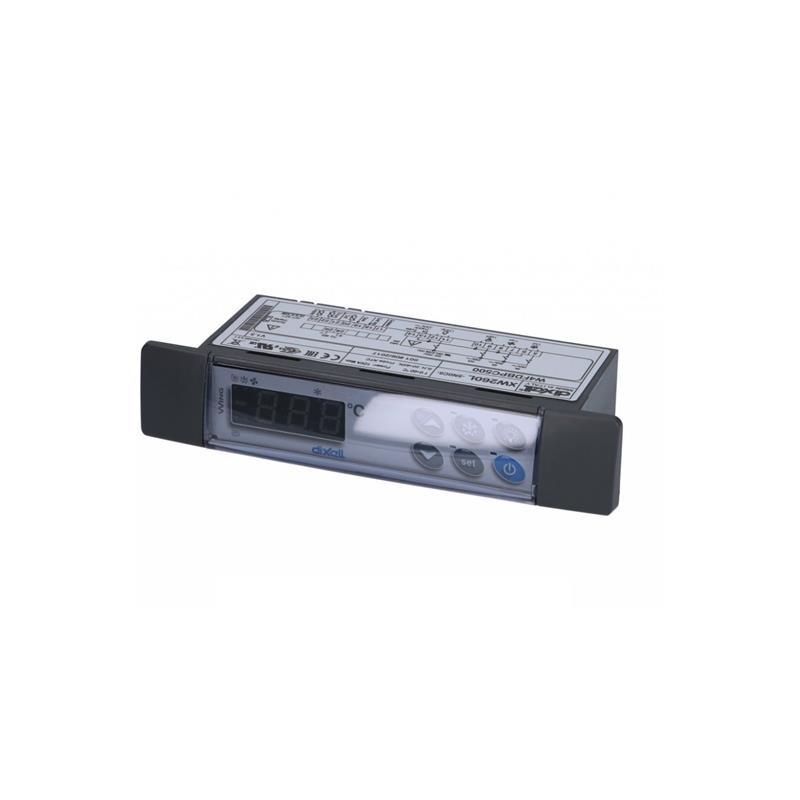

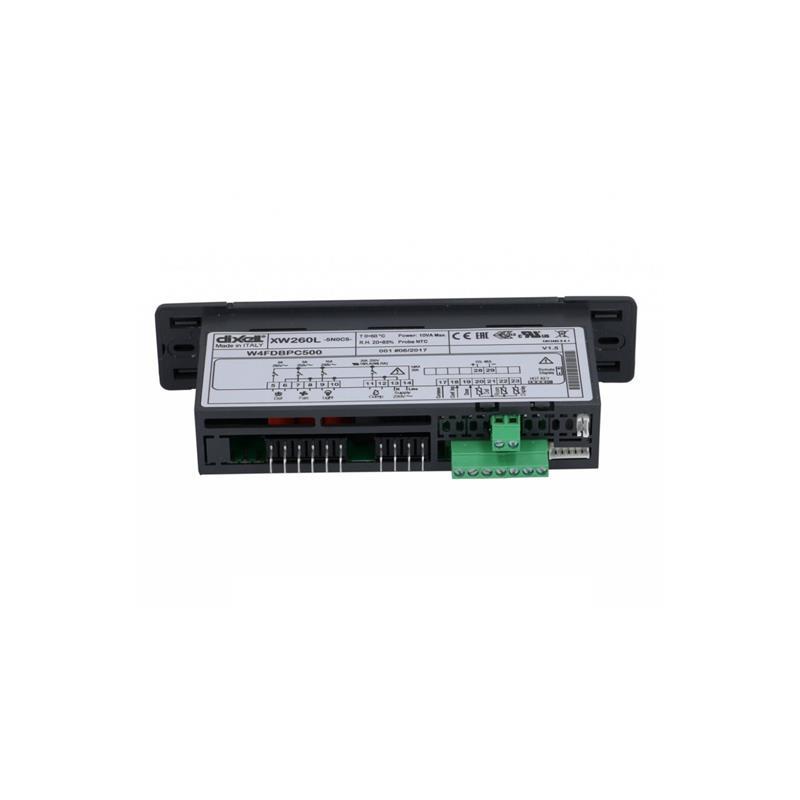

Refrigeration controller DIXELL XW260L-5N0C0, 230V
Dixell / Copeland Buy products online for less: Dixell / Copeland XW260L-5N0C0 refrigeration controller, 230V // Fast worldwide delivery
All versions at a glance
20 versions with unit price
| Sensor type | Serie / Typ | Price | Select |
|---|---|---|---|
| NTC | XW 20 L | €141.61 | Select |
| NTC | XW20LH | €581.91 | Select |
| NTC | XW60L-5L0D0-X | €236.81 | Select |
| NTC | XW60L-5N0C1 | €165.41 | Select |
| NTC | XW230L-5N0C0 | €224.91 | Select |
| NTC | XW260L-5N0C0 | €153.51 | Selected |
| NTC | XW264L-5N0C5 | €284.41 | Select |
| NTC | XW 271L-5N0C1 | €201.11 | Select |
| NTC | XW271L-5N0C0 | €248.71 | Select |
| NTC/PTC | XW20L-5N0C1 | €177.31 | Select |
| NTC/PTC | XW20LS-5N0C1 | €117.81 | Select |
| NTC/PTC | XW20VS-5N0C0 | €117.81 | Select |
| NTC/PTC | XW30L | €177.31 | Select |
| NTC/PTC | XW30V-5N0C1-R | €665.21 | Select |
| NTC/PTC | XW40L | €213.01 | Select |
| NTC/PTC | XW40L-5N0C1 | €177.31 | Select |
| NTC/PTC | XW40LS-5N0C1 | €189.21 | Select |
| NTC/PTC | XW60LS-5N0C1 | €189.21 | Select |
| NTC/PTC | XW60V-5N0C1 | €179.84 | Select |
| NTC/PTC | XW60VS-5N0C0 | €177.31 | Select |
Technical data
Electrical
- Sensor
- NTC
- Voltage
- 230 V
General
- Item condition
- New item
- Series
- XW260L-5N0C0
Description
Cooling point controller DIXELL XW260L-5N0C0 - item no. 79-7815266
The DIXELL XW260L-5N0C0 refrigeration controller is a powerful control unit for climate control in various applications. With its installation dimensions of 150x30mm and an installation depth of 65.5mm, it is ideal for use in cooling systems, air conditioning units and heat pumps.
Technical details:
- Voltage: 230V AC
- Type of sensor: NTC
- Relay outputs:
- Output 1: NO-20A(8)
- Output 2: NO-8A(3)
- Output 3: NO-8A(3)
- Output 4: NO-16A(5)
- Inputs:
- Input 1-2: NTC
- Input 3-7: DI
- Other features: Internal buzzer, door switch
- Measuring range: -50 to +150 °C
- Display: 3½ digits
Sales-promoting contents:
The DIXELL XW260L-5N0C0 impresses with its precise temperature control and wide range of applications. With its individually adjustable relay outputs and various input options, it offers maximum flexibility when controlling cooling systems. Thanks to the extended measuring range of -50 to +150 °C, the controller can be used in almost all temperature environments.
The compact design and easy handling of the DIXELL XW260L-5N0C0 make it the ideal solution for professional air conditioning and cooling technology applications. With this controller, you benefit from reliable performance and precise temperature control in your project.
