The FrigoPartners recommendations
Tip

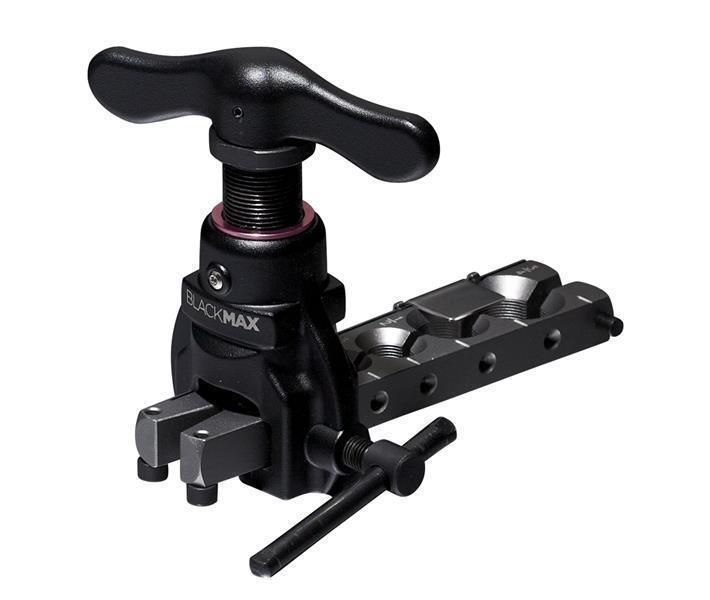

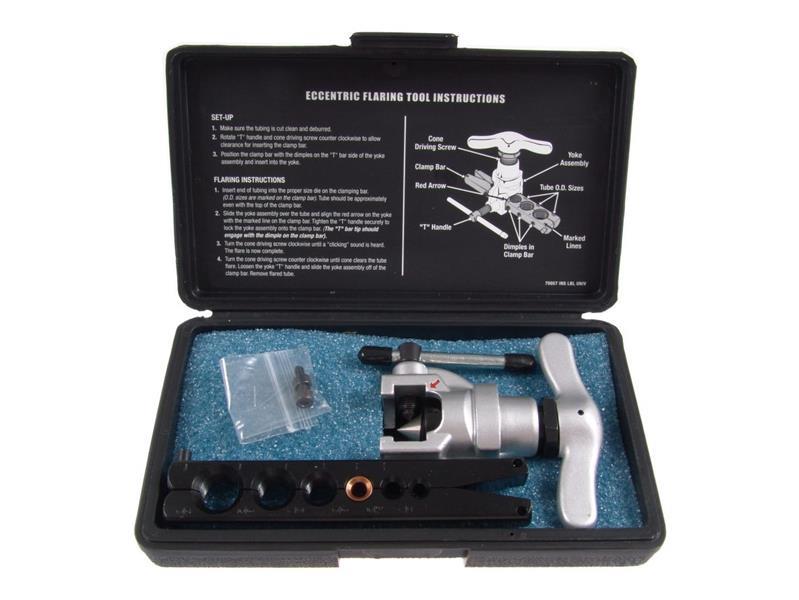

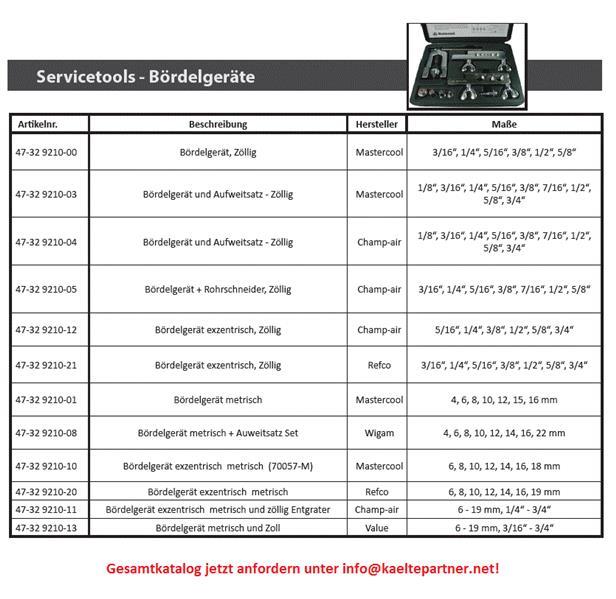

Flaring tool 3/16"1/4"3/8"1/2"5/8"3/4" eccentric without case
Regular price:
From
€80.22
47-329210-12
Qualitative flaring tool 3/16"1/4"3/8"1/2"5/8"3/4 "eccentric
The high-quality flaring tool 47-329210-12 is supplied without a case. It is ideal for use in refrigeration, air conditioning and ventilation technology as well as for heat pumps. You can carry out precise and professional flaring work with this device Technical details:
Sizes: 3/16", 1/4", 3/8", 1/2", 5/8", 3/4"
Type: eccentric
Scope of delivery: without case
Advantages and benefits:
1. precise flaring tool for professional results
2. versatile use in various refrigeration and air conditioning applications
3. high-quality workmanship for a long service life
Discount
Tip
CPS inch pipe bender set BTB300 incl. 7 inserts 1/4" to 7/8" in case
Sale price:
€280.28
Regular price:
€311.42
( - 10% )
43-BTB300
CPS inch pipe bender set BTB300 incl. 7 inserts 1/4" to 7/8" in case
Leading the way in terms of intuitive innovation. The CPS BTB300 tube bending set is the ultimate tool for forward or reverse bending of soft copper and aluminium tubes. Now work even smarter and faster with CPS tools.Technical details:
Includes a pipe widening tool
7 mandrels: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8"
Ratchet tool and 2 jaw arms (1/4"-3/8" and 1/2"-7/8")
Robust carrying case
Forwards or backwards bending from 0° to 90°
Counter-bending change mechanism for tight working environments
Solid aluminium mandrels
Advantages and benefits:
The CPS BTB300 pipe bending set enables precise bending of soft copper and aluminium pipes with a graduated 90-degree scale for forward or reverse bends. The counter-bend change mechanism makes it easy to work in tight spaces, while the robust carrying case makes it easy to store and transport the set.Experience American quality and innovation at reasonable prices. Work smarter and more efficiently with CPS tools.
Tip
Rohrbiegegerät 10,12,14,16,18,22mm
Regular price:
From
€96.28
47-329230-02
Universal pipe bender for cooling, air conditioning and ventilation technology: 47-329230-02
The universal pipe bender 47-329230-02 is a compact tool that can be operated with just one hand to produce perfect overbends. It is ideal for pipe sizes of 10, 12, 14, 16, 18 and 22 mm and enables metal pipes to be bent precisely with minimum effort. An indispensable tool for plumbers, HVAC technicians and DIY enthusiasts.
Technical details:
Compact design
Easy to operate with one hand
Suitable for pipe sizes: 10, 12, 14, 16, 18, 22 mm
Mechanical bending device for precise work
Sales-promoting content:
The advantages of the 47-329230-02 pipe bender lie in its versatility and user-friendliness. Perfect overbends can be produced with minimal effort, saving time and effort. The compact design enables easy handling, even in hard-to-reach places. An indispensable tool for anyone who wants to bend metal pipes precisely.
Tip
Tube bender 3/8" 1/2" 5/8" 3/4" 7/8"
Regular price:
€101.03
47-329230-05
German description follows - please contact us if you have any questions about the product.
Tip
Mechanical pipe expander + metric heads 10, 12, 15, 16, 18, 22 mm
Regular price:
€272.51
47-329240-17
47-329240-17 - Pipe expander for refrigeration, air conditioning and ventilation technology
Our 47-329240-17 pipe expander is perfect for various pipe diameters of 10, 12, 15, 16, 18 and 22 mm. It has expander heads for metric pipes and is therefore an indispensable tool for professionals in refrigeration, air conditioning and ventilation technology as well as heat pump installations.
Technical details:
Suitable pipe diameters: 10, 12, 15, 16, 18, 22 mm
Expander heads for metric pipes
Advantages and benefits:
This pipe expander offers you the following advantages:
Versatile application options for different pipe diameters
High-quality workmanship for precise and reliable results
Efficient working thanks to the expander heads for metric pipes
Tip
Inficon leak detector D-TEK-Stratus for A1 and A2 refrigerants 1g/year
Regular price:
From
€1,325.81
46-7801210
Inficon leak detector D-TEK-Stratus for A1 and A2 refrigerant 1g/year
The Inficon D-TEK-Stratus leak detector is the ideal tool for precise and reliable leak detection of class A1 and A2 refrigerants. With a sensitivity of 1g/year, even the smallest leaks can be detected quickly and effectively. The device is perfect for use in the refrigeration, air conditioning and ventilation technology sectors as well as in the heat pump industry.Technical details:
Technology: Electronic
Type: Electronic leak detector for refrigerants
Type designation: 724202G11
Sensitivity: 1 g/y
Probe length: 380 mm
Battery light duration: 10 h
Refrigerant: CFC, HFC, HFO
Weight: 0.500 kg
Length: 43 cm
Net weight: 0.49 kg
Sales-promoting contents:
With the D-TEK Stratus from Inficon, you get a high-precision leak detector that combines the excellent leak detection of the D-TEK Select with the gas cloud detection of a monitor. Thanks to the easy-to-read LCD display, leaks can be localised quickly and easily. The scope of delivery includes everything you need for professional leak detection, including a lithium-ion battery and extra-long probe. The Inficon D-TEK-Stratus leak detector not only enables precise leak detection, but also helps to reduce operating costs as maintenance and repair work caused by leaks can be minimised. Its ease of use and high sensitivity make this device an indispensable tool for any professional in the refrigeration and air conditioning industry.
Tip

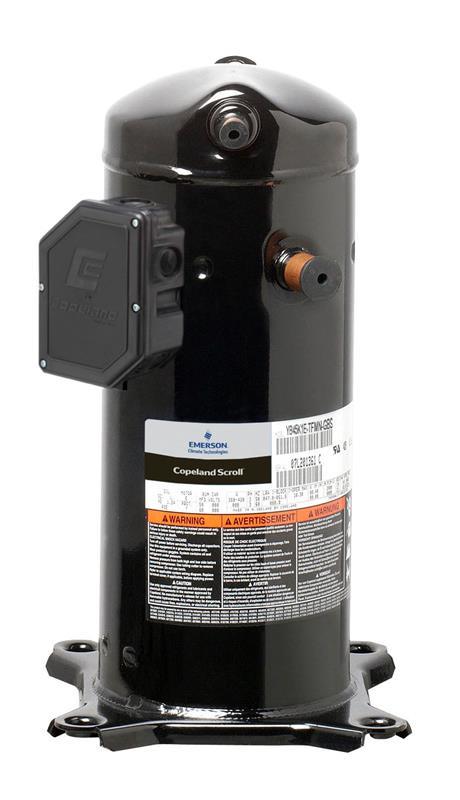

Copeland ZB21KCE-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
Regular price:
€1,117.41
47-32ZB21
Copeland ZB21KCE-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449AThe Copeland ZB21KCE-TFD-551 scroll compressor is designed for medium-temperature refrigeration applications and offers a reliable solution for various refrigerants. It features a compact and lightweight design, making it ideal for chillers and process cooling systems.Copeland ZB and ZBD scroll compressors are designed for medium-temperature refrigeration applications using the refrigerants R407A/F/C, R448A/R449A, R404A, R134a, R450A and R513AThe ZB series covers a displacement range of approximately 5.9 to 87.5 m³/hThe digital ZBD models allow for stepless capacity modulation, typically from 10 to 100 %Copeland scroll compressors have significantly fewer moving parts than reciprocating compressors and feature a set of spirals that are axially and radially flexible, making them particularly robust against operational disturbances (e.g. liquid slugging)Thanks to their compact, lightweight design, they are ideally suited for chillers, compact refrigeration systems and process coolingThe Summit models (approx. 7–15 HP) are designed for high seasonal efficiency and achieve up to around 15 % higher efficiency than comparable semi-hermetic piston compressorsIf required, an optional soundproofing hood can reduce the noise level by up to approximately 10 dB(A)Axial and radial flexibility of the scrolls ensures high reliability and efficiencyWide operating range with low condensation temperatures and rapid cooling capacitiesHigh seasonal efficiency, optimised for typical operating pointsLightweight and compact design, weighing up to about half as much as comparable semi-hermetic piston compressorsOptional soundproofing hood for additional noise reductionDigital ZBD models for stepless capacity modulation (approx. 10–100 %)one compressor type for multiple refrigerants (R407A/F/C, R448A/R449A, R404A, R134a, R450A, R513A)Maximum permissible operating pressure (PS): ZB15 to ZB45: low-pressure side 21 bar(g) / high-pressure side 32 bar(g); ZB50 to ZB114: Low-pressure side 22.6 bar(g) / High-pressure side 32 bar(g); Digital ZBD: Low-pressure side 21 bar(g) / High-pressure side 28.8 bar(g); Summit ZBD: Low-pressure side 22.6 bar(g) / High-pressure side 32 bar(g)Technical detailsMBP application rangeNumber of phases: 3Design: HermeticCOP 2.01dB(A) @ 1 m 58dB(A) 71Pressure line (inches) 1"Electronics includedRecommended crankcase heater 70Replacement for the following models: OBS ZS21K4E-TFD-551Frequency 50–60 HzWeight 27Airflow rate 8.61 m³/hCooling capacity (kW) 55Refrigerant R134ARefrigerant R22Refrigerant R404ARefrigerant R407ARefrigerant R407CRefrigerant R407FRefrigerant R448ARefrigerant R449ARefrigerant R450ARefrigerant R513ACapacity under operating conditions: -10°C evap, temp; 45°C cond, temp; 20 °C suction gas return; 0 K subcooling for R-404A at 50 HzPower consumption [kW] 2.51Max. operating current (A) 7.2Max. operating pressure ND/HD [bar(g)] 21/32Motor code TFDPre-filled with oilOil capacity (l) 1.24Oil type POEProduct family ZBSuction pipe (inches) 1 1/4"Protection class IP21Compression type: ScrollSupply voltage 380–420 VSupply voltage 460 VAdvantages and benefitsHigh reliability and efficiency thanks to the axial and radial flexibility of the scrollsOptimal performance at low condensing temperatures and with high cooling capacitiesLow weight and compact design allow for easy integration into various applicationsDigital ZBD models offer flexible capacity modulation to meet a range of requirements
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified service technician.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZB26KCE-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
Regular price:
€1,308.26
47-32ZB26
Copeland ZB26KCE-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449AThe Copeland ZB26KCE-TFD-551 scroll compressor is designed for medium-temperature refrigeration applications and offers a reliable solution for various refrigerants. It features a compact and lightweight design, making it ideal for chillers and process cooling systems.Copeland ZB and ZBD scroll compressors are designed for medium-temperature refrigeration applications using the refrigerants R407A/F/C, R448A/R449A, R404A, R134a, R450A and R513AThe ZB series covers a displacement range of approximately 5.9 to 87.5 m³/hThe digital ZBD models allow for stepless capacity modulation, typically from 10 to 100 %Copeland scroll compressors have significantly fewer moving parts than reciprocating compressors and feature a set of spirals that are axially and radially flexible, making them particularly robust against operational disturbances (e.g. liquid slugging)Thanks to their compact, lightweight design, they are ideally suited for chillers, compact refrigeration systems and process coolingThe Summit models (approx. 7–15 HP) are designed for high seasonal efficiency and achieve up to around 15 % better efficiency than comparable semi-hermetic piston compressorsIf required, an optional soundproofing hood can reduce the noise level by up to approximately 10 dB(A)Axial and radial flexibility of the scrolls ensures high reliability and efficiencyWide operating range with low condensation temperatures and rapid cooling capacitiesHigh seasonal efficiency, optimised for typical operating pointsLightweight and compact design, weighing up to about half as much as comparable semi-hermetic piston compressorsOptional soundproofing hood for additional noise reductionDigital ZBD models for stepless capacity modulation (approx. 10–100 %)one compressor type for multiple refrigerants (R407A/F/C, R448A/R449A, R404A, R134a, R450A, R513A)Maximum permissible operating pressure (PS): ZB15 to ZB45: low-pressure side 21 bar(g) / high-pressure side 32 bar(g); ZB50 to ZB114: Low-pressure side 22.6 bar(g) / High-pressure side 32 bar(g); Digital ZBD: Low-pressure side 21 bar(g) / High-pressure side 28.8 bar(g); Summit ZBD: Low-pressure side 22.6 bar(g) / High-pressure side 32 bar(g)Technical detailsMBP application rangeNumber of phases: 3Design: HermeticCOP 1.98dB(A) @ 1 m 58dB(A) 71Pressure line (inches) 1"Electronics includedRecommended crankcase heater 70Replacement for the following models: ZS26K4E-TFD-551Frequency 50–60 HzWeight 28Airflow rate 9.95 m³/hCooling capacity (kW) 5.84Refrigerant R134ARefrigerant R22Refrigerant R404ARefrigerant R407ARefrigerant R407CRefrigerant R407FRefrigerant R448ARefrigerant R449ARefrigerant R450ARefrigerant R513ACapacity under operating conditions: -10°C evap. temp.; 45°C cond. temp.; 20 °C suction gas return; 0 K subcooling for R-404A at 50 HzPower consumption [kW] 2.94Max. operating current (A) 8.9Max. operating pressure ND/HD [bar(g)] 21/32Motor code TFDPre-filled with oilOil capacity (l) 1.45Oil type POEProduct family ZBSuction pipe (inches) 1 1/4"Protection class IP21Compression type: ScrollSupply voltage 380–420 VSupply voltage 460 VAdvantages and benefitsHigh reliability and efficiency thanks to the axial and radial flexibility of the scrollsOptimal performance at low condensing temperatures and with high cooling capacitiesLow weight and compact design allow for easy integration into various applicationsDigital ZBD models offer flexible capacity modulation to meet a range of requirements
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified service technician.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZB30KCE-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
Regular price:
€1,471.39
47-32ZB30
Copeland ZB30KCE-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
The Copeland ZB30KCE-TFD-551 scroll compressor is designed for medium-temperature refrigeration applications and offers a reliable solution for various refrigerants. It features a compact and lightweight design, making it ideal for chillers and process cooling systems.
Copeland ZB and ZBD scroll compressors are designed for medium-temperature refrigeration applications using the refrigerants R407A/F/C, R448A/R449A, R404A, R134a, R450A and R513A
The ZB series covers a displacement range of approximately 5.9 to 87.5 m³/h
The digital ZBD models allow for stepless capacity modulation, typically from 10 to 100 %
Copeland scroll compressors have significantly fewer moving parts than reciprocating compressors and feature a set of spirals that are axially and radially flexible, making them particularly robust against operational disturbances (e.g. liquid slugging)
Thanks to their compact, lightweight design, they are ideally suited for chillers, compact refrigeration systems and process cooling
The Summit models (approx. 7–15 HP) are designed for high seasonal efficiency and achieve up to around 15 % better efficiency than comparable semi-hermetic piston compressors
If required, an optional soundproofing hood can reduce the noise level by up to approximately 10 dB(A)
Axial and radial flexibility of the scrolls ensures high reliability and efficiency
Wide operating range with low condensation temperatures and rapid cooling capacities
High seasonal efficiency, optimised for typical operating points
Lightweight and compact design, weighing up to about half as much as comparable semi-hermetic piston compressors
Optional soundproofing hood for additional noise reduction
Digital ZBD models for stepless capacity modulation (approx. 10–100 %)
one compressor type for multiple refrigerants (R407A/F/C, R448A/R449A, R404A, R134a, R450A, R513A)
Maximum permissible operating pressure (PS): ZB15 to ZB45: Low-pressure side 21 bar(g) / High-pressure side 32 bar(g)
Maximum permissible operating pressure (PS): ZB50 to ZB114: Low-pressure side 22.6 bar(g) / High-pressure side 32 bar(g)
Maximum permissible operating pressure (PS): Digital ZBD: ND 21 bar(g) / HD 28.8 bar(g)
Maximum permissible operating pressure (PS): Summit ZBD: ND 22.6 bar(g) / HD 32 bar(g)
Technical details
MBP application range
Number of phases: 3
Design: Hermetic
COP 2.05
dB(A) @ 1 m 59
dB(A) 72
Pressure line (inches) 1"
Electronics included
Recommended crankcase heater 70
Frequency 50–60 Hz
Weight 35
Airflow 11.7 m³/h
Cooling capacity (kW) 6.87
Refrigerant R134A
Refrigerant R22
Refrigerant R404A
Refrigerant R407A
Refrigerant R407C
Refrigerant R407F
Refrigerant R448A
Refrigerant R449A
Refrigerant R450A
Refrigerant R513A
Capacity under operating conditions: -10°C evap, temp; 45°C cond, temp; 20 °C suction gas return; 0 K subcooling for R-404A at 50 Hz
Power consumption [kW] 3.35
Max. operating current (A) 10.3
Max. operating pressure ND/HD [bar(g)] 21/32
Motor code TFD
Pre-filled with oil
Oil capacity (l) 1.90
Oil type POE
Product family ZB
Suction pipe (inches) 1 1/4"
Protection class IP21
Compression type: Scroll
Supply voltage 380–420 V
Supply voltage 460 V
Advantages and benefits
High reliability and efficiency thanks to the axial and radial flexibility of the scrolls
Optimal performance at low condensing temperatures and with high cooling capacities
Low weight and compact design allow for easy integration into various applications
Optional soundproofing hood reduces noise levels and improves comfort
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified service technician.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZB38KCE-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
Regular price:
From
€1,381.59
47-32ZB38
Copeland ZB38KCE-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449AThe Copeland ZB38KCE-TFD-551 scroll compressor is designed for medium-temperature refrigeration applications and offers a reliable solution for various refrigerants. With its robust construction and digital capacity modulation, it is ideal for use in chillers and compact refrigeration systems.Copeland ZB and ZBD scroll compressors are designed for medium-temperature refrigeration applications using the refrigerants R407A/F/C, R448A/R449A, R404A, R134a, R450A and R513AThe ZB series covers a displacement range of approximately 5.9 to 87.5 m³/hThe digital ZBD models allow for stepless capacity modulation, typically from 10 to 100 %Copeland scroll compressors have significantly fewer moving parts than reciprocating compressors and feature a set of spirals that are axially and radially flexible, making them particularly robust against operational disturbances (e.g. liquid slugging)Thanks to their compact, lightweight design, they are ideally suited for chillers, compact refrigeration systems and process coolingThe Summit models (approx. 7–15 HP) are designed for high seasonal efficiency and achieve up to around 15 % better efficiency than comparable semi-hermetic piston compressorsIf required, an optional soundproofing hood can reduce the noise level by up to approximately 10 dB(A)Axial and radial flexibility of the scrolls ensures high reliability and efficiencyWide operating range with low condensation temperatures and rapid cooling capacitiesHigh seasonal efficiency, optimised for typical operating pointsLightweight and compact design, weighing up to about half as much as comparable semi-hermetic piston compressorsOptional soundproofing hood for additional noise reductionDigital ZBD models for stepless capacity modulation (approx. 10–100 %)one compressor type for multiple refrigerants (R407A/F/C, R448A/R449A, R404A, R134a, R450A, R513A)Maximum permissible operating pressure (PS): ZB15 to ZB45: Low-pressure side 21 bar(g) / High-pressure side 32 bar(g)ZB50 to ZB114: Low-pressure side 22.6 bar(g) / High-pressure side 32 bar(g)Digital ZBD: Low-pressure side 21 bar(g) / High-pressure side 28.8 bar(g)Summit ZBD: Low-pressure side 22.6 bar(g) / High-pressure side 32 bar(g)Technical detailsMBP application rangeNumber of phases: 3Design: HermeticCOP 2.03dB(A) @ 1 m 61dB(A) 74Pressure line (inches) 1"Electronics includedRecommended crankcase heater 70Frequency 50–60 HzWeight 37.5Airflow 14.4 m³/hCooling capacity (kW) 8.53Refrigerant R134ARefrigerant R22Refrigerant R404ARefrigerant R407ARefrigerant R407CRefrigerant R407FRefrigerant R448ARefrigerant R449ARefrigerant R450ARefrigerant R513ACapacity at operating conditions: -10°C evap, temp; 45°C cond, temp; 20 °C suction gas return; 0 K subcooling for R-404A at 50 HzPower consumption [kW] 4.2Max. operating current (A) 12.8Max. operating pressure ND/HD [bar(g)] 21/32Motor code TFDOil pre-filledOil capacity (l) 1.90Oil type POEProduct family ZBSuction pipe (inches) 1 1/4"Protection class IP21Compression type: ScrollSupply voltage 380–420 VSupply voltage 460 VAdvantages and benefitsHigh reliability and efficiency thanks to the axial and radial flexibility of the scrollsOptimal performance at low condensing temperatures and with high cooling capacitiesLow weight and compact design allow for easy integration into various applicationsDigital ZBD models offer flexible capacity modulation for different operating conditions
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified service technician.Electronics: The electronics are included in the scope of supply.
Tip

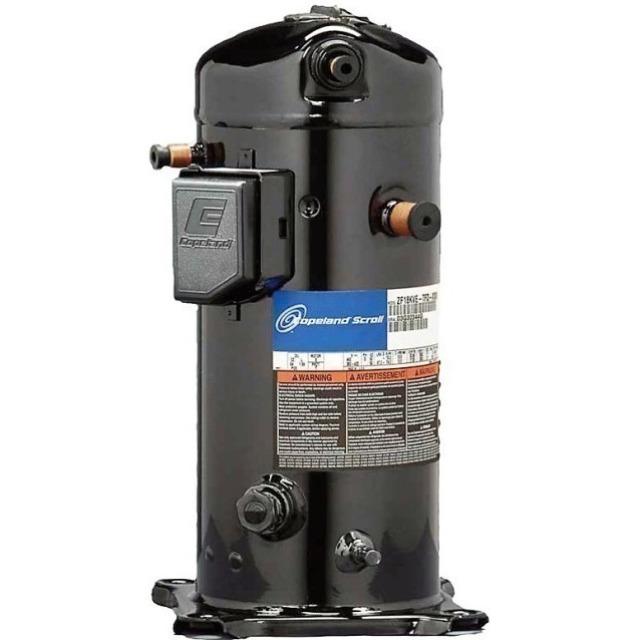

Copeland ZF09K4E-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
Regular price:
From
€1,274.49
47-32ZF09
Copeland ZF09K4E-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
The Copeland ZF09K4E-TFD-551 scroll compressor is designed for low-temperature refrigeration applications and is ideally suited for use with the refrigerants R407A/F, R448A/R449A and R404A. It is specially optimised for deep-freeze applications and, thanks to the scroll flexibility mechanism, offers high resistance to liquid slugging.
Copeland ZF and ZFD scroll compressors are designed for low-temperature refrigeration applications using the refrigerants R407A/F, R448A/R449A and R404A (and, in some cases, R134a)
The series operates across a wide evaporator temperature range from approximately −40 °C to +7 °C
Thanks to the scroll yield mechanism, the compressors are particularly robust against liquid slugging
Versions are available with liquid injection, vapour injection or both methods to limit discharge temperatures and significantly increase capacity and efficiency
ZFD variants also offer digital capacity modulation
Wide operating range, low condensing temperatures for high efficiency
one compressor type for multiple refrigerants (R407A/F, R448A/R449A, R404A, and in some cases R134a)
Compact, lightweight design (up to about half the weight of comparable semi-hermetic piston compressors)
Optional soundproofing hood for additional noise reduction
Models with liquid and/or vapour injection for significantly increased system performance and efficiency
Digital ZFD models for stepless capacity adjustment
Maximum permissible operating pressure (PS): ZF06 to ZF18 (K4E/KVE): ND 21 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): ZF25 to ZF54 (K5E): ND 22.6 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): Digital ZFD: ND 22.6 bar(g) / HD 32 bar(g)
Technical details
LBP application range
Number of phases: 3
Design: Hermetic
COP 1.14
dB(A) @ 1 m 62
dB(A) 75
Discharge line (inches) 1"
Electronics included
Recommended crankcase heater 70
Frequency 50–60 Hz
Weight 27
Air flow rate 83 m³/h
Cooling capacity (kW) 1.66
Refrigerant R22
Refrigerant R404A
Refrigerant R407A
Refrigerant R407F
Refrigerant R448A
Refrigerant R449A
Capacity at operating conditions: -35°C evap, temp; 40°C cond, temp; 20°C suction gas return; 0 K subcooling for R-448A at 50 Hz
Power consumption [kW] 1.46
Max. operating current (A) 6
Max. operating pressure ND/HD [bar(g)] 21/28.8
Motor code TFD
Pre-filled with oil
Oil capacity (l) 1.50
Oil type POE
Product family ZF
Suction line (inches) 1 3/4"
Protection class IP21
Compression type: Scroll
Supply voltage 380–420 V
Supply voltage 460 V
Advantages and benefits
High efficiency thanks to a wide operating range and low condensing temperatures
Versatility thanks to the use of multiple refrigerants
Lightweight and compact design allows for easy installation
Optional soundproofing hood reduces noise levels
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified technician.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZF11K4E-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
Regular price:
From
€1,488.69
47-32ZF11
Copeland ZF11K4E-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
The Copeland ZF11K4E-TFD-551 scroll compressor is designed for low-temperature refrigeration applications using the refrigerants R407A/F, R448A/R449A and R404A. It offers a robust solution for deep-freeze applications and is specifically designed for use in refrigeration and air-conditioning systems.
Copeland ZF and ZFD scroll compressors are designed for low-temperature refrigeration applications using the refrigerants R407A/F, R448A/R449A and R404A (and, in some cases, R134a)
The series operates across a wide evaporator temperature range of approximately −40 °C to +7 °C and is specifically optimised for deep-freeze applications
Thanks to the scroll yield mechanism, the compressors are particularly robust against liquid slugging
Models are available with liquid injection, vapour injection or both methods to limit discharge temperatures and significantly increase capacity and efficiency
ZFD variants also offer digital capacity modulation
Wide operating range, low condensing temperatures for high efficiency
one compressor type for multiple refrigerants (R407A/F, R448A/R449A, R404A, and in some cases R134a)
Compact, lightweight design (up to about half the weight of comparable semi-hermetic piston compressors)
Optional soundproofing hood for additional noise reduction
Models with liquid and/or vapour injection for significantly increased system performance and efficiency
Digital ZFD models for stepless capacity adjustment
Maximum permissible operating pressure (PS): ZF06 to ZF18 (K4E/KVE): ND 21 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): ZF25 to ZF54 (K5E): ND 22.6 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): Digital ZFD: ND 22.6 bar(g) / HD 32 bar(g)
Technical details
LBP application range
Number of phases: 3
Design: Hermetic
COP 1.06
dB(A) @ 1 m 63
dB(A) 76
Pressure line (inches) 1"
Electronics included
Recommended crankcase heater 70
Frequency 50–60 Hz
Weight 28
Air flow rate 9.95 m³/h
Cooling capacity (kW) 28
Refrigerant R22
Refrigerant R404A
Refrigerant R407A
Refrigerant R407F
Refrigerant R448A
Refrigerant R449A
Capacity at operating conditions: -35°C evap, temp; 40°C cond, temp; 20°C suction gas return; 0 K subcooling for R-448A at 50 Hz
Power consumption [kW] 1.96
Max. operating current (A) 7.1
Max. operating pressure ND/HD [bar(g)] 21/28.8
Motor code TFD
Oil pre-filled
Oil capacity (l) 1.50
Oil type POE
Product family ZF
Suction line (inches) 1 3/4"
Protection class IP21
Compression type: Scroll
Supply voltage 380–420 V
Supply voltage 460 V
Advantages and benefits
High efficiency thanks to a wide operating range and low condensing temperatures
Versatility thanks to the use of multiple refrigerants
Lightweight and compact design enables easy installation
Digital capacity modulation for flexible adaptation to operating conditions
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZF15K4E-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
Regular price:
From
€1,595.79
47-32ZF15
Copeland ZF15K4E-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
The Copeland ZF15K4E-TFD-551 scroll compressor is designed for low-temperature refrigeration applications using the refrigerants R407A/F, R448A/R449A and R404A. It offers a robust solution for deep-freeze applications and features a scroll yield mechanism that makes it particularly resistant to liquid slugging.
The series operates across a wide evaporator temperature range of approximately −40 °C to +7 °C
Thanks to the scroll yield mechanism, the compressors are particularly robust against liquid slugging
Models are available with liquid injection, vapour injection or both methods to limit discharge temperatures and significantly increase capacity and efficiency
ZFD variants also offer digital capacity modulation
Wide operating range, low condensing temperatures for high efficiency
one compressor type for multiple refrigerants (R407A/F, R448A/R449A, R404A, and in some cases R134a)
Compact, lightweight design (up to about half the weight of comparable semi-hermetic piston compressors)
Optional soundproofing hood for additional noise reduction
Models with liquid and/or vapour injection for significantly increased system performance and efficiency
Digital ZFD models for stepless capacity adjustment
Maximum permissible operating pressure (PS): ZF06 to ZF18 (K4E/KVE): ND 21 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): ZF25 to ZF54 (K5E): ND 22.6 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): Digital ZFD: ND 22.6 bar(g) / HD 32 bar(g)
Technical details
Application range: LBP
Number of phases: 3
Design: Hermetic
COP: 1.09
dB(A) @ 1 m: 65
dB(A): 78
Pressure line (inches): 1"
Electronics: included
Recommended crankcase heater: 70
Frequency: 50–60 Hz
Weight: 39
Air flow rate: 14.4 m³/h
Cooling capacity (kW): 31
Refrigerant: R22
Refrigerant: R404A
Refrigerant: R407A
Refrigerant: R407F
Refrigerant: R448A
Refrigerant: R449A
Capacity under operating conditions: -35°C evap, temp; 40°C cond, temp; 20°C suction gas return; 0 K subcooling for R-448A at 50 Hz
Power consumption [kW]: 2.75
Max. operating current (A): 10
Max. operating pressure ND/HD [bar(g)]: 21/28.8
Motor code: TFD
Oil: pre-filled
Oil capacity (l): 1.70
Oil type: POE
Product family: ZF
Suction line (inches): 1 1/4"
Protection class: IP21
Compression type: Scroll
Supply voltage: 380–420 V
Supply voltage: 460V
Advantages and benefits
High efficiency thanks to a wide operating range and low condensing temperatures
Versatility thanks to the use of multiple refrigerants
Lightweight and compact design enables easy installation
Digital capacity modulation for flexible adaptation to operating conditions
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZH09KVE-TFD-526 Scroll Compressor for Heat Pumps, R407C
Regular price:
€1,745.36
47-32ZH09-KVE
Copeland ZH09KVE-TFD-526 Scroll Compressor for Heat Pumps, R407C
The Copeland ZH09KVE-TFD-526 is a fixed-speed heating compressor designed for heat pump and reversible applications. It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating.
Copeland ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A)
The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kW
ZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiency
Variants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compression
This extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilers
Axial and radial flexibility of the scrolls ensures high reliability
High efficiency and increased heating capacity, even at low source temperatures
High water temperatures for various heating systems
Low noise and vibration levels
Tandem configurations possible for improved seasonal efficiency
Extended vapour injection (EVI) for maximum output and efficiency
Maximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g)
Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g)
Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g)
Technical details
Dimensions (length × width × height) 24.3 × 24.3 × 38.6 cm
Application range HBP
Application range HT
Number of phases 3
Design Hermetic
COP 3.53
dB(A) @ 1 m 62
dB(A) 73
Pressure line (inches) 1/2"
Electronics included
Frequency 50–60 Hz
Weight 29.9
Displacement 8 m³/h
Cooling capacity (kW) 9.16
Refrigerant R407C
Capacity under operating conditions: 7.2°C evap, temp; 54.4°C cond, temp; R407C at 50 Hz
Power consumption [kW] 1.79
Max. operating current (A) 6.5
Max. operating pressure (low/high) [bar(g)] 22.6/32
Motor code TFD
Oil pre-filled
Oil capacity (l) 1.50
Oil type POE
Product family ZH
Suction pipe (inches) 3/4"
Compression type: Scroll
Supply voltage 380–420 V
Supply voltage 460V
Advantages and benefits
High efficiency and heating output, even at low source temperatures
Low noise and vibration levels for quiet operation
Tandem combinations enable improved seasonal efficiency
Enhanced vapour injection (EVI) ensures maximum performance and efficiency
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZH15K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
€888.72
47-32ZH15-K4E
Copeland ZH15K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407CThe Copeland ZH15K4E-TFD-524 is a fixed-speed heating compressor designed for heat pump and reversible applications. It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating.Copeland ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A)The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kWZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiencyVariants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compressionThis extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilersAxial and radial flexibility of the scrolls ensures high reliabilityHigh efficiency and increased heating capacity, even at low source temperaturesHigh water temperatures for various heating systemsLow noise and vibration levelsTandem configurations possible for improved seasonal efficiencyExtended vapour injection (EVI) for maximum output and efficiencyMaximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g)Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g)Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g)Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g)Technical detailsDimensions (length × width × height) 24.3 × 24.3 × 36.4 cmApplication range: HBPApplication range HTNumber of phases 3Design HermeticCOP 3.38dB(A) @ 1 m 60dB(A) 71Pressure line (inches) 1/2"Electronics includedFrequency 50–60 HzWeight 26Displacement 5.76 m³/hCooling capacity (kW) 5.73Refrigerant R134ARefrigerant R407CCapacity under operating conditions: 7.2°C evap. temp., 54.4°C cond. temp., for R-407C at 50 HzPower consumption [kW] 1.13Max. operating current (A) 4.1Max. operating pressure (low/high) [bar(g)] 22.6/32Motor code TFDPre-filled with oilOil capacity (l) 1.30Oil type POEProduct family ZHSuction pipe (inches) 3/4"Compression type: ScrollSupply voltage 380–420 VSupply voltage 460VAdvantages and benefitsHigh efficiency and heating output, even at low source temperaturesLow noise and vibration levels for quiet operationOptimised performance through enhanced vapour injection (EVI)Tandem combinations enable improved seasonal efficiency
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZH18KVE-TFD-526 Scroll Compressor for Heat Pumps, R407C
Regular price:
€2,017.10
47-32ZH18-KVE
Copeland ZH18KVE-TFD-526 Scroll Compressor for Heat Pumps, R407CThe Copeland ZH18KVE-TFD-526 is a fixed-speed heating compressor designed for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A). It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating.ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A)The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kWZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiencyVariants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compressionThis extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilersAxial and radial flexibility of the scrolls ensures high reliabilityHigh efficiency and increased heating capacity, even at low source temperaturesHigh water temperatures for various heating systemsLow noise and vibration levelsTandem configurations possible for improved seasonal efficiencyExtended vapour injection (EVI) for maximum output and efficiencyMaximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g)Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g)Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g)Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g)Technical detailsDimensions (length × width × height) 24.4 × 24.1 × 43.8 cmApplication range HBPApplication range HTNumber of phases 3Design: HermeticCOP 3.61dB(A) @ 1 m 67dB(A) 78Pressure line (inches) 1/2"Electronics includedFrequency 50–60 HzWeight 40Displacement 17.1 m³/hCooling capacity (kW) 18.75Refrigerant R407CCapacity under operating conditions: 7.2°C evap, temp; 54.4°C cond, temp; R407C at 50 HzPower consumption [kW] 3.67Max. operating current (A) 14Max. operating pressure (low/high) [bar(g)] 22.6/32Motor code TFDOil pre-filledOil capacity (l) 1.90Oil type POEProduct family ZHSuction line (inches) 7/8"Compression type: ScrollSupply voltage 380–420 VSupply voltage 460VAdvantages and benefitsHigh efficiency and heating output, even at low source temperaturesLow noise and vibration levels for quiet operationOptimised for low evaporation temperatures, which reduces the need for supplementary heatingTandem combinations possible to improve seasonal efficiency
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZH21K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
€1,010.31
47-32ZH21-K4E
Copeland ZH21K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
The Copeland ZH21K4E-TFD-524 is a fixed-speed heating compressor designed for heat pump and reversible applications. It offers high heating capacity and efficiency, thereby reducing the need for additional electric or gas-fired heating.
ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A)
The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kW
ZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiency
Variants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compression
This extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilers
Axial and radial flexibility of the scrolls ensures high reliability
High efficiency and increased heating capacity, even at low source temperatures
High water temperatures for various heating systems
Low noise and vibration levels
Tandem configurations possible for improved seasonal efficiency
Extended vapour injection (EVI) for maximum output and efficiency
Maximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g)
Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g)
Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g)
Technical details
Dimensions (length × width × height) 24.3 × 24.2 × 38.7 cm
Application range HBP
Application range HT
Number of phases 3
Design Hermetic
COP 3.47
dB(A) @ 1 m 59
dB(A) 72
Pressure line (inches) 1/2"
Electronics included
Recommended crankcase heater 70
Frequency 50–60 Hz
Weight 27
Airflow 8 m³/h
Cooling capacity (kW) 83
Refrigerant R134A
Refrigerant R407C
Capacity under operating conditions: 7.2°C evap. temp., 54.4°C cond. temp., for R-407C at 50 Hz
Power consumption [kW] 1.56
Max. operating current (A) 5.6
Max. operating pressure (low/high) [bar(g)] 22.6/32
Motor code TFD
Pre-filled with oil
Oil capacity (l) 1.50
Oil type POE
Product family ZH
Suction pipe (inches) 3/4"
Compression type: Scroll
Supply voltage 380–420 V
Supply voltage 460V
Advantages and benefits
High efficiency and heating output even at low source temperatures
Low noise and vibration levels for quiet operation
Tandem combinations enable improved seasonal efficiency
Extended vapour injection (EVI) ensures maximum performance and efficiency
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified technician.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZH26K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
From
€922.09
47-32ZH26-K4E
Copeland ZH26K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407CThe Copeland ZH scroll compressor is a fixed-speed heating compressor designed for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A). It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating.ZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiencyVariants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compressionKey features:Axial and radial flexibility of the scrolls for high reliabilityHigh efficiency and increased heating output, even at low source temperaturesHigh water temperatures for various heating systemsLow noise and vibration levelsTandem configurations possible for improved seasonal efficiencyExtended vapour injection (EVI) for maximum output and efficiencyMaximum permissible operating pressure (PS):ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g)ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g)ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g)ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g)Technical detailsDimensions (length × width × height) 24.3 × 24.2 × 40 cmApplication range HBPApplication range HTNumber of phases 3Design HermeticCOP 3.53dB(A) @ 1 m 63dB(A) 75Pressure line (inches) 1/2"Electronics includedRecommended crankcase heater 70Frequency 50–60 HzWeight 28Air flow rate 10 m³/hCooling capacity (kW) 9.99Refrigerant R134ARefrigerant R407CCapacity at operating conditions: 7.2°C evap, temp; 54.4°C cond, temp, for R407C at 50 HzPower consumption [kW] 1.96Max. operating current (A) 7Max. operating pressure ND/HD [bar(g)] 22.6/32Motor code TFDPre-filled with oilOil capacity (l) 3.10Oil type POEProduct family ZHSuction pipe (inches) 3/4"Compression type: ScrollSupply voltage 380–420 VSupply voltage 460VAdvantages and benefitsHigh efficiency and heating output, even at low source temperaturesLow noise and vibration levels for quiet operationOptimised performance through enhanced vapour injection (EVI)Tandem combinations enable improved seasonal efficiency
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZH30K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
From
€1,060.29
47-32ZH30-K4E
Copeland ZH30K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
The Copeland ZH30K4E-TFD-524 is a fixed-speed heating compressor designed for heat pump and reversible applications. It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating.
Copeland ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A)
The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kW
ZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiency
Variants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compression
This extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilers
Axial and radial flexibility of the scrolls ensures high reliability
High efficiency and increased heating capacity, even at low source temperatures
High water temperatures for various heating systems
Low noise and vibration levels
Tandem configurations possible for improved seasonal efficiency
Extended vapour injection (EVI) for maximum output and efficiency
Maximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g)
Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g)
Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g)
Technical details
Dimensions (length × width × height) 24.7 × 24.1 × 43.8 cm
Application range HBP
Application range HT
Number of phases 3
Design: Hermetic
COP 3.47
dB(A) @ 1 m 62
dB(A) 73
Pressure line (inches) 1/2"
Electronics included
Frequency 50–60 Hz
Weight 42
Displacement 11.7 m³/h
Cooling capacity (kW) 11.7
Refrigerant R134A
Refrigerant R407C
Capacity under operating conditions: 7.2°C evap. temp., 54.4°C cond. temp., for R407C at 50 Hz
Power consumption [kW] 2.28
Max. operating current (A) 8.23
Max. operating pressure (low/high) [bar(g)] 22.6/32
Motor code TFD
Oil pre-filled
Oil capacity (l) 1.90
Oil type POE
Product family ZH
Suction line (inches) 7/8"
Compression type: Scroll
Supply voltage 380–420 V
Supply voltage 460V
Advantages and benefits
High efficiency and heating output, even at low source temperatures
Low noise and vibration levels for quiet operation
Tandem combinations enable improved seasonal efficiency
Enhanced vapour injection (EVI) ensures maximum performance and efficiency
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip

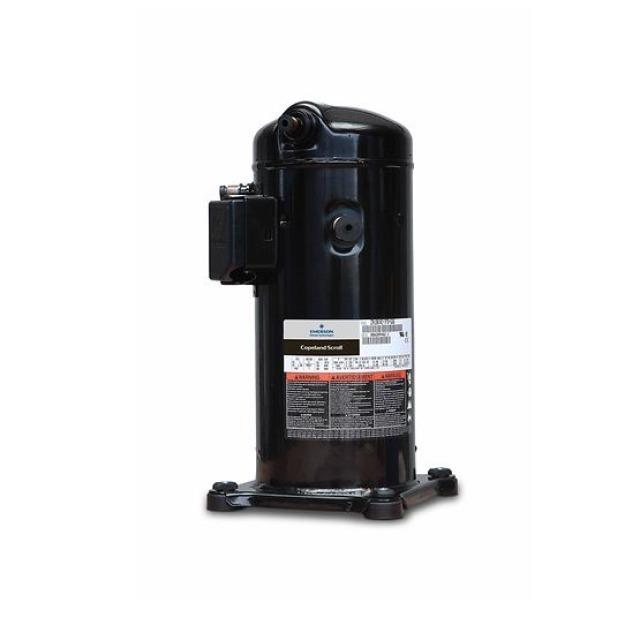

Copeland ZH38K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
€1,178.10
47-32ZH38-K4E
Copeland ZH38K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407CThe Copeland ZH38K4E-TFD-524 is a fixed-speed heating compressor designed for heat pump and reversible applications. It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating.Copeland ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A)The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kWZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiencyVariants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compressionThis extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilersAxial and radial flexibility of the scrolls ensures high reliabilityHigh efficiency and increased heating capacity, even at low source temperaturesHigh water temperatures for various heating systemsLow noise and vibration levelsTandem configurations possible for improved seasonal efficiencyExtended vapour injection (EVI) for maximum output and efficiencyMaximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g)Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g)Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g)Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g)Technical detailsDimensions (length × width × height) 24.7 × 24.1 × 43.8 cmApplication range HBPApplication range HTNumber of phases 3Design: HermeticCOP 3.54dB(A) @ 1 m 63dB(A) 74Pressure line (inches) 1/2"Electronics includedRecommended crankcase heater 70Frequency 50–60 HzWeight 38Airflow 14.4 m³/hCooling capacity (kW) 14.55Refrigerant R134ARefrigerant R407CCapacity under operating conditions: 7.2°C evap. temp., 54.4°C cond. temp., for R407C at 50 HzPower consumption [kW] 2.84Max. operating current (A) 10.1Max. operating pressure (low/high) [bar(g)] 22.6/32Motor code TFDOil pre-filledOil capacity (l) 1.90Oil type POEProduct family ZHSuction line (inches) 7/8"Compression type: ScrollSupply voltage 380–420 VSupply voltage 460VAdvantages and benefitsHigh efficiency and heating output, even at low source temperaturesLow noise and vibration levels for quiet operationOptimised performance through enhanced vapour injection (EVI)Tandem combinations enable improved seasonal efficiency
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZH45K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
From
€1,251.71
47-32ZH45-K4E
Copeland ZH45K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
The Copeland ZH45K4E-TFD-524 is a fixed-speed heating compressor designed for heat pump and reversible applications. It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating.
Copeland ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A)
The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kW
ZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiency
Variants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compression
This extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilers
Axial and radial flexibility of the scrolls ensures high reliability
High efficiency and increased heating capacity, even at low source temperatures
High water temperatures for various heating systems
Low noise and vibration levels
Tandem configurations possible for improved seasonal efficiency
Extended vapour injection (EVI) for maximum output and efficiency
Maximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g)
Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g)
Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g)
Technical details
Dimensions (length × width × height) 25 × 24.6 × 43.8 cm
Application range HBP
Application range HT
Number of phases 3
Design: Hermetic
COP 3.44
dB(A) @ 1 m 64
dB(A) 75
Pressure line (inches) 1/2"
Electronics included
Recommended crankcase heater 70
Frequency 50–60 Hz
Weight 40
Airflow 17.1 m³/h
Cooling capacity (kW) 17.15
Refrigerant R134A
Refrigerant R407C
Capacity at operating conditions: 7.2°C evap, temp; 54.4°C cond, temp, for R407C at 50 Hz
Power consumption [kW] 3.35
Max. operating current (A) 11.8
Max. operating pressure (low/high) [bar(g)] 22.6/32
Motor code TFD
Pre-filled with oil
Oil capacity (l) 1.9
Oil type POE
Product family ZH
Suction line (inches) 7/8"
Compression type: Scroll
Supply voltage 380–420 V
Supply voltage 460V
Advantages and benefits
High efficiency and heating output, even at low source temperatures
Low noise and vibration levels for quiet operation
Tandem combinations enable improved seasonal efficiency
Enhanced vapour injection (EVI) ensures maximum performance and efficiency
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZH56K4E-TWD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
€1,892.10
47-32ZH56-K4E
Copeland ZH56K4E-TWD-524 Scroll Compressor for Heat Pumps R134A/R407C
The Copeland ZH56K4E-TWD-524 is a fixed-speed heating compressor designed for heat pump and reversible applications. It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating.
Copeland ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A)
The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kW
ZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas heating – resulting in correspondingly better seasonal efficiency
Variants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compression
This extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilers
Axial and radial flexibility of the scrolls ensures high reliability
High efficiency and increased heating capacity, even at low source temperatures
High water temperatures for various heating systems
Low noise and vibration levels
Tandem configurations possible for improved seasonal efficiency
Extended vapour injection (EVI) for maximum output and efficiency
Maximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g)
Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g)
Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g)
Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g)
Technical details
Dimensions (length × width × height) 35.7 × 32.1 × 49.7 cm
Application range HBP
Application range HT
Number of phases 3
Design: Hermetic
dB(A) @ 1 m 69
Pressure line (inches) 7/8"
Electronics included
Recommended crankcase heater 70
Frequency 50–60 Hz
Weight 93
Airflow 20.9 m³/h
Cooling capacity (kW) 21.2
Refrigerant R134A
Refrigerant R407C
Capacity under operating conditions: 7.2°C evap. temp., 54.4°C cond. temp., R407C at 50 Hz
Max. operating current (A) 17
Motor code TWD
Oil pre-filled
Oil quantity (l) 4.0
Oil type: POE
Product family ZH
Suction line (inches) 1 3/8"
Compression type: Scroll
Supply voltage 380–420 V
Supply voltage 460V
Advantages and benefits
High efficiency and heating output, even at low source temperatures
Low noise and vibration levels for quiet operation
Optimised for low evaporation temperatures, which reduces the need for supplementary heating
Tandem combinations enable improved seasonal efficiency
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZP36KSE-TFM-522 Scroll Compressor for Air Conditioning/Heat Pumps R410A
Regular price:
€998.41
47-32ZP36
Copeland ZP36KSE-TFM-522 Scroll Compressor for Air Conditioning/Heat Pumps R410AThe Copeland ZP scroll compressor for R410A is designed for comfort and precision cooling. It is particularly suitable for air-cooled chillers up to approx. 600 kW (up to approx. 730 kW for water-cooled systems) and offers high seasonal efficiency (SEER/SEPR/SCOP) whilst maintaining compact dimensions.ZP compressors can be used in single, tandem and trio configurations, making them highly flexible in system designThe ZP104, ZP122 and ZP143KCE models for light commercial applications have a reduced footprint and low weight, enabling compact, efficient systems with low running costsCertified tandem and trio combinations (including mixed combinations) for high seasonal efficiencyCopeland Scroll technology with axial and radial flexibility for high reliability and efficiencyExtended operating range (suitable for heat pump applications, amongst others)Extensive range of R410A scroll units with low noise and vibration levelsLow oil carry-overMaximum permissible operating pressure (PS):ZP24 to ZP91: ND 29.5 bar(g) / HD 45 bar(g)ZP104 to ZP485: ND 29.5 bar(g) / HD 45 bar(g)Technical detailsDimensions (length × width × height) 24.2 × 24.2 × 41.8 cmHBP application rangeApplication range ACNumber of phases 3Design HermeticdB(A) @ 1 m 57Pressure line (inches) 1/2"Electronics includedRecommended crankcase heater 70Frequency 50 HzWeight 29.4Air flow rate 63 m³/hCooling capacity (kW) 7.70Refrigerant R410ACapacity under operating conditions: 5°C evaporator temperature; 50°C condenser temperature; 10 K suction superheat; 0 K subcooling for R-410A at 50 HzMax. operating current (A) 7Motor code TFMPre-filled oilOil quantity (l) 1.25Oil type: POEProduct family ZPSuction pipe (inches) 7/8"Compression type: ScrollSupply voltage 380–420 VAdvantages and benefitsHigh seasonal efficiency thanks to certified Tandem and Trio combinationsHigh reliability and efficiency thanks to Copeland Scroll technologyFlexibility in system design thanks to various configurationsLow noise and vibration levels for quiet operation
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified specialist.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZP54KUE-TFM-50E Scroll Compressor for Air Conditioning/Heat Pumps R410A
Regular price:
€1,081.71
47-32ZP54
Copeland ZP54KUE-TFM-50E Scroll Compressor for Air Conditioning/Heat Pumps R410AThe Copeland ZP scroll compressor for R410A is designed for comfort and precision cooling. It is particularly suitable for air-cooled chillers up to approx. 600 kW and offers high seasonal efficiency whilst maintaining compact dimensions.Copeland ZP scroll compressors for R410A are designed for comfort and precision coolingThey are particularly suitable for air-cooled chillers up to approx. 600 kW (up to approx. 730 kW for water-cooled systems)High seasonal efficiency (SEER/SEPR/SCOP) combined with compact dimensionsZP compressors can be used in single, tandem and trio configurationsThe ZP104, ZP122 and ZP143KCE models for light commercial applications feature a reduced footprint and low weightCertified tandem and trio combinations (including mixed combinations) for high seasonal efficiencyCopeland scroll technology with axial and radial flexibility for high reliability and efficiencyExtended operating range (suitable for heat pump applications, amongst others)Extensive range of R410A scroll units with low noise and vibration levelsLow oil carryoverMaximum permissible operating pressure (PS): ZP24 to ZP91: ND 29.5 bar(g) / HD 45 bar(g); ZP104 to ZP485: ND 29.5 bar(g) / HD 45 bar(g)Technical detailsDimensions (length × width × height) 24.6 × 24.6 × 44.3 cmHBP application rangeApplication range ACNumber of phases 3Design HermeticCOP 2.96dB(A) @ 1 m 58dB(A) 69Pressure line (inches) 1/2"Electronics includedRecommended crankcase heater 70Frequency 50 HzWeight 38.1Airflow 8.93 m³/hCooling capacity (kW) 11.75Refrigerant R410ACapacity under operating conditions: 5°C evaporator temperature; 50°C condenser temperature; 10 K suction superheat; 0 K subcooling for R-410A at 50 HzPower consumption [kW] 3.98Max. operating current (A) 10Max. operating pressure (low/high) [bar(g)] 29.5/45Motor code TFMOil pre-filledOil capacity (l) 1.95Oil type POEProduct family ZPSuction pipe (inches) 7/8"Protection class IP21Compression type: ScrollSupply voltage 380–420 VAdvantages and benefitsHigh seasonal efficiency thanks to certified tandem and trio combinationsCompact design enables efficient systems with low running costsHigh reliability and efficiency thanks to Copeland Scroll technologyExtended operating range for versatile applications
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZP61KCE-TFD-522 Scroll Compressor for Air Conditioning/Heat Pumps R410A
Regular price:
From
€1,060.29
47-32ZP61
Copeland ZP61KCE-TFD-522 Scroll Compressor for Air Conditioning/Heat Pumps R410A
The Copeland ZP scroll compressor for R410A is designed for comfort and precision cooling. It is particularly suitable for air-cooled chillers up to approx. 600 kW (up to approx. 730 kW for water-cooled systems) and offers high seasonal efficiency (SEER/SEPR/SCOP) whilst maintaining compact dimensions.
ZP compressors can be used in single, tandem and trio configurations, making them highly flexible in system design
The ZP104, ZP122 and ZP143KCE models for light commercial applications have a reduced footprint and low weight, enabling compact, efficient systems with low operating costs
Certified tandem and trio combinations (including mixed combinations) for high seasonal efficiency
Copeland Scroll technology with axial and radial flexibility for high reliability and efficiency
Extended operating range (suitable for heat pump applications, amongst others)
Extensive range of R410A scroll units with low noise and vibration levels
Low oil carry-over
Maximum permissible operating pressure (PS): ZP24 to ZP91: ND 29.5 bar(g) / HD 45 bar(g)
Maximum permissible operating pressure (PS): ZP104 to ZP485: ND 29.5 bar(g) / HD 45 bar(g)
Technical details
Dimensions (length × width × height) 24.5 × 24.9 × 44 cm
Scope of application HBP
Application range AC
Number of phases 3
Design: Hermetic
dB(A) @ 1 m 60
Pressure line (inches) 1/2"
Electronics included
Recommended crankcase heater 70
Frequency 50–60 Hz
Weight 40
Air flow rate 10.1 m³/h
Cooling capacity (kW) 13.07
Refrigerant R410A
Capacity under operating conditions: 5°C evaporator temperature; 50°C condenser temperature; 10 K suction superheat; 0 K subcooling for R-410A at 50 Hz
Max. operating current (A) 12
Motor code: TFD
Oil pre-filled
Oil quantity (l) 1.66
Oil type: POE
Product family ZP
Suction line (inches) 7/8"
Compression type: Scroll
Supply voltage 380–420 V
Supply voltage 460V
Advantages and benefits
High seasonal efficiency thanks to certified Tandem and Trio combinations
High reliability and efficiency thanks to Copeland Scroll technology
Flexibility in system design thanks to various configuration options
Low noise and vibration levels for quiet operation
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZP83KCE-TFD-522 Scroll Compressor for Air Conditioning/Heat Pumps R410A
Regular price:
€1,416.10
47-32ZP83
Copeland ZP83KCE-TFD-522 Scroll Compressor for Air Conditioning/Heat Pumps R410A
The Copeland ZP scroll compressor for R410A is designed for comfort and precision cooling. It is particularly suitable for air-cooled chillers up to approx. 600 kW (up to approx. 730 kW for water-cooled systems) and offers high seasonal efficiency (SEER/SEPR/SCOP) whilst maintaining compact dimensions. ZP compressors can be used in single, tandem and trio configurations, making them highly flexible in system design.
Copeland ZP scroll compressors for R410A are designed for comfort and precision cooling
They are particularly suitable for air-cooled chillers up to approx. 600 kW (up to approx. 730 kW for water-cooled systems)
High seasonal efficiency (SEER/SEPR/SCOP) combined with compact dimensions
ZP compressors can be used in single, tandem and trio configurations
Key features:
Certified tandem and trio combinations (including mixed combinations) for high seasonal efficiency
Copeland Scroll technology with axial and radial flexibility for high reliability and efficiency
Extended operating range (suitable for heat pump applications, amongst others)
Wide range of R410A scroll models with low noise and vibration levels
Low oil carryover
Maximum permissible operating pressure (PS):
ZP24 to ZP91: ND 29.5 bar(g) / HD 45 bar(g)
ZP104 to ZP485: ND 29.5 bar(g) / HD 45 bar(g)
Technical details
Dimensions (length × width × height) 24.6 × 24.6 × 44.3 cm
Scope of application HBP
Application range AC
Number of phases 3
Design Hermetic
COP 3.06
dB(A) @ 1 m 61
dB(A) 75
Pressure line (inches) 1/2"
Electronics included
Recommended crankcase heater 70
Frequency 50–60 Hz
Weight 40
Air flow rate 13.4 m³/h
Cooling capacity (kW) 17.65
Refrigerant R410A
Capacity under operating conditions: 5°C evaporator temperature; 50°C condenser temperature; 10 K suction superheat; 0 K subcooling for R-410A at 50 Hz
Power consumption [kW] 5.77
Max. operating current (A) 15
Max. operating pressure ND/HD [bar(g)] 29.5/45
Motor code TFD
Oil pre-filled
Oil capacity (l) 1.77
Oil type POE
Product family ZP
Suction pipe (inches) 7/8"
Protection class IP21
Compression type: Scroll
Supply voltage 380–420 V
Supply voltage 460 V
Advantages and benefits
High seasonal efficiency thanks to certified Tandem and Trio combinations
High reliability and efficiency thanks to Copeland Scroll technology
Flexibility in system design thanks to various configurations
Low noise and vibration levels for quiet operation
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified specialist.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZR125KCE-TFD-550 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
From
€1,990.16
47-32ZR125
Copeland ZR125KCE-TFD-550 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407CThe Copeland ZR scroll compressor is designed for comfort, process and precision cooling using the refrigerants R513A, R407C and R134a. Typical applications include chilled water chillers, rooftop air-handling units and precision air-handling units.Copeland ZR scroll compressors are designed for comfort, process and precision cooling using the refrigerants R513A, R407C and R134aTypical applications include chillers, rooftop air-handling units and precision air-handling unitsBy using multiple Copeland-certified tandem and trio combinations, higher capacities (e.g. air-cooled chillers up to approx. 500 kW) can also be achieved with high seasonal efficiencySpecial ZR models for R513A (GWP 631) are available to meet current requirements for low GWP valuesThe series covers approximately 2 HP to 30 HP (ZR24–ZR380 for R407C/R134a, ZR24KRE–ZR190KRE for R513A/R407C/R134a) and, thanks to low superheat (approx. 5 K), enables good system optimisation and cost reductionAxial and radial flexibility of the scrolls ensures high reliability and efficiencyExtensive ZR range for R407C, R134a and R513ALow TEWI (Total Equivalent Warming Impact)Low noise and vibration levelsLow oil carryoverCopeland-certified tandem and trio configurations for high seasonal efficiencyMaximum permissible operating pressure (PS): ZR24 to ZR81: ND 21 bar(g) / HD 29 bar(g)Maximum permissible operating pressure (PS): ZR108 to ZR380: ND 20 bar(g) / HD 32 bar(g)Technical detailsDimensions (length × width × height) 26.4 × 28.5 × 53.3 cmApplication range ACApplication range HBPMBP application rangeNumber of phases 3Design: HermeticCOP 3.35dB(A) @ 1 m 63Pressure line (inches) 7/8"Electronics includedRecommended crankcase heater 90Frequency 50–60 HzWeight 61.2Airflow 29.1 m³/hCooling capacity (kW) 27Refrigerant R134ARefrigerant R22Refrigerant R407CCapacity under operating conditions: 5°C evap. temp.; 50°C cond. temp.; 10 K suction superheat; 0 K subcooling for R-407C at 50 HzMax. operating current (A) 19.6Motor code TFDPre-filled oilOil quantity (l) 3.38Oil type: POEProduct family ZRSuction pipe (inches) 1 3/8"Compression type: ScrollSupply voltage 380–420 VSupply voltage 460VAdvantages and benefitsHigh reliability and efficiency thanks to the axial and radial flexibility of the scrollsLow noise and vibration levels ensure quiet operationOptimal system adaptation and cost reduction thanks to low overheatingHigh seasonal efficiency thanks to certified tandem and trio configurations
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZR160KCE-TFD-455 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
From
€2,452.59
47-32ZR160
Copeland ZR160KCE-TFD-455 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407CThe Copeland ZR160KCE-TFD-455 scroll compressor is designed for comfort, process and precision cooling using the refrigerants R513A, R407C and R134a. Typical applications include chillers, rooftop air-handling units and precision air-handling units.li>Copeland ZR scroll compressors are designed for comfort, process and precision cooling using the refrigerants R513A, R407C and R134aTypical applications include chillers, rooftop air-handling units and precision air-handling unitsBy using several Copeland-certified tandem and trio combinations, higher capacities (e.g. air-cooled chillers up to approx. 500 kW) can also be achieved with high seasonal efficiencySpecial ZR models for R513A (GWP 631) are available to meet current requirements for low GWP valuesThe series covers approximately 2 HP to 30 HP (ZR24–ZR380 for R407C/R134a, ZR24KRE–ZR190KRE for R513A/R407C/R134a) and, thanks to low superheat (approx. 5 K), enables good system optimisation and cost reductionAxial and radial flexibility of the scrolls ensures high reliability and efficiencyExtensive ZR range for R407C, R134a and R513ALow TEWI (Total Equivalent Warming Impact)Low noise and vibration levelsLow oil carryoverCopeland-certified tandem and trio configurations for high seasonal efficiencyMaximum permissible operating pressure (PS): ZR24 to ZR81: ND 21 bar(g) / HD 29 bar(g)Maximum permissible operating pressure (PS): ZR108 to ZR380: ND 20 bar(g) / HD 32 bar(g)Technical details<Dimensions (length × width × height) 28.1 × 28.5 × 55.2 cmApplication range ACApplication range HBPMBP application rangeNumber of phases 3Design: HermeticCOP 3.24dB(A) @ 1 m 67dB(A) 82Pressure line (inches) 7/8"Electronics includedRecommended crankcase heater 90Replacement for the following models: ZRT320K3E-TWD-870, ZRT320KCE-TFD-275Frequency 50–60 HzWeight 64.9Airflow rate 36.4 m³/hCooling capacity (kW) 33.4Refrigerant R134ARefrigerant R22Refrigerant R407CCapacity under operating conditions: 5°C evap. temp.; 50°C cond. temp.; 10 K suction superheat; 0 K subcooling for R-407C at 50 HzPower consumption [kW] 10.3Max. operating current (A) 28Max. operating pressure ND/HD [bar(g)] 20/32Motor code TFDOil pre-filledOil capacity (l) 3.38Oil type POEProduct family ZRSuction pipe (inches) 1 3/8"Protection class IP21Compression type: ScrollSupply voltage 380–420 VSupply voltage 460 VAdvantages and benefitsHigh reliability and efficiency thanks to the axial and radial flexibility of the scrollsLow noise and vibration levels ensure quiet operationHigh seasonal efficiency thanks to Copeland-certified tandem and trio configurationsOptimal system adaptation thanks to low superheat and a wide range of applications
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified service centre.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZR190KCE-TFD-455 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
€3,082.10
47-32ZR190
Copeland ZR190KCE-TFD-455 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407CThe Copeland ZR190KCE-TFD-455 scroll compressor is designed for comfort, process and precision cooling using the refrigerants R513A, R407C and R134a. Typical applications include chillers, rooftop air-handling units and precision air-handling units.Copeland ZR scroll compressors are designed for comfort, process and precision cooling using the refrigerants R513A, R407C and R134aTypical applications include chillers, rooftop air-handling units and precision air-handling unitsBy using several Copeland-certified tandem and trio combinations, higher capacities (e.g. air-cooled chillers up to approx. 500 kW) can also be achieved with high seasonal efficiencySpecial ZR models for R513A (GWP 631) are available to meet current requirements for low GWP valuesThe series covers approximately 2 HP to 30 HP (ZR24–ZR380 for R407C/R134a, ZR24KRE–ZR190KRE for R513A/R407C/R134a) and, thanks to low superheat (approx. 5 K), enables good system optimisation and cost reductionAxial and radial flexibility of the scrolls ensures high reliability and efficiencyExtensive ZR range for R407C, R134a and R513ALow TEWI (Total Equivalent Warming Impact)Low noise and vibration levelsLow oil carryoverCopeland-certified tandem and trio configurations for high seasonal efficiencyMaximum permissible operating pressure (PS): ZR24 to ZR81: ND 21 bar(g) / HD 29 bar(g)Maximum permissible operating pressure (PS): ZR108 to ZR380: ND 20 bar(g) / HD 32 bar(g)Technical detailsDimensions (length × width × height) 26.4 × 28.5 × 55.2 cmApplication range ACApplication range HBPMBP application rangeNumber of phases 3Design: HermeticCOP 3.2dB(A) @ 1 m 69Pressure line (inches) 7/8"Electronics includedRecommended crankcase heater 90Frequency 50–60 HzWeight 66.2Air flow rate 43.3 m³/hCooling capacity (kW) 39.33Refrigerant R134ARefrigerant R22Refrigerant R407CCapacity under operating conditions: 5°C evap. temp.; 50°C cond. temp.; 10 K suction superheat; 0 K subcooling for R-407C at 50 HzMax. operating current (A) 34Motor code TFDOil pre-filledOil quantity (l) 3.38Oil type: POEProduct family ZRSuction pipe (inches) 1 3/8"Compression type: ScrollSupply voltage 380–420 VSupply voltage 460VAdvantages and benefitsHigh reliability and efficiency thanks to the axial and radial flexibility of the scrollsLow noise and vibration levels ensure quiet operationOptimal system adaptation thanks to low overheatingHigh seasonal efficiency thanks to certified tandem and trio configurations
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified service centre.Electronics: The electronics are included in the scope of supply.
Tip
Copeland ZR22K3E-TFD-522 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
From
€789.91
47-32ZR22
Copeland ZR22K3E-TFD-522 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407CThe Copeland ZR scroll compressor is designed for comfort, process and precision cooling using the refrigerants R513A, R407C and R134a. Typical applications include chilled water chillers, rooftop air-handling units and precision air-handling units.Copeland ZR scroll compressors are designed for comfort, process and precision cooling using the refrigerants R513A, R407C and R134aTypical applications include chillers, rooftop air-handling units and precision air-handling unitsBy using multiple Copeland-certified tandem and trio combinations, higher capacities (e.g. air-cooled chillers up to approx. 500 kW) can also be achieved with high seasonal efficiencySpecial ZR models for R513A (GWP 631) are available to meet current requirements for low GWP valuesThe series covers approximately 2 HP to 30 HP (ZR24–ZR380 for R407C/R134a, ZR24KRE–ZR190KRE for R513A/R407C/R134a) and, thanks to low superheat (approx. 5 K), enables good system optimisation and cost reductionAxial and radial flexibility of the scrolls ensures high reliability and efficiencyExtensive ZR range for R407C, R134a and R513ALow TEWI (Total Equivalent Warming Impact)Low noise and vibration levelsLow oil carryoverCopeland-certified tandem and trio configurations for high seasonal efficiencyMaximum permissible operating pressure (PS): ZR24 to ZR81: ND 21 bar(g) / HD 29 bar(g)Maximum permissible operating pressure (PS): ZR108 to ZR380: ND 20 bar(g) / HD 32 bar(g)Technical detailsDimensions (length × width × height) 24.2 × 24.2 × 36.3 cmApplication range ACApplication range HBPMBP application rangeNumber of phases 3Design: HermeticCOP 2.97dB(A) @ 1 m 54dB(A) 68Pressure line (inches) 1/2"Electronics includedRecommended crankcase heater 70Frequency 50–60 HzWeight 22Airflow 5.34 m³/hCooling capacity (kW) 4.54Refrigerant R134ARefrigerant R22Refrigerant R407CCapacity under operating conditions: 5°C evap. temp.; 50°C cond. temp.; 10 K suction superheat; 0 K subcooling for R-407C at 50 HzPower consumption [kW] 1.53Max. operating current (A) 4.2Max. operating pressure ND/HD [bar(g)] 20/29.5Motor code TFDPre-filled with oilOil capacity (l) 1Oil type POEProduct family ZRSuction pipe (inches) 3/4"Protection class IP21Compression type: ScrollSupply voltage 380–420 VSupply voltage 460 VAdvantages and benefitsHigh reliability and efficiency thanks to the axial and radial flexibility of the scrollsLow noise and vibration levels ensure quiet operationOptimised system efficiency thanks to low superheatFlexibility of application thanks to a wide range of models for various refrigerants
Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified service centre.Electronics: The electronics are included in the scope of supply.
Our Bestselling Brands
over 17 Years
over 80000 Customers
over 10321 Products available
within 4 Days
About Us
Our Team
Overall, we distinguish ourselves through our desire not only to offer the largest Selection of Refrigeration, Air Conditioning and Ventilation Technology, but also to help our Customers make their Selection by providing the best possible Service.
The best Teams consist of strong, intelligent Individuals – each contributing their own Strengths. Meet Our talented Team, the People behind the Ideas that drive Frigopartners.
Get in Touch with Us, whether by Phone or Email, and we will be happy to deal with your enquiry and help you as quickly as possible!
Our Service
Kälte
Verdichter
Verdichter
Verdichter
Verdichter
Verdichter
Verdichter
Klima
Verdichter
Verdichter
Verdichter
Verdichter
Verdichter
Verdichter
Lüftung
Verdichter
Verdichter
Verdichter
Verdichter
Verdichter
