ECO Evaporator
Our online shop offers a wide range of high quality ECO condensers with fans of the LCE and KCE series at reasonable prices. KCE condensers are used in the field of refrigeration and air conditioning technology or industrial cooling, while LCE condensers are particularly suitable for mounting on small compressor units.Do you have some questions about this products?
- Your personal contact person
- Oumayma Ait Omar
- [email protected]
- +49 2554 912 983 9
-
Nicht das gefunden wonach Sie suchen?
Jetzt Ersatzteil anfragen
Delivery from

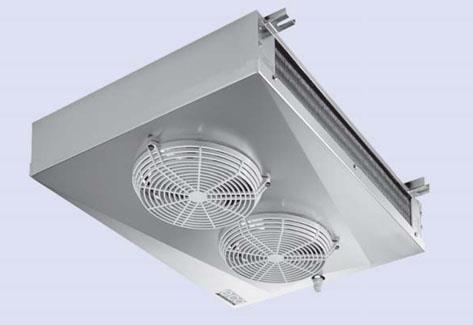

evaporator LUVATA (ECO) MIC200ED, with defrost
47-32MIC200ED
| Air flow: | 920 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 1660 |
| Design: | Design |
| Dimensions: | 730 x 650 x 185 |
| Dimensions ( length × width × height ): | 73.00 × 65.00 × 18.50 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 2 x 230 mm |
| Power range (W): | 1 - 1.5 kW |
| Series: | MIC |
| Slat spacing: | 4.5/9 mm |
| Temperature range In °C: | -25 °C (-35 to +40) |
| Throwing distance: | 2.5 m |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator ECO GCE254E4ED, 6.66 kW (dT 8 pcs., R404) with defrost
47-32GCE254E4ED
| Design: | Design |
|---|---|
| Dimensions ( length × width × height ): | 212.40 × 50.90 × 43.10 cm |
| Elektrische Abtauung: | Elektrische Abtauung |
| Manufacturer: | ECO, ECO Luvata |
| Power range (W): | 5 - 7 kW |
| Typ / Reihe: | GCE254E4ED |
Variants from €1,169.48*
Variants from €694.26*
Variants from €241.28*
Variants from €2,813.86*
Variants from €3,420.10*
Variants from €4,993.51*
Variants from €4,753.81*
Variants from €3,266.47*
Variants from €397.38*
Variants from €2,584.58*
Variants from €1,056.80*
Variants from €2,337.90*
Variants from €733.54*
Delivery from

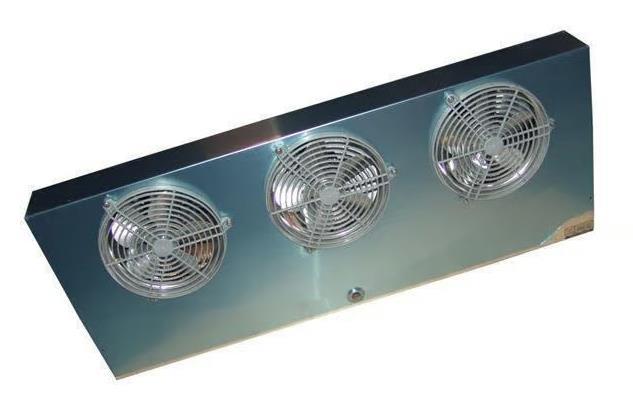

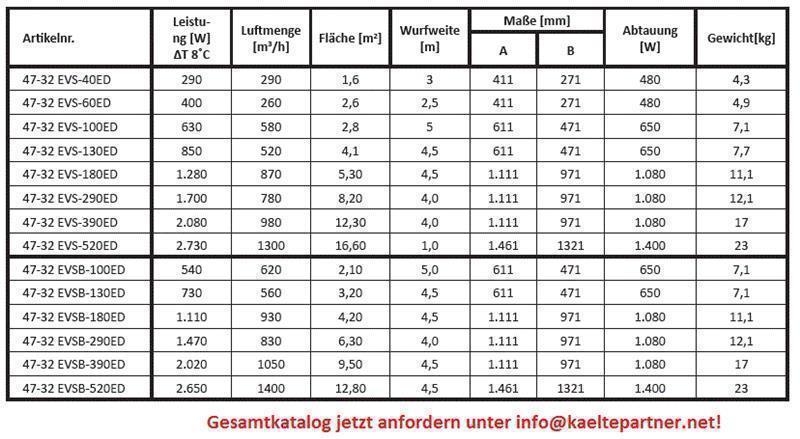

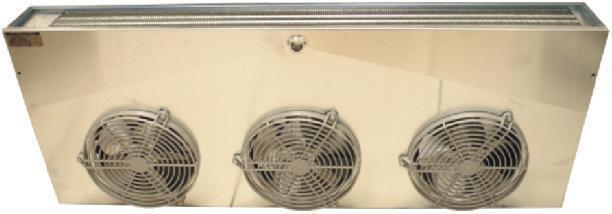

Evaporator ECO EVS-521ED, 3.29 kW, 1300 m3/h, fan 4x200 mm, el. defrosting
47-32EVS-521ED
| Design: | Design |
|---|---|
| Dimensions ( length × width × height ): | 146.10 × 132.10 × 17.00 cm |
| Manufacturer: | ECO, ECO Luvata |
| Power range (W): | 3 - 5 kW |
| Series: | EVS |
Delivery from
Evaporator LUVATA (ECO) CTE 45L8ED, 2.54 kW (dT 8 st., R404), with defrost
47-32CTE45L8ED
| Air flow: | 1560 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 2540 |
| Design: | Design |
| Dimensions: | 1030 x 395 x 402 |
| Dimensions ( length × width × height ): | 122.40 × 50.90 × 43.10 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 2 x 250 mm |
| Power range (W): | 2 - 3 kW |
| Series: | CTE |
| Slat spacing: | 8.5 mm |
| Temperature range In °C: | -35 °C (-35 to +40) |
| Throwing distance: | 10 m |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator LUVATA (ECO) CTE 86M6ED, 4.52 kW (dT 8 st., R404), with defrost
47-32CTE86M6ED
| Air flow: | 2250 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 4520 |
| Design: | Design |
| Dimensions: | 1380 x 395 x 402 |
| Dimensions ( length × width × height ): | 167.40 × 50.90 × 43.10 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 3 x 250 mm |
| Power range (W): | 3 - 5 kW |
| Series: | CTE |
| Slat spacing: | 6 mm |
| Temperature range In °C: | -15 °C (-35 to +40) |
| Throwing distance: | 11 m |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from

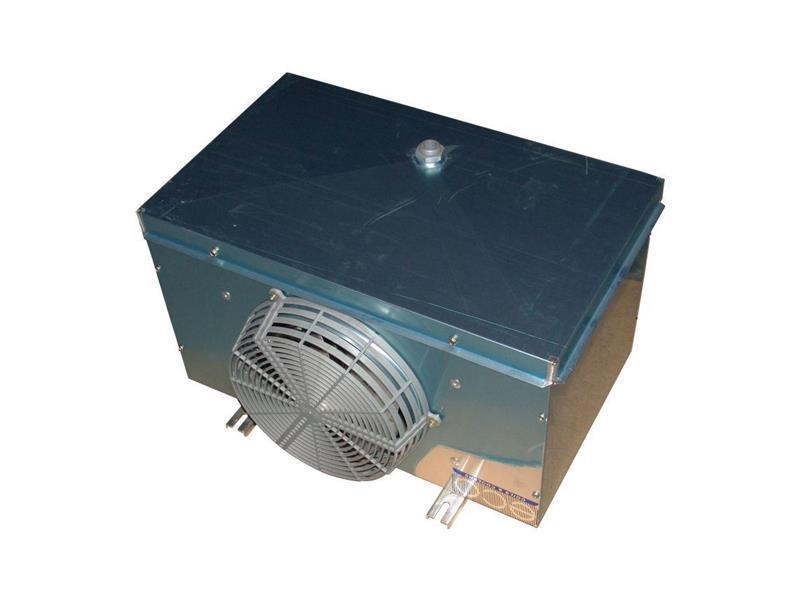

Evaporator ECOCTE 29M6, 1.51 kW (dT 8 st., R404), without defrost
47-32CTE29
| Air flow: | 750 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 1510 |
| Design: | Design |
| Dimensions: | 680 x 395 x 402 |
| Dimensions ( length × width × height ): | 77.40 × 50.90 × 43.10 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 1 x 250 mm |
| Power range (W): | 1 - 1.5 kW |
| Series: | CTE |
| Slat spacing: | 6 mm |
| Temperature range In °C: | -15 °C (-35 to +40) |
| Throwing distance: | 7.5 m |
| Voltage: | 230V |
| electric defrost: | electric defrost |
Delivery from
evaporator LUVATA (ECO) MIC200, without defrost
47-32MIC200
| Air flow: | 920 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 1330 |
| Design: | Design |
| Dimensions: | 730 x 650 x 185 |
| Dimensions ( length × width × height ): | 73.00 × 65.00 × 18.50 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 2 x 230 mm |
| Power range (W): | 1 - 1.5 kW |
| Series: | MIC |
| Slat spacing: | 4.5/9 mm |
| Temperature range In °C: | -25 °C (-35 to +40) |
| Throwing distance: | 2.5 m |
| Voltage: | 230V |
| electric defrost: | electric defrost |
Delivery from

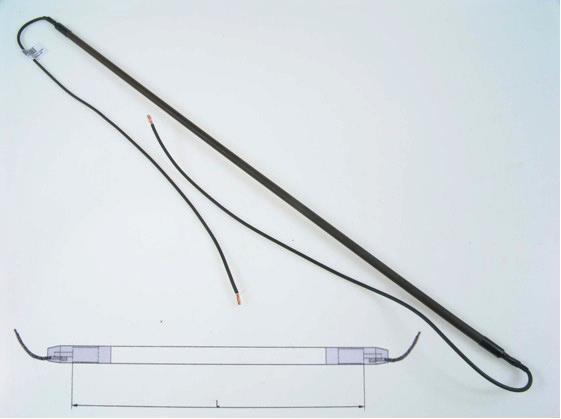

heating element for Evaporator, 500 W, 230 V, d = 8,5 mm, L = 1700 mm
47-327903-05
| Dimensions: | d= 8.5 |
|---|---|
| Manufacturer: | Diverse |
| Nominal power: | 500 W |
| Power range (W): | 401 - 500 W |
| Power supply: | 230 V |
| Size: | Size, Size |
| Voltage: | 230V |
Delivery from

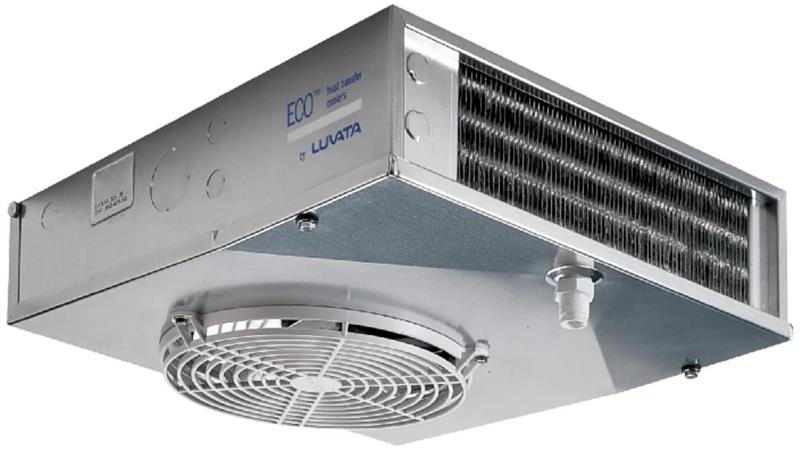

evaporator LUVATA (ECO) MIC 100ED, with defrost
47-32MIC100ED
| Air flow: | 460 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 660 |
| Design: | Design |
| Dimensions: | 430 x 650 x 172 |
| Dimensions ( length × width × height ): | 43.00 × 65.00 × 17.20 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 1 x 230 mm |
| Power range (W): | 701 - 1000 W |
| Series: | MIC |
| Slat spacing: | 4.5/9 mm |
| Temperature range In °C: | -25 °C (-35 to +40) |
| Throwing distance: | 2.5 m |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator LUVATA (ECO) CTE145M6ED, 7.99 kW (dT 8 st., R404), with defrost
47-32CTE145M6ED
| Air flow: | 4700 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 7990 |
| Design: | Design |
| Dimensions: | 1680 x 460 x 452 |
| Dimensions ( length × width × height ): | 168.00 × 46.00 × 45.20 cm, 197.40 × 56.10 × 46.80 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 3 x 315 mm |
| Power range (W): | 7 - 10 kW |
| Series: | CTE |
| Slat spacing: | 6 mm |
| Temperature range In °C: | -15 °C (-35 to +40) |
| Throwing distance: | 17 m |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator ECO CTE 20M6, 1.20 kW (dT 8 st., R404), without defrost
47-32CTE20
| Air flow: | 820 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 1200 |
| Design: | Design |
| Dimensions: | 680 x 395 x 402 |
| Dimensions ( length × width × height ): | 67.40 × 50.90 × 43.10 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 1 x 250 mm |
| Power range (W): | 1 - 1.5 kW |
| Series: | CTE |
| Slat spacing: | 6 mm |
| Temperature range In °C: | -15 °C (-35 to +40) |
| Throwing distance: | 8.5 m |
| Voltage: | 230V |
| electric defrost: | electric defrost |
Delivery from
Evaporator LUVATA (ECO) CTE145M6ED, 7.99 kW (dT 8 st., R404), with defrost
47-32GCE313F6ED
| Air flow: | 4700 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 7990 |
| Design: | Design |
| Dimensions: | 1680 x 460 x 452 |
| Dimensions ( length × width × height ): | 168.00 × 46.00 × 45.20 cm, 197.40 × 56.10 × 46.80 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 3 x 315 mm |
| Power range (W): | 7 - 10 kW |
| Series: | CTE |
| Slat spacing: | 6 mm |
| Temperature range In °C: | -15 °C (-35 to +40) |
| Throwing distance: | 17 m |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator LUVATA (ECO) CTE51L8ED, 3.15 kW (dT 8 st., R404), with defrost
47-32CTE51L8ED
| Air flow: | 2610 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 3150 |
| Design: | Design |
| Dimensions: | 1380 x 395 x 402 |
| Dimensions ( length × width × height ): | 167.40 × 50.90 × 43.10 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 3 x 250 mm |
| Power range (W): | 2 - 3 kW |
| Series: | CTE |
| Slat spacing: | 8.5 mm |
| Temperature range In °C: | -35 °C (-35 to +40) |
| Throwing distance: | 13 m |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Verdampfer ECO GCE253G8ED 2950 W, Lüfter 3x250 mm, el. Abtauung
47-32GCE253G8ED
| Air flow: | 2610 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 3150 |
| Design: | Design |
| Dimensions: | 1380 x 395 x 402 |
| Dimensions ( length × width × height ): | 167.40 × 50.90 × 43.10 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 3 x 250 mm |
| Power range (W): | 2 - 3 kW |
| Series: | CTE |
| Slat spacing: | 8.5 mm |
| Temperature range In °C: | -35 °C (-35 to +40) |
| Throwing distance: | 13 m |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator ECO EVSB-181ED, 930 m3/h, fan 3x200 mm, 1.45 kW, el. defrosting
47-32EVSB-181ED
| Air flow: | 930 |
|---|---|
| Design: | Design |
| Dimensions: | 1111 x 971x 120 |
| Dimensions ( length × width × height ): | 111.10 × 97.10 × 12.00 cm |
| Manufacturer: | ECO, ECO Luvata |
| Nominal power: | 1.45 kW |
| Number of fans / fan blades: | 3 x 200 mm |
| Power range (W): | 1 - 1.5 kW |
| Series: | EVSB |
| Slat spacing: | 4.5/9 mm |
| Throwing distance: | 4.5 m |
| electric defrost: | yes |
Delivery from
evaporator LUVATA (ECO) MIC300ED, 1.99 kW (dT 8 st., R404A), 1.
47-32MIC300ED
| Air flow: | 1380 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 1990 |
| Design: | Design |
| Dimensions: | 1030 x 650 x 185 |
| Dimensions ( length × width × height ): | 103.00 × 65.00 × 18.50 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 3 x 230 mm |
| Power range (W): | 2 - 3 kW |
| Series: | MIC |
| Slat spacing: | 4.5/9 mm |
| Temperature range In °C: | -25 °C (-35 to +40) |
| Throwing distance: | 2.5 m |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from

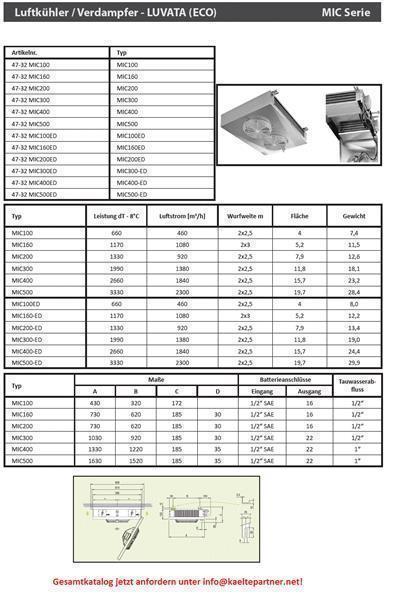

evaporator LUVATA (ECO) MIC500ED, 3.33 kW (dT 8 st., R22), 2.75
47-32MIC500ED
| Air flow: | 2300 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 3330 |
| Design: | Design |
| Dimensions: | 1630 x 650 x 185 |
| Dimensions ( length × width × height ): | 163.00 × 65.00 × 18.50 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 5 x 230 mm |
| Power range (W): | 3 - 5 kW |
| Series: | MIC |
| Slat spacing: | 4.5/9 mm |
| Temperature range In °C: | -25 °C (-35 to +40) |
| Throwing distance: | 2.5 m |
| Voltage: | 230V |
| electric defrost: | yes |
Variants from €1,774.12*
Delivery from
evaporator LUVATA (ECO) MIC400ED, 2.66 kW (dT 8 st., R404A), 2.2
47-32MIC400ED
| Air flow: | 1840 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 2660 |
| Design: | Design |
| Dimensions: | 1330 x 650 x 185 |
| Dimensions ( length × width × height ): | 133.00 × 65.00 × 18.50 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 4 x 230 mm |
| Power range (W): | 2 - 3 kW |
| Series: | MIC |
| Slat spacing: | 4.5/9 mm |
| Temperature range In °C: | -25 °C (-35 to +40) |
| Throwing distance: | 2.5 m |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from

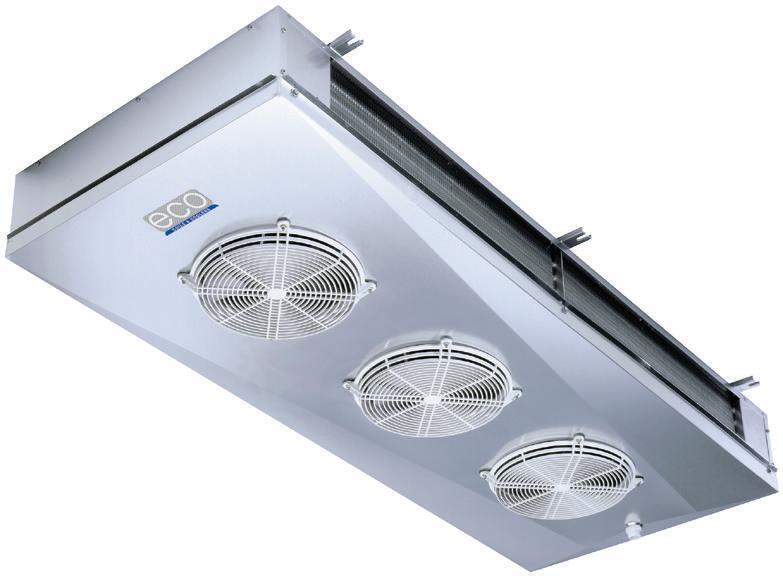

evaporator LUVATA (ECO) DFE 35 EH3ED, 14.3 / 12.1 kW (dT 8 st. R404), defrost
47-32DFE35EH3ED
| Air flow: | 7250 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 14300 |
| Dimensions: | 3085 x 2724 x 250 |
| Manufacturer: | ECO |
| Number of fans / fan blades: | 5 x 315 mm |
| Series: | DFE |
| Slat spacing: | 3.5 mm |
| Temperature range In °C: | +2 °C (-35 to +40) |
| Throwing distance: | 12 m |
| Voltage: | 400V |
| electric defrost: | electric defrost |
Delivery from
evaporator LUVATA (ECO) MIC500, 3.33 kW (dT 8 st., R22), 2.75
47-32MIC500
| Air flow: | 2300 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 3330 |
| Design: | Design |
| Dimensions: | 1630 x 650 x 185 |
| Dimensions ( length × width × height ): | 163.00 × 65.00 × 18.50 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 5 x 230 mm |
| Power range (W): | 3 - 5 kW |
| Series: | MIC |
| Slat spacing: | 4.5/9 mm |
| Temperature range In °C: | -25 °C (-35 to +40) |
| Throwing distance: | 2.5 m |
| Voltage: | 230V |
| electric defrost: | electric defrost |
Delivery from
evaporator LUVATA (ECO) MIC300, 1.99 kW (dT 8 st., R404A), 1.65
47-32MIC300
| Air flow: | 1380 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 1990 |
| Design: | Design |
| Dimensions: | 1030 x 650 x 185 |
| Dimensions ( length × width × height ): | 103.00 × 65.00 × 18.50 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 3 x 230 mm |
| Power range (W): | 2 - 3 kW |
| Series: | MIC |
| Slat spacing: | 4.5/9 mm |
| Temperature range In °C: | -25 °C (-35 to +40) |
| Throwing distance: | 2.5 m |
| Voltage: | 230V |
| electric defrost: | electric defrost |
Delivery from
evaporator LUVATA (ECO) MIC400, 2.66 kW (dT 8 st., R404A), 2.2
47-32MIC400
| Air flow: | 1840 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 2660 |
| Design: | Design |
| Dimensions: | 1330 x 650 x 185 |
| Dimensions ( length × width × height ): | 133.00 × 65.00 × 18.50 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 4 x 230 mm |
| Power range (W): | 2 - 3 kW |
| Series: | MIC |
| Slat spacing: | 4.5/9 mm |
| Temperature range In °C: | -25 °C (-35 to +40) |
| Throwing distance: | 2.5 m |
| Voltage: | 230V |
| electric defrost: | electric defrost |
Delivery from
Evaporator ECO CTE 96M6, 5.33 kW (dT 8 st., R404), without defrost
47-32CTE96
| Air flow: | 3130 |
|---|---|
| Connection Size: | Connection Size |
| Damper Power in W: | 5330 |
| Design: | Design |
| Dimensions: | 1230 x 460 x 452 |
| Dimensions ( length × width × height ): | 142.40 × 56.10 × 46.80 cm |
| Manufacturer: | ECO, ECO Luvata |
| Number of fans / fan blades: | 2 x 315 mm |
| Power range (W): | 5 - 7 kW |
| Series: | CTE |
| Slat spacing: | 6 mm |
| Temperature range In °C: | -15 °C (-35 to +40) |
| Throwing distance: | 15 m |
| Voltage: | 230V |
| electric defrost: | electric defrost |
Delivery from
Evaporator LUVATA (ECO) CTE194M6ED, 10.6 kW (dT 8 st., R404), with defrost
47-32CTE194M6ED
| Air flow: | 6260 |
|---|---|
| Connection Size: | 16 x 28 mm, 1" GAS |
| Damper Power in W: | 10600 |
| Dimensions: | 2130 x 460 x 452 |
| Manufacturer: | ECO |
| Number of fans / fan blades: | 4 x 315 mm |
| Series: | CTE |
| Slat spacing: | 6 mm |
| Temperature range In °C: | -15 °C (-35 to +40) |
| Throwing distance: | 19 m |
| Voltage: | 230V |
| electric defrost: | yes |
