Goedhart evaporator
Our online shop offers a wide selection of Goedhart ceiling air coolers, which have commercial range in air conditioning. Gea Goedhart is one of the largest suppliers of refrigeration and air conditioning technology for the refrigeration industry. As an internationally active technology group with production facilities in the Czech Republic and the Netherlands, the company has been manufacturing high-quality evaporators worldwide for over 50 years.
Delivery from
Evaporator Goedhart 2.8 kW, dT = 8 °C, fan 1x300 mm
47-32CCD41307E
| Air flow: | 1540 |
|---|---|
| Damper Power in W: | 2800 |
| Dimensions: | 923 x 429 x 446 |
| Dimensions ( length × width × height ): | 92.30 × 42.90 × 44.60 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 1 x 300 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator Goedhart 6.67 kW, dT = 8 °C, fan 1 x 400 mm
47-32CCD61407E
| Air flow: | 2920 |
|---|---|
| Damper Power in W: | 5800 |
| Dimensions: | 1103 x 529 x 522 |
| Dimensions ( length × width × height ): | 110.30 × 52.90 × 52.20 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 1 x 400 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator Goedhart 8.70 kW, dT = 8 °C, fan 3 x 300 mm
47-32CCD43307E
| Air flow: | 4736 |
|---|---|
| Damper Power in W: | 7900 |
| Dimensions: | 2153 x 429 x 446 |
| Dimensions ( length × width × height ): | 215.30 × 42.90 × 44.60 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 3 x 300 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator Goedhart 13.34 kW, dT = 8 °C, fan 2 x 400 mm
47-32CCD62407E
| Air flow: | 5834 |
|---|---|
| Damper Power in W: | 11800 |
| Dimensions: | 1853 x 529 x 522 |
| Dimensions ( length × width × height ): | 185.30 × 52.90 × 52.20 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 2 x 400 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator Goedhart 6.10 kW, dT = 8 ° C, fan 2 x 300 mm
47-32CCD32304E
| Dimensions ( length × width × height ): | 155.30 × 42.90 × 44.60 cm |
|---|---|
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
Delivery from

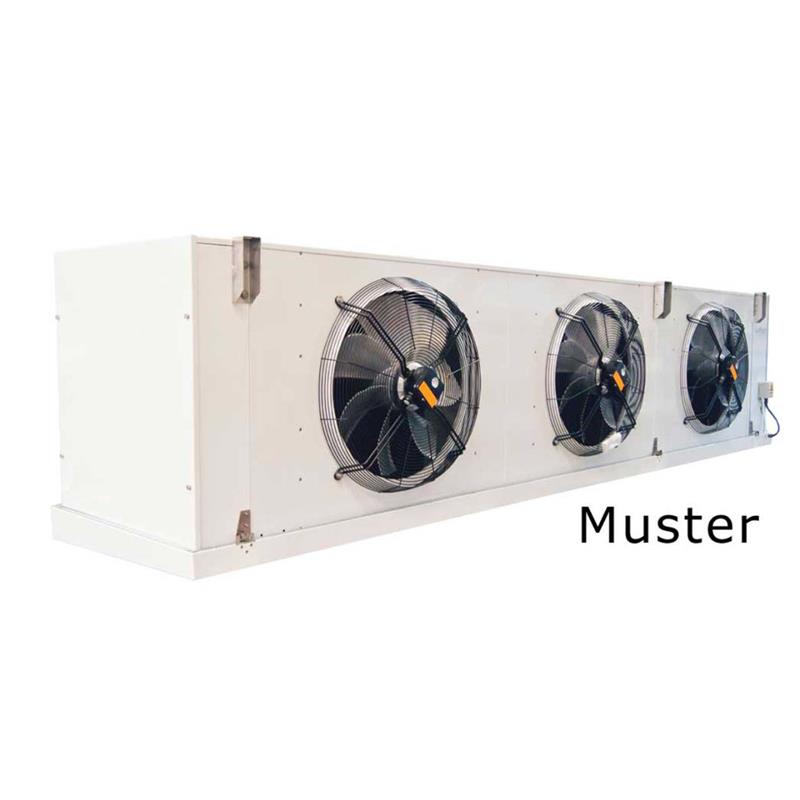

Evaporator Goedhart 15.73 kW, dT = 8 °C, fan 3 x 400 mm
47-32CCD43407E
| Air flow: | 9358 |
|---|---|
| Damper Power in W: | 13800 |
| Dimensions: | 2603 x 529 x 522 |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 3 x 400 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator Goedhart 20.18 kW, dT = 8 °C, fan 3 x 400 mm
47-32CCD63407E
| Air flow: | 8749 |
|---|---|
| Damper Power in W: | 17300 |
| Dimensions: | 2603 x 529 x 522 |
| Manufacturer: | Goedhart |
| Number of fans / fan blades: | 3 x 400 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Goedhart evaporator 21.40 kW, dT = 8 ° C, fan 2 x 450 mm
47-32CCD42454E
| Dimensions ( length × width × height ): | 241.30 × 60.90 × 67.40 cm |
|---|---|
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
Variants from €5,194.78*
Delivery from
Evaporator Goedhart 23.40 kW, dT = 8 °C, fan 2 x 450 mm
47-32CCD62457E
| Air flow: | 11075 |
|---|---|
| Damper Power in W: | 21700 |
| Dimensions: | 2413 x 609 x 674 |
| Dimensions ( length × width × height ): | 241.30 × 60.90 × 67.40 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 2 x 450 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator Goedhart 10.50 kW, dT = 8 °C, fan 2 x 400 mm
47-32CCD32404E
| Air flow: | 5922 |
|---|---|
| Damper Power in W: | 10800 |
| Dimensions: | 1853 x 529 x 522 |
| Dimensions ( length × width × height ): | 185.30 × 52.90 × 52.20 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 2 x 400 mm |
| Series: | CCD |
| Slat spacing: | 4 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator Goedhart 11.70 kW, dT = 8 °C, fan 1 x 300 mm
47-32CCD61457E
| Air flow: | 5539 |
|---|---|
| Damper Power in W: | 10800 |
| Dimensions: | 1413 x 609 x 1030 |
| Dimensions ( length × width × height ): | 141.30 × 60.90 × 103.00 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 1 x 450 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Evaporator Goedhart 5.61 kW, dT = 8 °C, fan 2 x 300 mm
47-32CCD42307E
| Air flow: | 3157 |
|---|---|
| Damper Power in W: | 5300 |
| Dimensions: | 1553 x 429 x 446 |
| Dimensions ( length × width × height ): | 155.30 × 42.90 × 44.60 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 2 x 300 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Delivery from
Goedhart evaporator 10.3 kW, dT = 8 ° C, fan 3 x 300 mm
47-32CCD43304
| Dimensions ( length × width × height ): | 215.30 × 42.90 × 44.60 cm |
|---|---|
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
Delivery from
Evaporator Goedhart 28.43 kW, dT = 8 °C, fan 2 x 500 mm
47-32CCD62507E
| Air flow: | 14003 |
|---|---|
| Damper Power in W: | 26200 |
| Dimensions: | 2413 x 644 x 750 |
| Dimensions ( length × width × height ): | 241.30 × 64.40 × 75.00 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 2 x 500 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 400V |
| electric defrost: | yes |
Variants from €6,216.02*
Delivery from
Evaporator Goedhart 7.22 kW, dT = 8 °C, fan 2 x 300 mm
47-32CCD62307E
| Air flow: | 2930 |
|---|---|
| Damper Power in W: | 6700 |
| Dimensions: | 1553 x 429 x 446 |
| Dimensions ( length × width × height ): | 155.30 × 42.90 × 44.60 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 2 x 300 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
No longer available
Evaporator Goedhart 34.67 kW, dT = 8 °C, fan 3 x 450 mm
47-32CCD63457E
| Air flow: | 16610 |
|---|---|
| Damper Power in W: | 31800 |
| Dimensions: | 3413 x 609 x 674 |
| Manufacturer: | Goedhart |
| Number of fans / fan blades: | 3 x 450 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
No longer available
Evaporator Goedhart 56.79 kW, dT = 8 °C, fan 4 x 500 mm
47-32CCD64507E
| Air flow: | 27998 |
|---|---|
| Damper Power in W: | 51900 |
| Dimensions: | 4413 x 644 x 750 |
| Manufacturer: | Goedhart |
| Number of fans / fan blades: | 4 x 500 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 400V |
| electric defrost: | yes |
No longer available
Evaporator Goedhart 27.09 kW, dT = 8 °C, fan 3 x 450 mm
47-32CCD43457E
| Air flow: | 17267 |
|---|---|
| Damper Power in W: | 25000 |
| Dimensions: | 3413 x 609 x 674 |
| Manufacturer: | Goedhart |
| Number of fans / fan blades: | 3 x 450 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
No longer available
Evaporator Goedhart 17,20 kW, dT = 8 ° C, fan 4 x 400 mm
47-32CCD44407E
| Manufacturer: | Goedhart |
|---|
Delivery from
Evaporator Goedhart 12.80 kW, dT = 8 °C, fan 2 x 400 mm
47-32CCD42404E
| Air flow: | 5557 |
|---|---|
| Damper Power in W: | 12400 |
| Dimensions: | 1853 x 529 x 522 |
| Dimensions ( length × width × height ): | 185.30 × 52.90 × 52.20 cm |
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
| Number of fans / fan blades: | 2 x 400 mm |
| Series: | CCD |
| Slat spacing: | 4 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
Variants from €3,356.50*
No longer available
Goedhart evaporator 3,5 kW, dT = 8 ° C, fan 1 x 300 mm
47-32CCD41304E
| Dimensions ( length × width × height ): | 95.30 × 42.90 × 44.60 cm |
|---|---|
| Manufacturer: | Goedhart, Goedhart GEA Kelvion |
No longer available
Evaporator Goedhart 40.00 kW, dT = 8 °C, fan 3 x 450 mm
47-32CCD43454E
| Air flow: | 16163 |
|---|---|
| Damper Power in W: | 34900 |
| Dimensions: | 3413 x 609 x 674 |
| Manufacturer: | Goedhart |
| Number of fans / fan blades: | 3 x 450 mm |
| Series: | CCD |
| Slat spacing: | 4 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 230V |
| electric defrost: | yes |
No longer available
Evaporator Goedhart 42.59 kW, dT = 8 °C, fan 3 x 500 mm
47-32CCD63507E
| Air flow: | 21001 |
|---|---|
| Damper Power in W: | 38000 |
| Dimensions: | 3413 x 644 x 750 |
| Manufacturer: | Goedhart |
| Number of fans / fan blades: | 3 x 500 mm |
| Series: | CCD |
| Slat spacing: | 7 mm |
| Temperature range In °C: | -30 to +20 |
| Voltage: | 400V |
| electric defrost: | yes |
