Refrigeration Units & Kits – Future-Proof Refrigeration Technology for every Need

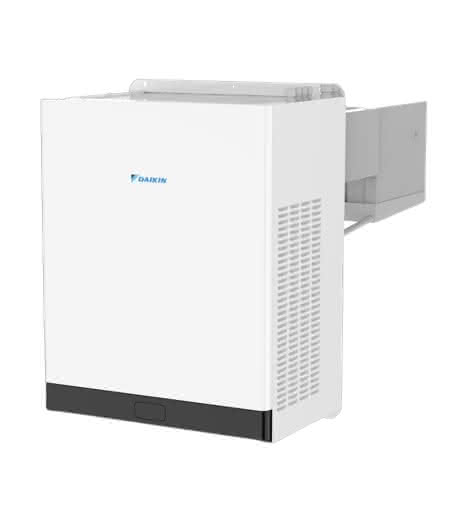

Wall mounting, normal cooling The Daikin Zanotti Monoblock is a compact and efficient refrigeration system specially developed for cooling small to medium-sized cold rooms. This monobloc system is characterised by its ease of installation and maintenance, as it is supplied as a single unit that can be integrated directly into the wall of the cold room. With state-of-the-art technology, it offers reliable cooling performance and energy efficiency.

Zanotti remote control 5m cable XW265K.SER The Zanotti remote control with 5m cable (model XW265K.SER) is an indispensable accessory for your cooling, air conditioning and ventilation technology or heat pump. With this high-quality remote control, you have full control over your appliance and can control it conveniently from a distance.Technical details: Output: 1 piece Matchcode: XW265KSER Advantages and benefits: 1. precise control: with the Zanotti remote control, you can set your appliance exactly to your needs and thus ensure optimum performance 2. Convenient operation: The 5m cable allows you to control your appliance conveniently from different locations without having to be on site.

Daikin Zanotti stopper kit 1KGM001 100 mm for LMSEY-VM01 The Daikin Zanotti 1KGM001 stopper kit with 100 mm insulation panels is ideal for the LMSEY-VM01 in refrigeration, air conditioning and ventilation technology and heat pumps. It ensures efficient insulation and therefore optimum performance. Technical details: Output: 1 piece Matchcode: 1KGM001 Customs tariff number: 84186900 Packaging size: 420x420x230 Weight incl. packaging: 3,000 kg Advantages and benefits: Effective insulation with a thickness of 100 mm ensures optimum performance of the LMSEY-VM01. The high-quality insulating panels ensure energy-saving operation

Premium Deep-Freeze Refrigeration Kit with electric defrost, R452A, 0.98 kW, up to 5 m³ Premium Deep-Freeze Refrigeration Unit with Electric Defrost, R452A, 0.98 kW, up to 5 m³ This Premium refrigeration kit comprises a Tecumseh condensing unit and an ECO air cooler, and is specifically designed for deep-freeze applications using the R452A refrigerant. It is ideal for small deep-freeze rooms up to approx. 5 m³, e.g. for storing food at temperatures around -20 °C. Technical data (specifications) Internal temperature: approx. -20 °C (deep-freezing) Chamber size: up to approx. 5 m³ Refrigerant: R452A (condensing unit also approved for R404A, R448A and R449A) Cooling capacity of the unit: approx. 0.98 kW Requirements for the deep-freeze chamber Cold room: 100 mm PU insulation with floor Load capacity: 150 kg/m² Loading: approx. 20% of the load capacity Initial temperature of goods: +10 °C Air change rate: adjusted to room size Maximum ambient temperature: +32 °C Overview of main components Tecumseh CAJN2446ZBR condensing unit (item no. 47-32CAJN2446ZBR)LBP condensing unit for R452A, also approved for R404A, R448A, R449A, 220–240 V – compact deep-freeze condensing unit for small deep-freeze rooms. ECO EVSB-201ED evaporator (item no. 47-32EVSB-201ED)Deep-freeze ceiling evaporator with electric defrost, approx. 1.40 kW capacity, air flow rate 605 m³/h, 2 x 200 mm fans – specially designed for deep-freeze applications. Pego ECP202 Expert refrigeration unit controller (Item No. 47-321006-ECP202)Electronic refrigeration controller, 230 V, 16 A max, IP65 – for precise temperature regulation and control of the compressor, defrost cycle and fans. Included in the scope of delivery Tecumseh CAJN2446ZBR condensing unit, LBP, R452A/R404A/R448A/R449A, 220–240 V (item no. 47-32CAJN2446ZBR) ECO EVSB-201ED evaporator, 1.40 kW, 605 m³/h, 2 x 200 mm fans, electric defrost (item no. 47-32EVSB-201ED) Pego ECP202 Expert cooling unit controller, 230 V, 16 A max, IP65 (Item No. 47-321006-ECP202) Danfoss KP15 dual pressure switch, 8–32 bar, automatic reset (item no. 47-32060-514166) Danfoss T2 thermostatic expansion valve, R452A (Item No. 47-32068Z3806) Nozzle insert for Danfoss T2/TE2 thermostatic expansion valve, size 01 (Item No. 47-32068-2010) Danfoss DML 032S filter drier, 1/4" ODS, brazed connections, 023Z5048 (Part No. 47-32023Z5048) Danfoss SGP 6S N sight glass, ODF, 6 mm, brazed connections (Part No. 47-32014L1020) Danfoss EVR 3 NC solenoid valve, 6 mm ODF solder, kv 0.27 (Item No. 47-32032F1207) Coil for Danfoss EVR solenoid valve, 220–230 V, 50 Hz, 10 W, IP67 (Item No. 47-32018F6701) 2 x pressure equalisation line / capillary tube with 1/4" SAE union nut, length 1 m, Ø 2.5 mm, without valve actuator (Item No. 47-329290-40) Advantages & benefits Premium refrigeration kit for deep-freeze applications using R452A for room volumes up to approx. 5 m³ Specially designed for deep-freeze temperatures around -20 °C Fully integrated system comprising a Tecumseh condensing unit, an ECO deep-freeze evaporator with electric defrost and high-performance control technology Reliable and energy-efficient refrigeration for deep-freeze rooms in retail, catering and warehousing High-quality branded components (Tecumseh, ECO, Pego, Danfoss) for high operational reliability and a good supply of spare parts With this premium deep-freeze kit, you receive a practical and reliable solution for small deep-freeze rooms, including all essential refrigeration and control components.

The BYGY-010-QXD-RZPP is a wall-mounted inverter monoblock cooling unit for small cooling and deep-freeze rooms. It is designed for both normal cold and deep cold applications and is therefore suitable for cold around +2 °C as well as low temperature applications around −18 °C - depending on room size and real operating conditions. The system uses the natural refrigerant R290 and an integrated variable-speed compressor control to adapt the cooling capacity to the actual load. This improves temperature stability, reduces energy consumption and ensures quieter, more efficient operation in the partial load range. The control concept includes compressor frequency control, electronic expansion valve control, condenser and evaporator fan control, defrost control, pressure protection, exhaust gas temperature protection and error code output. Since the complete cooling system is integrated in a compact housing, installation is significantly simplified. The unit is mounted directly through the cold room panel and only requires correct mounting, insulation and electrical connection. Typical applications Cooling cabinets for fresh produce Freezer cabinets for frozen products Catering cold rooms< li=""> Farm shop/farmshop cold rooms Catering cold rooms Small commercial walk-in cold rooms Laboratory cold rooms   Use as refrigeration and deep-freeze system: This unit is suitable for both normal refrigeration and deep-freeze. Practical guide values for room temperatures Cool room application: up to approx. 12 m³ at approx. +2 °C Deep-freeze application: up to approx. 6 m³ at approx. −18 °C Correlation between evaporation temperature / room temperature The technical specification defines an evaporation temperature range of −40 °C to −5 °C. In practice, the evaporation temperature is below room temperature. The following orientation can be used for technical application communication: TeV approx. −5 °C to −10 °C → typical use for cooling rooms around 0 °C to +5 °C TeV approx. −20 °C to −25 °C → typical use for low temperatures around −18 °C TeV below −25 °C → relevant for shock/low temperature applications These room temperatures are guide values and depend on product load, insulation, ambient temperature and door openings. Technical overview Parameter Value Model BYGY-010-QXD-RZPP Application Small cooling and deep-freeze cranes Coolant R290 Compressor Boyard JXSP150Z220 Technology Variable frequency / inverter Nominal power consumption 750 W Mains supply 220 V / 50–60 Hz Max. Operating current 5.5 A Evaporation temperature range −40 °C to −5 °C Dimensions (L × W × H) 525 × 825 × 705 mm Source specification: Boyard R290 Wall-Mounted Integrated Frequency Conversion Condensing Unit Specification. Kälte power Detailed cooling capacity according to specification sheet In environment 32 °C and undercooling 0 °C, the data sheet for the BYGY-010-QXD-RZPP model shows the following cooling performance: Evaporation temperature Cooling capacity −40 °C 500 W −35 °C 630 W −30 °C 755 W −25 °C 900 W −20 °C 1,045 W −15 °C 1,400 W −10 °C 1,750 W −5 °C 1,900 W Practical comparative values from series overview 1,840 W at Te −7 °C / Tc 32 °C 900 W at Te −25 °C / Tc 32 °C Recommended room size Application Recommended room volume Cold room at +2 °C up to approx. 12 m³ Deep freeze room at −18 °C up to approx. 6 m³ These values are based on the comparative technical overview of the wall-mounted series. The actual room size depends on insulation, ambient temperature, stored goods, door openings and cooling requirements.   Main components and control functions Kältesystem Inverter compressor Vaporiser Vaporiser Electronic expansion valve Liquid injection valve 4-way valve Filter dryer Sight glass Pressure protection components Control and protection The control architecture comprises: Compressor frequency control Control of the electronic expansion valve Vaporiser fan control Vaporiser fan control Defrost control High and low pressure protection Sprinkler protection Exhaust gas temperature protection Current protection Output of error codes The separate controller manual also documents: Room temperature display Display of the evaporator fans Display of the operating frequency Setting the defrost parameters Alarm and error code functions Defrosting The unit supports heat and gas defrosting with additional electrical heating support. According to the specification: 4-way valve Defrost heating element: 500 W Defrost heating tape: 25 W/m, 3 m The controller manual documents selectable defrost modes, including electric defrost, thermal defrost and air/wind defrost, whereby thermal defrost corresponds to hot gas defrost. Installation The unit is designed for wall-mounted installation through the refrigeration panel. Installation requirements Panel thickness of the cold room must be at least 75 mm Gap between unit and panel must be filled with foam/foam material Sufficient clearance around the plastering area must be ensured Mounting and cut-out in the panel must follow the manufacturer's mounting drawing Dimensions Length: 525 mm Width: 825 mm Height: 705 mm Packaging dimensions 640 × 880 × 855 mm Important note on the operating range (−10 °C to +43 °C) The unit is designed for an ambient temperature range of −10 °C to +43 °C. The actual application range can be found in the specification and the controller manual. Restriction of the intended use This product is intended for: Small commercial refrigeration units Cooling and storage facilities for fresh produce Deep freezers Professional refrigeration applications It is not presented as a classic household appliance, but as a commercial cold storage solution.  FAQ Can the unit be used for both cold and deep-freeze rooms? Yes. The unit is suitable for both cold and deep freeze. As a practical guide: up to 12 m³ at +2 °C and up to 6 m³ at −18 °C (depending on the design).   Which refrigerant is used? The unit uses the natural refrigerant R290.   Is it an inverter unit? Yes. The unit uses a speed-controlled compressor control (inverter).   Does the unit have an integrated controller? Yes. The unit has an integrated controller concept with temperature control, defrost parameters, alarm and diagnostic functions.   How to install the unit The unit is installed as a wall-mounted monobloc directly through the cold room panel. The panel thickness must be at least 75 mm and the remaining gap must be filled with insulating material.
