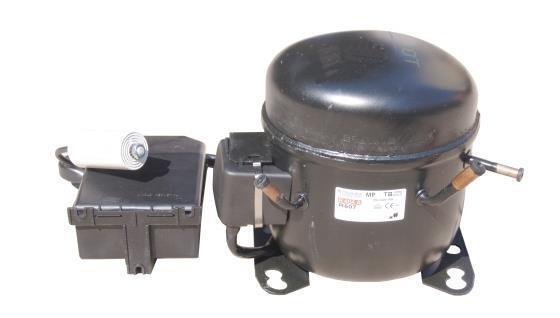

Image similar
Compressor ACC - MS26TB, HMBP - R404A, R507, 1 3/8HP, 220-240V
Cubigel / Huayi Buy products online for less: Compressor ACC - MS26TB, HMBP - R404A, R507, 1 3/8HP, 220-240V // Fast worldwide delivery
- R404A A1 GWP 3,922
- R507 A1 GWP 3,985
All versions at a glance
25 versions with unit price
| Area of application | Modellreihe | Typ / Serie | Price | Select |
|---|---|---|---|---|
| HMBP | ML | ML45TB | €153.51 | Select |
| HMBP | ML | ML60TB | €129.71 | Select |
| HMBP | ML | ML80TB | €165.41 | Select |
| HMBP | ML | ML90TB | €153.51 | Select |
| HMBP | MP | MP(T)12TB/RB/RA | €165.41 | Select |
| HMBP | MP | MPT12RA | €236.81 | Select |
| HMBP | MS | MS26TB | €379.61 | Selected |
| HMBP | MS | MS34TB-T | €427.21 | Select |
| HMBP | MX | MX16TB_A | €308.21 | Select |
| HMBP | MX | MX18TB | €320.11 | Select |
| LBP | ML | MLY12LAA | €224.91 | Select |
| LBP | ML | ML80FB | €165.41 | Select |
| LBP | MP | MPT12LAA | €165.41 | Select |
| LBP | MP | MP14FB | €165.41 | Select |
| LBP | MP | MP14FG | €343.91 | Select |
| LBP | MP | MPT16LA | €197.87 | Select |
| LBP | MS | MS26FB | €379.61 | Select |
| LBP | MS | MS26FB-T | €415.31 | Select |
| LBP | MS | MS26FB-V | €379.61 | Select |
| LBP | MS | MS34F3 | €403.41 | Select |
| LBP | MS | MS34FB | €415.31 | Select |
| LBP | MS | MS34FB-T | €355.31 | Select |
| LBP | MS | MS34FB-V mit Rotalockventil | €439.11 | Select |
| LBP | MX | MX18FB | €308.21 | Select |
| LBP | MX | MX23FB | €355.81 | Select |
Technical data
Performance
- Capacity class i
- 3 - 5 kW
- Displacement
- 25.93 cm³
Refrigerant & oil
- Refrigerant
- R404A, R507
- Oil
- vorgefüllt, ISO VG 46 Ester
- Oil quantity
- 887 cm³
Operating range
- Area of application i
- HMBP, MBP/HBP
Electrical
- Voltage
- 220-240V
- Electronics
- inkl.
- Max. operating current
- 7,83 A
- Motor type i
- CSR
Connections
- Connection
- Connection Size
Dimensions & weight
- Dimensions (L × W × H)
- 21,90 × 16,50 × 27,60 cm
General
- COP
- 2,46
- Condensation temperature
- 55 °C
- Cooling capacity (W) at To 0°C
- 3051
- Item condition
- New item
- Max. Starting current
- 38 A
- Measuring conditions
- ASHRAE
- Series
- MS, MS26TB
- Performance range (C)
- -25 C to +10 C
- Power range
- 0-2 PS
- Pressure pipe
- 8 mm
- Suction line
- 12,7 mm
- To be used with
- Capillary/Expansion
- Type of construction
- Hermetic, Reciprocating piston
Description
Compressor ACC Cubigel / Huayi - MS26TB
The ACC Cubigel / Huayi - MS26TB compressor is the ideal solution for refrigeration, air conditioning and ventilation technology as well as heat pumps. With an output of 1.3/8 HP and a variety of technical features, it offers reliable cooling performance for a wide range of applications.
Technical details:- Injection: capillary tube / expansion valve
- Cooling capacity at +5 / +55°C: 1569 W
- Power consumption: 3185 W
- Max. Ambient temperature: 43 ºC
- Number of cylinders: 1
- Stroke volume: 25.93 cm3
- Engine type: CSR
- Nominal engine power: 1.87 kW
- Speed: 2900 rpm
- Oil filling: 887 cm3
- Oil type: ISO VG 46 ESTER
- Voltage range: 187-264 V
- Starting current: 38.0 A
- Starting capacitor: 88-108 / 330 µF/V
- Weight: 23 kg
- Connections: 12.7 x 9.6 x 8 mm
- Cooling capacity measured for condensation temperature of: 55°C
Advantages and benefits:
The ACC Cubigel / Huayi - MS26TB compressor impresses with its high performance at different temperatures. With a cooling capacity of 1569 W and a low weight of just 23 kg, it is versatile and particularly efficient. Thanks to the ecological oil type ISO VG 46 ESTER, it is also environmentally friendly and durable.
Matching accessories
Matching this compressor according to the product data. Please check against the compressor manufacturer's specifications before installation.
Refrigeration oil
Replacement compressors are usually supplied with an oil charge – check the type and quantity on the nameplate or data sheet. Top up only with the oil type specified by the manufacturer (depending on the compressor, e.g. POE or PVE); do not mix oil types without the manufacturer's approval.
-
€44.98*
-
€172.82*
Valves and adapters
-
€4.70*
Alternatives compared
|
This item
Compressor ACC - MS26TB, HMBP - R404A, R507, 1 3/8HP, 220-240V
€379.61
|
Compressor ACC Cubigel/ Huayi MP(T)12TB/RB/RA, HMBP - R404A, R507, 1/2HP, 220-240V €165.41 €214.20 cheaper | Compressor ACC - MS26FB, LBP - R404A, R507, 3/4HP, 220-240V €379.61 same price | Compressor ACC - MS34TB-V with Rotalock valve, HBP - R404A, R507 €403.41 €23.80 more | Compressor Maneurop MTZ18JA5 (MTZ18-5VI), MBP - R134a, R404A, R407C, 220-240V/1Ph/50Hz €962.71 €583.10 more |
|---|---|---|---|---|---|
| Availability | Available | Available | Available | Available | Ready to ship in approx. 7 business days |
| Area of application | HMBP, MBP/HBP | MBP/HBP, HMBP | LBP | MBP/HBP | MBP |
| Refrigerant | R404A, R507, R507A | R507A, R507, R404A | R507A, R507, R404A | R507A, R507 | R507A, R134a, R449A, R407F, R448A, R407C, R407A, R452A |
| COP | 2,46 | 1,88 (worse) | 0,97 (worse) | — | — |
| Condensation temperature | 55 °C | 50 °C | 55 °C | 55 °C | — |
| Cooling capacity (W) at To 0°C | 3051 | 1372 | — | — | — |
| Dimensions ( length × width × height ) | 21,90 × 16,50 × 27,60 cm | 22,40 × 16,20 × 21,60 cm | 22,60 × 17,60 × 26,50 cm | 21,90 × 16,50 × 27,60 cm | 22,40 × 22,40 × 33,30 cm |
| Max. Operating current (A) | 7,83 | 3,69 | 4,31 | 11,6 | — |
| Max. Starting current (A) | 38 | 17 | 30 | 41 | — |
| view item | view item | view item | view item |
Same for all: Connection size: Connection SizeElectronics: inkl.Item condition: New itemOil: vorgefüllt
About Cubigel
Hermetic compressors from Cubigel, ACC and Electrolux-ZEM, now Huayi Compressor Barcelona, plus condensing units and accessories. Search directly using the type designation on the type plate.
All products by CubigelManufacturer information (product safety)
Manufacturer: Huayi Compressor Barcelona, S.L.
Postal address: Antoni Forrellad, 2 08192 Sant Quirze del Vallès Spain
Email address: [email protected]
Website: www.huayicompressor.es
Note: Huayi Compressor Barcelona, S.L. manufactures hermetic compressors and condensing units for the commercial refrigeration market under the Cubigel Compressors® brand.
