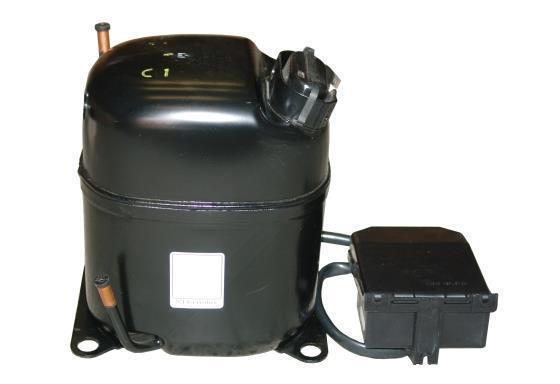

Compressor ACC - MS34FB, LBP - R404A, R507, 1HP, 220-240V/1/50Hz
Area of application:
LBP
Modellreihe:
MS
Refrigerant:
R404a
Typ / Serie:
MS34FB
47-32MS34FB
| Quantity | Unit price |
|---|---|
| Up to 2 |
€415.31
|
| Up to 5 |
€394.54
€415.31
( - 5% )
|
| Up to 6 |
€373.78
€415.31
( - 10% )
|
| From 6 |
€373.78
€415.31
( - 10% )
|
Available, delivery time: 1-2 weeks,
within Germany, abroad different, Subject to prior sale
Product number:
47-32MS34FB
GTIN/EAN:
8592372133957
Manufacturer:
Cubigel / Huayi
Manufacturer number:
MS34FB
Weight:
29.7 kg
Do you have some questions about this product?
Description
Product information "Compressor ACC - MS34FB, LBP - R404A, R507, 1HP, 220-240V/1/50Hz"
Compressor ACC Cubigel / Huayi - MS34FB
The ACC Cubigel / Huayi - MS34FB compressor is a powerful compressor specially developed for use in refrigeration, air conditioning and ventilation systems as well as heat pumps. With its robust design and reliable performance, it is the ideal choice for professional applications in various industries.
Technical details:- Type: LBP - R404A, 220-240V/50Hz
- Injection: capillary tube / expansion valve
- Power: 1 HP
- Cooling capacity at -25 / +55°C: 1089 W
- Power consumption: 1148 W / 6.16 A
- Number of cylinders: 1
- Stroke volume: 34.42 cm3
- Engine type: CSR
- Nominal engine power: 1.36 kW
- Speed: 2900 rpm
- Oil capacity: 887 cm3
- Oil type: ISO VG 46 ESTER
- Weight: 22.7 kg
- Dimensions (LxWxH): 225 x 165 x 276 mm
Advantages and benefits:
The ACC Cubigel / Huayi - MS34FB compressor is characterised by the following features:
- Reliable performance at various temperatures
- Efficient energy consumption for cost-effective operation
- Compact design for easy installation and maintenance
Downloads
- 47-32MS34FB-Datasheet-HHKaeltetechnik - Datenblatt / Datasheet
Manufacturer "Cubigel / Huayi"
Cubigel Compressors®, founded in 1962 and headquartered in Barcelona, Spain, is a leading manufacturer of hermetic compressors and condensing units for commercial refrigeration. With over 60 years of experience, the company develops and manufactures innovative solutions that meet global market requirements. Formerly known under the brands Unidad Hermética, Electrolux Compressors, ZEM and ACC Compressors, Cubigel is now part of the Huayi Group, the world’s largest manufacturer of compressors, and manufactures at a modern production facility in Barcelona. The combination of tradition and continuous innovation distinguishes Cubigel as a reliable partner for refrigeration technology.
Cubigel’s product range includes compressors with displacement volumes from 2.4 to 34.0 cm³ and covers common refrigerants such as R134a, R404A, R600a, R290 and R507. This diversity enables tailor-made solutions for various applications in commercial refrigeration. Core products include:
- Compressors and condensing units: Comprehensive solutions for a wide range of commercial refrigeration applications.
- Green Cooling Ranges: Highly efficient and environmentally friendly compressors for sustainable refrigeration processes.
- DC compressors: Reliable direct current compressors for mobile refrigeration applications.
- Variable Speed Compressors: Advanced technology for reducing energy consumption in commercial refrigeration.
Through continuous research and development, Cubigel creates innovative, energy-efficient solutions that meet the modern demands of refrigeration technology. With a clear focus on technological excellence and sustainability, the company supports customers worldwide in implementing future-proof refrigeration solutions that meet the highest performance standards. Its wide product range and commitment to quality and innovation make Cubigel a trusted partner for commercial refrigeration applications.
Cubigel Compressors® products. The most extensive range.
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Huayi Compressor Barcelona, S.L.
Postal address: Antoni Forrellad, 2 08192 Sant Quirze del Vallès Spain
Email address: [email protected]
Website: www.huayicompressor.es
Note: Huayi Compressor Barcelona, S.L. manufactures hermetic compressors and condensing units for the commercial refrigeration market under the Cubigel Compressors® brand.
Properties
| Area of application: | LBP |
|---|---|
| COP: | 1,35 |
| Condensation temperature: | 55 °C |
| Connection size: | Connection Size |
| Dimensions ( length × width × height ): | 21,90 × 16,50 × 27,60 cm |
| Electronics: | inkl. |
| Energy efficiency class: | n. rel |
| Item condition: | New item |
| Max. Operating current (A): | 6,16 |
| Max. Starting current (A): | 39 |
| Measuring conditions: | ASHRAE |
| Modellreihe: | MS |
| Motor type: | CSR |
| Oil: | vorgefüllt |
| Oil quantity (litres): | 887 cm³ |
| Oil type: | ISO VG 46 Ester |
| Performance range (C): | -40 C to -10 C |
| Power range (PS): | 0-2 |
| Power range (W): | 1 - 1.5 kW |
| Pressure pipe (mm): | 8 |
| Refrigerant: | R404a, R507, R507A |
| Stroke volume: | 34.42 |
| Stroke volume (cm3): | 34,42 |
| Suction line (mm): | 12,7 |
| Supply voltage: | 220-240V |
| To be used with: | Capillary/Expansion |
| Typ / Serie: | MS34FB |
| Type of construction: | Hermetic, Reciprocating piston |
Downloads
- 47-32MS34FB-Datasheet-HHKaeltetechnik - Datenblatt / Datasheet
