ACC Cubigel Compressors
Our online shop offers a comprehensive range of fully hermetic ACC Cubigel (Ex - Electrolux) compressors and accessories. ACC Austria GmbH is Europe's largest manufacturer of high-quality refrigeration compressors and has been producing them worldwide for over 30 years. Energy-efficient ACC-Cubigel compressors have various applications in refrigeration technology: - Domestic coolers and freezers (R600a); - Water coolers, bottle coolers, waste coolers, small refrigerators and freezers (R134A); - Refrigerators, ice cream cabinets and bottle cooling racks (R134a, R404a); - Freezers, ice cube makers and deep freezers (R134a, R404a, R22); - Refrigerated islands, large refrigerators and refrigerated display cabinets (R134a, R404a).
Compressor Cubigel model series-G
From
€71.91*
V-Verdichter Cubigel-G
| Modellreihe | GD , GE , GL , GP , GS , GU , GX |
|---|---|
| Refrigerant | R134a |
| Scope of application | HMBP , LBP |
| Typ / Serie | GD24MB_C , GD30MB_C , GD36MBc , GD36MBd , GE70TG , GL45AN , GL45TB , GL45TG , GL60AA , GL60AN , GL60PB , GL60TB , GL70AN , GL75AA / GVM66AA / AS75AA, , GL80TE , GL80TG , GL90TB , GL90TG , GLY12RA , GLY45AAa , GP11TB , GP12BB , GP12TG , GP14FB , GP14TB , GP14TG , GP16TB , GP16TG , GPY14RAa , GS26TB-T , GS30TB-T , GS34TB , GS34TB-T , GS34TB-V , GU45TG , GU60TG , GU80TB , GX18FB , GX18TB , GX21FB , GX23TB |
Compressor Cubigel model series-H
From
€64.90*
V-Verdichter Cubigel-H
| Modellreihe | HK , HL , HM , HP , HS , HT , HV , HX , HY |
|---|---|
| Refrigerant | R600a |
| Scope of application | LBP |
| Typ / Serie | HKK12AA , HKK12AT , HKK55AA , HKK70AA , HLY55AA_A , HLY70AA_A , HLY75AA , HLY80AA_A , HLY90AA , HLY99AA , HMK12AA , HMK70AA , HMK80AA , HPY12AA , HPY14AA , HPY16AA , HST065AA , HTK55AA , HTK70AA , HVH44AA , HXK12AA , HXK12AA.K5 , HXK55AA , HXK95AA , HYE131MKU |
Tip
Compressor ACC HMK95AA, LBP - R600, 220-240V/1F/50Hz
From
€85.41*
38-HMK95AA
| Design | Reciprocating piston |
|---|---|
| Displacement | 96 |
| Scope of application | LBP |
| Voltage | 220-240V |
Tip
Compressor Electrolux-ZEM GL80AA, LBP - R134a, 1/5HP, 220-240V/1/50Hz
From
€85.41*
47-32GL80AA
| COP | 0,88 |
|---|---|
| Condensation temperature | 55 °C |
| Connection Size | Connection Size |
| Delivery and suction volume (m3) | 1,4 |
| Design | Hermetic , Reciprocating piston |
| Dimensions ( length × width × height ) | 23.10 × 16.20 × 18.60 cm |
| Displacement (cm3) | 7,52 |
| Engine type | RSIR / RSCR |
| Max. Operating current (A) | 1,16 |
| Max. Starting current (A) | 11,5 |
| Measuring conditions | ASHRAE |
| Oil quantity (l) | 0,18 |
| Oil type | ISO VG 19 Ester |
| Power range (C) | -35 C to -10 C |
| Power range (W) | 101 - 200 W |
| Power range (hp) | 0-2 |
| Pressure line (mm) | 4,9 |
| Refrigerant | R134a | R404A |
| Scope of application | LBP |
| Suction line (mm) | 6,5 |
| Suction side | 6.5 mm |
| To be used with | Capillary tube |
| Voltage | 220-240V |
Compressor Cubigel model series-M
From
€89.10*
V-Verdichter Cubigel-M
| Modellreihe | ML , MP , MS , MX |
|---|---|
| Refrigerant | R404a |
| Scope of application | HMBP , LBP |
| Typ / Serie | ML40TB , ML45TB , ML60TB , ML80FB , ML80TB , ML80TG , ML90TB , MLY12LAA , MLY60LA , MP(T)12TB/RB/RA , MP12FB , MP12TG , MP14FB , MP14FG , MP14RB , MPT12LAA , MPT12RA , MPT16LA , MS18T3 , MS22T3 , MS22TB-T , MS26F3 , MS26FB , MS26FB-T , MS26FB-V , MS26TB , MS26TB-T , MS30FB , MS30FB-T , MS34F3 , MS34FB , MS34FB-T , MS34FB-V mit Rotalockventil , MS34TB-T , MX16TB_A , MX18FB , MX18TB , MX23FB |
Compressor ACC - Electrolux GL80TB, HMBP - R134a, 1/5HP, 220-240V/1/50Hz- not available, replaced by GE70TG
From
€179.10*
47-32GL80TB
| COP | 1,82 |
|---|---|
| Connection Size | Connection Size |
| Cooling | Fan |
| Delivery and suction volume (m3) | 1,3 |
| Design | Hermetic , Reciprocating piston |
| Dimensions ( length × width × height ) | 24.00 × 16.20 × 19.10 cm |
| Displacement (cm3) | 7,57 |
| Engine type | CSIR |
| Max. Operating current (A) | 1,79 |
| Max. Starting current (A) | 9,7 |
| Oil quantity (l) | 0,3 |
| Oil type | ISO VG 22 Ester |
| Power consumption (W) | 302 |
| Power range (C) | -25 C to +10 C |
| Power range (W) | 501 - 700 W |
| Power range (hp) | 0-2 |
| Pressure line (mm) | 4,9 |
| Scope of application | MBP/HBP |
| Suction line (mm) | 6,5 |
| Suction side | 6.5 mm |
| To be used with | Capillary/Expansion |
| Voltage | 220-240V |
| cooling capacity (W) at To 0°C | 615 |
Tip
Compressor Electrolux-ZEM GL90AA, LBP - R134a, 1/4HP, 220-240V/1/50Hz
From
€107.10*
47-32GL90AA
| COP | 0,89 |
|---|---|
| Condensation temperature | 55 °C |
| Connection Size | Connection Size |
| Cooling | Static |
| Delivery and suction volume (m3) | 1,57 |
| Design | Hermetic , Reciprocating piston |
| Dimensions ( length × width × height ) | 23.10 × 16.20 × 18.60 cm |
| Displacement (cm3) | 9,08 |
| Engine type | RSIR |
| Max. Operating current (A) | 12,8 |
| Max. Starting current (A) | 12,8 |
| Measuring conditions | ASHRAE |
| Oil quantity (l) | 345 cm³ |
| Oil type | ISO VG 19 Ester |
| Power range (C) | -35 C to -10 C |
| Power range (W) | 101 - 200 W |
| Power range (hp) | 0-2 |
| Pressure line (mm) | 4,9 |
| Scope of application | LBP |
| Speed (rpm) | 2900 |
| Suction line (mm) | 6,5 |
| Suction side | 6.5 mm |
| To be used with | Capillary tube |
| Voltage | 220-240V |
Cubigel / Huayi ACC / ZEM / Electrolux compressors
From
€67.41*
V-Verdichter Cubigel
| Modellreihe | B3 , EL , GD , GE , GL , GP , GS , GU , GX , HK , HL , HM , HP , HS , HT , HV , HX , HY , L4 , L7 , ML , MP , MR , MS , MX , NL , NU , NX , S2 , X1 |
|---|---|
| Refrigerant | R22 , R134a , R290 , R404 , R404a , R600a |
| Scope of application | HMBP , LBP |
| Typ / Serie | B38H , ELX S26UP/S26UN , GD24MB_C , GD30MB_C , GD36MBc , GD36MBd , GE70TG , GL45AA / GVM38AA , GL45AN , GL45TB , GL45TG , GL60AA , GL60AN , GL60PB , GL60TB , GL70AN , GL75AA / GVM66AA / AS75AA, , GL80TE , GL80TG , GL90TB , GL90TG , GLY12RA , GLY45AAa , GP11TB , GP12BB , GP12TG , GP14FB , GP14TB , GP14TG , GP16TB , GP16TG , GPY14RAa , GS26TB-T , GS30TB-T , GS34TB , GS34TB-T , GS34TB-V , GU45TG , GU60TG , GU80TB , GX18FB , GX18TB , GX21FB , GX23TB , HKK12AA , HKK12AT , HKK55AA , HKK70AA , HLY55AA_A , HLY70AA_A , HLY75AA , HLY80AA_A , HLY90AA , HLY99AA , HMK12AA , HMK70AA , HMK80AA , HPY12AA , HPY14AA , HPY16AA , HST065AA , HTK55AA , HTK70AA , HVH44AA , HXK12AA , HXK12AA.K5 , HXK55AA , HXK95AA , HYE131MKU , L45TN , L76TN , ML40TB , ML45TB , ML60TB , ML80FB , ML80TB , ML80TG , ML90TB , MLY12LAA , MLY60LA , MP(T)12TB/RB/RA , MP12FB , MP12TG , MP14FB , MP14FG , MP14RB , MPT12LAA , MPT12RA , MPT14RA , MPT16LA , MR22TB , MS18T3 , MS22T3 , MS22TB-T , MS26F3 , MS26FB , MS26FB-T , MS26FB-V , MS26TB , MS26TB-T , MS30FB , MS30FB-T , MS34F3 , MS34FB , MS34FB-T , MS34FB-V mit Rotalockventil , MS34TB-T , MX16TB_A , MX18FB , MX18TB , MX23FB , NL90FB , NUY90LA , NX18TBA , S22TN-T , S26TN-T , X16TN |
Compressor Electrolux-ZEM GL99AA, LBP - R134a, 1/4HP, 220-240V/1/50Hz
From
€98.10*
47-32GL99AA
| COP | 0,92 |
|---|---|
| Condensation temperature | 55 °C |
| Connection Size | Connection Size |
| Cooling | Static |
| Delivery and suction volume (m3) | 1,72 |
| Design | Hermetic , Reciprocating piston |
| Dimensions ( length × width × height ) | 23.10 × 16.20 × 18.60 cm |
| Displacement (cm3) | 9,93 |
| Engine type | RSIR |
| Max. Operating current (A) | 1,31 |
| Max. Starting current (A) | 14,4 |
| Measuring conditions | ASHRAE |
| Oil quantity (l) | 295 cm³ |
| Oil type | ISO VG 22 Ester |
| Power range (C) | -35 C to -10 C |
| Power range (W) | 101 - 200 W |
| Power range (hp) | 0-2 |
| Pressure line (mm) | 4,9 |
| Scope of application | LBP |
| Speed (rpm) | 2900 |
| Suction line (mm) | 6,5 |
| Suction side | 6.5 mm |
| To be used with | Capillary tube |
| Voltage | 220-240V |
Tip

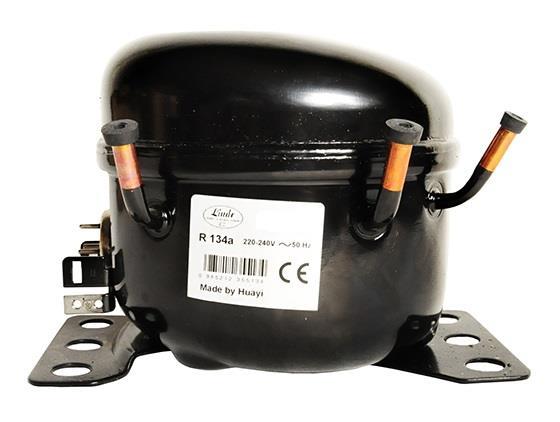

Compressor ACC HUAYI B38G, HBP - R134a, 220-240V, 50Hz, 1/8 hp
From
€107.10*
47-3240-B38G
| Design | Hermetic |
|---|---|
| Displacement (cm3) | 3,8 |
| Engine type | CSIR |
| Power range (W) | 201 - 300 W |
| Power range (hp) | 0-2 |
Compressor ACC - GD30AA (has been replaced by L30HL, also supplied), 1/12HP, LBP, R134a, 220-240V, 50Hz
From
€98.10*
47-32GD30AA
| Condensation temperature | 55 °C |
|---|---|
| Connection Size | Connection Size |
| Delivery and suction volume (m3) | 0,5 |
| Design | Hermetic , Reciprocating piston |
| Displacement (cm3) | 3,08 |
| Engine type | RSIR |
| Max. Operating current (A) | 0,49 |
| Max. Starting current (A) | 6,5 |
| Measuring conditions | ASHRAE |
| Oil quantity (l) | 0,2 |
| Oil type | ISO VG 19 Ester |
| Power consumption (W) | 71 |
| Power range (W) | 0 - 100 W |
| Power range (hp) | 0-2 |
| Pressure line (mm) | 4,9 |
| Scope of application | LBP |
| Suction line (mm) | 6,5 |
| Suction side | 6.5 mm |
| To be used with | Capillary tube |
| Voltage | 220-240V |
Huayi compressor NLY45RAa, HMBP - R290, 220 - 240V, 50Hz- not available, replaced by NUY45RAA
€99.00*
47-32NLY45RAA
| Engine type | CSIR |
|---|---|
| Refrigerant | R290 |
| Scope of application | HBP |
Compressor ACC Cubigel - MPT14LA, LBP - R404a, 1/2HP, 220-240V
From
€114.19*
38-MPT14LA
| COP | 0,98 |
|---|---|
| Connection Size | Connection Size |
| Design | Hermetic , Reciprocating piston |
| Dimensions ( length × width × height ) | 23.10 × 16.20 × 21.10 cm |
| Displacement (cm3) | 14,32 |
| Engine type | CSR |
| Max. Operating current (A) | 2,69 |
| Max. Starting current (A) | 16 |
| Oil quantity (l) | 0,4 |
| Oil type | ISO VG 46 Ester |
| Power range (W) | 501 - 700 W |
| Power range (hp) | 0-2 |
| Pressure line (mm) | 6,5 |
| Scope of application | LBP |
| Suction line (mm) | 8,1 |
| Suction side | 8.1 mm |
| To be used with | Capillary/Expansion |
| Voltage | 220-240V |
Cubigel / Huayi compressor NPY14LA_A, LBP - R290, 220-240V 50Hz
From
€152.10*
47-32NPY14LA
| Refrigerant | R290 |
|---|

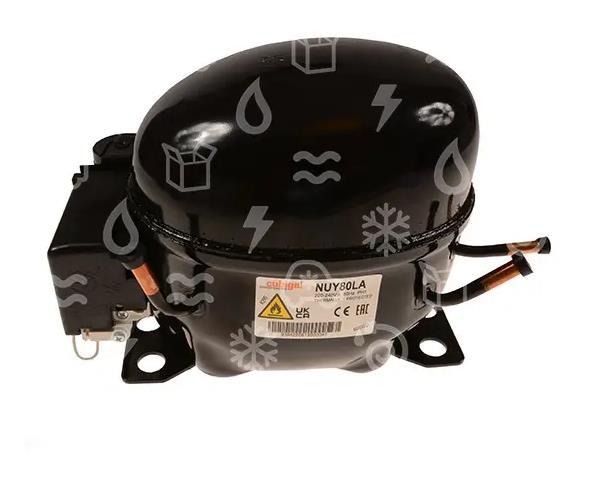

Compressor Cubigel NUY80LA HMBP - R290, 2240-240V, 50Hz
From
€89.10*
47-32NLY80RA
| Engine type | CSIR |
|---|---|
| Refrigerant | R290 |
| Scope of application | LBP |
| Voltage | 220-240V |
Compressor ACC HUAYI B30G (L30GA), HBP R134a, 220-240V, 50Hz - not available, replaced by 40-B38G
From
€107.10*
47-3240-B30G
| COP | 1,7 |
|---|---|
| Design | Hermetic |
| Displacement (cm3) | 3,1 |
| Engine type | RSIR |
| Kategorie | Compressor / Compressor |
| Power range (W) | 201 - 300 W |
Compressor ACC - ML90FB, LBP - R404A, R507, 1/3HP, 220-240V
From
€107.10*
47-32ML90FB
| COP | 0,82 |
|---|---|
| Condensation temperature | 45 °C |
| Connection Size | Connection Size |
| Design | Hermetic , Reciprocating piston |
| Dimensions ( length × width × height ) | 23.10 × 16.20 × 19.80 cm |
| Displacement (cm3) | 8,86 |
| Engine type | CSIR |
| Max. Operating current (A) | 2,24 |
| Max. Starting current (A) | 12,2 |
| Measuring conditions | ASHRAE |
| Oil quantity (l) | 0,4 |
| Oil type | ISO VG 46 Ester |
| Power range (C) | -40 C to -10 C |
| Power range (W) | 201 - 300 W |
| Power range (hp) | 0-2 |
| Pressure line (mm) | 4,9 |
| Refrigerant | R507 , R507A |
| Scope of application | LBP |
| Suction line (mm) | 6,5 |
| Suction side | 6.5 mm |
| To be used with | Capillary/Expansion |
| Voltage | 220-240V |

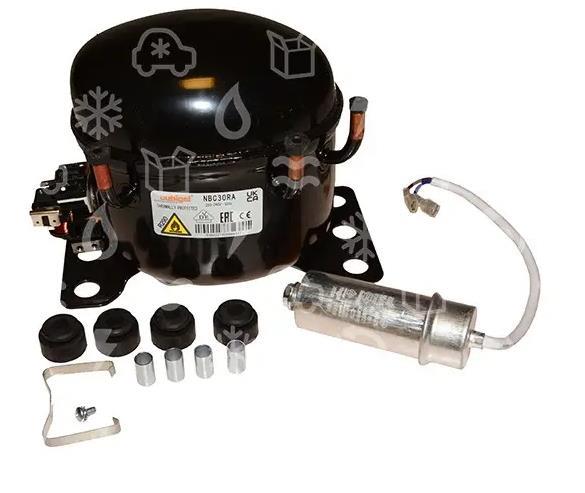

Compressor ACC Cubigel, NBC30RA / HMBP R290, 220 - 240V, 50 Hz
€74.90*
47-32NBC30RA
| Design | Hermetic , Reciprocating piston |
|---|---|
| Engine type | CSIR |
| Refrigerant | R290 |
| Scope of application | HBP |
| Voltage | 220-240V |
Compressor ACC - MS34TB, HBP - R404A, R507, 1 5/8HP, 220-240
From
€296.10*
47-32MS34TB
| COP | 2,3 |
|---|---|
| Condensation temperature | 55 °C |
| Connection Size | Connection Size |
| Design | Hermetic , Reciprocating piston |
| Dimensions ( length × width × height ) | 21,90 × 16,50 × 27,60 cm |
| Displacement | 34.42 |
| Displacement (cm3) | 34,42 |
| Engine type | CSR |
| Max. Operating current (A) | 11,6 |
| Max. Starting current (A) | 41 |
| Measuring conditions | ASHRAE |
| Oil quantity (l) | 887 cm³ |
| Oil type | ISO VG 46 Ester |
| Power range (C) | -25 C to +10 C |
| Power range (W) | 3 - 5 kW |
| Power range (hp) | 0-2 |
| Pressure line (mm) | 8 |
| Refrigerant | R507 , R507A |
| Scope of application | HBP |
| Suction line (mm) | 12,7 |
| To be used with | Capillary/Expansion |
| Voltage | 220-240V |
Compressor ACC - MS34TB-V with Rotalock valve, HBP - R404A, R507
€339.00*
47-32MS34TB-V
| Condensation temperature | 55 °C |
|---|---|
| Connection Size | Connection Size |
| Design | Hermetic , Reciprocating piston |
| Dimensions ( length × width × height ) | 21,90 × 16,50 × 27,60 cm |
| Displacement | 34.42 |
| Displacement (cm3) | 34,42 |
| Engine type | CSR |
| Equipment | Equipment |
| Max. Operating current (A) | 11,6 |
| Max. Starting current (A) | 41 |
| Measuring conditions | ASHRAE |
| Oil quantity (l) | 887 cm³ |
| Oil type | ISO VG 46 Ester |
| Power range (C) | -25 C to +10 C |
| Power range (W) | 3 - 5 kW |
| Power range (hp) | 0-2 |
| Pressure line (mm) | 8 |
| Refrigerant | R404A | R407C | R507 , R507 , R507A |
| Scope of application | MBP/HBP |
| Suction line (mm) | 12,7 |
| To be used with | Capillary/Expansion |
| Voltage | 220-240V |
Compressor Cubigel NLY 60 RA_A, HMBP - R290, 220-240V, 50Hz- not available, replaced by NUY60RA
From
€107.10*
47-32NLY60RA

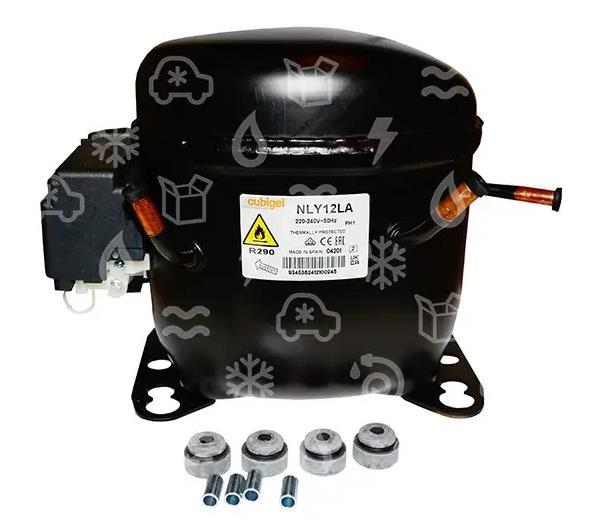

Compressor Cubigel NLY 12 LA_A, LBP - R290, 220-240V, 50Hz
From
€125.10*
47-32NLY12LA
| Engine type | CSIR |
|---|---|
| Refrigerant | R290 |
| Scope of application | LBP |
| Voltage | 220-240V |
