LG Compressors
For optimal comfort at home, our online shop offers a wide selection of LG scroll compressors and rotary compressors. The Korean conglomerate LG Group, which is now one of the world's leading electronics groups, is known in Germany and Austria through its subsidiary LG Electronics. LG Electronics supplies both extremely quiet and highly efficient scroll compressors for refrigerators and freezers as well as rotary compressors for air conditioning systems.
Delivery from

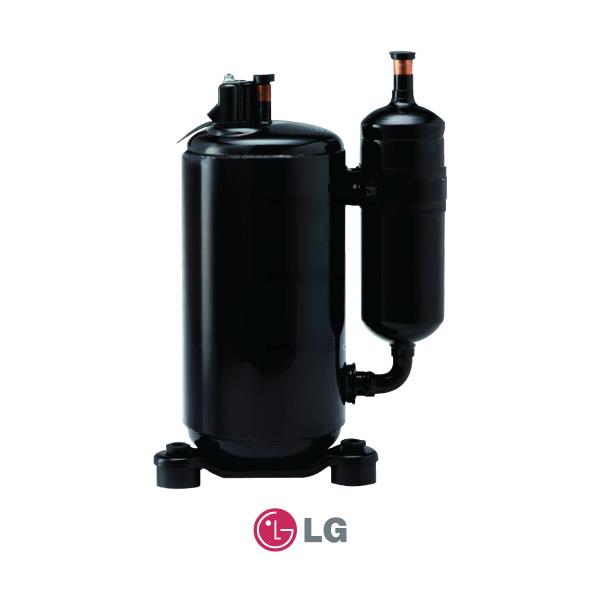

Rotary compressor LG GJS189PAA, R410A, 220 - 240 V, 50HZ, 14500 BTU/H
47-32GJS189PAA
Delivery from
Rotary compressor LG GK113P, R410A, 220-240V/50Hz, 9000 Btu/h
47-32GK113P
| Btu/h: | 9600 |
|---|---|
| Compressor type: | Rotation |
| Condensation temperature: | 54.4 °C |
| Condensing units Compressors: | Compressor |
| Design: | Design, Design |
| Displacement (cm3): | 17,6 |
| Engine type: | PSC |
| Equipment: | Equipment |
| Info: | Oil prefilled |
| Manufacturer: | LG |
| Measuring conditions: | ASHRAE-T |
| Oil quantity (l): | 0,33 |
| Oil type: | POE |
| Power (Btu/h): | 1,000-10,000 Btu/h |
| Power supply: | 230 V |
| Refrigerant: | R410A |
| Series: | GK |
| Voltage: | 220-240V |
No longer available

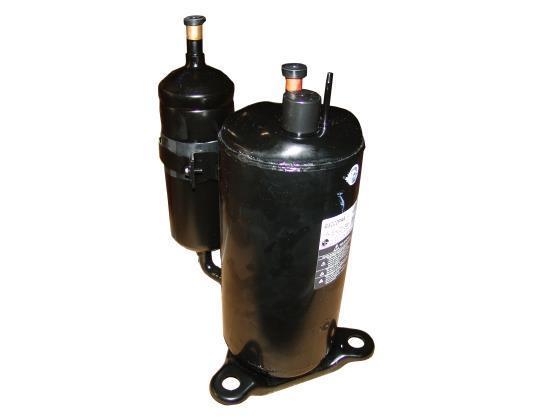

Rotary compressor LG, GJ222P, R410A, 220-240V, 50Hz, 18400 Btu/h
47-32GJ222P
| Compressor type: | Rotation |
|---|---|
| Condensation temperature: | 54.4 °C |
| Condensing units Compressors: | Compressor |
| Connection Size: | Connection Size |
| Design: | Design, Design |
| Dimensions ( length × width × height ): | 26.10 × 22.90 × 37.20 cm |
| Engine type: | PSC |
| Equipment: | Equipment |
| Info: | Oil prefilled |
| Manufacturer: | LG |
| Max. Operating current (A): | 43 |
| Measuring conditions: | ASHRAE-T |
| Oil quantity (l): | 0,44 |
| Oil type: | FVC68D |
| Power supply: | 230 V |
| Pressure line (mm): | 9,7 |
| Refrigerant: | R410A |
| Series: | GJ |
| Suction line (mm): | 12,8 |
| Voltage: | 220-240V |
Delivery from

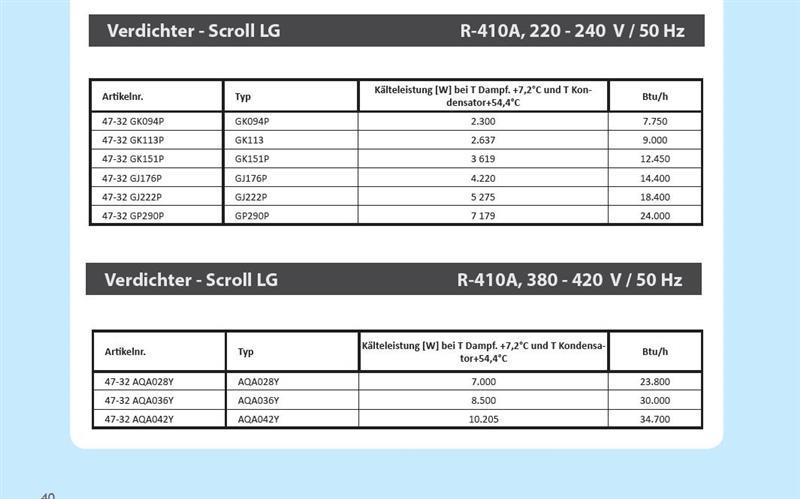

Rotary compressor LG GJ176P, R410A, 220-240V/50Hz, 14 400 Btu/h
47-32GJ176P
| Btu/h: | 18400 |
|---|---|
| Compressor type: | Rotation |
| Condensation temperature: | 54.4 °C |
| Condensing units Compressors: | Compressor |
| Design: | Design, Design |
| Displacement (cm3): | 17,6 |
| Engine type: | PSC |
| Info: | Oil prefilled |
| Manufacturer: | LG |
| Measuring conditions: | ASHRAE-T |
| Oil quantity (l): | 0,44 |
| Oil type: | FVC68D |
| Power (Btu/h): | 10,000-20,000 Btu/h |
| Power supply: | 230 V |
| Refrigerant: | R410A |
| Series: | GJ |
| Voltage: | 220-240V |
No longer available
Compressor LG Scroll HR073Y, R407C, 380-420V, 3F, 50Hz, 60500 Btu/h
22-HR073Y
| Condensation temperature: | 54.4 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Design: | Design |
| Manufacturer: | LG |
| Measuring conditions: | ARI |
| Refrigerant: | R407C |
| Scope of application: | MBP/HBP |
| Series: | HR |
| Voltage: | 380-420V |
No longer available
Compressor LG Scroll HQ040P, R407C, 220-240V, 50Hz, 34000 Btu/h
22-HQ040P
| Condensation temperature: | 54.4 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Design: | Design |
| Displacement: | 55.81 |
| Manufacturer: | LG |
| Measuring conditions: | ARI |
| Refrigerant: | R407C |
| Series: | HQ |
| Voltage: | 220-240V |
No longer available
Rotary compressor LG NJ208PC23, R407C, 220-240V, 50Hz, 12400 Btu/h
22-NJ208P
| Condensation temperature: | 54.4 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Design: | Design |
| Manufacturer: | LG |
| Measuring conditions: | ASHRAE-T |
| Refrigerant: | R407C |
| Series: | NJ |
| Voltage: | 220-240V |
No longer available
Compressor LG Scroll HR081Y, R407C, 380-420V, 3F, 50Hz, 67000 Btu/h
22-HR081Y
| Condensation temperature: | 54.4 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Design: | Design |
| Manufacturer: | LG |
| Measuring conditions: | ARI |
| Refrigerant: | R407C |
| Scope of application: | MBP/HBP |
| Series: | HR |
| Voltage: | 380-420V |
No longer available
Compressor LG Scroll HR049Y, R407C, 380-420V, 3F, 50Hz, 41500 Btu/h
22-HR049Y
| Btu/h: | 42000 |
|---|---|
| Compressor type: | Scroll |
| Condensation temperature: | 54.4 °C |
| Condensing units Compressors: | Compressor |
| Connection Size: | Connection Size |
| Cooling capacity (W): | 12366 |
| Design: | Design, Design |
| Dimensions ( length × width × height ): | 21.60 × 21.60 × 46.20 cm |
| Displacement (cm3): | 67,1 |
| Info: | Oil prefilled |
| Manufacturer: | LG |
| Measuring conditions: | ARI |
| Oil quantity (l): | 1,8 |
| Oil type: | FVC68D |
| Power (Btu/h): | 30,000-60,000 Btu/h |
| Power range (W): | 10 - 15 kW |
| Power supply: | 400 V |
| Pressure line (mm): | 12,9 |
| Refrigerant: | R407C, R410A |
| Scope of application: | MBP/HBP |
| Series: | HR |
| Suction line (mm): | 19,2 |
| Voltage: | 380-420V |
No longer available
Compressor LG Scroll AQA042Y, R410A, 230V, 1F, 50Hz, 34700 Btu
22-AQA042P
| Condensation temperature: | 54.4 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Design: | Design |
| Manufacturer: | LG |
| Measuring conditions: | ARI |
| Refrigerant: | R410A |
| Series: | AQA |
| Voltage: | 230V |
No longer available

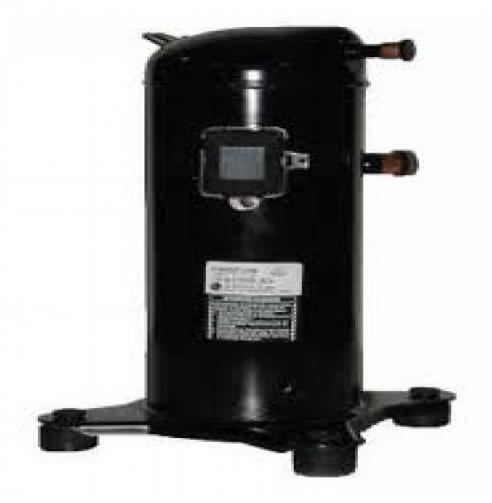

Compressor LG Scroll ARA049P, R410A, 230V, 1F, 50Hz, 42.000 Btu/h - not available, replaced by successor
22-ARA049P
| Manufacturer: | LG |
|---|---|
| Refrigerant: | R410A |
No longer available
Compressor LG Scroll HR061Y, R407C, 380-420V, 3F, 50Hz, 50000 Btu/h
22-HR061Y
| Btu/h: | 50000 |
|---|---|
| Compressor type: | Scroll |
| Condensation temperature: | 54.4 °C |
| Condensing units Compressors: | Compressor |
| Connection Size: | Connection Size |
| Cooling capacity (W): | 14652 |
| Design: | Design, Design |
| Dimensions ( length × width × height ): | 21.60 × 21.60 × 46.20 cm |
| Displacement: | 85.6 |
| Displacement (cm3): | 85,6 |
| Info: | Oil prefilled |
| Manufacturer: | LG |
| Measuring conditions: | ARI |
| Oil quantity (l): | 1,8 |
| Oil type: | FVC68D |
| Power (Btu/h): | 30,000-60,000 Btu/h |
| Power range (W): | 10 - 15 kW |
| Power supply: | 400 V |
| Pressure line (mm): | 12,9 |
| Refrigerant: | R407C, R410A |
| Scope of application: | MBP/HBP |
| Series: | HR |
| Suction line (mm): | 19,2 |
| Voltage: | 380-420V |
No longer available
Rotary compressor LG NK134P, R407C, 220-240V, 50Hz, 7800 Btu/h
22-NK134P
| Condensation temperature: | 54.4 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Design: | Design |
| Manufacturer: | LG |
| Measuring conditions: | ASHRAE-T |
| Refrigerant: | R407C |
| Series: | NK |
| Voltage: | 220-240V |
No longer available
Rotary compressor LG NK125P, R407C, 220-240V, 50Hz, 6800 Btu/h.
22-NK125P
| Condensation temperature: | 54.4 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Design: | Design |
| Manufacturer: | LG |
| Measuring conditions: | ASHRAE-T |
| Refrigerant: | R407C |
| Series: | NK |
| Voltage: | 220-240V |
No longer available
Rotary compressor LG QP407PD24, R22,220-240V, 50Hz, 23600 Btu/h - not available, replaced by successor
47-32QP407PD24
| Condensation temperature: | 54.4 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Design: | Design |
| Manufacturer: | LG |
| Measuring conditions: | ASHRAE-T |
| Refrigerant: | R22 |
| Series: | QP |
| Voltage: | 220-240V |
No longer available
Rotary compressor LG NK185P, R407C, 220-240V/50 Hz, 10 600 Btu/h
22-NK185P
| Condensation temperature: | 54.4 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Design: | Design |
| Manufacturer: | LG |
| Measuring conditions: | ASHRAE-T |
| Refrigerant: | R407C |
| Series: | NK |
| Voltage: | 220-240V |
No longer available

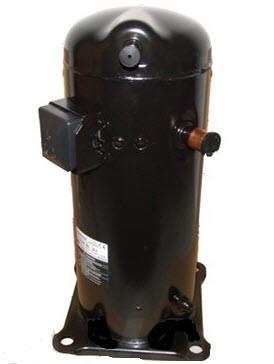

Compressor LG Scroll ARA081Y, R410A, 380-420V, 3F, 50Hz, 69000 Btu
22-ARA081Y
| Btu/h: | 68500 |
|---|---|
| Compressor type: | Scroll |
| Condensation temperature: | 54.4 °C |
| Condensing units Compressors: | Compressor |
| Connection Size: | Connection Size |
| Cooling capacity (W): | 20075 |
| Design: | Design, Design |
| Dimensions ( length × width × height ): | 23,50 × 23,50 × 47,40 cm |
| Displacement (cm3): | 81,02 |
| Info: | Oil prefilled |
| Manufacturer: | LG |
| Measuring conditions: | ARI |
| Oil quantity (l): | 1,8 |
| Oil type: | FVC68D |
| Power (Btu/h): | 60,000-130,000 Btu/h |
| Power range (W): | 20 - 30 kW |
| Power supply: | 400 V |
| Pressure line (mm): | 12,9 |
| Refrigerant: | R410A |
| Series: | ARA |
| Suction line (mm): | 22,4 |
| Voltage: | 380-420V |
Delivery from
Compressor LG Scroll ARA073Y, R410A, 380-420V, 3F, 50Hz, 60300 Btu
22-ARA073Y
| Btu/h: | 62000 |
|---|---|
| Compressor type: | Scroll |
| Condensation temperature: | 54.4 °C |
| Condensing units Compressors: | Compressor |
| Connection Size: | Connection Size |
| Cooling capacity (W): | 18168 |
| Design: | Design, Design |
| Dimensions ( length × width × height ): | 23.50 × 23.50 × 47.80 cm |
| Displacement (cm3): | 72,84 |
| Info: | Oil prefilled |
| Manufacturer: | LG |
| Measuring conditions: | ARI |
| Oil quantity (l): | 1,8 |
| Oil type: | FVC68D |
| Power (Btu/h): | 60,000-130,000 Btu/h |
| Power range (W): | 15 - 20 kW |
| Power supply: | 400 V |
| Pressure line (mm): | 12,9 |
| Refrigerant: | R410A |
| Series: | ARA |
| Suction line (mm): | 22,4 |
| Voltage: | 380-420V |
No longer available
Rotary compressor LG NP407P, R407C, 220-240V, 50Hz, 23400 Btu/h
22-NP407P
| Condensation temperature: | 54.4 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Design: | Design |
| Manufacturer: | LG |
| Measuring conditions: | ASHRAE-T |
| Refrigerant: | R407C |
| Series: | NP |
| Voltage: | 220-240V |
No longer available
Rotary compressor LG NK164P, R407C, 220-240V, 50Hz, 9800 Btu/h
22-NK164P
