Maneurop Compressors
In our online shop you will find the full range of Danfoss Maneurop fully thermal reciprocating compressors and scroll compressors at competitive prices. Maneurop reciprocating compressors have been specially designed by Danfoss Comercial Compressors to operateIn wide range of applications. All components are of high quality and accuracy, ensuring long compressor life.
Delivery from

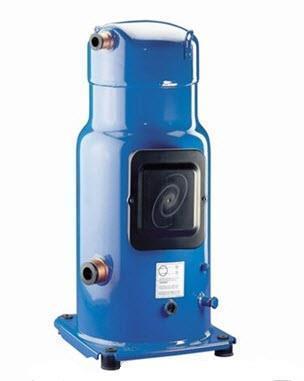

Compressor Maneurop Scroll SZ175-4RI, HMBP - R404A, R507, R407C, 3F
47-32SZ175-4RI
| Condensation temperature: | 35 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Cooling capacity (W) at To -5°C: | 46291 |
| Cooling capacity (W) at To 5°C: | 31082 |
| Design: | Design |
| Displacement: | 233 |
| Manufacturer: | Maneurop |
| Measuring conditions: | ASHRAE |
| Modellreihe: | SZ |
| Refrigerant: | R404A, R404a, R407C, R507 |
| Scope of application: | HMBP, MBP/HBP |
| Series: | SZ |
| Typ / Serie: | SZ175-4RI |
| Voltage: | 400V |
| cooling capacity (W) at To -10°C: | 25003 |
| cooling capacity (W) at To -20°C: | 15464 |
| cooling capacity (W) at To 0°C: | 33148 |
| cooling capacity (W) at To 10°C: | 55598 |
Variants from €3,465.58*
Variants from €2,761.44*
Variants from €4,970.81*
Variants from €2,248.52*
Variants from €980.77*
Variants from €674.56*
Variants from €2,718.98*
Variants from €3,434.97*
Variants from €4,382.02*
Variants from €3,611.03*
Variants from €4,491.48*
Variants from €742.01*
Variants from €935.09*
Variants from €1,364.63*
Variants from €2,050.54*
Variants from €4,537.64*
Variants from €757.91*
Variants from €6,450.63*
Delivery from

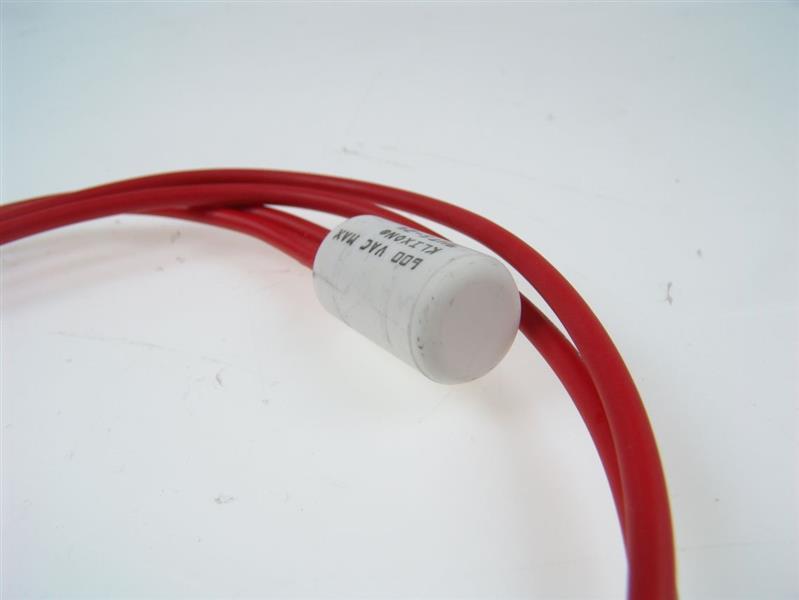

Compressor radiators Maneurop MT and MTZ, 35W
47-32MT-MTZ-VYH
| Manufacturer: | Diverse, Maneurop Danfoss |
|---|---|
| Power range (W): | 0 - 100 W |
Delivery from
Oil sump heater for compressor Maneurop, MT / MTZ series, 35 W, 220-240V, d = 19.3 mm x 32.5 mm, length: 700 mm
47-327901-M-035
| Manufacturer: | Maneurop Danfoss |
|---|
Delivery from

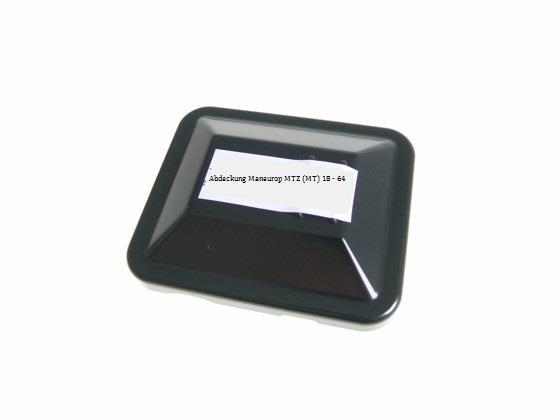

Cover for Maneurop compressors MTZ (MT) 18 - 64
47-32MT-MTZ-001
| Manufacturer: | Maneurop |
|---|
Delivery from
Compactor Maneurop MTZ-284VM, MBP - R134a, R404A, R407C, 380 V
47-32MTZ28-4VM
Delivery from
Compressor Maneurop Scroll SH380-A4ABE, HMBP - R410A, 3PH, SOLDER connection
47-32SH380
Delivery from
Compressor Maneurop Scroll SZ090S4VC, HMBP - R404A, R507, R407C, 3F, SOLDER connection
47-32SZ090-4VI
Delivery from
Compressor Maneurop Scroll SY380A4CBI, HBP - R134a, R407C, SOLDER connection
47-32SY380-A4CBI
Delivery from
Compressor Maneurop MTZ18JA4V, MBP - R134a, R404A, R407C, 380V
47-32MTZ18JA4V
| Compressor type: | Reciprocating piston |
|---|---|
| Condensation temperature: | 40 °C |
| Condensing units Compressors: | Compressor |
| Connection Size: | Connection Size |
| Cooling capacity (W): | 1400 |
| Cooling capacity (W) at To -5°C: | 3670 |
| Cooling capacity (W) at To -25°C: | 500 |
| Cooling capacity (W) at To 5°C: | 2170 |
| Delivery and suction volume (m3): | 5,3 |
| Design: | Design, Design |
| Dimensions ( length × width × height ): | 22,40 × 22,40 × 33,30 cm |
| Displacement: | 30.2 |
| Displacement (cm3): | 30,23 |
| Equipment: | Equipment |
| Info: | Oil prefilled |
| Manufacturer: | Maneurop, Maneurop Danfoss |
| Measuring conditions: | ASHRAE |
| Oil quantity (l): | 0,95 |
| Oil type: | POE |
| Power range (C): | -30 C to +10 C |
| Power range (W): | 1 - 1.5 kW |
| Power supply: | 400 V |
| Pressure line (inch): | 1 x 3/8 ODF |
| Refrigerant: | R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R507A |
| Scope of application: | MBP |
| Series: | MTZ |
| Suction line (inch): | 1 x 1/2 ODF |
| Voltage: | 380-400V |
| cooling capacity (W) at To -10°C: | 1610 |
| cooling capacity (W) at To -15°C: | 1150 |
| cooling capacity (W) at To -20°C: | 790 |
| cooling capacity (W) at To 0°C: | 2850 |
| cooling capacity (W) at To 10°C: | 4630 |
| cooling capacity (W) at To 15°C: | 5760 |
Delivery from

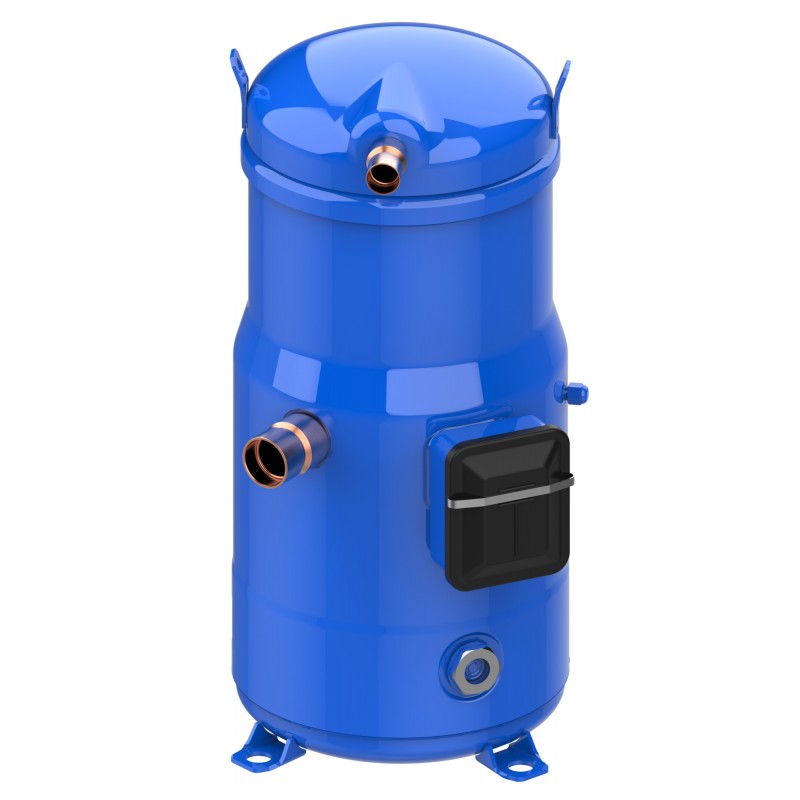

Compactor Maneurop Scroll (D)SH161-A4ALCI, HMBP - R410A, 3F, SOLDER
47-32DSH161
Delivery from

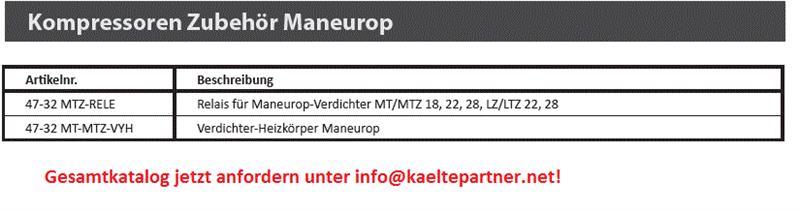

Current relay (startup relay) Maneurop MT/MTZ 18,22,28, LZ, LTZ 22,28 - CSR28/5
47-32MTZ-RELE
| Manufacturer: | Maneurop, Maneurop Danfoss |
|---|
No longer available
Compressor Maneurop MT28JE4V, MBP - R22,380-400V/3F/50Hz - not available, replaced by successor
47-32MT28JE4V
| Compressor type: | Reciprocating piston |
|---|---|
| Condensation temperature: | 40 °C |
| Condensing units Compressors: | Compressor |
| Cooling capacity (W) at To -5°C: | 8190 |
| Delivery and suction volume (m3): | 8,4 |
| Design: | Design, Design |
| Displacement: | 48.06 |
| Equipment: | Equipment |
| Info: | Oil prefilled |
| Manufacturer: | Maneurop, Maneurop Danfoss |
| Max. Operating current (A): | 7,5 |
| Max. Starting current (A): | 23 |
| Measuring conditions: | ARI |
| Power supply: | 400 V |
| Pressure line (inch): | 1 Rotalock x 3/8 ODF |
| Refrigerant: | R22 |
| Scope of application: | MBP |
| Series: | MT |
| Suction line (inch): | 1 Rotalock x 1/2 ODF |
| Voltage: | 380-400V |
| cooling capacity (W) at To -10°C: | 4330 |
| cooling capacity (W) at To -15°C: | 3330 |
| cooling capacity (W) at To -20°C: | 2450 |
| cooling capacity (W) at To 0°C: | 6750 |
| cooling capacity (W) at To 10°C: | 9810 |
No longer available
Compressor Maneurop MT56HL4V, MBP - R22,380-400V/3F/50Hz - not available, replaced by successor
47-32MT56HL4V
| Condensation temperature: | 40 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Cooling capacity (W) at To -5°C: | 12560 |
| Cooling capacity (W) at To -25°C: | 3040 |
| Cooling capacity (W) at To 5°C: | 7910 |
| Design: | Design |
| Displacement: | 96.1 |
| Manufacturer: | Maneurop |
| Measuring conditions: | ASHRAE |
| Refrigerant: | R22 |
| Scope of application: | MBP |
| Series: | MT |
| Voltage: | 380-400V |
| cooling capacity (W) at To -10°C: | 6040 |
| cooling capacity (W) at To -15°C: | 6040 |
| cooling capacity (W) at To -20°C: | 4420 |
| cooling capacity (W) at To 0°C: | 10080 |
| cooling capacity (W) at To 10°C: | 15380 |
| cooling capacity (W) at To 15°C: | 18570 |
No longer available
Compressor Maneurop MT100HS4V, MBP - R22,380-400V/3F/50Hz - not available, replaced by successor
47-32MT100HS4V
| Condensation temperature: | 40 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Cooling capacity (W) at To -5°C: | 26640 |
| Design: | Design |
| Displacement: | 171.26 |
| Manufacturer: | Maneurop |
| Measuring conditions: | ARI |
| Refrigerant: | R22 |
| Scope of application: | MBP |
| Series: | MT |
| Voltage: | 380-400V |
| cooling capacity (W) at To -10°C: | 13370 |
| cooling capacity (W) at To -15°C: | 10200 |
| cooling capacity (W) at To -20°C: | 7560 |
| cooling capacity (W) at To 0°C: | 21520 |
| cooling capacity (W) at To 10°C: | 32550 |
No longer available
Compressor Maneurop MTZ320-T4SA Tandem, MBP - R134a, R404A, R407C, 380V - not available, replaced by successor
22-MTZ320
| Condensing units Compressors: | Compressor |
|---|---|
| Manufacturer: | Maneurop |
| Refrigerant: | R134a, R404A |
| Series: | MTZ |
No longer available
Compressor Maneurop MTZ200-T4SA Tandem, MBP - R134a, R404A, R407C, 380V - out of stock, replaced by successor
22-MTZ200
| Condensing units Compressors: | Compressor |
|---|---|
| Manufacturer: | Maneurop |
| Refrigerant: | R134a, R404A |
| Series: | MTZ |
Delivery from
Compressor Maneurop MT144HV4V, MBP - R22,380-400V/3F/50Hz - not available, replaced by successor
47-32MT144HV4V
| Condensation temperature: | 40 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Cooling capacity (W) at To -5°C: | 39330 |
| Cooling capacity (W) at To -25°C: | 8620 |
| Cooling capacity (W) at To 5°C: | 25560 |
| Design: | Design |
| Displacement: | 241.9 |
| Manufacturer: | Maneurop |
| Measuring conditions: | ASHRAE |
| Refrigerant: | R22 |
| Scope of application: | MBP |
| Series: | MT |
| Voltage: | 380-400V |
| cooling capacity (W) at To -10°C: | 20150 |
| cooling capacity (W) at To -15°C: | 15590 |
| cooling capacity (W) at To -20°C: | 11780 |
| cooling capacity (W) at To 0°C: | 31920 |
| cooling capacity (W) at To 10°C: | 47890 |
| cooling capacity (W) at To 15°C: | 57690 |
No longer available
Compressor Maneurop MT18JA4V, MBP - R22,380-400V/3F/50Hz - not available, replaced by successor
47-32MT18JA4V
| Condensation temperature: | 40 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Cooling capacity (W) at To -5°C: | 4490 |
| Cooling capacity (W) at To -25°C: | 650 |
| Cooling capacity (W) at To 5°C: | 2680 |
| Design: | Design |
| Displacement: | 30.2 |
| Manufacturer: | Maneurop |
| Measuring conditions: | ASHRAE |
| Refrigerant: | R22 |
| Scope of application: | MBP |
| Series: | MT |
| Voltage: | 380-400V |
| cooling capacity (W) at To -10°C: | 2000 |
| cooling capacity (W) at To -15°C: | 1440 |
| cooling capacity (W) at To -20°C: | 1000 |
| cooling capacity (W) at To 0°C: | 3500 |
| cooling capacity (W) at To 10°C: | 5660 |
| cooling capacity (W) at To 15°C: | 7030 |
No longer available
Compressor Maneurop MT160HW4V, MBP - R22,380-400V/3F/50Hz - not available, replaced by successor
47-32MT160HW4V
| Compressor type: | Reciprocating piston |
|---|---|
| Condensation temperature: | 40 °C |
| Condensing units Compressors: | Compressor |
| Connection Size: | Connection Size |
| Cooling capacity (W) at To -5°C: | 43410 |
| Delivery and suction volume (m3): | 47,3 |
| Design: | Design, Design |
| Displacement: | 271.55 |
| Equipment: | Equipment |
| Info: | Oil prefilled |
| Manufacturer: | Maneurop, Maneurop Danfoss |
| Max. Operating current (A): | 36 |
| Max. Starting current (A): | 140 |
| Measuring conditions: | ARI |
| Power supply: | 400 V |
| Pressure line (inch): | 1.1/4 Rotalock x 3/4 ODF |
| Refrigerant: | R22 |
| Scope of application: | MBP |
| Series: | MT |
| Suction line (inch): | 1.3/4 Rotalock x 1.1/8 ODF |
| Voltage: | 380-400V |
| cooling capacity (W) at To -10°C: | 22300 |
| cooling capacity (W) at To -15°C: | 13120 |
| cooling capacity (W) at To -20°C: | 10320 |
| cooling capacity (W) at To 0°C: | 35250 |
| cooling capacity (W) at To 10°C: | 52840 |
Delivery from
Compressor Maneurop Scroll SZ090-4VI, HMBP - R404A, R507, R407C, 3F
47-32SZ90-4VI
| Condensation temperature: | 35 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Cooling capacity (W) at To -5°C: | 21997 |
| Cooling capacity (W) at To 5°C: | 14552 |
| Design: | Design |
| Displacement: | 120.5 |
| Manufacturer: | Maneurop |
| Measuring conditions: | ASHRAE |
| Refrigerant: | R404A, R407C, R507 |
| Scope of application: | MBP/HBP |
| Series: | SZ |
| Voltage: | 380-400V |
| cooling capacity (W) at To -10°C: | 11618 |
| cooling capacity (W) at To -20°C: | 7086 |
| cooling capacity (W) at To 0°C: | 17994 |
| cooling capacity (W) at To 10°C: | 26606 |
No longer available
Compressor Maneurop MT40JH4V, MBP - R22,380-400V/3F/50Hz - not available, replaced by successor
47-32MT40JH4V
| Condensation temperature: | 40 °C |
|---|---|
| Condensing units Compressors: | Compressor |
| Cooling capacity (W) at To -5°C: | 11210 |
| Design: | Design |
| Displacement: | 67.89 |
| Manufacturer: | Maneurop |
| Measuring conditions: | ARI |
| Refrigerant: | R22 |
| Scope of application: | MBP |
| Series: | MT |
| Voltage: | 380-400V |
| cooling capacity (W) at To -10°C: | 6040 |
| cooling capacity (W) at To -15°C: | 4680 |
| cooling capacity (W) at To -20°C: | 3480 |
| cooling capacity (W) at To 0°C: | 9290 |
| cooling capacity (W) at To 10°C: | 13340 |
No longer available
Noise damping compressor cover 4-cylinder Maneurop MT / MTZ compressor
47-32MTZ-KRYT-4CYL
| Manufacturer: | Maneurop Danfoss |
|---|
