Compressor Maneurop MTZ18JA5 (MTZ18-5VI), MBP - R134a, R404A, R407C, 220-240V/1Ph/50Hz
€962.71*
Available in 10 workingdays, delivery time 2-5 business days,
within Germany, abroad different
Do you have some questions about this product?
Product information "Compressor Maneurop MTZ18JA5 (MTZ18-5VI), MBP - R134a, R404A, R407C, 220-240V/1Ph/50Hz"

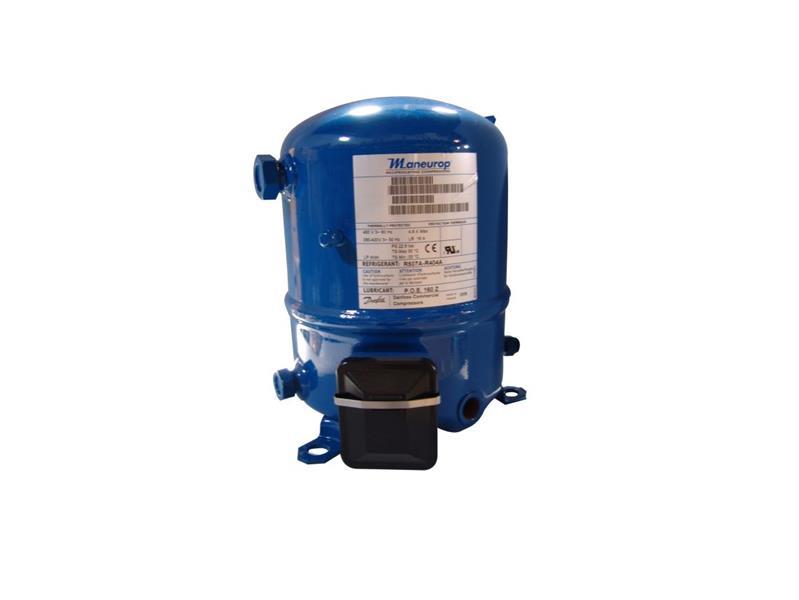

Maneurop MTZ18JA5 compressor (MTZ18-5VI)
This compressor is ideal for use in refrigeration, air conditioning and ventilation systems as well as heat pumps. It is suitable for various refrigerants such as R134a, R404A, R407C and offers reliable performance at 220-240V/1Ph/50Hz.
Technical details:
- Motor type: PTC
- Stroke volume: 30.2 cm³
- Cooling capacity: 3,726 W
- Power consumption: 1.39 kW
- Number of cylinders: 1
- Oil type: POE - 160PZ
- Oil filling quantity: 0.95 litres
- Max. Number of starts per hour: 12
- Max. Refrigerant quantity: 3 kg
- Suitable for refrigerants: R404A, R507A, R134a, R407C
- Connections: 1" - 1/2" ODF, 1" - 3/8" ODF
- Dimensions: 224/333 mm
- Weight: 21 kg
Advantages and benefits:
This compressor is characterised by its high cooling capacity of 3,726 W and its efficient power consumption of 1.39 kW. With a maximum number of 12 starts per hour, it is extremely reliable. Its displacement of 30.2 cm³ ensures efficient cooling, while the low oil consumption of 0.95 litres makes it easy to maintain.
The compressor is suitable for various refrigerants and offers versatile connection options. With its compact dimensions of 224/333 mm, it is space-saving and easy to install.- 22-MTZ18-5VI-Datasheet-HHKaeltetechnik - Datenblatt / Datasheet
Danfoss Maneurop – Energy-efficient and smart compressor solutions for sustainable refrigeration technology
Danfoss Maneurop is a leader in the development and manufacture of hermetic reciprocating compressors, specifically designed for energy-efficient, sustainable and intelligent refrigeration solutions. With a focus on commercial applications, Danfoss offers a wide range of compressors that meet the high demands of cold rooms, refrigerated display cabinets, ice-making machines, refrigerated counters and process cooling.
Danfoss Maneurop compressors are designed to operate with environmentally friendly refrigerants with a lower GWP (Global Warming Potential) and thus comply with the strict European F-Gas Regulations. They are compatible with refrigerants such as R134a, R407A/F, R448A, R449A and R452A, as well as with traditional refrigerants such as R404A, R507A and R407C.
-
MT series: Hermetic reciprocating compressors for medium and high evaporation temperatures, suitable for refrigerants such as R22, R407C and R134a.
-
MTZ series: Similar to the MT series, but optimised for use with HFC refrigerants such as R404A, R507, R407A and R407F.
-
NTZ series: Specially developed for applications with low evaporation temperatures, compatible with refrigerants such as R404A and R507.
With a power range from 1 kW to 20 kW (1.5 to 26 hp), Danfoss Maneurop reciprocating compressors offer reliable performance and low operating costs. The compact, fully hermetic reciprocating compressor is characterised by its energy efficiency and quiet operation, which contributes to greater comfort for end users and local residents. These compressors are internationally certified (UL, VDE, CCC, EAC) and offer maximum safety and quality.
For specialised applications, such as mobile cooling, solar cooling and telecommunications cooling, Danfoss also provides DC compressors offering power outputs ranging from 7 to 800 W (1/4 hp) up to 1.6 kW in parallel operation. These DC compressors are ideal for use in compact, energy-efficient systems.
Danfoss Maneurop combines advanced technology with a clear commitment to sustainability and offers tailor-made solutions for companies that place the highest demands on energy efficiency and environmental compatibility in refrigeration technology.
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Danfoss GmbH
Postal address: Carl-Legien-Straße 8 63073 Offenbach am Main Germany
Email address: [email protected]
Website: www.danfoss.de
Note: Danfoss GmbH is the manufacturer of the Maneurop brand, which is known for its reciprocating compressors in refrigeration technology.
| Connection Size: | Connection Size |
|---|---|
| Delivery and suction volume (m3): | 5,3 |
| Design: | Hermetic |
| Dimensions ( length × width × height ): | 22,40 × 22,40 × 33,30 cm |
| Displacement (cm3): | 30,23 |
| Electronics: | inkl. |
| Equipment: | Equipment |
| Item Condition: | New item |
| Modellreihe: | MTZ |
| Oil: | vorgefüllt |
| Oil quantity (l): | 0,95 |
| Oil type: | POE |
| Pressure line (inch): | 1 x 3/8 ODF |
| Refrigerant: | R134a, R407A, R407C, R407F, R448A, R449A, R452A, R507A |
| Scope of application: | MBP |
| Suction line (inch): | 1 x 1/2 ODF |
| Typ / Serie: | MTZ18JA5 (MTZ18-5VI) |
