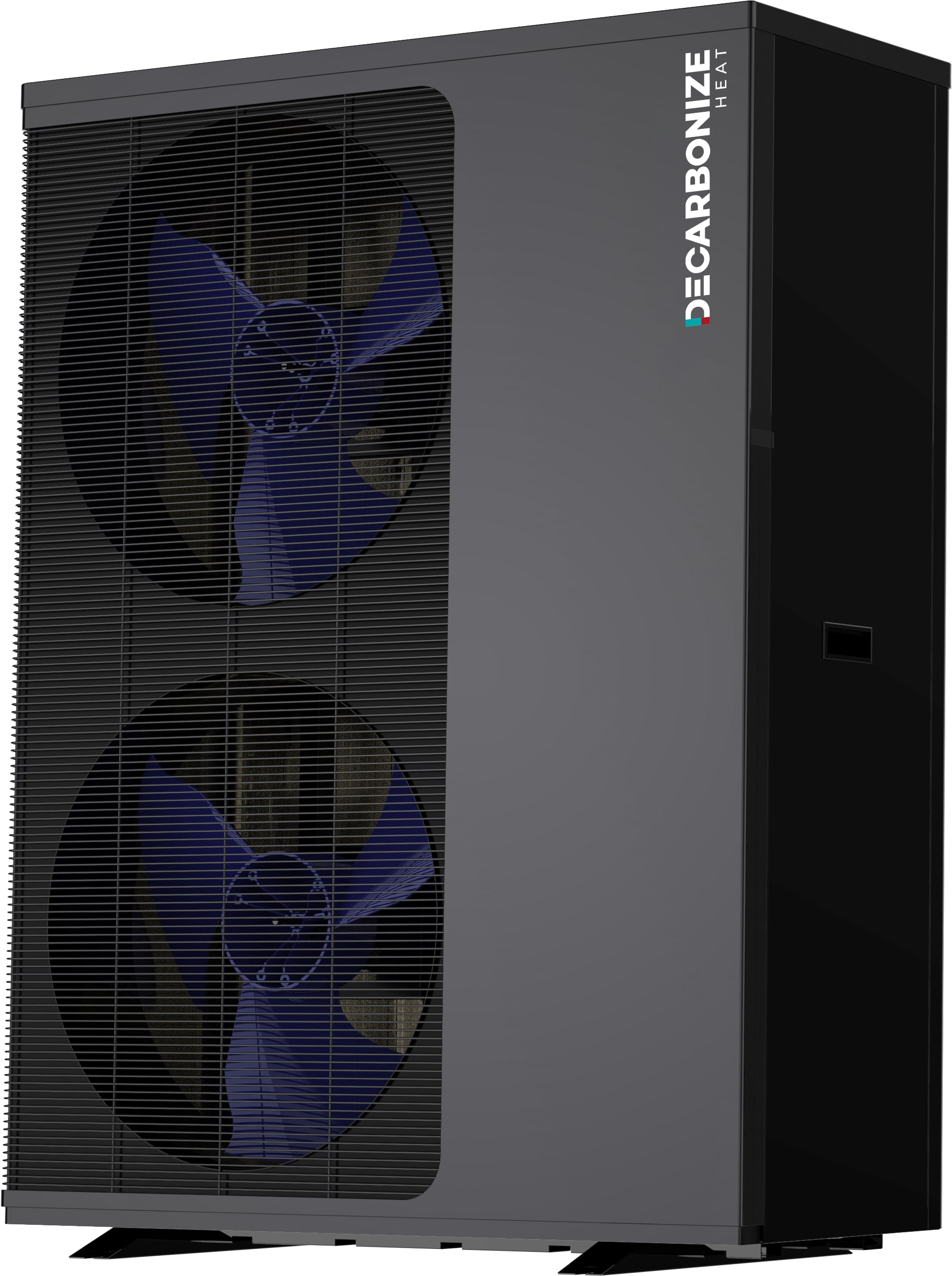

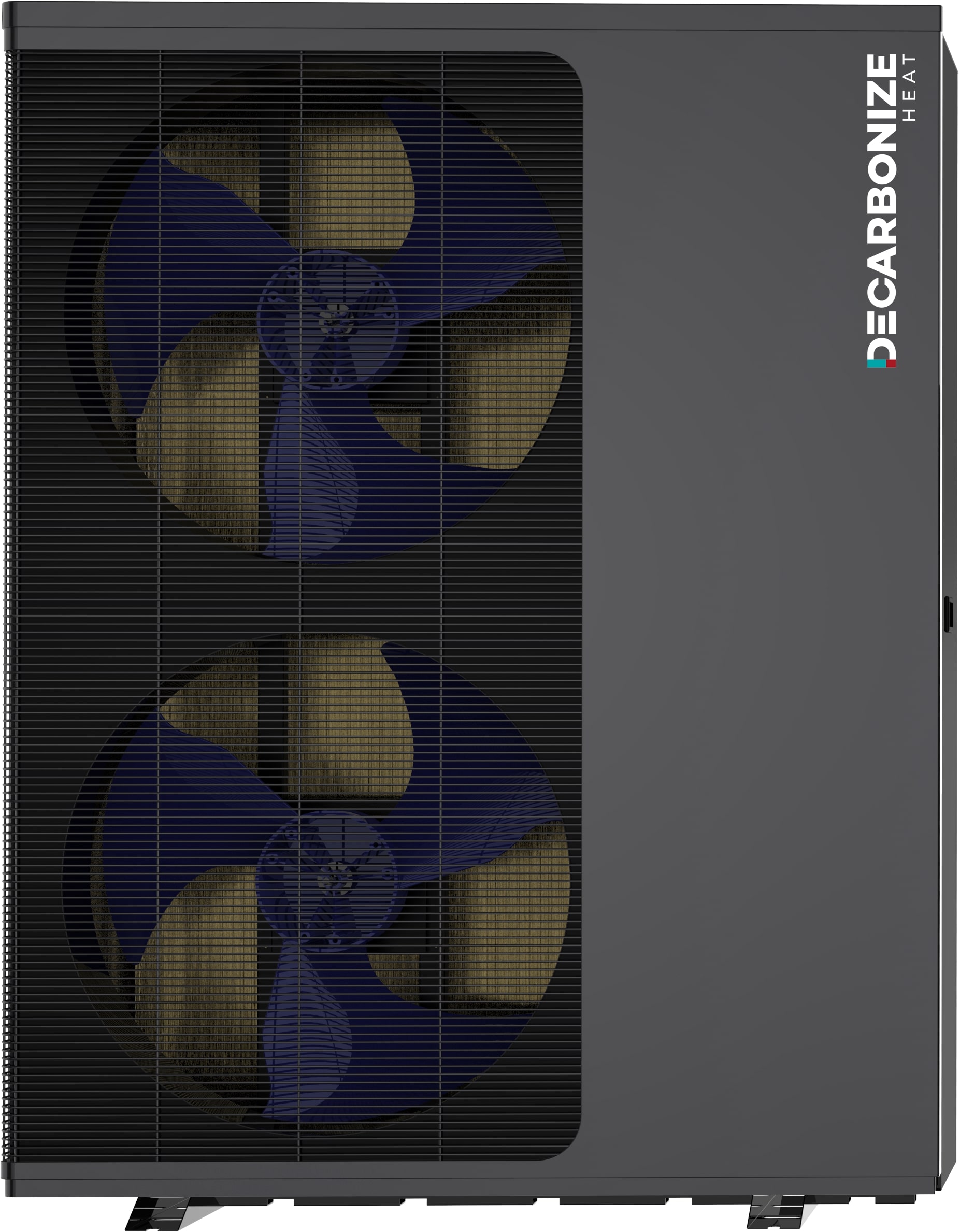

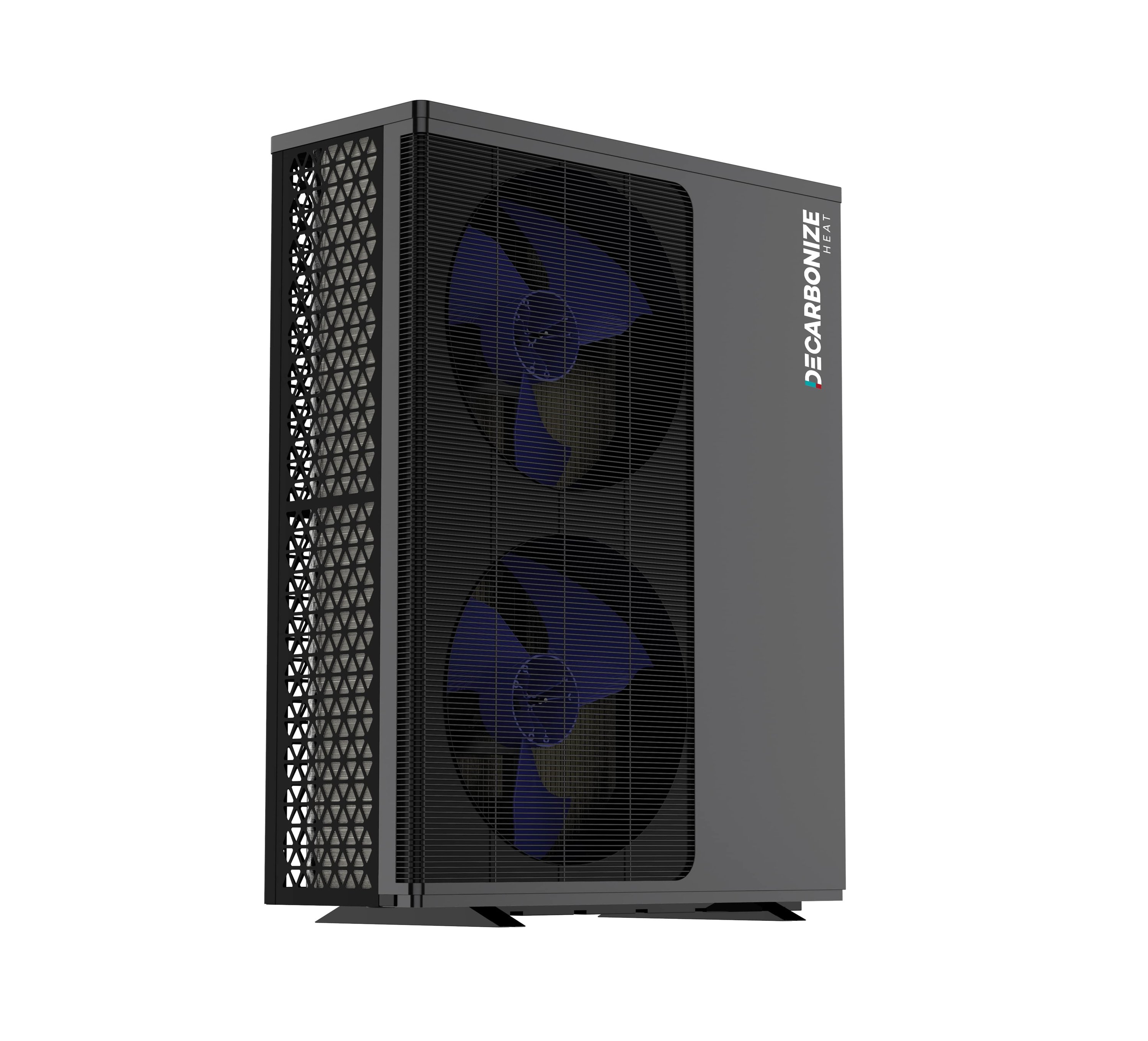

Air-to-water monobloc heat pump R290 Decarbonize ECO-060 22kW
Heating capacity range in kW:
8.8~22.0 kW
WP-ECO-060
€11,898.81*
Available, delivery time: 2-5 business days,
within Germany, abroad different, Subject to prior sale
Product number:
WP-ECO-060
GTIN/EAN:
4260190340034
Manufacturer:
Decarbonize
Manufacturer number:
ECO-060
Length:
1080 mm
Width:
480 mm
Height:
1372 mm
Weight:
180 kg
Description
Air-to-water monobloc heat pump - Decarbo ECO series
The Decarbo ECO series air-to-water monobloc heat pump offers an efficient and environmentally friendly solution for heating, cooling and hot water preparation in your home. With its innovative technology and high-quality construction, it sets new standards in terms of energy efficiency and user-friendliness.
We are looking for heat pump specialist partners!We are looking for specialist partners for our DECARBONIZE heat pumps.
Are you interested? Please fill out our form: Specialist partner form
Technical details:
- Powerful: 100% heat output at -25°C
- Efficient: Energy efficiency class A+++ (35°C) / A++ (55°C)
- Monobloc design (all-in-one appliance)
- Large power range with 4 models from 8.3 to 22 kW
- Certified quality
- Eligible models
- Environmentally friendly refrigerant R290
- Optimised defrosting
- Silenced compressor
- High-performance circulation pump
- Pressure and flow sensor in the hydraulic circuit
- Innovative control panel with touch function
- Energy and consumption recording
- Controllable via app
- Automatic, seasonal temperature adjustment
- SG-Ready
Advantages and benefits:
The Decarbo ECO series is characterised by its high energy efficiency and reliable performance. With an SCOP of up to 5.29 and energy efficiency class A+++ at 35°C or A++ at 55°C, it guarantees efficient operation and maximum energy savings. Thanks to the environmentally friendly refrigerant R290, you can help protect the environment and benefit from a future-proof heat pump solution.
The intuitive heating control enables simple operation and efficient energy control. With the touch control panel, you can set different operating modes and monitor power consumption to optimise your energy consumption.The Decarbo ECO series offers easy installation thanks to the monobloc design, in which all components are integrated into one device. This saves time and costs during installation and maintenance.
Downloads
Manufacturer "Decarbonize"
DECARBONIZE is a leading supplier of energy-efficient heat pumps, headquartered in Germany. The company is committed to accelerating the decarbonisation of the heating sector by offering affordable and easy-to-install eco-friendly heat pumps. With over 15 years’ experience in the refrigeration and heat pump sector, DECARBONIZE develops innovative solutions that are both high-performance and energy-efficient.
Product groups and specialisations:
-
Air-to-water monoblock heat pumps:
- Models such as the ECO-030, ECO-040, ECO-050 and ECO-060 offer heating capacities ranging from 8.3 kW to 22 kW.
- Use of the environmentally friendly refrigerant R290 (propane) with low global warming potential.
- Easy installation and integration into existing heating systems.
- Suitable for heating, cooling and domestic hot water production.
-
Buffer tanks:
- Specially developed for use with DECARBONIZE heat pumps.
- Enables the storage of surplus heat and improves the efficiency of the heating system.
- Available in various capacities, tailored to different system requirements.
-
Heat recovery systems:
- Optimise energy efficiency by recovering waste heat and feeding it back into the heating circuit.
- Reduce energy consumption and operating costs.
- Ideal for applications where waste heat is continuously generated.
DECARBONIZE places great emphasis on quality and innovation, which is reflected in the 4-year warranty on its products. Furthermore, the heat pumps are eligible for funding from the Federal Office for Economic Affairs and Export Control (BAFA), making investment in environmentally friendly heating technologies even more attractive.
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: H+H Kältetechnik GmbH
Postal address: Borghorster Straße 68 48366 Laer Germany
Email address: [email protected]
Website: www.decarbo-heatpumps.com
Note: H+H Kältetechnik GmbH markets energy-efficient heat pumps under the DECARBONIZE brand.
Properties
| Dangerous goods: | Ja |
|---|---|
| Heating capacity range in kW: | 8.8~22.0 kW |
| Item condition: | New item |
| Refrigerant: | R290 |
| Sound level: | < 53 dB |
