Condensate pump Tank pump Mini Orange Aspen, 12 l/h, (FP2212)
| Quantity | Unit price |
|---|---|
| Up to 4 |
€152.90
|
| Up to 9 |
€145.26
€152.90
( - 5% )
|
| From 10 |
€137.61
€152.90
( - 10% )
|
Available, delivery time: 1-3 business days,
within Germany, abroad different, Subject to prior sale
Aspen Mini Orange condensate pump for air conditioning systems - 47-325430-01
Introduction:
The Aspen Mini Orange is the ideal solution for the geodetic pumping of condensate in air conditioning units. Thanks to its compact design and versatile application options, this pump is perfect for installation in false ceilings, plastic ducts or wall-mounted units.
Technical details:- max. flow rate: 12l/h
- max. delivery head: 10m
- max. suction height: 1m
- 230 V alternating current, 50/60 Hz, 16 W
- 21 dB(A) at a distance of 1 m
- Pre-wired safety switch, max. 3 A (normally closed and normally open contact)
- Switching through "Hall effect"
- Thermal motor protection

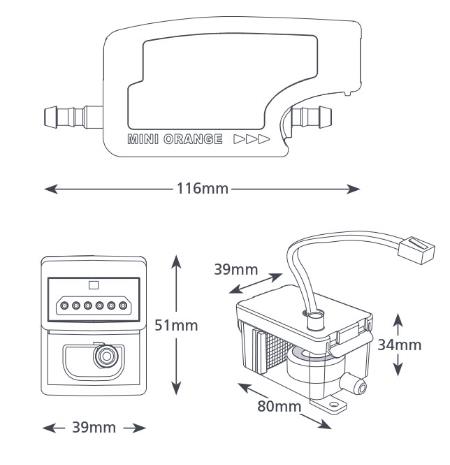

- Dimensions: 52 mm(H) x 107 mm(W) x 38 mm(D)
Advantages and benefits:
- The Aspen Mini Orange enables the geodesic pumping of condensate up to 8 metres.
- Thanks to the included float housing, the pump can be flexibly connected to various condensate sources.
- The anti-lift valve ensures smooth operation and prevents the pump from starting up dry.
Installation video Aspen: Installation video Aspen*The Aspen brand anti-lift valve is included in the scope of delivery of all Aspen mini pumps
.- 47-325430-01-Datasheet-HHKaeltetechnik - Datenblatt / Datasheet
Aspen Pumps
Aspen Pumps was founded in 1992 by three engineers in Hailsham, East Sussex, UK. The company specialises in the development and manufacture of condensate pumps and also supplies tools, installation accessories, roof mounting systems and cleaning products for the HVAC (heating, ventilation and air conditioning) industry. Aspen Pumps operates internationally in over 100 countries and has branches on several continents.
Product groups and specialisations:
-
Condensate pumps: Aspen Pumps is renowned for its wide range of condensate pumps, including:
- Mini pumps for confined installation spaces.
- Tank pumps for handling larger volumes of condensate.
- Peristaltic pumps for flexible applications.
- Condensing boiler pumps, specially designed for use in condensing boilers.
-
Accessories: Under the Xtra brand, Aspen Pumps offers a wide range of installation accessories such as duct and pipework systems, pipe brackets and condensate drains, which facilitate the installation and operation of HVAC systems.
-
Cleaning products: Through its subsidiary Advanced, the company offers cleaning and maintenance products for HVAC systems, including evaporator and condenser cleaners as well as all-purpose cleaners.
-
Tools: Under the JAVAC brand, high-quality tools for technicians are offered, including refrigerant recovery units, vacuum pumps, leak detectors and pressure gauges.
-
Roof mounting systems: Aspen Pumps’ Big Foot Systems provide modular support solutions and mounting systems for the installation of air conditioning units and HVAC components on roofs.
Aspen Pumps’ product range and specialisations facilitate installation and maintenance and offer comprehensive solutions for refrigeration, air conditioning and ventilation technology.
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Aspen Pumps Deutschland GmbH
Postal address: Tichauer Weg 30 40231 Düsseldorf Germany
Email address: [email protected]
Website: www.aspenpumps.com/de
| Express: | Express |
|---|---|
| Hersteller: | Aspen |
| Item condition: | New item |
| Liter pro h: | 12L |
| Supply voltage: | 230V |
| Typ: | 5430-01 |
| Voltage: | 230V |
| Volume: | 12 l/h |
