Condensing unit Tecumseh TFH2480ZBR (POE), LBP - R404A, 400V - not available, replaced by FHT2480ZBR-XG
Modellreihe:
TFH
Refrigerant:
R404A | R407C | R507
Scope of application:
LBP
Typ / Serie:
TFH2480ZBR
47-32TFH2480ZBR
€1,416.10*
No longer available
There are successors for this article
Tip

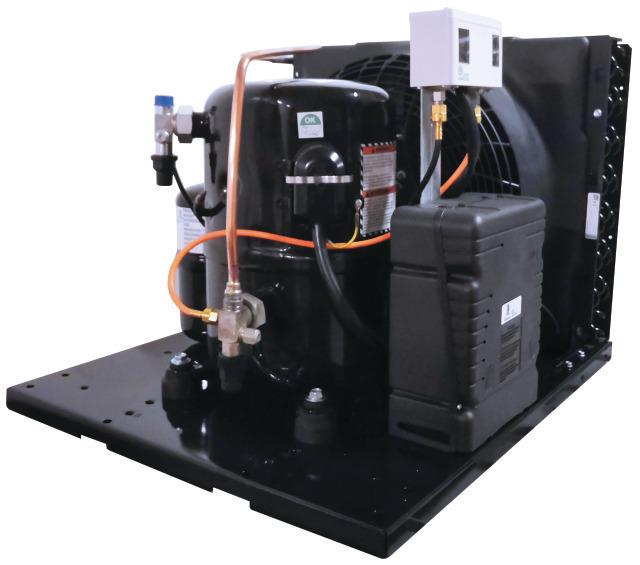

Condensing unit Tecumseh FHT2480ZBR-XG, LBP - R404A, R452A, R448A, R449A, 380-400V
Regular price:
€1,416.10
Product number:
47-32TFH2480ZBR
Manufacturer:
Tecumseh / L'Unite
Manufacturer number:
TFH2480ZBR (POE) (-> FHT2480ZBR-XG)
Weight:
63 kg
Do you have some questions about this product?
Description
Product information "Condensing unit Tecumseh TFH2480ZBR (POE), LBP - R404A, 400V - not available, replaced by FHT2480ZBR-XG"
Condensing unit Tecumseh TFH2480ZBR, LBP - R404A, 380 - 400V
This condensing unit from Tecumseh offers a reliable solution for your refrigeration, air conditioning and ventilation technology or heat pump applications. It is the ideal successor to the TFHT2480ZBR, which is no longer available, and impresses with its high-performance properties.
Technical details:- Oil type: POE
- Refrigerant: R404A
- Voltage: 400V
- Expansion valve operation
- Motor type: 3 PHASES
- Power at +32 / -35 °C (EN13215): 1226 W
- Connections: 5/8" x 3/8"
- Fan: 3 phases
- Speed: 1440 rpm
- Fan power: 90 W
- Air flow: 2200 m3/h
- Fan diameter: 356 mm
- Refrigerant collector: 2.35 litres
- Pressure: 32 bar
- Noise level: 76 dBA
- Weight: 53 kg
Advantages and benefits:
This condensing unit is characterised by its high performance and efficiency. With its powerful motor and expansion valve operation, it ensures reliable cooling in various applications. The pressure switch supplied ensures simple and safe handling. Thanks to its robust design and technical specifications in accordance with EN12900, this condensing unit is the ideal choice for professional applications in refrigeration, air conditioning and ventilation technology.
Info: Compressor is prefilled with oil at the factory. Refrigerant is not included and must be filled by a specialist company.
Downloads
- 47-32TFH2480ZBR-Datasheet-HHKaeltetechnik - Datenblatt / Datasheet
Manufacturer "Tecumseh / L'Unite"
Tecumseh – 90 years of innovation and quality in the refrigeration and air conditioning industry
For over 90 years, Tecumseh has been setting standards in the development and production of fully hermetic reciprocating compressors. The first “hermetic” compressor for refrigerators, introduced in 1937, laid the foundation for Tecumseh’s reputation as a reliable partner in commercial and domestic refrigeration. Through continuous investment in research and development and collaboration with international R&D institutions, Tecumseh develops solutions that are valued worldwide.
Particularly noteworthy are the sustainable R290 models, which use the environmentally friendly refrigerant propane and thus offer a climate-friendly alternative. These compressors are characterised by high efficiency and low emissions and represent a modern response to the industry’s growing demands for environmental sustainability.
With production facilities on four continents and an international network, Tecumseh ensures that its products are readily available worldwide and meet the highest quality standards. Thus, even after 90 years, Tecumseh remains synonymous with quality and innovation in the refrigeration and air conditioning industry.
Tecumseh 90th Anniversary Video
Tecumseh Cross-Reference List
Tecumseh manufacturer software
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Tecumseh Europe Sales & Logistics S.A.S
Postal address: M 7, 18 68161 Mannheim, Germany
Email address: [email protected]
Website: www.tecumseh.com
Properties
| Condensation temperature: | 54.5 °C |
|---|---|
| Dimensions ( length × width × height ): | 51.50 × 61.50 × 40.00 cm |
| Item Condition: | New item |
| Measuring conditions: | EN12900 |
| Modellreihe: | TFH |
| Oil: | vorgefüllt |
| Power range (C): | -40 C to -10 C |
| Power range (W): | 1 - 1.5 kW |
| Refrigerant: | R404A | R407C | R507, R507 |
| Scope of application: | LBP |
| Typ / Serie: | TFH2480ZBR |
| Voltage: | 400V |
Downloads
- 47-32TFH2480ZBR-Datasheet-HHKaeltetechnik - Datenblatt / Datasheet
Skip product gallery
![Danfoss DCL 083 filter dryer, flared connection 3/8" SAE]( "Danfoss DCL 083 filter dryer, flared connection 3/8\" SAE")
Zubehör Filtertrockner
Filter dryer UniFlow Sanhua - 8 in3, 3/8" SAE, flared connections, DTG-B08034-901
Regular price:
From
€26.72
Sanhua UniFlow filter dryer - 8 in3, 3/8" SAE, flared connections, DTG-B08034-901
The unidirectional filter dryers of the DTG series are used to absorb moisture and acid and to filter out impurities in refrigeration systems with unidirectional flow.
Technical details:
Solid-state insert, 100%3Å desiccant
Suitable for refrigerants: HCFC, HFC, HC and oils: mineral oil or alkylbenzene, pure POE or PAG, POE or PAG with additives
Filter fineness: 20µm
The acid protection coating withstands salt spray tests of more than 500 hours
Connection type: flared or soldered connection
Suitable for all common HCFC, HFC, HC, HFO refrigerants: R22, R32, R134a, R2902), R404A, R407A/C/F, R410A, R448A, R449A, R450A, R452A, R507A, R513A, R1234yf, R1234ze
Ambient temperature min/max: -30°C to +55°C
Media temperature TS min./max.: -30°C / +120°C
Max. Operating pressure PS: 4.83 MPa (48.3bar) - 700 PSI
Certification: UL/CSA and PED declaration of conformity
Advantages and benefits:
Highly effective moisture and acid absorption, filtering of impurities, acids, colour residues and sludge
Long-lasting buck filters
Long-lasting effectiveness thanks to high-quality materials and workmanship
- Available
- Delivery Time : 2-5 business days
Filter dryer Bi-Flow CASTEL 4608/3S, 3/8" ODS (10mm) - not available, replaced by DB308/3S
Regular price:
From
€48.09
Biflow filter dryer 4608/3S Castel
The Biflow filter dryer 4608/3S from Castel is an indispensable accessory for refrigeration and air conditioning systems and heat pumps. With solder connections of 3/8 inch (10 mm), this filter dryer is ideal for use in various systems. The volume of 130 cm3 and the 100% molecular sieve guarantee effective filtering and drying of the refrigerant. The temperature range of -40°C to +80°C and the maximum operating pressure of 45 bar make this filter dryer a reliable partner for demanding applications.
Technical details:
Solder connections: 3/8" ODS (10mm)
Volume: 130 cm3
Material: 100% molecular sieve
Temperature range: -40°C to +80°C
Maximum operating pressure: 45 bar
The unique selling points of the Biflow filter dryer 4608/3S Castel are its high efficiency and reliability. With its 100% molecular sieve, it filters and dries the refrigerant thoroughly to ensure the longevity and performance of your air conditioning system or heat pump. It also impresses with its wide temperature range and high operating pressure, making it ideal for a wide range of applications.
- No longer available
- Delivery Time : 1-3 business days
Filter dryer UniFlow Sanhua - 5 in3, 3/8" SAE, flared connections, DTG-B05034-901
Regular price:
From
€25.65
Sanhua UniFlow filter dryer - 5 in3, 3/8" SAE, flared connections, DTG-B05034-901
The Sanhua UniFlow filter dryer from the DTG series has been specially developed for use in refrigeration systems with unidirectional flow. It effectively absorbs moisture and acid and filters out impurities.Technical details:
Filter fineness: 20µm
Suitable for refrigerants: HCFC, HFC, HC
Medium temperature min./max.: -30°C / +120°C
Max. Operating pressure: 4.83 MPa (48.3bar) - 700 PSI
Connection type: flared or soldered connection
Certification: UL/CSA and PED declaration of conformity
Advantages and benefits:
1. highly effective moisture and acid absorption for improved refrigeration system performance.
2. long-life buck filters ensure long-lasting efficiency of the filter dryer.
3. acid protection coating for high resistance to environmental influences.
Equivalent alternative for Danfoss: 023Z5038
- Available
- Delivery Time : 2-5 business days
ALCO filter dryer, FDB-083, 3/8" SAE, flared connection, 059312
Filter dryer FDB
The FDB filter dryer is specially developed for use with liquid refrigerants in refrigeration, air conditioning and ventilation technology as well as heat pumps. This bead style hermetic design provides efficient and reliable filtration to ensure optimum performance.Technical details:
Compacted bead style (spring-loaded)
Optimal blend of molecular sieve and activated aluminium oxide combined with high filtration performance
Final filtration of 20 micron
Filtration for more efficient utilisation of desiccant surface area
High water and acid capacity
Padded flow for non-turbulent performance
ODF copper connections for easy soldering
Rugged steel housing
Corrosion resistant epoxy paint
Temperature range TS: -40° C to +65° C
Max. Operating pressure PS: 45 bar
CE labelling according to art. 3.3 PED 97/23 EC
HP labelling in accordance with the Pressure Equipment Directive
Advantages and benefits:
The FDB filter dryer offers optimum filtration, which contributes to an extended service life of the system. The high-quality materials and robust design guarantee reliable performance. In addition, the simple installation with the ODF copper connections enables time-saving installation.
- Available
- Delivery Time : 2-5 business days
Variants from €20.71
Regular price:
From
€48.09
Filter dryer Castel 4108/3S, 083S, 3/8"+ ODS, + sight glass- not available, replaced by DI308N-3S
Filter dryer 4108/3S Castel with sight glass
This 4108/3S filter dryer from Castel is ideal for use in refrigeration, air conditioning and ventilation technology as well as heat pumps. With connections of 3/8" ODS (10 mm) and 1/2" ODM, it offers optimum flexibility and quality. The volume of 130 cm3 and the international code 083S ensure reliable performance. Technical details:
100% molecular sieve
Liquid indicators for easy monitoring
Solder connections for stable connection
Advantages and benefits:
1. reliable performance thanks to high-quality materials and precise workmanship.
2. easy monitoring of the filter status thanks to liquid indicators.
3. versatile application options in refrigeration, air conditioning and ventilation technology as well as heat pumps.
- No longer available
- Delivery Time : 1-3 business days
Variants from €32.40
Regular price:
From
€48.09
Danfoss DCL 083 filter dryer, flared connection 3/8" SAE
Regular price:
From
€17.65
Filter dryer DCL 083 Danfoss 023Z5005, flare 3/8" SAE
The DCL 083 Danfoss 023Z5005 filter dryer has been specially developed for use with HCFC and CFC refrigerants as well as mineral or benzene oils. The hermetically sealed design ensures reliable performance and an operating overpressure of 46 bar.Technical details:
Flare: 3/8" SAE
Suitable for HCFC and CFC refrigerants as well as mineral or benzene oils
Hermetically sealed
Operating overpressure: 46 bar
Advantages and benefits:
The DCL 083 Danfoss 023Z5005 filter dryer offers you the following advantages:
Reliable filtration of refrigerants and oils
Hermetic sealing for a long service life
Suitable for high operating pressures of up to 46 bar
- Available
- Delivery Time : 2-5 business days
Filter dryer Danfoss compact DMC 2033S 023Z7009
Regular price:
From
€64.15
Danfoss compact filter dryer DMC2033S 023Z7009
Introduction:
The Danfoss compact DMC2033S 023Z7009 filter dryer is optimised for HFC refrigerants and oils such as POE and PAG. With a temperature range of -40°C to +70°C and a maximum permissible operating pressure of 42 bar, it offers reliable performance for various applications in refrigeration, air conditioning and ventilation technology as well as heat pumps.
Technical details:
Type: DMC 2033S
Housing material: steel
Inlet/outlet connection: 3/8" ODF solder connection
Pressure specifications: Operating pressure (max.) 42.0 bar
Dehumidification performance:
24°C (water droplets): R134a 126
52°C (water droplets): R134a 116
Refrigerants: R22/R407C, R32, R134a, R404A, R507, and many more
Weight: 0.70 kg
Advantages and benefits:
Optimised for HFC refrigerants and oils
High dehumidification performance at various temperatures
Solid core for efficient filtration
The Danfoss compact DMC2033S 023Z7009 filter dryer offers reliable performance and high efficiency for refrigeration applications in various sectors. With its solid construction and optimal filtration, it is an excellent choice for professional installers and technicians.
- Available
- Delivery Time : 1-2 weeks
Skip product gallery
![Compressor Aspera Embraco NJ2212GS, LBP - R404A, R507, R452A, 380-420V, 50Hz, soldered connection]( "Compressor Aspera Embraco NJ2212GS, LBP - R404A, R507, R452A, 380-420V, 50Hz, soldered connection")

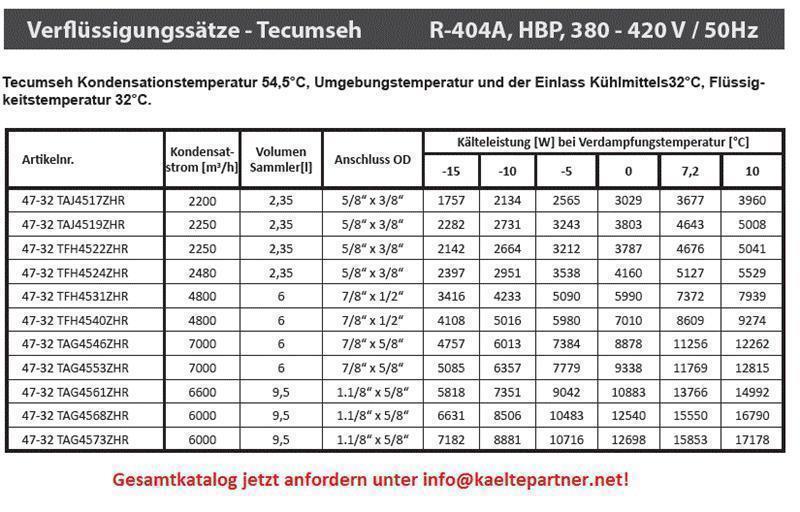

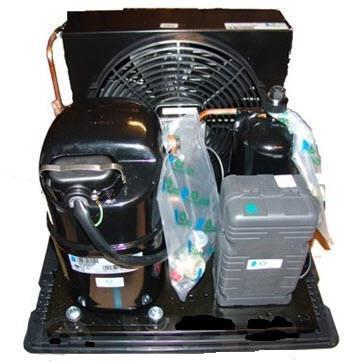

![Condensing unit Tecumseh TAJ4519ZHR, HBP - R404A, 400/3/50Hz - not available, replaced by TAJN4519ZHR]( "Condensing unit Tecumseh TAJ4519ZHR, HBP - R404A, 400/3/50Hz - not available, replaced by TAJN4519ZHR")
Artikel Zubehör
Tip
Compressor Aspera Embraco NJ2212GS, LBP - R404A, R507, R452A, 380-420V, 50Hz, soldered connection
Regular price:
From
€311.86
Compressor/compressor Aspera NJ2212GS LBP – R404/R507 380-420V50Hz, air connection
The Aspera NJ2212GS compressor/compressor is a powerful device for use in various refrigeration and air conditioning systems. With its high efficiency and reliability, it is ideal for professional use in refrigeration, air conditioning and ventilation technology as well as in heat pumps.
Technical details:
Motor type: RSIR
Stroke volume: 34.38 cm3
Temperature range: LBP
Suction line connection size: 12.77 mm
Discharge line connection size: 8.00 mm
Weight: 20.4 kg
Connection: Löt
Maximum height: 277 mm
Power: 1-1/2PS
Efficiency: 1.12kcal/Wh
Öl type: ISO22
Öl quantity: 750ml
Starting torque: HST
Cooling capacity measured for condensation temperature of: 45°C
Measuring conditions: EN12900
Advantages and benefits:
- High performance with low energy consumption
- Reliable and durable construction for professional use
- Optimum cooling performance even under extreme conditions Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- Available
- Delivery Time : 2-5 business days
Condensing unit Aspera UNJ2212GS, LBP - R404A, R507, R452A, 380V, 3
Regular price:
From
€684.37
Condensing unit ASPERA EMBRACO UNJ2212GS
The ASPERA EMBRACO UNJ2212GS condensing unit is ideal for use in refrigeration, air conditioning and ventilation technology as well as for heat pumps. This powerful unit offers reliable cooling and efficient performance for various applications Technical details:
LBP-R404A, R507
Voltage: 380 - 420V/3/50/60Hz
Power: 2+ HP
Stroke volume: 34.38cm3
LRA: 20.6 A
Motor type: 3Ph
Nominal power: 1599 W at -23.3/32°C
Connections: Suction line 5/8", pressure line 3/8"
Fan: 1x275mm/28°, 800 m3/h
Dimensions (LxWxH): 481x409x324 mm
Weight: 40 kg
Advantages and benefits:
The ASPERA EMBRACO UNJ2212GS condensing unit impresses with:
Reliable cooling capacity for different applications
Efficient performance with low energy consumption
Compact design and easy installation
- Available
- Delivery Time : 1-2 weeks
Tip
Condensing unit Tecumseh CAJN2446ZBR, LBP - R452A, R404A, R448A, R449A, 220-240V
Regular price:
From
€759.34
Condensing unit Tecumseh CAJN2446ZBR, LBP - R452A, R404A, R448A, R449A, 220-240V
This Tecumseh CAJN2446ZBR condensing unit is perfect for use in refrigeration systems, air conditioning systems and heat pumps. With its performance and versatility, this product is ideal for professional users in refrigeration, air conditioning and ventilation technology.Technical details:
Motor type: CSR
Cooling capacity:
R452A: 1015 [W] at -25 / 32 [°C]
R404A: 1097 [W] at -25 / 32 [°C]
R448A: 895 [W] at -25 / 32 [°C]
R449A: 895 [W] at -25 / 32 [°C]
Solder connection: suction: 1/2", pressure 3/8"
Fan EC: 1200 rpm
Fan power: 30 [W]
Fan blade diameter: 300 [mm]
Tank: 2.35 [l] / 32 [bar]
Sound level: 65 [dBA]
Expansion device: expansion valve
Weight: 33.0 [kg]
Dimensions (L x W x H): 432 x 487 x 340 [mm]
Advantages and benefits:
1. the high cooling capacity at different temperatures enables reliable cooling in different environments
2. the powerful fan ensures efficient air circulation and optimum cooling of the system.
Info: Compressor is pre-filled with oil at the factory. Refrigerant is not included and must be filled by a specialist company.
- Available
- Delivery Time : 1-2 weeks
Condensing unit Tecumseh TAJ4519ZHR, HBP - R404A, 400/3/50Hz - not available, replaced by TAJN4519ZHR
Regular price:
€1,892.10
Tecumseh TAJ4519ZHR condensing unit for refrigeration, air conditioning and ventilation technology
The Tecumseh TAJ4519ZHR condensing unit is the ideal solution for your refrigeration, air conditioning and ventilation applications. With a voltage of 400/3/50Hz and a displacement of 34.45 cm3, this condensing unit offers first-class performance and reliability.Technical details:
Capacity: 34.45 cm3
Collector volume: 2.35 dm3
Air flow rate: 2250 m3/h
Pressure switch included in the scope of delivery
The unique selling points of the TAJ4519ZHR condensing unit include:
Reliable performance for refrigeration, air conditioning and ventilation applications
Easy installation and maintenance
Benefit from excellent cooling performance measured for condensing temperature 54.5°C and ambient temperature/liquid temperature 32°C, in accordance with EN12900 measurement conditions.
- No longer available
- Delivery Time : 1-2 weeks
Tip

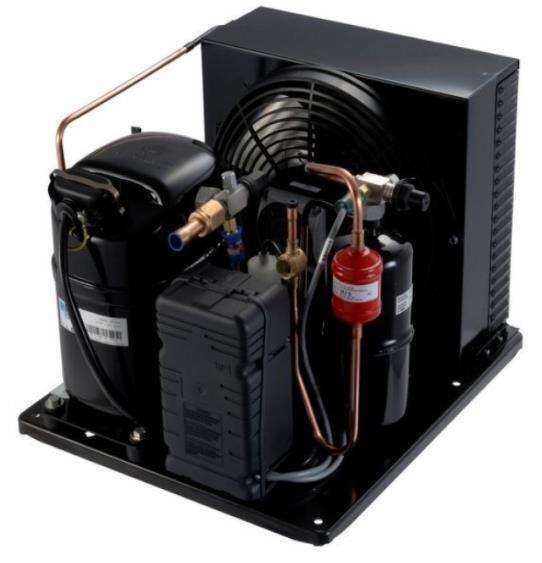

Condensing unit Tecumseh TAJN9480ZMHR, HMBP - R404A, 400V/3F/50Hz
Regular price:
€914.29
Condensing unit Tecumseh TAJN9480ZMHR, HMBP - R404A, 400V/3F/50Hz
Info: Compressor is prefilled with oil at the factory. Refrigerant is not included and must be filled by a specialised company.
- Available
- Delivery Time : 1-2 weeks
Condensing unit Tecumseh TFHT2480ZBR, LBP - R404A, 380 - 400V - not available, replaced by FHT2480ZBR-XG)
Regular price:
€1,416.10
Energy-efficient condensing unit for reliable cooling performance
Technical details:
Motor type: 3 PH
Power: 1290 W at +32 / -35 °C
Measuring conditions: EN13215
Solder connections: Suction line 5/8", pressure line 3/8"
Fan: 1-phase, 1335 rpm, fan power 90 W, diameter 350 mm
Refrigerant collector: 1.5 l / 32 bar
Noise level: 74 dBA
Expansion valve operation
Weight: 53 kg
Advantages and benefits:
This condensing unit from Tecumseh offers outstanding cooling performance and reliability for professional use in refrigeration, air conditioning and ventilation systems. Main benefits include:
Energy efficiency: With an output of 1290 W at extreme temperatures, this condensing unit works extremely efficiently and saves energy costs.Reliability: Thanks to high-quality materials and components, this condensing unit guarantees reliable cooling performance and long-term use.Easy installation: With clear solder connections and simple installation requirements, installing this condensing unit is quick and straightforward.
- Available
- Delivery Time : currently not available - please ask for delivery time
Skip product gallery
![Sight glass Danfoss SGN 10s, 10 mm ODF, solder - not available, replaced by 014L0192]( "Sight glass Danfoss SGN 10s, 10 mm ODF, solder - not available, replaced by 014L0192")
![Sight glass Castel 3910/33, 3/8 x 3/8" SAE, flared connections]( "Sight glass Castel 3910/33, 3/8 x 3/8\" SAE, flared connections")
Zubehör Schaugläser
Sight glass Castel 3940/M10, 10 mm ODS solder connections
Regular price:
From
€20.30
Sight glass Castel 3940/M10 - 10 mm ODS solder connections
The Castel 3940/M10 sight glass with 10 mm ODS solder connections is a high-quality product for refrigeration, air conditioning and ventilation systems as well as heat pumps. It enables easy visual monitoring of the system and is especially suitable for use with refrigerants such as R22, R134a, R404A, and more. Technical details:
Type: Sight glass with indicator
Type designation: 3940/M10
Type of connection: Solder, ODF
Connection dimension: 10 mm
Temperature range: -30/+110°C
Operating pressure (max.): 45 bar
Connection material: copper
Acid indicator: Yes
Advantages and benefits:
The Castel 3940/M10 sight glass impresses with the following unique features:
Easy visual monitoring of the system
Robust copper solder connections for reliable connections
Ideal for various refrigerants and applications
- Available
- Delivery Time : 2-5 business days
Tip
Sight glass Castel 3950/33, 3/8" SAE inside and outside, flared connections
Regular price:
From
€15.49
Sight glass Castel 3950/33 - for refrigeration, air conditioning and ventilation technology
The Castel 3950/33 sight glass with 3/8" SAE flare connections inside and outside is a high-quality component for refrigeration and air conditioning systems as well as heat pumps. It provides reliable monitoring of the refrigerant flow and enables efficient control of the system Technical details:
Type: Sight glass with indicator
Type designation: 3950/33
Type of connection: Flare
Connection dimension: 3/8" SAE
Temperature range: -30/+110°C
Operating pressure (max.): 45 bar
Refrigerants: R22, R134a, R404A, R407C, R410A, R448A, R449A, R450A, R452A, R507, R513A, R1234ze
Connection material: brass
Acid indicator: Yes
Advantages and benefits:
The Castel 3950/33 sight glass impresses with the high quality and precision that characterise Castel as a leading company in the industry. With its wide temperature range and high operating pressure, it is versatile and particularly durable. The integrated acid indicator provides additional safety and protects the system from damage caused by corrosion.Thanks to the precise display of the refrigerant flow, problems can be recognised and rectified at an early stage, which increases the efficiency of the system and reduces operating costs. The Castel 3950/33 sight glass is therefore a reliable component for any refrigeration, air conditioning or ventilation system that prioritises quality and performance.
- Available
- Delivery Time : 2-5 business days
Sight glass Danfoss SGN 10s, 10 mm ODF, solder - not available, replaced by 014L0192
Regular price:
From
€25.65
Welcome to our product 47-32014-0192!
The Danfoss SGN 10s sight glass, connection: 10 x 10 [mm] ODF, solder, refrigerant HCF is the perfect accessory for your refrigeration, air conditioning and ventilation technology or heat pumps. With our product, you get a high-quality solution that works reliably and helps you to optimally monitor your systems.Technical details:
Model: 47-32014-0192
Show glass Danfoss SGN 10s
Connection: 10 x 10 [mm] ODF
Refrigerant: HCF
Max. Operating pressure: 35 [bar]
Temperature range: -50 - 80 [°C]
Weight: 0.116 [kg]
Advantages and benefits:
Our Danfoss SGN 10s sight glass offers you the following advantages:
Reliable monitoring of your systems
Precise display of temperature and pressure
Easy installation and maintenance
- No longer available
- Delivery Time : 1-3 business days
Sight glass Castel 3910/33, 3/8 x 3/8" SAE, flared connections
Regular price:
From
€16.01
Sight glass Castel 3910/33
The Castel 3910/33 sight glass is a high-quality product for use in refrigeration, air conditioning and ventilation technology as well as heat pumps. It is perfect for applications where precise temperature monitoring and regulation is required. With its external / external flare connections and a temperature-resistant range of -30°C to +110°C, it is the ideal solution for various industrial applications.
Technical details:
Size: 3/8 x 3/8" SAE
Connections: Flare connections external / external
Temperature range: -30°C to +110°C
Pressure rating: 45 bar
Sales-promoting contents:
This sight glass offers you the following advantages:
Reliable temperature monitoring and regulation
High-quality workmanship for a long service life
Easy installation and maintenance
With the Castel 3910/33 sight glass, you get a product that reliably fulfils your requirements in terms of temperature control in various applications. Invest in quality and precision with this versatile product.
- Available
- Delivery Time : 2-5 business days
Discount
Sight glass Sanhua - 10 mm ODF, solder connections, SYJ10H12
Sale price:
€19.94
Regular price:
€24.93
( - 20.02% )
Special discount on limited quantities only - normal price may apply for larger quantities.
Sight glass Sanhua - 10 mm ODF, solder connections, SYJ10H12
The Sanhua sight glass is an indispensable accessory for refrigeration systems that makes the vapour content in the liquid refrigerant visible and indicates the degree of humidity in colour. With a high-precision colour indicator and solid, corrosion-resistant brass material, it is a reliable solution for checking and maintaining your air conditioning system or heat pump. Technical details:
Solder connections for easy installation
Highly transparent sight glass with wide viewing angle range
Low pressure loss thanks to ring-shaped moisture colour indicator
Suitable for all common refrigerants such as R22, R134a, R404A, R407C, R410A, R507A and more
Max. Operating pressure: 4.6 MPa (46 bar)
Installation position: liquid and suction lines
Declaration in accordance with PED Directive 2014/68/EU
Equivalent alternative for Danfoss: 014-0192
Advantages and benefits:
1. reliable control: With the Sanhua sight glass, you always have an overview of the condition of your refrigeration circuit and can react to deviations at an early stage
2. easy installation: Thanks to the soldered connections, the sight glass can be installed quickly and easily without additional tools.
3. high-quality materials: The sight glass is made of robust brass and PTFE seals, which ensure a long service life and reliable function.
- Available
- Delivery Time : 1-3 business days
Skip product gallery
Zubehör Verflüssigungssatz
Evaporator LU-VE F27HC55E6, 3050 W, fan 2x275 mm, defrosting
Regular price:
€1,297.10
Evaporator (air cooler) LU-VE F27HC55E6 with electric defrost
The LU-VE F27HC55E6 evaporator is a high-performance cooling and freezing system specially designed for use in cold rooms and freezers. With its technical features and efficient properties, it offers reliable cooling for various applications.Technical details:
Fin spacing: 6 mm
Power at 10°C: 3050 W
2 fans: D=275 mm
Air flow: 1900 m³/h
Throw distance: 13 m
Surface area: 11.2 m²
Electricity consumption for defrosting: 2160 W
Dimensions: 1048x782 mm
Battery connections: 12 mm (input), 28 mm (output)
Mains voltage: 230V/1F/50-60Hz
Advantages and benefits:
1. high performance at low temperature enables efficient cooling in various environments 2. electric defrosting ensures continuous and reliable evaporator uptime.
3. the generous airflow volume and throw distance ensure uniform cooling over a large area.
- No longer available
- Delivery Time : 1-2 weeks
