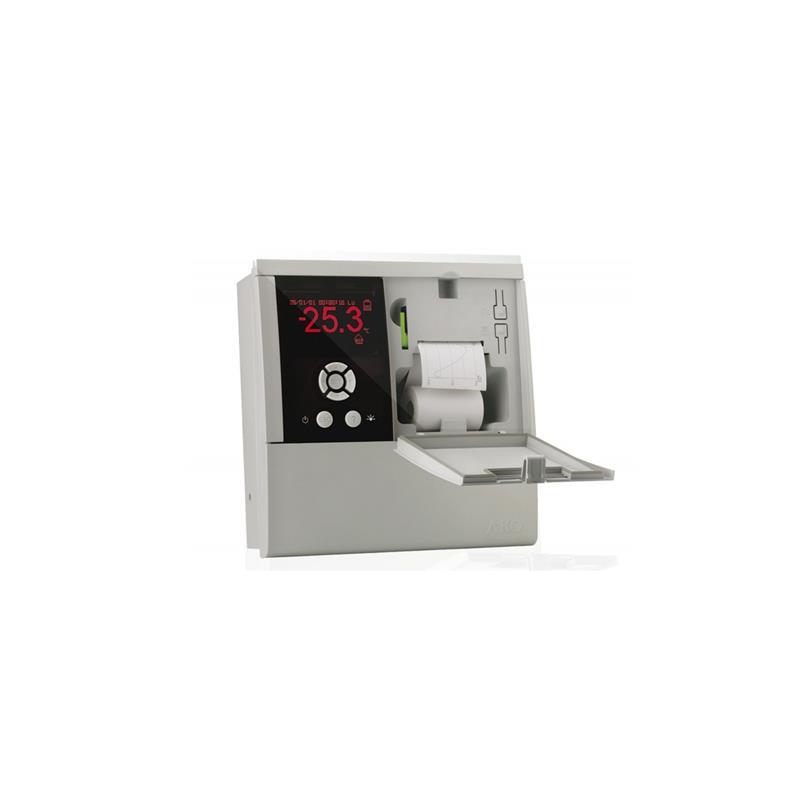

Data logger AKO 156331 for refrigeration, air conditioning and ventilation technology

Introduction:

The AKO 156331 data logger is a powerful device for monitoring and controlling cooling systems in various applications. It provides precise data monitoring and control to optimise the efficiency and reliability of your systems

Technical details:

• Installation dimensions: 214x214mm
• Supply: 100-240VAC voltage AC
• Type of sensor: NTC
• Relay outputs: 6
• Relay outputs details:
  • Relay output 1: NO-16A
  • Relay output 2: CO-16A
  • Relay output 3: NO-8A
  • Relay output 4: NO-16A
  • Relay output 5: NO-16A
  • Relay output 6: CO-8A
• Inputs: 1-3 NTC, 4-5 DI
• Function: 1-channel with controller and printer
• Front dimensions: 230x230mm
• Installation depth: 90mm
• Protection class: IP65
• Accuracy: 1%
• Mounting type: surface-mounted version
• Other features: HACCP, real-time clock, internal buzzer, RS485 interface, LCD display

Advantages and benefits:

The AKO 156331 data logger offers precise and reliable monitoring of your cooling, air conditioning and ventilation systems. With its numerous functions and setting options, you can optimise the performance of your systems and prevent failures. The simple installation, high accuracy and versatile application options make it the ideal solution for professional users.
