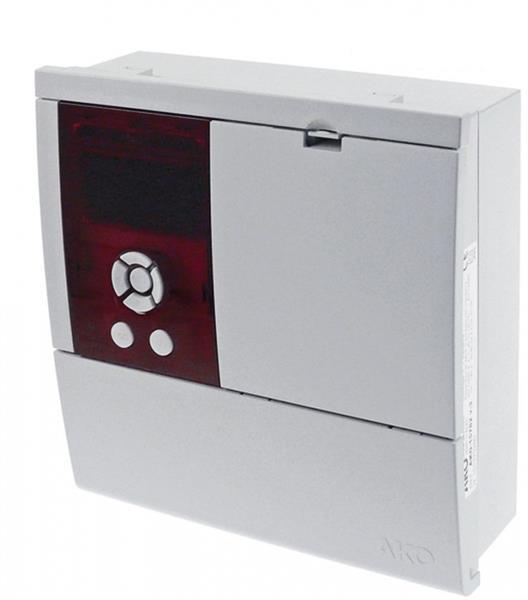

Data logger AKO 15782

The AKO 15782 data logger is a versatile and reliable device that has been specially developed for use in refrigeration, air conditioning and ventilation technology or heat pumps. With its numerous functions and precise measured values, it is the ideal solution for professional applications in various areas.

• Installation dimensions: 214x214mm
• Power supply: 100-240VAC
• Voltage: AC
• Type of sensor: NTC/Pt100/Pt1000/mA/DI
• Alarm outputs: 2
• Relay outputs: 2
• Alarm relay: CO-8A(4)
• Relay output 1: CO-8A(4)
• Relay output 2: CO-8A(4)
• Inputs: 2 channels
• Input 1: NTC/Pt100/Pt1000/mA/DI
• Input 2: DI
• Protection class: IP65
• Accuracy: 1%
• Mounting type: surface-mounted version
• Buzzer: internal Yes
• Interface: RS485 Yes
• Printer: Yes
• Scope of delivery: incl. 2xNTC sensor
• Standard: EN12830
• Operation without mains: 48 h
• Measuring range: sensor-dependent °C
• Display: LCD

Advantages and benefits:

The AKO 15782 data logger is characterised by its high accuracy of 1%, which enables precise measurements and reliable data. The variety of inputs and outputs offers maximum flexibility in installation and application. Two alarm and relay outputs ensure effective monitoring and control of important processes. Thanks to the surface-mounted version and IP65 protection rating, the data logger is robust and easy to install, even in demanding environments.
