ORIGINAL INVOTECH
Image similar
Image similar

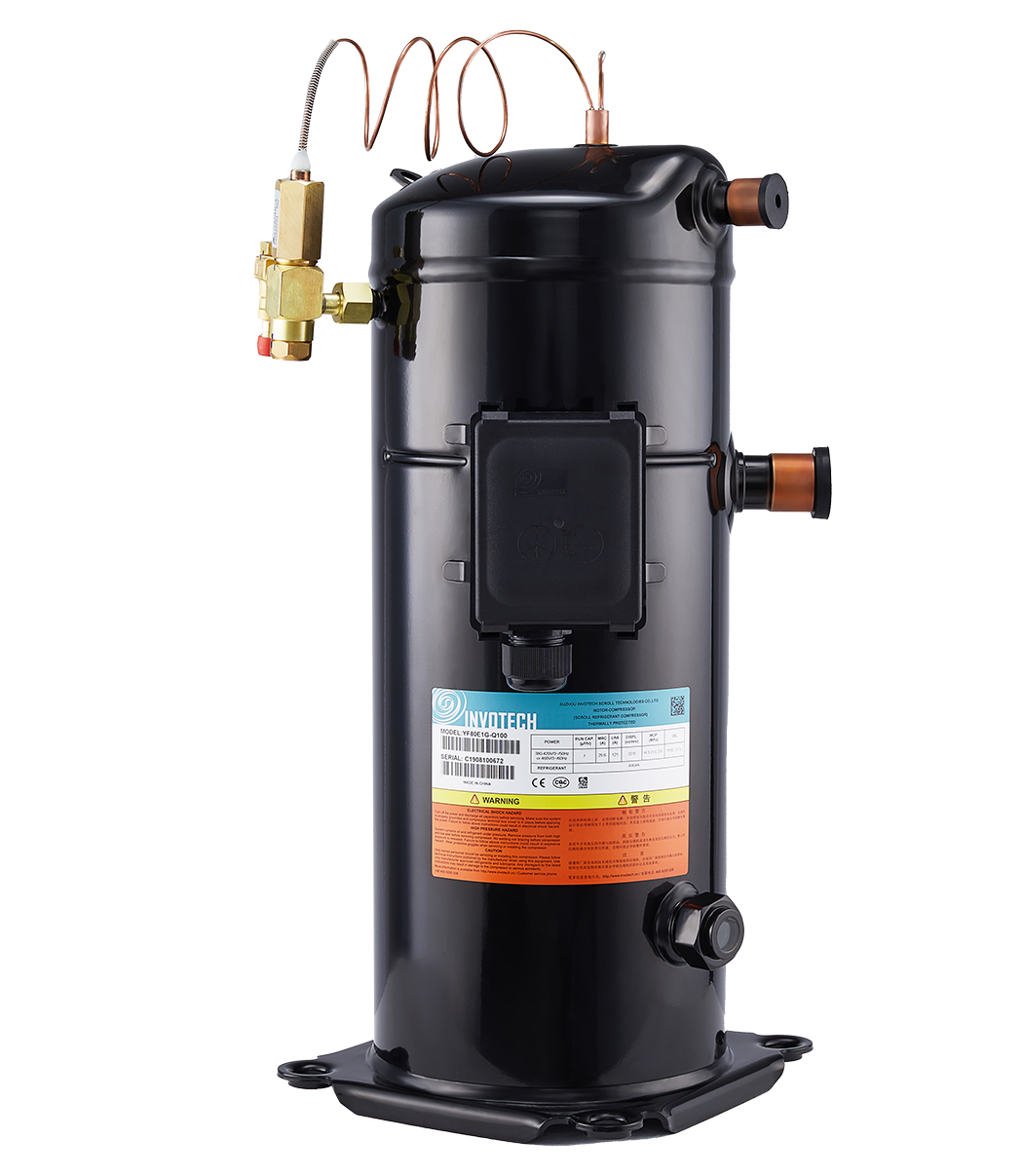

Invotech scroll compressor YF35E1S-Q100, LBP, R404A, 380-420V/50Hz/50-60Hz
Effizienter Invotech Scroll Verdichter YF35E1S-Q100 für mittleren und hohen Druck. Ideal für Kühl- und Klimaanwendungen.
Refrigerant
- R404A A1 GWP 3,922
Application · LBP
Typical evaporating temperatures. The manufacturer's operating envelope is authoritative.
Cooling capacity
4.85 kW
Voltage
380-420V/3Ph
Displacement
83,3 cm³
Connection
Connection
Suction line
7/8″ (22,2 mm)
Oil
Polyoesteröl (POE), vorgefüllt
Genuine branded products – direct from the specialist trade
Personal expert advice from our refrigeration and air-conditioning specialists · +49 2554 912 959 6
Larger quantity or project?
· OEM and special projects
At least 2 years statutory guarantee
Applies to consumer purchases in the EU.
View EU notice
For businesses: 12 months from delivery.
€1,535.10
incl. VAT
€1,290.00 net
Delivery time 1-2 weeks
Purchase on account for companies, public bodies and more.
All versions at a glance
28 versions with unit price
| Area of application | Refrigerant | Typ / Serie | Price | Select |
|---|---|---|---|---|
| LBP | R404A | YF20E1S-Q100 | €1,416.10 | Select |
| LBP | R404A | YF29E1S-Q100 | €1,416.10 | Select |
| LBP | R404A | YF35E1S-Q100 | €1,535.10 | Selected |
| LBP | R404A | YF41E1S-Q100 | €1,654.10 | Select |
| LBP | R404A | YF45E1S-Q100 | €1,654.10 | Select |
| LBP | R404A | YF56E1S-Q100 | €2,130.10 | Select |
| LBP | R404A | YF65E1S-Q100 | €2,249.10 | Select |
| LBP | R404A | YF72E1S-Q100 | €2,249.10 | Select |
| LBP | R404A | YF80E1S-Q100 | €2,368.10 | Select |
| MBP | R404A/R448A/R449A | YM34E1S-100 | €736.61 | Select |
| MBP | R404A/R448A/R449A | YM34E2S-102 | €736.61 | Select |
| MBP | R404A/R448A/R449A | YM43E1S-100 | €748.51 | Select |
| MBP | R404A/R448A/R449A | YM49E1S-100 | €772.31 | Select |
| MBP | R404A/R448A/R449A | YM49E2S-102 | €748.51 | Select |
| MBP | R404A/R448A/R449A | YM60E1S-100 | €808.01 | Select |
| MBP | R404A/R448A/R449A | YM70E1S-100 | €855.61 | Select |
| MBP | R404A/R448A/R449A | YM70E2S-100 | €843.71 | Select |
| MBP | R404A/R448A/R449A | YM86E1S-100 | €903.21 | Select |
| MBP | R404A/R448A/R449A | YM102E1S-100 | €1,081.71 | Select |
| MBP | R404A/R448A/R449A | YM115E1S-100 | €1,416.10 | Select |
| MBP | R404A/R448A/R449A | YM125E1S-100 | €1,535.10 | Select |
| MBP | R404A/R448A/R449A | YM132E1S-100 | €1,535.10 | Select |
| MBP | R404A/R448A/R449A | YM158E1S-100 | €1,654.10 | Select |
| MBP | R404A/R448A/R449A | YM182E1S-100 | €1,654.10 | Select |
| MBP | R404A/R448A/R449A | YM200E1S-100 | €1,773.10 | Select |
| MBP | R404A/R448A/R449A | YM210E1S-100 | €1,892.10 | Select |
| MBP | R404A/R448A/R449A | YM350E1G-100 | €3,439.10 | Select |
| MBP | R404A/R448A/R449A | YM410E1G-100 | €3,796.10 | Select |
Technical data
Performance
- Cooling capacity i
- 4.85 kW
- Displacement
- 83,3 cm³
Refrigerant & oil
- Refrigerant
- R404A
- Oil
- Polyoesteröl (POE), vorgefüllt
Operating range
- Area of application i
- LBP
Electrical
- Voltage
- 380-420V/3Ph
- Electronics
- inkl.
Connections
- Connection
- Connection
- Discharge line
- 1/2″ (12,7 mm)
- Suction line
- 7/8″ (22,2 mm)
Dimensions & weight
- Dimensions (L × W × H)
- 168x418 mm
General
- COP
- 1,29
- Equipment
- Ölschauglas
- Frequency
- 50-60 Hz
- Item condition
- New item
- Pferdestärke
- 5 hp
- Series
- YF35E1S-Q100
- Type of construction
- Scroll
Description
Invotech scroll compressor YF35E1S-Q100
This Invotech scroll compressor from the YF/YSF series is ideal for medium and high pressure applications. Manufactured by InvoTech Scroll Technologies Co. Ltd. in China, this compressor offers reliable performance and efficiency for your refrigeration, air conditioning and ventilation systems.
Technical details:
- Production site: China
- Manufacturer: InvoTech Scroll Technologies Co. Ltd.
- Compressor type: Scroll
- Compressor model: YF35E1S-100
- Application: Medium and high pressure
- Refrigerant: R404A
- Displacement: 14.50 m³/h
- Current: 8.00 A (380?420 V, 3 phases, 50 Hz)
- Power supply: Three-phase
- Power: 5.0 hp
- R404A (evaporator -25 °C / condenser +45 °C) Nominal values:
- Power output: 3449 watts
- Cooling capacity: 4854 watts
- COP: 1.41
- Connection type: Without valve
Advantages and benefits:
The Invotech YF35E1S-Q100 scroll compressor offers a high displacement of 14.50 m³/h and an impressive output of 5.0 hp. Its efficiency and reliability make it perfect for medium and high pressure applications. With a COP value of 1.41, it ensures efficient cooling and optimum performance.
Info:
- Öl: Compressor is prefilled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
- Electronics: The electronics are included in the scope of delivery.
