Mitsubishi Heavy FDUT28KXE6F-E ducted unit – 2.8 kW – R410A
- R410A A1 GWP 2,088
Installation by a specialist company
Installation and commissioning belong in the hands of a specialist company; for split units and heat pumps with fluorinated refrigerants, certification is mandatory. The specialist finder shows companies near you.
Technical data
Performance
- Nominal heating capacity
- 3,20 kW
- Cooling capacity i
- 2,80 kW
Refrigerant & oil
- Refrigerant
- R410A
Dimensions & weight
- Weight
- 21 kg
General
- Item condition
- New item
- Kanalmaße Druckseite (Höhe x Breite x Tiefe)
- 99 mm x 660 mm x 30 mm
- Kanalmaße Saugseite (Höhe x Breite x Tiefe)
- 160 mm x 660 mm x 30 mm
- Body dimensions incl. parts (H x W x D)
- 200 mm x 870 mm x 500 mm
- Body dimensions excl. parts (H x W x D)
- 200 mm x 750 mm x 500 mm
- WEEE registration number
- 67164993
- dbA
- 22
Description

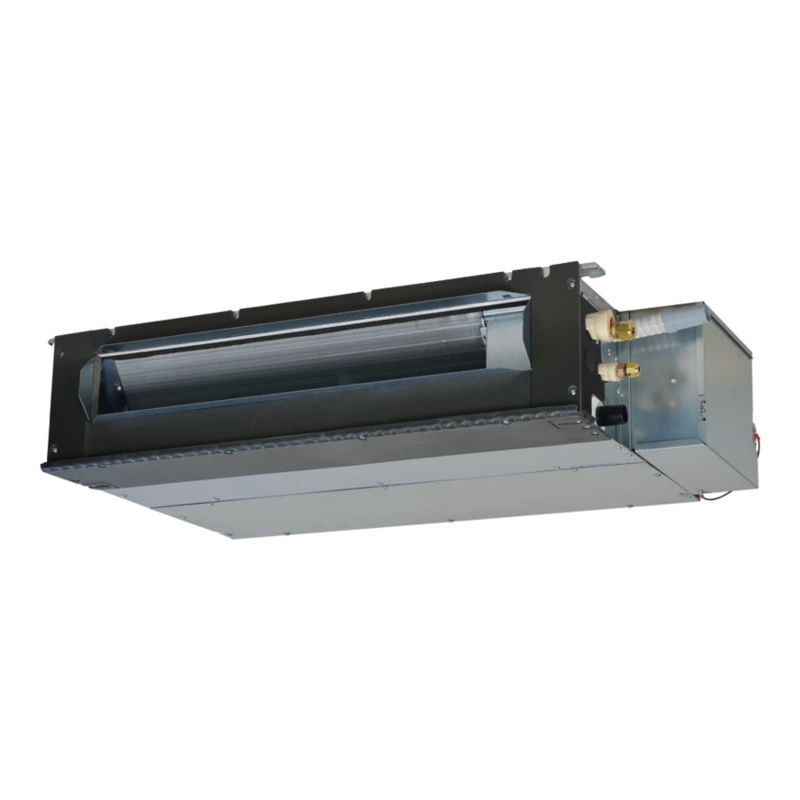

Mitsubishi Heavy FDUT28KXE6F duct unit – 2.8 kW – R410A
The Mitsubishi Heavy FDUT28KXE6F ducted unit is ideal for air conditioning in residential and commercial premises. With its slimline design and high installation flexibility, it is perfectly suited to a variety of applications.
Technical details
- Horizontal air intake and discharge
- Can be converted for bottom air intake using an optional kit
- High installation flexibility thanks to its slim design (200 mm)
- Particularly quiet operation up to 22 dB(A)
- Built-in condensate pump with a delivery head of 600 mm
- Rated cooling capacity: 2.80 kW
- Nominal heating capacity: 3.20 kW
- Brand: Mitsubishi Heavy Industries
- WEEE registration number: 67164993
- Maximum pump head: 600 mm
- Net weight: 21 kg
- Refrigerant type: R410A
- Height of unit without parts: 200 mm
- Body width excluding parts: 750 mm
- Depth of body without parts: 500 mm
- Height of cabinet with components: 200 mm
- Cabinet width with components: 870 mm
- Depth of body with components: 500 mm
- Duct height, intake side: 160 mm
- Duct width, suction side: 660 mm
- Depth of duct, suction side: 30 mm
- Duct height, pressure side: 99 mm
- Duct width, discharge side: 660 mm
- Duct depth, discharge side: 30 mm
Advantages and benefits
- The flat design allows for flexible installation options.
- Quiet operation ensures pleasant room acoustics.
- Integrated condensate pump simplifies installation.
- High cooling and heating capacity for efficient climate control.
Too small? Too big? The neighbouring models
|
This item Mitsubishi Heavy FDUT28KXE6F-E ducted unit – 2.8 kW – R410A €1,892.10 | Mitsubishi Heavy FDUT28KXZE3-W ducted unit – 2.8 kW – R32 €1,892.10 same price | Mitsubishi Heavy FDUT56KXE6F-W ducted unit – 5.6 kW – R32 €1,892.10 same price | Mitsubishi Heavy FDUT45KXE6F-E ducted unit – 4.5 kW – R410A €2,011.10 €119.00 more | Mitsubishi Heavy FDUT45KXZE3-W Ducted Unit – 4.5 kW – R32 €2,011.10 €119.00 more |
|---|---|---|---|---|---|
| Availability | Currently unavailable — delivery date on request | Ready to ship in approx. 7 business days | Ready to ship in approx. 7 business days | Ready to ship in approx. 7 business days | Ready to ship in approx. 7 business days |
| Refrigerant | R410A | R32 | R32 | R410A | R32 |
| Kanalmaße Druckseite (Höhe x Breite x Tiefe) | 99 mm x 660 mm x 30 mm | 99 mm x 660 mm x 30 mm | 99 mm x 860 mm x 30 mm | 99 mm x 860 mm x 30 mm | 99 mm x 860 mm x 30 mm |
| Kanalmaße Saugseite (Höhe x Breite x Tiefe) | 160 mm x 660 mm x 30 mm | 160 mm x 660 mm x 30 mm | 160 mm x 860 mm x 30 mm | 160 mm x 860 mm x 30 mm | 160 mm x 860 mm x 30 mm |
| Korpusmaße mit Teilen (Höhe x Breite x Tiefe) | 200 mm x 870 mm x 500 mm | 200 mm x 870 mm x 500 mm | 200 mm x 1070 mm x 500 mm | 200 mm x 1070 mm x 500 mm | 200 mm x 1070 mm x 500 mm |
| Korpusmaße ohne Teile (Höhe x Breite x Tiefe) | 200 mm x 750 mm x 500 mm | 200 mm x 750 mm x 500 mm | 200 mm x 950 mm x 500 mm | 200 mm x 950 mm x 500 mm | 200 mm x 950 mm x 500 mm |
| Nennheizleistung | 3,20 kW | 3,20 kW | 6 kW | 5 kW | 5 kW |
| Nennkühlleistung | 2,80 kW | 2,80 kW | 5,60 kW | 4,50 kW | 4,50 kW |
| Weight | 21 kg | 21 kg | 25 kg | 25 kg | 25 kg |
| view item | view item | view item | view item |
Same for all: Item condition: New itemWEEE-Registrierungsnummer: 67164993
