Mitsubishi Heavy SRC71ZR-W Outdoor Unit – 7.1 kW – R32, single-split (1 indoor unit)
- R32 A2L GWP 675
Use flammable or toxic refrigerants (R32 (A2L)) only with the equipment manufacturer's approval and in line with EN 378.
Installation by a specialist company
Installation and commissioning belong in the hands of a specialist company; for split units and heat pumps with fluorinated refrigerants, certification is mandatory. The specialist finder shows companies near you.
Technical data
Performance
- Nominal heating capacity
- 8 kW
- Cooling capacity i
- 7,10 kW
Refrigerant & oil
- Refrigerant
- R32
- Oil quantity
- 0,68 l
- Oil
- M-MB75
Dimensions & weight
- Weight
- 56 kg
Efficiency & approvals
- Energy efficiency class heating
- A+, A++
General
- Anschließbare IG-Kombination, Anzahl
- 1x
- Anschließbare IG-Kombination Typ
- SRK71ZR-WF
- Anschließbare IGe Anzahl, max.
- 1 Stk
- Anschließbare IGe Anzahl, min.
- 1 Stk
- Anschlussleistung IGe, max. 1
- 7,10 kW
- Anschlussleistung IGe, min. 1
- 7,10 kW
- Anzahl Verdichter
- 1 Stk
- Energiebedarf Kühlen, jährlich
- 337 kWh/a
- Heizleistung bei -15 °C
- 8 kW
- Item condition
- New item
- Body dimensions incl. parts (H x W x D)
- 750 mm x 968 mm x 340 mm
- Kältemittel-Nachfüllmenge pro m Flüssigkeitsleitung, D6
- 0,025 kg/m
- Kältemittel-Vorfüllmenge
- 1,50 kg
- Kältemittel-Vorfüllmenge f. Leitungslänge
- 15 m
- Nominale Effizienz COP, Heizen
- 4,10
- Nominale Effizienz EER, Kühlen
- 3,68
- Saisonale Effizienz SCOP, Heizen
- 4,50
- Saisonale Effizienz SEER, Kühlen
- 7,40
- WEEE registration number
- 67164993
- Max. heating capacity
- 10,80 kW
- Max. cooling capacity
- 7,80 kW
- Min. heating capacity
- 2 kW
- Min. cooling capacity
- 2,30 kW
Description

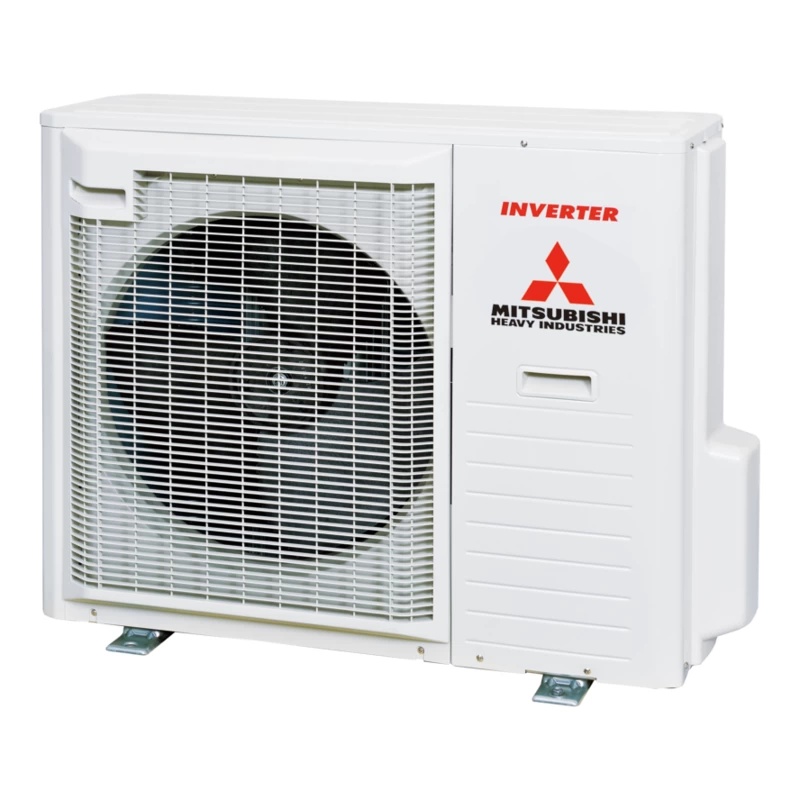

Mitsubishi Heavy SRC71ZR-W outdoor unit – 7.1 kW – R32, single-split (1 indoor unit)
The Mitsubishi Heavy SRC71ZR-W outdoor unit is an efficient solution for cooling and heating residential and commercial premises. With its compact design and the use of the environmentally friendly refrigerant R32, it offers high-performance and eco-conscious air conditioning.
Technical details
- Highly efficient outdoor units, extremely compact outdoor units
- Using R32 refrigerant
- The footprint of an outdoor unit is less than 0.4 m²
- System solution with up to 7.1 kW cooling capacity and 8.0 kW heating capacity
- Quiet operation possible (Silent Mode)
- Suitable for monosplit operation only
- Rated cooling capacity: 7.10 kW
- Cooling capacity, min.: 2.30 kW
- Cooling capacity, max.: 7.80 kW
- Rated heating capacity: 8 kW
- Heating capacity, min.: 2 kW
- Heating capacity, max.: 10.80 kW
- Heating capacity at -15 °C: 4.70 kW
- Connected load IGe, min. 1: 7.10 kW
- Connected load IGe, max. 1: 7.10 kW
- Minimum number of IGe units that can be connected: 1
- Maximum number of IGe units that can be connected: 1
- Nominal efficiency (EER), cooling: 3.68
- Nominal efficiency (COP), heating: 4.10
- Brand: Mitsubishi Heavy Industries
- WEEE registration number: 67164993
- Net weight: 56 kg
- Number of connectable IG combinations: 1x
- Connectable IG combination type: SRK71ZR-WF
- Energy efficiency class (cooling): A++
- Energy efficiency class (heating): A+
- Seasonal efficiency (SEER), cooling: 7.40
- Seasonal efficiency (SCOP), heating: 4.50
- Seasonal efficiency Pdesignc, cooling: 7.10 kW
- Seasonal efficiency Pdesignh, heating: 6.60 kW
- Annual energy consumption for cooling: 337 kWh/a
- Annual energy consumption for heating: 2,055 kWh/a
- Refrigerant type: R32
- Refrigerant GWP: 675
- Refrigerant pre-charge: 1.50 kg
- Refrigerant pre-charge for pipe length: 15 m
- Recharge quantity per metre of liquid pipe, D6: 0.025 kg/m
- Number of compressors: 1
- Refrigeration oil type: M-MB75
- Refrigeration oil quantity: 0.68 l
- Height of unit with components: 750 mm
- Width of unit with components: 968 mm
- Depth of unit with parts: 340 mm
Advantages and benefits
- High energy efficiency with A++ and A+ ratings for cooling and heating.
- Quiet operation in Silent Mode for a pleasant user experience.
- Compact design with a footprint of less than 0.4 m², ideal for confined spaces.
- Environmentally friendly R32 refrigerant with a low GWP value.
