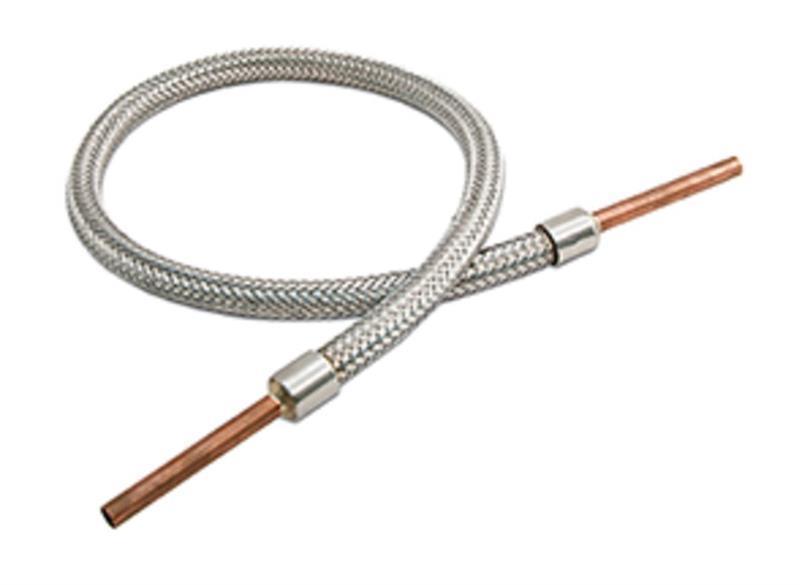

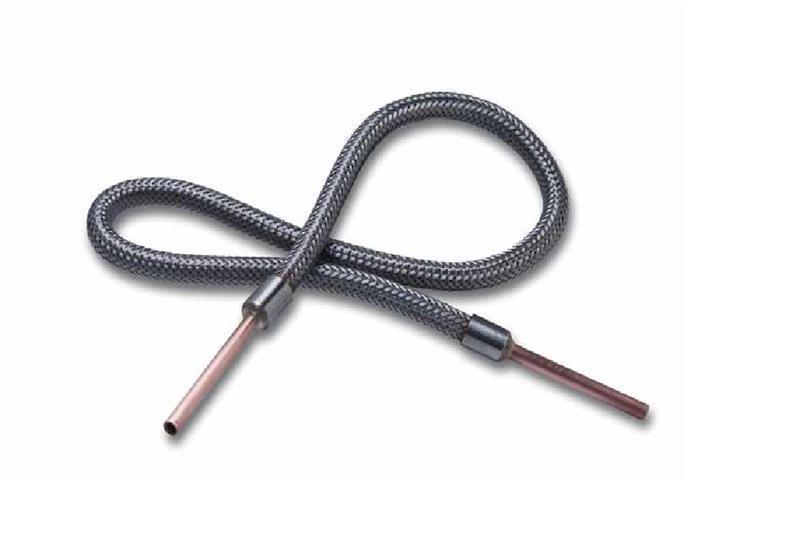

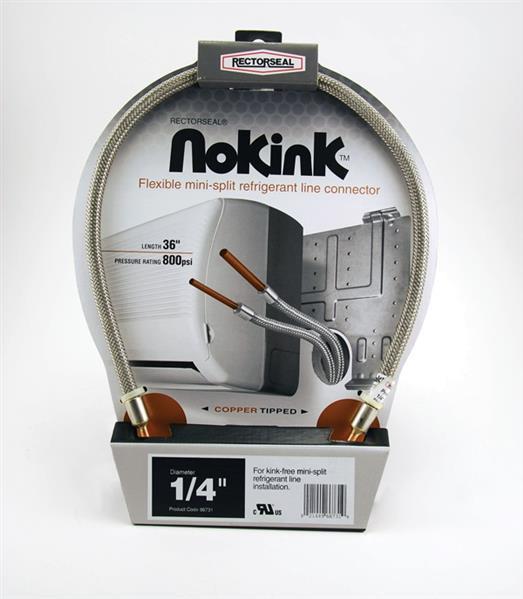

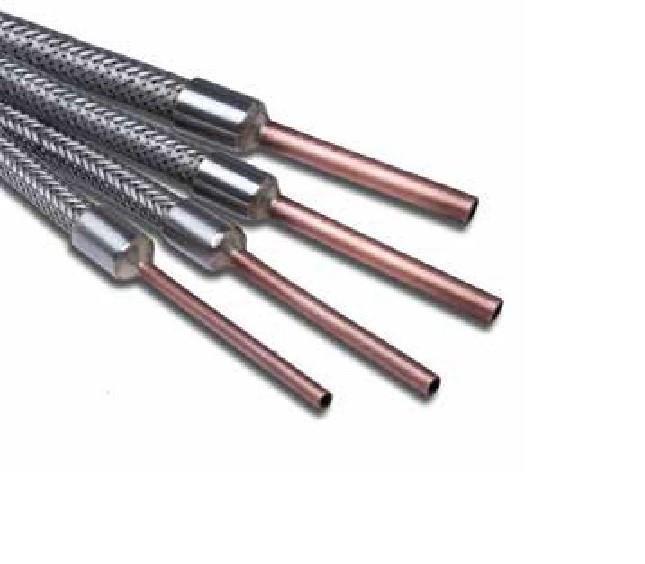

NoKink flexible refrigerant pipe 1/4 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66731

19-3566731
Skip image gallery
NoKink flexible refrigerant pipe 1/4 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66731
NoKink flexible refrigerant pipe 1/4 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66731
NoKink flexible refrigerant pipe 1/4 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66731
NoKink flexible refrigerant pipe 1/4 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66731
NoKink flexible refrigerant pipe 1/4 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66731
NoKink flexible refrigerant pipe 1/4 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66731

Picture similar

€95.08*

Available, delivery time: 1-3 business days,
within Germany, abroad different, Subject to prior sale

Stk
Spare Parts Enquiry

Product number: 19-3566731
GTIN/EAN: 04260190348085
Manufacturer: Rectorseal
Weight: 1.2 kg

Do you have some questions about this product?

Contact
Privacy
Fields marked with asterisks (*) are required.
Description

Product information "NoKink flexible refrigerant pipe 1/4 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66731"

NoKink flexible refrigerant pipe - for simple and safe installation of mini-split air conditioning systems

Thanks to the NoKink flexible refrigerant pipe from Rectoseal, you can install your mini-split air conditioning systems with ease. This high-quality pipe prevents refrigerant hoses from kinking, which makes installation easier, especially when routed through walls.

Technical details:
  • Prevents refrigerant pipes from kinking
  • 3" copper spigot for faster and easier flaring
  • Operating pressure: 800psi
  • 36" overall length

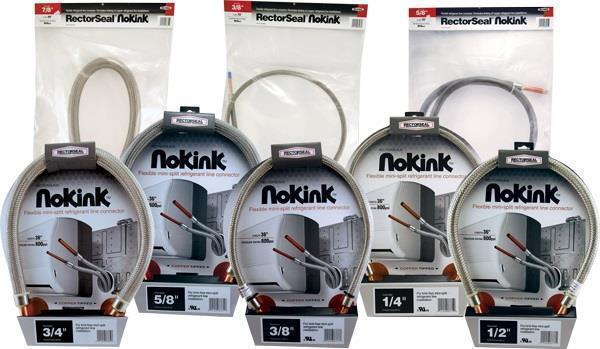

  • Available in 4 sizes

Advantages and benefits:

The NoKink refrigerant line offers numerous benefits, including:

  • Easy installation on the evaporator
  • Kink-free installation of the pipe
  • Faster installation, less labour time, lower costs

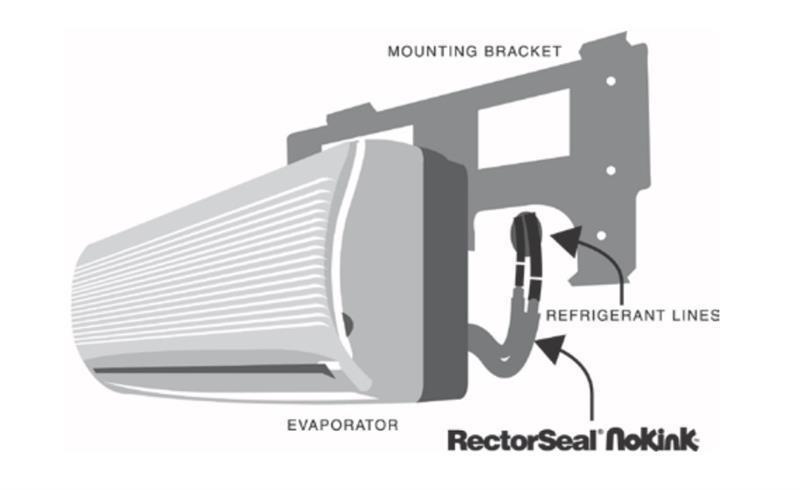

The NoKink connector provides a secure and reliable connection between the refrigerant pipe and the mini split evaporator. Thanks to the flexible design, you can easily attach the evaporator to the wall bracket

Installation instructions:

  1. Fasten the NoKink connector to the refrigerant line of the evaporator
  2. Pull the pipe through the wall opening and attach it to the NoKink connector
  3. Insert the pipe and connector into the wall opening and mount the evaporator on the wall bracket

With the NoKink flexible refrigerant pipe, installing your mini split air conditioning system is child's play. Order now and benefit from quick and easy installation!

Downloads

Data and Illustrations without Guarantee

Manufacturer "Rectorseal"

RectorSeal is a leading provider of innovative solutions in the field of heating, ventilation and air conditioning (HVAC). The company offers a wide range of products tailored to the needs of professionals in the HVAC sector.

Product groups and specialisations:

  • Mini-split systems:

    • Comprehensive solutions for the installation and maintenance of mini-split air conditioning systems.

  • HVAC chemicals:

    • Specialised chemicals for the cleaning, maintenance and protection of HVAC systems.

  • Condensate management:

    • Products for the effective handling and drainage of condensate in air conditioning systems.

  • Conduit covers:

    • Aesthetic and protective covers for pipes and cables in HVAC installations.

  • Surge protection:

    • Devices to protect HVAC systems from voltage spikes and electrical surges.

RectorSeal places great emphasis on quality, innovation and customer satisfaction, offering solutions that meet the high demands of modern HVAC technology.



Manufacturer details (information requirements under the GPSR Product Safety Regulation):

Manufacturer: RectorSeal

Postal address: 2601 Spenwick Drive Houston, Texas 77055 USA

Email address: [email protected]

Website: www.rectorseal.com

More products from Rectorseal
Properties
Item Condition: New item

Data and Illustrations without Guarantee

Documents 1

Downloads

Skip product gallery

Artikel Zubehör

Tip

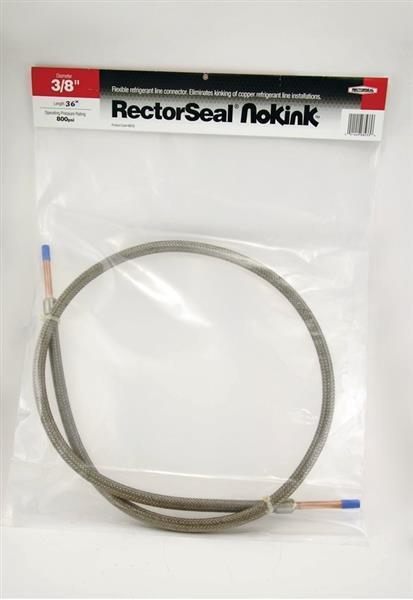

NoKink flexible refrigerant pipe 3/8 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66733 NoKink flexible refrigerant pipe 3/8 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66733
NoKink flexible refrigerant pipe 3/8 "x 3' for the wall duct of mini-split air conditioning systems, Rectoseal 66733
NoKink flexible refrigerant line 3/8 "x 3' - Rectoseal 66733 Introduction: The NoKink flexible refrigerant pipe from Rectoseal is the ideal solution for wall ducting in mini-split air conditioning systems. It prevents the copper refrigerant hoses from kinking and makes installation much easier. This high-quality pipe enables quick and kink-free installation of indoor units and outdoor units of mini-split air conditioning systems.Technical details: Prevents kinking of refrigerant lines 3" copper spigot for easier flaring Operating pressure: 800psi Total length: 36" Available in 4 sizes Advantages and benefits: 1. easier installation thanks to flexible NoKink cable 2. reduction in labour costs thanks to quick and easy installation 3. prevents the refrigerant pipe from kinking for a long service life Application: RectorSeal NoKink is a flexible connector for the wall mounting of mini-split evaporators. The simple installation without kinking enables easy connection to the wall bracket. Installation is carried out by silver soldering or flanging. Installation instructions: Fasten the NoKink connector to the refrigerant line of the mini-split evaporator unit. Pull the copper refrigerant pipe through the wall opening and attach it to the NoKink connector. Insert the copper pipe and the flexible NoKink connector into the wall opening and mount the evaporator on the wall bracket.
  • Available
  • Delivery Time : 1-3 business days
€112.93

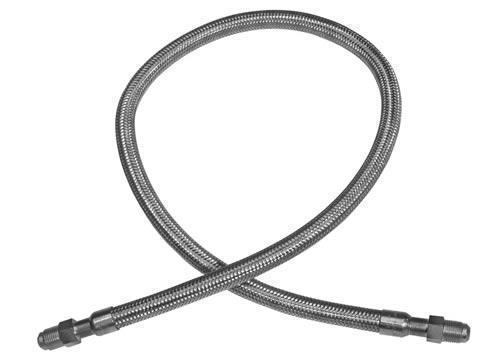

Stainless steel flexible hose Carly with nickel-plated steel connections TSCYS 1502 S solder connection 1/4"
