Refrigerant collector, 45 BAR, 3.4 l, inlet 12 mm ODS, outlet 1", M8,

Copeland ZH21K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C The Copeland ZH21K4E-TFD-524 is a fixed-speed heating compressor designed for heat pump and reversible applications. It offers high heating capacity and efficiency, thereby reducing the need for additional electric or gas-fired heating. ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A) The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kW ZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiency Variants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compression This extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilers Axial and radial flexibility of the scrolls ensures high reliability High efficiency and increased heating capacity, even at low source temperatures High water temperatures for various heating systems Low noise and vibration levels Tandem configurations possible for improved seasonal efficiency Extended vapour injection (EVI) for maximum output and efficiency Maximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g) Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g) Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g) Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g) Technical details Dimensions (length × width × height) 24.3 × 24.2 × 38.7 cm Application range HBP Application range HT Number of phases 3 Design Hermetic COP 3.47 dB(A) @ 1 m 59 dB(A) 72 Pressure line (inches) 1/2" Electronics included Recommended crankcase heater 70 Frequency 50–60 Hz Weight 27 Airflow 8 m³/h Cooling capacity (kW) 83 Refrigerant R134A Refrigerant R407C Capacity under operating conditions: 7.2°C evap. temp., 54.4°C cond. temp., for R-407C at 50 Hz Power consumption [kW] 1.56 Max. operating current (A) 5.6 Max. operating pressure (low/high) [bar(g)] 22.6/32 Motor code TFD Pre-filled with oil Oil capacity (l) 1.50 Oil type POE Product family ZH Suction pipe (inches) 3/4" Compression type: Scroll Supply voltage 380–420 V Supply voltage 460V Advantages and benefits High efficiency and heating output even at low source temperatures Low noise and vibration levels for quiet operation Tandem combinations enable improved seasonal efficiency Extended vapour injection (EVI) ensures maximum performance and efficiency Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified technician.Electronics: The electronics are included in the scope of supply.

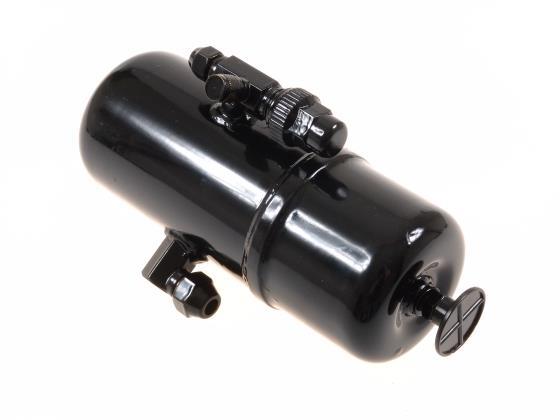

Refrigerant receiver with Rotalock valve CR 101, 1.3 l, connections- inlet 3/8", outlet 1/4", max. pressure 450 p.s.i. - Product 47-3261-101 Introduction: The CR 101 refrigerant collector with Rotalock valve is an indispensable accessory for your refrigeration and air conditioning systems. It is ideal for use in refrigeration, air conditioning and ventilation technology as well as in heat pumps. With its connections, capacity and maximum pressure, it offers an efficient and reliable solution for refrigerant collection.Technical details: Rotal lock valve CR 101 Capacity: 1.3 litres Connections: Inlet 3/8", outlet 1/4" Maximum pressure: 450 p.s.i. Advantages and benefits: 1. efficient refrigerant collection: With the CR 101 Rotalock valve, you can collect refrigerant precisely and reliably 2. versatile application options: The refrigerant collector is suitable for various applications in refrigeration, air conditioning and ventilation technology as well as in heat pumps. 3. high pressure resistance: thanks to the maximum pressure of 450 p.s.i., the refrigerant collector is particularly robust and durable.

Refrigerant collector 30 l, 47-3261-300 The 30 litre refrigerant collector with 1.3/4" connections from Frigo-Mec is an indispensable device for refrigeration, air conditioning and ventilation technology as well as heat pumps. It is perfect for collecting and disposing of refrigerants, making it ideal for professionals in the industry.Technical details: Capacity: 30 litres Input connection: 1.3/4" Outlet connection: 1.3/4" Manufacturer: Frigo-Mec Advantages and benefits: 1. efficient refrigerant collection: With a capacity of 30 litres, you can collect a large amount of refrigerant safely and reliably 2. easy to use: thanks to the clear connections and high-quality workmanship, the Frigo-Mec refrigerant collector is easy to use and hard-wearing. 3. reliable quality: As a Frigo-Mec brand product, you can rely on the high quality and durability of the refrigerant collector, which will provide you with reliable service for a long time.

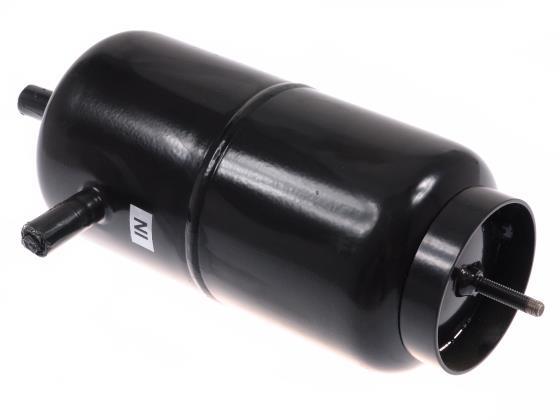

Refrigerant collector 2.3 l - 47-3261-23 Introduction: The 2.3 litre refrigerant collector from Frigo-Mec is an indispensable accessory for your air conditioning and refrigeration system. With its precise technical specifications and excellent properties, it is the ideal solution for professional applications. Technical details: Input connection: 10 mm ODS Output connection: 1 "SAE Mounting: M8 Temperature range: -10 to +90°C Maximum pressure: 30 bar Dimensions: Diameter (d) = 160 mm, height (h) = 345 mm Advantages and benefits: The refrigerant collector 2.3 l scores with the following advantages: Efficient refrigerant collection for reliable performance of your system Versatile connection options for easy integration Rugged construction and high pressure resistance for long-lasting use

Refrigerant collector 24.5 litres, inlet connection 1.1/4", outlet connection 1.1/4" .

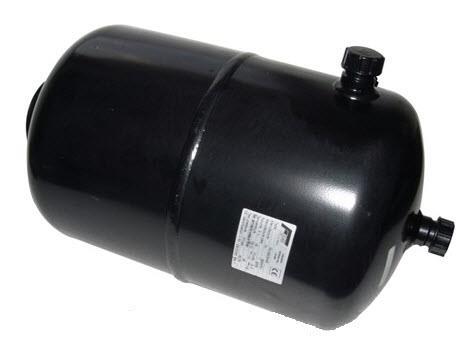

Refrigerant collector 19 l - 47-3261-190 The 19 litre refrigerant collector from Frigo-Mec is an indispensable accessory for any air conditioning and refrigeration system. With an inlet connection of 1.1/4" and an outlet connection of 1.1/4", this product offers high-quality performance and reliability for your applications. Whether in refrigeration, air conditioning and ventilation technology or heat pumps, this refrigerant collector ensures efficient work and optimum results. Technical details: Capacity: 19 litres Input connection: 1.1/4" Outlet connection: 1.1/4" Brand: Frigo-Mec Advantages and benefits: 1. efficient refrigerant collection: thanks to its generous 19 litre capacity, this collector allows you to collect a wide range of refrigerants, saving you time and money 2. compatibility and quality: With standard 1.1/4" connections, this refrigerant collector is easy to install and fits seamlessly into your existing system. The Frigo-Mec brand stands for quality and reliability in air conditioning and refrigeration technology.

Alco TISE-SW thermostatic expansion valve The Alco TISE-SW thermostatic expansion valve is the ideal solution for your refrigeration systems. With the 47-32TISE-SW model, you can cool R404A/R507 efficiently and precisely. The valve is suitable for the temperature range from -45 to +20°C and has an inlet of 1/2" ODS and an outlet of 1/4" ODS. The capillary tube length is 1.5 m. Technical details: Model: 47-32TISE-SW For refrigerant R404A/R507 Inlet: 1/2" ODS Outlet: 1/4" ODS Capillary tube length: 1.5 m Temperature range: -45 to +20°C Advantages and benefits: 1. precise temperature control: the thermostatic expansion valve ensures precise control of the refrigeration system to guarantee optimum operating conditions 2. high efficiency: With the Alco TISE-SW, you can save energy and costs as it optimises the performance of the refrigeration system 3. Flexible use: The valve is suitable for various applications and offers reliable performance in a wide temperature range.

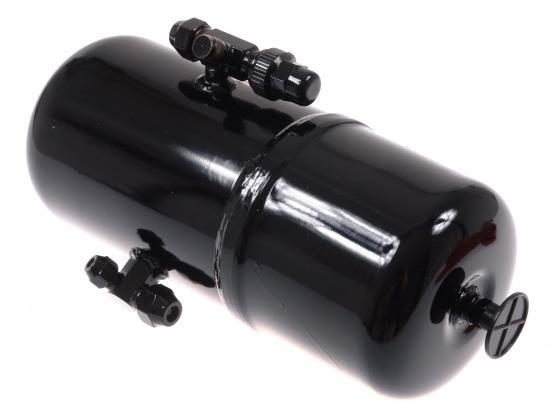

Refrigerant receiver 47-3261-103 with Rotalock valve CR 103, 3.6 l Introduction The 47-3261-103 refrigerant collector with CR 103 Rotalock valve is an indispensable accessory for refrigeration, air conditioning and ventilation technology as well as heat pumps. It enables reliable collection and containment of refrigerants in a compact container to ensure the safety and efficiency of your system.Technical details Model: 47-3261-103 Rotalock valve CR 103 Capacity: 3.6 litres Connections: Inlet 3/8", outlet 3/8" Maximum pressure: 450 p.s.i Advantages and benefits 1. reliable refrigerant collection: The CR 103 rotary lock valve ensures safe and controlled removal of refrigerants in various applications 2. compact design: With a capacity of 3.6 litres and compact connections, the refrigerant collector is ideal for use in confined spaces. 3. high pressure range: With a maximum pressure of 450 p.s.i, the 47-3261-103 refrigerant receiver is suitable for use in demanding air conditioning systems and heat pumps.

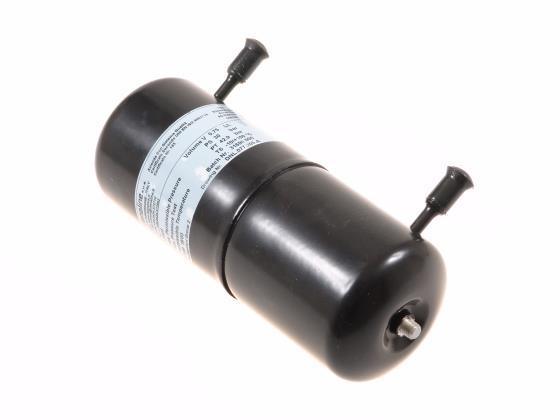

Refrigerant collector 0.8 l The 0.8 litre refrigerant collector is an indispensable accessory for your refrigeration, air conditioning and ventilation systems or heat pumps. It is used to collect refrigerants efficiently and ensures smooth functionality.Technical details: Inlet and outlet: 8 mm ODS Mounting: M8 Temperature range: -10 to +90°C Maximum pressure: 33 bar Advantages and benefits: The 0.8 l refrigerant collector impresses with the following selling points: Easy handling and installation Reliable performance over a wide temperature range Rugged construction for long-term use
