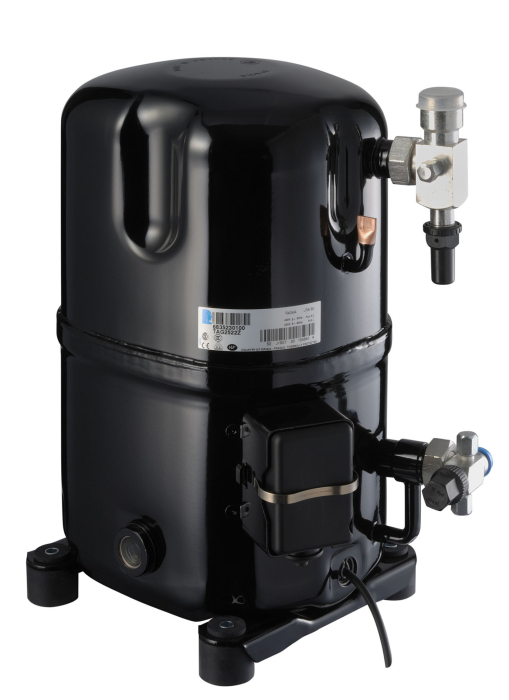

Tecumseh compressor fully hermetic TAGP4561X-TZ
€1,536.08*
No longer available
Do you have some questions about this product?
Product information "Tecumseh compressor fully hermetic TAGP4561X-TZ"
Tecumseh fully hermetic compressor TAGP4561X-TZ
This valve for the suction and discharge side is specially designed for parallel mounting and is ideal for applications with a voltage of 440V 3~60Hz and 400V 3~50Hz. It offers reliable performance and is equipped with a fan for compressor cooling.
Technical details:
- Width: 238 mm (9 in)
- Weight: 46 kg (101 lb)
- Height: 410 mm (16 in)
- Length: 361 mm (14 in)
- Öl load: 1960 cc
- Oil type: Polyol ester
- Compressor cooling: Lüfter
- Displacement (cc): 112.5
- Viscosity: 32
- LRA: 51.5
- Motor resistance main winding: 3.32
- Motor type: 3-phase
- Motor resistance starting winding: 3.41
- Protection type: Internal
- Overload: Yes
- RLA 50Hz: 7.7
- RLA 60Hz: 8.6
- Voltage range 50Hz: 340 to 440
- Voltage range 60Hz: 396 to 499
- Voltage frequency: 50Hz~60Hz
- General motor torque: High starting torque (HST)
- Horsepower: 5 HP
- Packaging: Single
- Evaporation range: -15°C to 15°C (5°F to 59°F)
- Grommet: Yes
- Terminal cover: Yes
- Ölsump heating: Yes
Advantages and benefits:
This valve offers high reliability and efficiency thanks to its robust design and the ability to be operated in parallel installation. The integrated sump heater and internal protection type ensure safe operation under various conditions. With its high starting torque and flexible voltage adjustment, it is ideal for demanding applications in refrigeration and air conditioning technology.
Info:
- Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
- Electronics: The electronics are included in the scope of delivery.
Tecumseh – 90 years of innovation and quality in the refrigeration and air conditioning industry
For over 90 years, Tecumseh has been setting standards in the development and production of fully hermetic reciprocating compressors. The first “hermetic” compressor for refrigerators, introduced in 1937, laid the foundation for Tecumseh’s reputation as a reliable partner in commercial and domestic refrigeration. Through continuous investment in research and development and collaboration with international R&D institutions, Tecumseh develops solutions that are valued worldwide.
Particularly noteworthy are the sustainable R290 models, which use the environmentally friendly refrigerant propane and thus offer a climate-friendly alternative. These compressors are characterised by high efficiency and low emissions and represent a modern response to the industry’s growing demands for environmental sustainability.
With production facilities on four continents and an international network, Tecumseh ensures that its products are readily available worldwide and meet the highest quality standards. Thus, even after 90 years, Tecumseh remains synonymous with quality and innovation in the refrigeration and air conditioning industry.
Tecumseh 90th Anniversary Video
Tecumseh Cross-Reference List
Tecumseh manufacturer software
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Tecumseh Europe Sales & Logistics S.A.S
Postal address: M 7, 18 68161 Mannheim, Germany
Email address: [email protected]
Website: www.tecumseh.com
| Electronics: | inkl. |
|---|---|
| Item Condition: | New item |
| Oil: | vorgefüllt |
