Vacuum pump 220V/50Hz 142 L/min 2-stage

45-90065-220
Skip image gallery
Vacuum pump 220V/50Hz 142 L/min 2-stage

Picture similar

€712.81*

Vacuum pump 220V/50Hz 178 litres/min, 2-stage
Kältemittelklasse: A1 | Pump volume: 178 L/Min
€831.81*
Vacuum pump 220V/50Hz 178 litres/min, 2-stage
Kältemittelklasse: A1 | Pump volume: 178 L/Min
€831.81*
Vi240Y-R32 2-stage vacuum pump, 100 l/min, for R32, R1234yf
Kältemittelklasse: A2L | Pump volume: 100 L/Min
€341.65 - €379.61*
Vi240Y-R32 2-stage vacuum pump, 100 l/min, for R32, R1234yf
Kältemittelklasse: A2L | Pump volume: 100 L/Min
€341.65 - €379.61*
Dual-voltage vacuum pump 170/141 litres/min – 2-stage, Mastercool -90066-2V-220B
Kältemittelklasse: A1 | Pump volume: 170 L/Min
€605.71*
Dual-voltage vacuum pump 170/141 litres/min – 2-stage, Mastercool -90066-2V-220B
Kältemittelklasse: A1 | Pump volume: 170 L/Min
€605.71*
2-stage vacuum pump with vacuum gauge, V-i260SV, 142 l/min, 220V
Kältemittelklasse: A1 | Pump volume: 142 L/Min
€384.49 - €405.91*
2-stage vacuum pump with vacuum gauge, V-i260SV, 142 l/min, 220V
Kältemittelklasse: A1 | Pump volume: 142 L/Min
€384.49 - €405.91*
2-stage vacuum pump with vacuum gauge, 100 l/min V-i240SV
Kältemittelklasse: A1 | Pump volume: 100L/Min
€395.20 - €439.11*
2-stage vacuum pump with vacuum gauge, 100 l/min V-i240SV
Kältemittelklasse: A1 | Pump volume: 100L/Min
€395.20 - €439.11*
Stk

Spare Parts Enquiry

Product number: 45-90065-220
GTIN/EAN: 84141025
Manufacturer: Mastercool
Manufacturer number: 90065-220
Weight: 15.4 kg
Contact
Privacy
Fields marked with asterisks (*) are required.
Description

Mastercool two-stage vacuum pump, models 90065-220

The Mastercool two-stage vacuum pump, models 90065-220, is the ideal choice for small and medium-sized systems with a charge capacity of 2.5 to 10 lb. With an air flow rate of 119 litres/min to 142 litres/min and a final vacuum of 25 microns, it delivers reliable performance for refrigeration, air-conditioning and ventilation systems, as well as heat pumps. Thanks to its 1/3 PS motor and a supply voltage of 220 V / 50–60 Hz, the pump is powerful and efficient.

Technical details:

  • Air flow rate: 119 litres/min / 142 litres/min
  • Ultimate vacuum: 25 microns
  • Motor: 1/3 PS
  • Speed: 1,425 rpm / 1,725 rpm
  • Supply voltage: 220 V / 50–60 Hz
  • Weight: 15 kg

Advantages and benefits:

1. High performance: The two-stage vacuum pump delivers a high air flow rate and generates a reliable ultimate vacuum for efficient operations.

2. Versatile application: With three different inlet connections, the pump is suitable for various refrigerants and systems, including automotive systems using R134a.

3. Reliability: The vacuum pump has been factory-tested and is supplied with an initial dose of oil to ensure smooth operation. Regular topping up with specialised vacuum pump oil is crucial for the unit’s longevity and efficiency.

This is the HTML version of the product description for the Mastercool Model 90065-220 two-stage vacuum pump for your online shop specialising in refrigeration, air conditioning and ventilation technology or heat pumps. Please adapt this description in line with your formatting requirements and design.

Note: The vacuum pump is supplied without oil. The vacuum pump oil for the initial fill is included separately in a bottle.

Data and Illustrations without Guarantee

Manufacturer "Mastercool"

Mastercool

Mastercool is a family-run business that has been supplying professional tools and equipment for the air conditioning and refrigeration sectors, as well as the automotive industry, for over 40 years. Headquartered in the USA with branches in Belgium and Brazil, Mastercool serves customers in over 60 countries worldwide.

Product groups and specialisations:

  • Test fittings: Robust and precise pressure gauges for accurate pressure measurements in HVAC/R systems.

  • Vacuum pumps: High-performance pumps for efficient evacuation processes in refrigeration and air-conditioning systems.

  • Leak detectors: Sensitive detectors for the rapid identification of refrigerant leaks.

  • Refrigerant scales: Precisely calibrated scales for accurate refrigerant charging.

  • Pipe tools: High-quality tools for cutting, bending and flaring pipes for installation and maintenance work.

Mastercool places great emphasis on innovation and quality, which is reflected in numerous globally recognised patents. The company offers a wide range of products that meet the highest standards and make the day-to-day work of HVAC/R professionals easier.



Manufacturer details (information requirements under the GPSR Product Safety Regulation):

Manufacturer: Mastercool Europe N.V.

Postal address: Laagstraat 19, Industrial Zone TTS, 9140 Temse, Belgium

Email address: [email protected]

Website: www.mastercool.com

More products from Mastercool
Properties
Item condition: New item
Number of stages: number of steps
Oil quantity (litres): 0,5
Pump volume: 119
Supply voltage: 220V
Ultimate vacuum: 0.033 mbar

Data and Illustrations without Guarantee

Do you have some questions about this product?

Skip product gallery

Artikel Zubehör

Vacuum pump 220V/50Hz 178 litres/min, 2-stage
Vacuum pump 220V/50Hz 178 litres/min, 2-stage
Mastercool two-stage vacuum pump, models 90067-220 The Mastercool two-stage vacuum pump, models 90067-220, is the ideal choice for medium-sized and larger systems with a charge capacity of 5 lb and above. This pump features a diverter valve for isolation from the system and three inlet connections: 1/4" FL, 3/8" FL and 1/2" ACME for automotive systems using R134a refrigerant. Technical details: Air flow rate: 178 litres/min / 213 litres/min Oil capacity: 531 ml Ultimate vacuum: 25 microns Motor: 1/2 PS Speed: 1,425 rpm / 1,725 rpm Supply voltage: 220 V / 50–60 Hz Weight: 15.4 kg This vacuum pump has already been tested at the factory and is supplied with a small amount of oil. It is important to top up the oil before use so as not to invalidate the warranty. The simple oil-topping-up procedure ensures the pump’s service life and guarantees reliable performance. The Mastercool 90067-220 two-stage vacuum pump is characterised by its high performance and reliability. With its low weight and versatile connection options, it is perfectly suited for use in various refrigeration, air-conditioning and ventilation systems, as well as heat pumps. Thanks to its efficient design and ease of use, it is the ideal solution for professional users who value quality and performance. Note: The vacuum pump is supplied without oil. The vacuum pump oil for the initial fill is included separately in a bottle.
  • Available
  • Delivery Time : 1-2 weeks
€831.81
Tip
Vi240Y-R32 2-stage vacuum pump, 100 l/min, for R32, R1234yf
Vi240Y-R32 2-stage vacuum pump, 100 l/min, for R32, R1234yf
High-quality two-stage vacuum pump, model Vi240Y-R32 The two-stage vacuum pump, model Vi240Y-R32, is a powerful and reliable tool for refrigeration, air-conditioning and ventilation systems, as well as heat pumps. With its integrated body structure, horizontally positioned pressure gauge and internal switch, it offers maximum efficiency and precision. Technical details: Suitable for refrigerants: R32, R1234yf Pump capacity: at 50 Hz: 3.5 CFM, 100 l/min at 60 Hz: 4 CFM, 113 l/min Final vacuum: Partial pressure 2×10⁻¹ Pa, total pressure 15 microns Power: 1/2 HP Connection: 7/16" Oil capacity: 325 ml Dimensions: 338 x 138 x 248 mm Weight: 11 kg Advantages and benefits: The Vi240Y-R32 vacuum pump is characterised by the following unique features: High-quality materials and precision engineering for maximum durability Efficient performance and rapid results for effective operation Includes oil for immediate use and easy maintenance Note: The vacuum pump is supplied without oil. The vacuum pump oil for the initial fill is included separately in a bottle.
  • Available
  • Delivery Time : 1-3 business days
From €341.65
Details
Tip

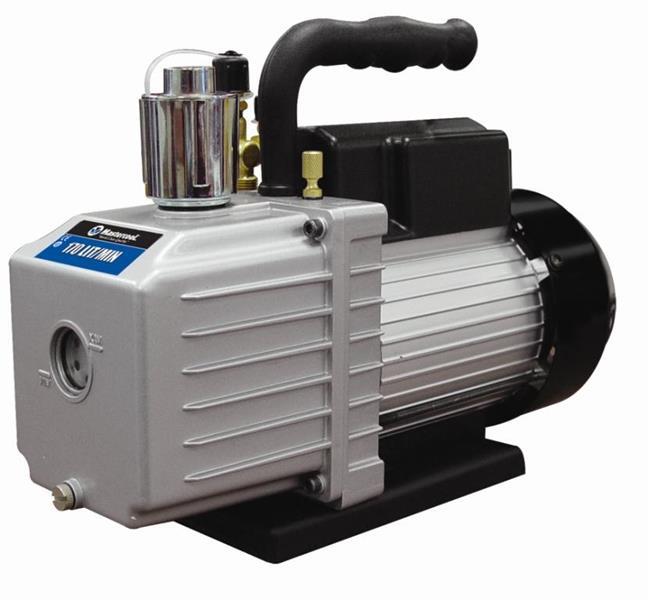

Dual-voltage vacuum pump 170/141 litres/min – 2-stage, Mastercool -90066-2V-220B
