Wall bracket (galvanised) L=800x420 mm with accessories, 120 kg

Height: 375 mm Length: 800 mm Traglast: 120 kg
22-3317189
Skip image gallery
Wall bracket (galvanised) L=800x420 mm with accessories, 120 kg
Wall bracket (galvanised) L=800x420 mm with accessories, 120 kg
Wall bracket (galvanised) L=800x420 mm with accessories, 120 kg
Wall bracket (galvanised) L=800x420 mm with accessories, 120 kg

Picture similar

Quantity Unit price
Up to 9
€29.69
Up to 14
€28.21
€29.69 ( - 4.98% )
-4 %
From 15
€26.72
€29.69 ( - 10% )
-10 %

Available, delivery time: 1-3 business days,
within Germany, abroad different, Subject to prior sale

Wall bracket (galvanised) L=800x465 mm with accessories, 140 kg
Height: 465 mm | Length: 800 mm | Traglast: 140 kg
€76.06*
Wall bracket (galvanised) L=800x465 mm with accessories, 140 kg
Height: 465 mm | Length: 800 mm | Traglast: 140 kg
€76.06*
Wall bracket (galvanised) L=800x550 mm with accessories, 140 kg
Height: 550 mm | Length: 800 mm | Traglast: 140 kg
€48.09 - €53.43*
Wall bracket (galvanised) L=800x550 mm with accessories, 140 kg
Height: 550 mm | Length: 800 mm | Traglast: 140 kg
€48.09 - €53.43*
Flare nut / union nut Thread 3/8 "SAE Hole size 10 mm WIGAM NS4-6/10 ? Unit price (PU=100 pcs.)
€2.73*
Flare nut / union nut Thread 3/8 "SAE Hole size 10 mm WIGAM NS4-6/10 ? Unit price (PU=100 pcs.)
€2.73*

Available in 14 workingdays, delivery time currently not available - please ask for delivery time,
within Germany, abroad different

Vibration damper set of 4 - cylindrical - 40x30 mm
€19.22 - €21.36*
Vibration damper set of 4 - cylindrical - 40x30 mm
€19.22 - €21.36*

Available, delivery time: 1-3 business days,
within Germany, abroad different, Subject to prior sale

Flare nut / union nut Thread 3/8" Hole size 10 mm for refrigerant line
Hersteller: Diverse | Lochgröße / Gewinde: 10 mm | Metrisch / Zöllig: Metrisch | Verpackungseinheit: 1 Stk
€3.16 - €3.51*
Flare nut / union nut Thread 3/8" Hole size 10 mm for refrigerant line
Hersteller: Diverse | Lochgröße / Gewinde: 10 mm | Metrisch / Zöllig: Metrisch | Verpackungseinheit: 1 Stk
€3.16 - €3.51*
Stk

Spare Parts Enquiry

Product number: 22-3317189
Manufacturer: H+H Diverse
Weight: 3.7 kg
Contact
Privacy
Fields marked with asterisks (*) are required.
Description

Wall bracket (galvanised) L=800x420 with accessories - load capacity 100-120 kg

Introduction:

The galvanised wall bracket from Elephant Systems is the ideal solution for the installation of outdoor air conditioning units and heat pumps. With a load capacity of 100-120 kg and TÜV Rheinland certification, it offers a reliable and high-quality mounting option for a wide range of applications.

Technical details:

  • Material: Electro-galvanised steel
  • Surface: Epoxy polyester paint (suitable for outdoor storage)
  • Colour: RAL 9002
  • Joint: M6x70 8.8 high strength screw

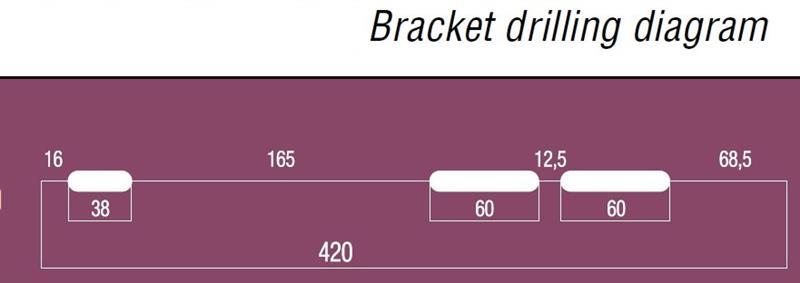

  • Regulation: Cross strut with fixing holes for variable adjustment of the vertical struts
  • 2 height-adjustable patented polypropylene rubber feet
  • Integrated spirit level for wall mounting
  • Packaging dimensions: 85x90x820 mm
  • Weight: 3.5 kg

Advantages and benefits:

This high-quality wall console from Elephant Systems offers numerous advantages, including:

  • Vibration-damping, UV-resistant, waterproof and weatherproof for long-lasting use
  • Variable adjustment options for easy adaptation to different operating conditions
  • Easy assembly thanks to integrated spirit level and high-quality materials

Data and Illustrations without Guarantee

Manufacturer "H+H Diverse"

Miscellaneous



Information about the manufacturer (information requirements under the GPSR Product Safety Regulation):

Manufacturer: H+H Kältetechnik GmbH

Postal address: Borghorster Straße 68 48366 Laer Germany

Email address: [email protected]

Website: www.kaeltetechnikshop.com

Note: H+H Kältetechnik GmbH offers a comprehensive range of products for refrigeration, air conditioning and ventilation technology.

More products from H+H Diverse
Properties
Height: 375 mm
Item condition: New item
Length: 800 mm
Traglast: 120 kg

Data and Illustrations without Guarantee
