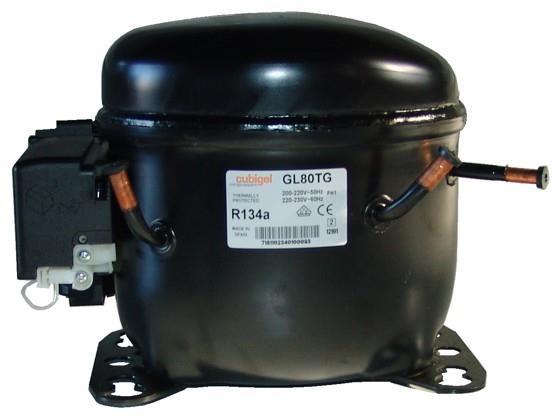

Compressor ACC Cubigel / Huayi GL80TG, HMBP - R134a, 200-230V, 50Hz/60Hz- not available, replaced by GE80TG
Area of application:
HMBP
Modellreihe:
GL
Refrigerant:
R134a
Typ / Serie:
GL80TG
47-32GL80TG
| Quantity | Unit price |
|---|---|
| Up to 2 |
€153.51
|
| Up to 5 |
€145.83
€153.51
( - 5% )
|
| From 6 |
€138.16
€153.51
( - 10% )
|
No longer available
There are successors for this article
Tip
Product number:
47-32GL80TG
Manufacturer:
Cubigel / Huayi
Manufacturer number:
GL80TG (-> GE80TG)
Weight:
12.3 kg
Do you have some questions about this product?
Description
Product information "Compressor ACC Cubigel / Huayi GL80TG, HMBP - R134a, 200-230V, 50Hz/60Hz- not available, replaced by GE80TG"
Compressor Cubigel / Huayi GL80TG
The Cubigel / Huayi GL80TG compressor is a powerful compressor specially developed for use in refrigeration, air conditioning and ventilation systems as well as heat pumps. It offers reliable cooling performance and is ideal for use in various applications.
Technical details:- Motor type: CSIR
- Oil type: ISO VG 22 first oil
- Oil filling quantity: 300 cm3
- Power: 554 W at +5 / +55 °C
- Power consumption: 302 W
- Connection values: 200 - 220 / 220 - 230V/1/50/60Hz
- Stroke volume: 7.57 cm3
- Cooling: with fan
- Weight: 10.1 kg
- HP: 1/5
- Current consumption: 1.79 A
- Operation: capillary tube/expansion valve
Advantages and benefits:
1. high output of 554 W at different temperatures for efficient cooling
2. reliable operation with CSIR motor type and ISO VG 22 first oil
.3. Versatile application possibilities in refrigeration, air conditioning and ventilation systems as well as heat pumps.
Downloads
- 47-32GL80TG-Datasheet-HHKaeltetechnik - Datenblatt / Datasheet
Manufacturer "Cubigel / Huayi"
Cubigel Compressors®, founded in 1962 and headquartered in Barcelona, Spain, is a leading manufacturer of hermetic compressors and condensing units for commercial refrigeration. With over 60 years of experience, the company develops and manufactures innovative solutions that meet global market requirements. Formerly known under the brands Unidad Hermética, Electrolux Compressors, ZEM and ACC Compressors, Cubigel is now part of the Huayi Group, the world’s largest manufacturer of compressors, and manufactures at a modern production facility in Barcelona. The combination of tradition and continuous innovation distinguishes Cubigel as a reliable partner for refrigeration technology.
Cubigel’s product range includes compressors with displacement volumes from 2.4 to 34.0 cm³ and covers common refrigerants such as R134a, R404A, R600a, R290 and R507. This diversity enables tailor-made solutions for various applications in commercial refrigeration. Core products include:
- Compressors and condensing units: Comprehensive solutions for a wide range of commercial refrigeration applications.
- Green Cooling Ranges: Highly efficient and environmentally friendly compressors for sustainable refrigeration processes.
- DC compressors: Reliable direct current compressors for mobile refrigeration applications.
- Variable Speed Compressors: Advanced technology for reducing energy consumption in commercial refrigeration.
Through continuous research and development, Cubigel creates innovative, energy-efficient solutions that meet the modern demands of refrigeration technology. With a clear focus on technological excellence and sustainability, the company supports customers worldwide in implementing future-proof refrigeration solutions that meet the highest performance standards. Its wide product range and commitment to quality and innovation make Cubigel a trusted partner for commercial refrigeration applications.
Cubigel Compressors® products. The most extensive range.
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Huayi Compressor Barcelona, S.L.
Postal address: Antoni Forrellad, 2 08192 Sant Quirze del Vallès Spain
Email address: [email protected]
Website: www.huayicompressor.es
Note: Huayi Compressor Barcelona, S.L. manufactures hermetic compressors and condensing units for the commercial refrigeration market under the Cubigel Compressors® brand.
Properties
| Area of application: | HMBP |
|---|---|
| COP: | 1,82 |
| Connection size: | Connection Size |
| Dimensions ( length × width × height ): | 23.10 × 16.20 × 18.60 cm |
| Electronics: | inkl. |
| Item condition: | New item |
| Max. Operating current (A): | 1,79 |
| Max. Starting current (A): | 11 |
| Modellreihe: | GL |
| Motor type: | CSIR |
| Oil: | vorgefüllt |
| Oil quantity (litres): | 0,3 |
| Oil type: | ISO VG 22 Ester |
| Power consumption (W): | 302 |
| Power range (PS): | 0-2 |
| Power range (W): | 501 - 700 W |
| Pressure pipe (mm): | 4,9 |
| Refrigerant: | R134a |
| Refrigeration: | Fan |
| Stroke volume (cm3): | 7,57 |
| Suction line (mm): | 6,5 |
| Suction side: | 6.5 mm |
| To be used with: | Capillary/Expansion |
| Typ / Serie: | GL80TG |
| Type of construction: | Hermetic |
Downloads
- 47-32GL80TG-Datasheet-HHKaeltetechnik - Datenblatt / Datasheet
Skip product gallery
![Compressor ACC - Electrolux GL80TB, HMBP - R134a, 1/5HP, 220-240V/1/50Hz- not available, replaced by GE70TG]( "Compressor ACC - Electrolux GL80TB, HMBP - R134a, 1/5HP, 220-240V/1/50Hz- not available, replaced by GE70TG")
![Compressor ACC / ZEM - Electrolux GL90TB, HMBP - R134a, 1/4HP, 220-240V/1/50Hz - will be replaced by GU80TB]( "Compressor ACC / ZEM - Electrolux GL90TB, HMBP - R134a, 1/4HP, 220-240V/1/50Hz - will be replaced by GU80TB")
Artikel Zubehör
Tip
Compressor ACC - GP14TG, HMBP - R134a, 3/8HP, 200-230V/1F/ 50-60Hz
Regular price:
From
€170.29
Compressor ACC Cubigel / Huayi GP14TG
The ACC Cubigel / Huayi GP14TG compressor is a powerful refrigeration solution that has been specially developed for use in various air conditioning and ventilation systems as well as heat pumps. With an output of 3/8 HP and a displacement of 14.17 cm3, this compressor offers reliable and efficient performance for various applications.
Technical details:
Power output: 592 W
Stroke volume: 14.17 cm³
Refrigerant: R134a
Applications: HMBP
Power supply: 230V/1Ph/50Hz
Nominal cooling power (CECOMAF): 999 W
Nominal cooling capacity (ASHRAE): 1,030 kcal/h
Displacement: 2.55 m³/h
Cylinder bore: 31.2 mm
Cylinder stroke: 18.5 mm
Ölfül;llmenge: 0.40 L
Öltyp: ISO VG 32 Ester
Power supply: 200-220/220-230V 50/60Hz ~1
Maximum continuous current: 5.5 A
Locked Rotor Amperage (LRA): 18.0 A
Motor resistance main winding: 4.31 Ω
Motor resistance start winding: 19.26 Ω
Motor type: CSIR
Type of torque: HST
Maximum ambient temperature: 43 °C
Suction/service pipe diameter (1): 8.1 mm
Discharge pipe diameter (3): 6.5 mm
Service pipe diameter (2): 8.1 mm
Approved refrigerants: R134a
Expansion device: Capillary tube, expansion valve
Compressor cooling: Fan
Approvals: UL, CCC
Advantages and benefits:
1. high performance: With a cooling capacity of 999 W and a power consumption of 566 W, the ACC Cubigel / Huayi GP14TG compressor offers efficient cooling for various applications.
2 Versatile application possibilities: The compressor is ideal for operation in air conditioning and ventilation systems as well as heat pumps, and offers reliable performance under different operating conditions. 3. reliable and durable quality: The compressor is filled with high-quality ISO VG 22 ester oil and has a robust design that ensures a long service life and reliable performance.
Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- Available
- Delivery Time : 1-3 business days
Compressor ACC - Electrolux GL80TB, HMBP - R134a, 1/5HP, 220-240V/1/50Hz- not available, replaced by GE70TG
Regular price:
From
€106.03
Hermetic ACC Electrolux / ZEM compressor type GL80TB
The hermetic ACC Electrolux / ZEM compressor type GL80TB is the ideal solution for use with an expansion valve in refrigeration, air conditioning and ventilation systems as well as in heat pumps. With its robust design and powerful features, it offers reliable cooling performance and efficiency. Suitable for professional applications and demanding customers.
Technical details:
Refrigerant: R134a
HMBP temperature range: -25°C to +10°C
Max. Ambient temperature: 43°C
Motor type: CSIR
Power: 1/5 hp
Cooling capacity at +5/+55: 302 W
Power consumption: 554 W
Nominal cooling capacity: 602 W (554 kcal/h)
Stroke volume: 7.6 cm³
Delivery volume: 1.3 m³/h
Oil filling: 300 cm3
Oil type: ISO VG 22 ESTER
Starting element: HST
Starting current: 9.7 A
Connections: 6.5 x 4.9 mm
Mains voltage: 198-264V/1F/50Hz
Weight: 9.5 kg
Main winding resistance: 9.28 Ohm (25°C)
Winding resistance: 36.5 Ohm (25°C)
Advantages and benefits:
The ACC Electrolux / ZEM GL80TB compressor offers an impressive cooling capacity of 602 W and high efficiency with low energy consumption. The HMBP temperature range of -25°C to +10°C makes it perfect for various applications in refrigeration, air conditioning and ventilation technology. With its powerful motor, compact design and reliable operation, it is the optimal choice for demanding environments and professional installations. Info:
&Oum;l: Compressor is pre-filled with &Oum;l at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- Available
- Delivery Time : currently not available - please ask for delivery time
Tip

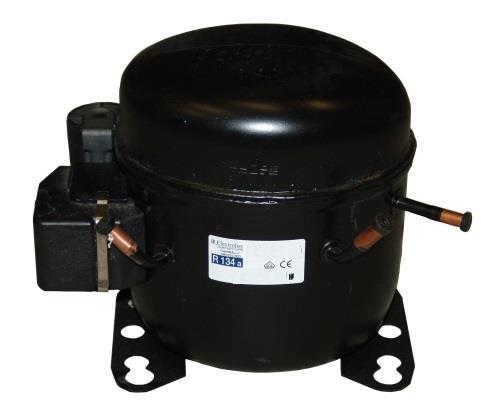

Compressor ACC Cubigel / Huayi GLY12RA, HMBP - R134a, 220 - 240V, 50Hz
Regular price:
From
€116.74
Cubigel / Huayi compressor GLY12RA
The fully hermetic Cubigel / Huayi GLY12RA compressor is the ideal solution for commercial and industrial refrigeration systems in the high and medium pressure range. With improved performance and energy efficiency compared to the previous GP12TB model, the GLY12RA offers reliable and efficient cooling performance for applications using R134a refrigerant. Technical features
Refrigerant: R134a
Mains voltage: 220-240 V / 1 Ph / 50 Hz
Refrigerating capacity: 893 W at To = +5 °C
Stroke volume: 12.05 cm³
Injection: Capillary tube or expansion valve
Suction connection: 8.1 mm
Pressure connection: 6.5 mm
Motor type: CSIR
Oil type: Ester (ISO VG 22)
Oil capacity: 350 cm³
Cooling capacity: 867 W at +5 °C / +55 °C
Power consumption: 441 W
Current consumption: 2.83 A
Cooling: Fan-cooled
Weight: 11.2 kg
Special features
Successor to the GP12TB: Offers modernised performance and efficiency
Flexible operation: Supports capillary tube and expansion valve injection systems.
Energy-efficient: Reduced power consumption with high cooling capacity.
Rugged and durable: Compact design for a long service life.
Application areas
The GLY12RA is ideal for commercial refrigeration solutions in restaurants, hotels and supermarkets. Manufacturers such as Alpeninox, Angelo-Po, Electrolux and others rely on this powerful compressor for their refrigeration systems.Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- Available
- Delivery Time : 1-3 business days

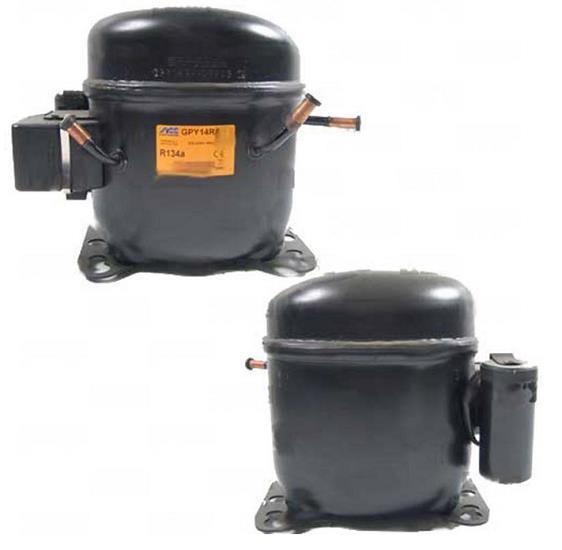

Compressor ACC Cubigel / Huayi GPY14RAa, HMBP - R134a, 200 - 230V, 50Hz
Regular price:
From
€191.71
Compressor ACC Cubigel / Huayi GPY14RAa - Article description
This ACC Cubigel / Huayi GPY14RAa compressor is ideal for use in refrigeration, air conditioning, ventilation and heat pump applications. It offers reliable performance and efficiency to keep your appliances running optimally Technical details:
Power: 3/8 HP
Stroke volume: 14.32 cm3
Engine type: CSIR
Oil type: ISO VG 22 First
Oil filling volume: 400 cm3
Cooling capacity at +5 / +55: 1161 W
Power consumption: 585 W
Current: 3.42 A
Operation with expansion valve/capillary tube
Cooling with fan
Weight: 12.6 kg
Advantages and benefits:
This compressor scores with its low energy consumption and high cooling capacity, resulting in efficient cooling or air conditioning. Thanks to its CSIR motor, it is particularly powerful. With an oil capacity of 400 cm3 and a displacement of 14.32 cm3, it is ideal for various applications.
- Available
- Delivery Time : 1-2 weeks

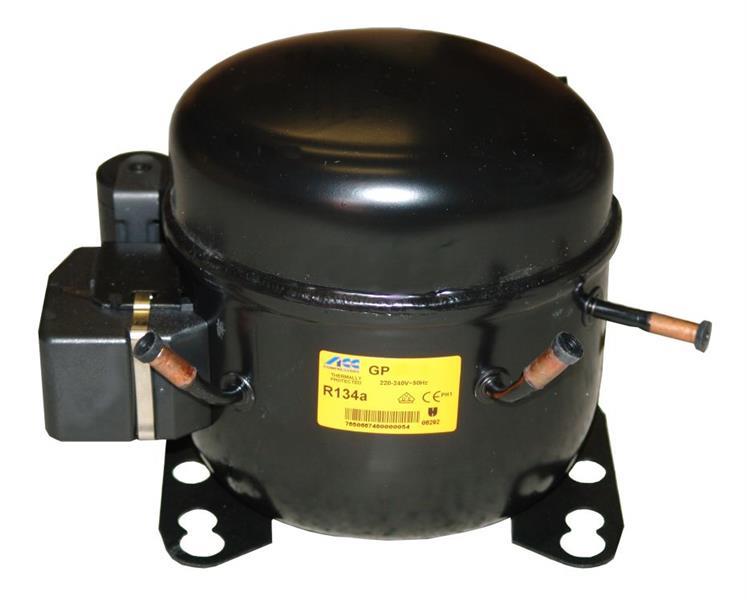

Compressor Cubigel / Huayi GP16TG, HMBP - R134a, 200-230V/50-60Hz
