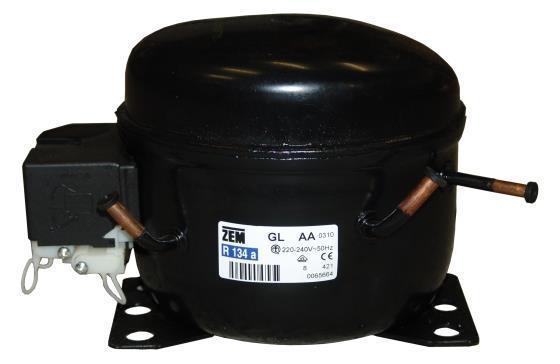

Compressor ACC / ZEM, GL75AA / GVM66AA / AS75AA, LBP - R134a, 1/5HP, 220-240V/50Hz

Modellreihe: GL | Refrigerant: R134a | Scope of application: LBP | Typ / Serie: GL75AA / GVM66AA / AS75AA,
ACC Cubigel Huayi Electrolux ZEM Buy products online for less: Compressor ACC / ZEM, GL75AA / GVM66AA / AS75AA, LBP - R134a, 1/5HP, 220-240V/50Hz // Fast worldwide delivery

€117.64*

No longer available
This product is no longer available.
Modellreihe
Refrigerant
Scope of application
Product number: 47-32GL75AA
EAN: 8592372129004
Manufacturer number: GL75AA
Weight: 8.9 kg

Do you have some questions about this product?

avatar

Downloads

Product information "Compressor ACC / ZEM, GL75AA / GVM66AA / AS75AA, LBP - R134a, 1/5HP, 220-240V/50Hz"
Hermetic compressor ACC / ZEM, GL75AA / GVM66AA / AS75AA, LBP - R134a. LBP temperature range: -35 to -10°C. Max. Ambient temperature: 43°C. Injection: Capillary operation. Motor type: RSIR. Power: 1/5 HP. Displacement: 7 cm3. Oil type: Ester oil. Oil volume: 180 cm3. Power at -25 / +55 °C: 133 W. Rated cooling capacity: 286 W. Speed: 2900 RPM. LRA: 11.5 A. Air flow: 1.28 m3/h. Supply voltage: 220-240V/1F/50Hz. Weight: 7.7 kg.

Cooling capacity measured for condensing temperature of: 55°C, measurement conditions: ASHRAE
COP: 0,91
Compressor type: Reciprocating piston
Condensation temperature: 55 °C
Condensing units Compressors: Compressor
Connection Size: Connection Size
Cooling capacity (W): 133
Cooling capacity (W) at To -25°C: 132
Delivery and suction volume (m3): 1,28
Design: Hermetic, Reciprocating piston
Dimensions ( length × width × height ): 23.10 × 16.20 × 18.60 cm
Displacement (cm3): 7
Engine type: RSIR
Info: Oil prefilled
Manufacturer: ACC, ACC Cubigel Huayi Electrolux ZEM
Max. Operating current (A): 1,01
Max. Starting current (A): 11,5
Measuring conditions: ASHRAE
Modellreihe: GL
Oil quantity (l): 0,18
Oil type: ISO VG 19 Ester
Power range (W): 101 - 200 W
Power range (hp): 0-2
Power supply: 230 V
Pressure line (mm): 4,9
Rated power (hp): 0,25
Refrigerant: R134a
Scope of application: LBP
Series: GL
Speed (rpm): 2900
Suction line (mm): 6,5
Suction side: 6.5 mm
To be used with: Capillary tube
Typ / Serie: GL75AA / GVM66AA / AS75AA,
Voltage: 220-240V
cooling capacity (W) at To -10°C: 296
cooling capacity (W) at To -15°C: 232
cooling capacity (W) at To -20°C: 178
cooling capacity (W) at To -30°C: 95
cooling capacity (W) at To -35°C: 68
Downloads
ACC Cubigel Huayi Electrolux ZEM
Acc austria gmbh (founded in 1982 based in fürstenfeld, branches in germany, china and the usa) today belongs to the secop group (formerly: danfoss household compressors), subsidiary of the munich industrieholding group aurelius, and provides high quality acc cubigel (ex - electrolux) full-thermal coolant compressor for household refrigerators. with the development of the kappa compressor acc austria took over the technology lead on the refrigeration compressor market in 2001. due to the expansion of production associated with the new development, a doubling of the production volume could be achieved between 2001 and 2005. nowadays, acc austria produces approximately 7 million compressors a year, around 95% of the refrigeration compressors produced are exported abroad. the company is an important supplier of international oems and thus represents an excellent addition to the secop portfolio. acc austria gmbh, europe's largest manufacturer of hermetic cooling compressors with approx. 750 employees in fürstenfeld (production site and corporate headquarters for research and development) has one in 2013 sales of about 167 million euros generated. together with secop, acc will expand its research and development efforts in order to continue to keep the technological leadership in the field of compressors with solid and variable speed for household appliances. this will also be available in the future compressors that meet the highest demands on energy efficiency and low noise. the construction of the type number of acc - cubigel (ex - electrolux) compressors is as follows: evaporation temperature: lbp (-35 to -10 ° c) , mbp (-25 to 0 ° c), hmbp (-25 to + 10 ° c), hbp (-15 to + 10 ° c), vhbp (0 to + 25 ° c)
