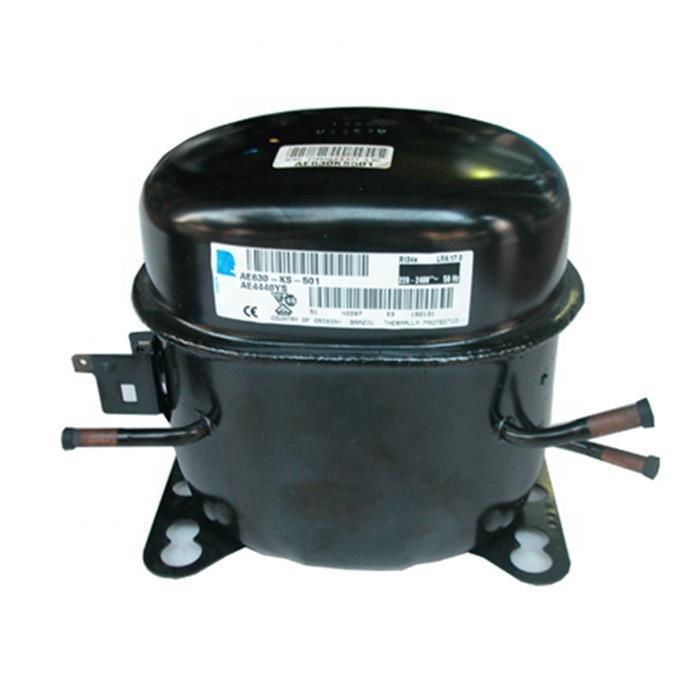

Compressor Tecumseh CAE9450Z, HMBP - R404A/R507, 220-240V - not available, replaced by AE4450Z

Tecumseh compressor AE4450Z CSIR, HBP - R404A/R452A/R448A/R449A The Tecumseh AE4450Z CSIR is a fully hermetic reciprocating compressor, ideal for medium to high suction pressures (HBP). It is compatible with various refrigerants and is ideal for commercial refrigeration applications.Technology Colour: Black Technology: Fully hermetic reciprocating compressor Type: AE4450Z Connections Inlet connection (DL): 1/4 inch Outlet connection (SL): 3/8 inch Connection type: soldering Connection material: Copper-coated steel Application Application: AE series piston compressor CSIR M/HBP R404/R507A R448A/R449A R452A, 220-240V, 1PH, 50HZ Electrical data Frequency: 50 Hz Maximum current (I max.): 3.4 A Voltage: 220-240V / 1PH / 50Hz Explanations Short text: TE standard (electrical equipment attached to the compressor, with terminal strip, soldering sockets on suction and discharge side, vibration damper) Compressor Starting capacitor: Yes Stroke volume: 8.85 cm³ Refrigerant Refrigerants: R404A, R448A, R449A, R452A, R507A Logistics information Manufacturer article number: AE-1144-BF Customs tariff number: 84143081 Country of origin: France Dimensions Width: 160.5 mm Weight: 10.8 kg Height: 207.1 mm Length: 251 mm Motor Motor type: CSIR Fastening Design: Diameter of mounting holes 178 x 114.3 mm Performance data R404A power consumption at -10°C: 0.45 kW R404A Q0 at -10°C: 0.64 kW and 0.80 kW R448A power consumption at -10°C: 0.42 kW R448A Q0 at -10°C: 0.65 kW R449A power consumption at -10°C: 0.42 kW R449A Q0 at -5°C: 0.74 kW and at -10°C: 0.65 kW R452A Pe at -10°C: 0.44 kW R452A Q0 at -10°C: 1.18 kW and 0.64 kW Valves Expansion device: C-V Piping Pipe diameter: 3/16 inch Oil Oil: Polyolester viscosity 32 Oil filling: 366.3 cm³ The Tecumseh AE4450Z compressor is a reliable option for various refrigeration applications that require solid performance and compatibility with multiple refrigerants. Order now and benefit from its advanced technology.

Compressor Aspera NEK6210GK Introduction The Aspera NEK6210GK MBP compressor/compressor is a powerful and reliable device for use in refrigeration, air conditioning and ventilation technology or heat pumps. With an output of 1/2 hp and an efficiency value of 1.78 kcal/Wh, it is ideal for use in various applications.Technical details Motor type: CSIR Stroke volume: 8.78 cm3 Temperature range: MBP Suction line connection size: 8.10 mm Discharge line connection size: 6.10 mm Weight: 11.0 kg Maximum height: 200.0 mm Oil type: ISO22 Oil quantity: 350ml Starting torque: HST Refrigeration capacity measured for condensation temperature of: 45°C Measuring conditions: EN12900 Advantages and benefits The Aspera NEK6210GK compressor/compressor offers high performance with low energy consumption, resulting in cost savings. Thanks to its CSIR motor type and efficient cooling technology, it is particularly durable and reliable. The use of ISO22 oil ensures smooth operation and a long service life of the device.
