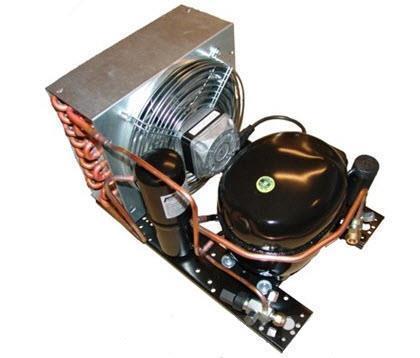

Condensing unit Aspera UEMT6144GK MBP - R404A, R507, 230V/1/50Hz

Filter dryer FDB - 47-32581-032 The FDB filter dryer in hermetic design and bead style has been specially developed for liquid refrigerants. With its outstanding properties, it sets standards in refrigeration, air conditioning and ventilation technology as well as for heat pumps.Technical details: Compacted bead style (spring-loaded) Optimal mixture of molecular sieve and activated aluminium oxide Filter performance of 20 microns Efficient utilisation of the desiccant surface area High water and acid capacity Padded flow for optimum performance ODF copper connections for easy soldering Rugged steel housing Corrosion-resistant epoxy paint Temperature range from -40°C to +65°C Maximum operating pressure of 45 bar CE labelling according to art. 3.3 PED 97/23 EC HP labelling in accordance with the Pressure Equipment Directive Advantages and benefits: The FDB filter dryer is characterised by its high filter performance, optimum mixture of filter materials and cushioned flow. With ODF copper connections for easy soldering and a robust steel housing, it is particularly durable and corrosion-resistant. Its high water and acid capacity ensures efficient filtration and non-turbulent performance. With a temperature range of -40°C to +65°C, it is versatile and works reliably in various environments.

Danfoss DCL 032S filter dryer - high-performance protection for refrigeration and air conditioning systems The Danfoss DCL 032S hermetic filter dryer (article number: 023Z5013) provides optimum protection for your refrigeration and air conditioning systems by effectively removing moisture, acids and solid particles. This helps to extend the service life of your systems and maintain their efficiency. The filter dryer is equipped with solder connections and is ideal for various applications in refrigeration technology.Technical details: Refrigerant compatibility: Suitable for HCFC and HFC refrigerants such as R22, R134a, R404A, R407C, R507 and many more. Connection type: Solder connections (ODF) with a diameter of 1/4" (6 mm) Core composition: 80% molecular sieve and 20% activated aluminium oxide for high moisture and acid absorption Maximum operating pressure: 46 bar Operating temperature range: -40 °C to +70 °C Filter fineness: 25 micrometres, ensures a high degree of retention of impurities with minimal pressure loss Housing material: copper for high corrosion resistance Dimensions: Length: 93 mm Diameter: 25 mm Weight: 0.198 kg Moisture absorption: Outstanding performance thanks to the optimum ratio of molecular sieve and aluminium oxide Mounting options: Versatile use in horizontal and vertical position Advantages: Effective protection: Removes moisture and acid-forming compounds to prevent corrosion and system damage High compatibility: Suitable for various refrigerants, ensuring flexibility and versatility in use.Reliable filtration: Thanks to a filter fineness of 25 micrometres, even the smallest particles are retained. The Danfoss DCL 032S filter dryer is the ideal choice for reliable, long-term protection of your refrigeration and air conditioning systems. Its excellent dehumidification and acid-binding performance ensures the safe and efficient operation of your systems.Further details on Danfoss homepage

Filter dryer ALCO, ADK-032 The filter dryer of the ADK-Plus series from ALCO is specially designed for use with liquid refrigerants. It offers an optimum mix of molecular sieve and activated aluminium oxide for efficient drying and filtration.Technical details: Material: Robust steel body Connections: Copper connections (ODF) for flux-free and quick soldering Filtration: Ultra-fine filtration up to 20 micron Temperature range: -40 to +65°C Maximum operating overpressure: 45 bar Connection type: SAE Connection dimension: 1/4 inch Refrigerant: R134a, R407C, R410A, R448A Acid absorption capacity: 0.8 g Nominal output: R134a: 6.7 kW R407C: 7 kW R410A: 7.2 kW R448A: 6.1 kW Temperature range: -45 to +65 °C Advantages and benefits: The ADK-Plus filter dryer offers a wide range of benefits, including: High water and acid absorption capacity for effective cleaning of the refrigerant Block design and hermetic construction for a long service life and reliability Corrosion-resistant epoxy coating for use in demanding environments Stabilised flow for uniform drying and filtration CE marking in accordance with PED 97/23 EC for compliance with European standards The ALCO ADK-032 filter dryer is the ideal choice for protecting your refrigerant system from contamination. Order now and benefit from its outstanding performance and reliability!

Filter dryer ALCO for liquid refrigerants This FDB-032S filter dryer from ALCO offers reliable and efficient filtration for liquid refrigerants in construction and industrial applications. With its hermetic design and bead style, it is an ideal component for refrigeration systems, air conditioning systems and heat pumps. Technical details: Compressed bead style (spring-loaded) Optimal mixture of molecular sieve and activated aluminium oxide Final filtration of 20 micron High water and acid capacity Padded flow for non-turbulent performance ODF copper connections for easy soldering Rugged steel housing with corrosion-resistant epoxy paint Temperature range: -40° C to +65° C Max. Operating pressure: 45 bar CE marking in accordance with PED 97/23 EC and HP marking in accordance with the Pressure Equipment Directive Advantages and benefits: This filter dryer from ALCO offers effective filtration of refrigerants for optimum performance and a longer service life for your system. The combination of molecular sieve and aluminium oxide ensures high filtration performance and efficient use of the desiccant surface. With its robust construction and corrosion-resistant coating, it is durable and reliable in a variety of environments.
