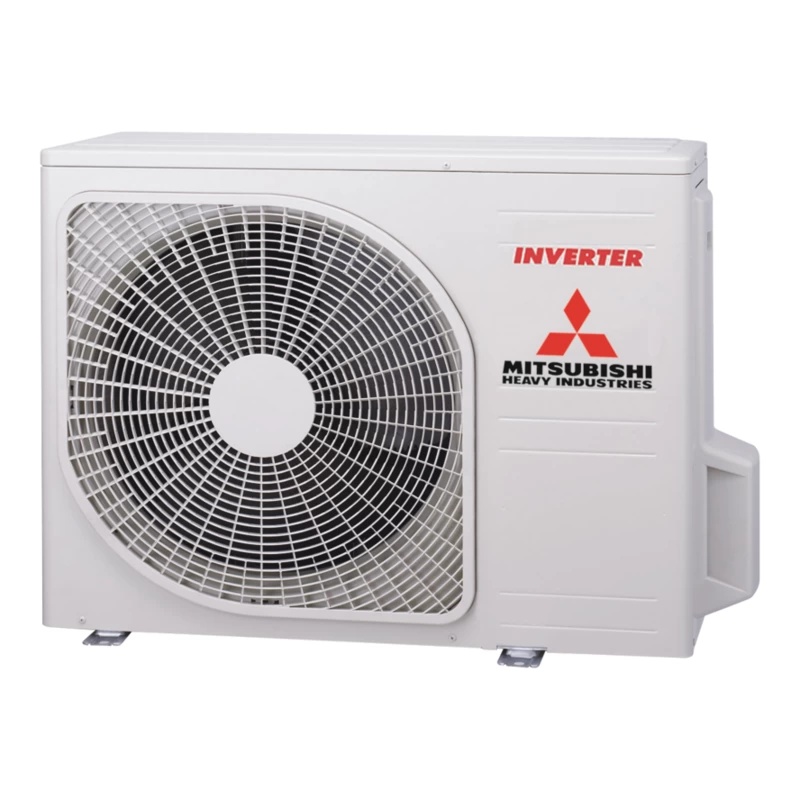

Mitsubishi Heavy SRC50ZS-W outdoor unit – 5.0 kW – R32, mono-split (1 indoor unit)
Google Reviews
€1,535.10*
Mitsubishi Heavy SRC50ZS-W outdoor unit – 5.0 kW – R32, mono-split (1 indoor unit)
The Mitsubishi Heavy SRC50ZS-W outdoor unit is an energy-efficient and extremely compact solution for cooling and heating. It is ideal for mono-split operation and offers high performance whilst taking up minimal space.
Technical details
- Energy-efficient, extremely compact outdoor units
- The footprint of an outdoor unit is less than 0.4 m²
- System solutions with a cooling capacity of up to 5.0 kW and a heating capacity of 5.8 kW
- Low-noise operation possible (Silent Mode)
- Suitable for single-split operation
- Uses R32 refrigerant
- Rated cooling capacity: 5 kW
- Cooling capacity, min.: 1.30 kW
- Cooling capacity, max.: 5.50 kW
- Rated heating capacity: 5.80 kW
- Heating capacity, min.: 1.30 kW
- Heating capacity, max.: 6.60 kW
- Connected load IGe, min. 1: 5 kW
- Connected load IGe, max. 1: 5 kW
- Minimum number of IGe units that can be connected: 1
- Maximum number of IGe units that can be connected: 1
- Nominal efficiency (EER), cooling: 3.70
- Nominal efficiency (COP), heating: 3.72
- Brand: Mitsubishi Heavy Industries
- WEEE registration number: 67164993
- Net weight: 36 kg
- Number of connectable IG combinations: 1x

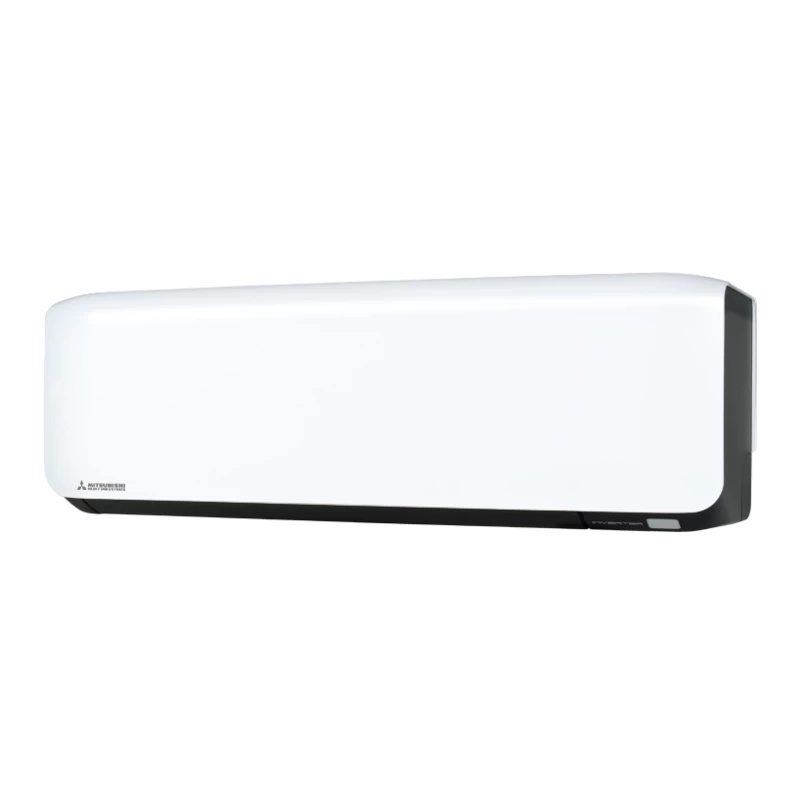

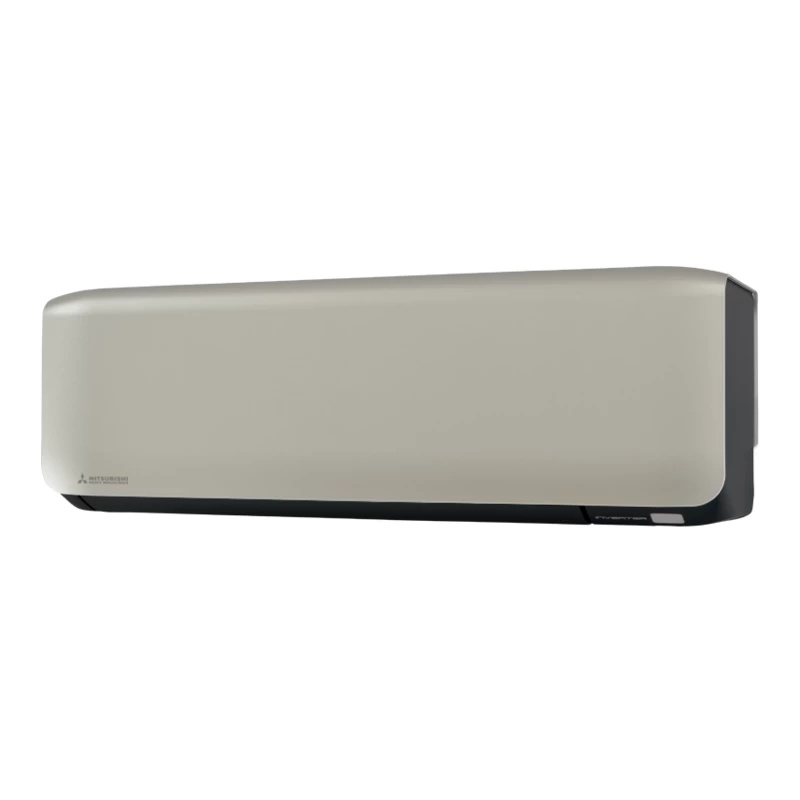

- Connectable IG combination type: SRK50ZS-WF
- Energy efficiency class (cooling): A++
- Energy efficiency class (heating): A++
- Seasonal efficiency (SEER), cooling: 7
- Seasonal efficiency (SCOP), heating: 4.60
- Seasonal efficiency Pdesignc, cooling: 5 kW
- Seasonal efficiency Pdesignh, heating: 3.80 kW
- Annual energy consumption for cooling: 250 kWh/a
- Annual energy consumption for heating: 1,158 kWh/a
- Refrigerant type: R32
- Refrigerant GWP: 675
- Refrigerant pre-charge: 1.05 kg
- Refrigerant pre-charge quantity for pipe length: 15 m
- Refrigerant top-up quantity per metre of liquid pipe, D6: 0.020 kg/m
- Number of compressors: 1
- Refrigeration oil type: FW50S
- Refrigeration oil quantity: 0.32 l
- Height of unit with components: 595 mm
- Width of unit with components: 842 mm
- Depth of body with parts: 290 mm
Advantages and benefits
- High energy efficiency with A++ ratings for cooling and heating.
- Compact design allows for space-saving installation.
- Silent Mode for low-noise operation, ideal for living areas.
- Flexible application options thanks to mono-split operation and a range of compatible units.
Mitsubishi is a globally recognised brand with its origins in Japan, whose history dates back to 1870. The Mitsubishi Group comprises numerous independent companies operating in various sectors, including automotive manufacturing, electronics, heavy industry, chemicals and air conditioning technology. Although the companies within the group operate independently, they share the distinctive Mitsubishi logo and a common brand ethos centred on innovation, quality and reliability.
Key areas of focus for Mitsubishi companies in the air conditioning sector:
-
Mitsubishi Electric:
A leading supplier of air conditioning units, heat pumps and refrigeration technology products, renowned for innovative technologies and energy-efficient systems such as split air conditioning units, VRF systems and air-to-water heat pumps. -
Mitsubishi Heavy Industries:
Also a major player in the air conditioning sector, offering a wide range of split and multi-split air conditioning systems as well as VRF systems. These products are characterised by robust construction, high efficiency and advanced control systems.
The Mitsubishi Group places great emphasis on sustainability, modern technologies and a global presence. Thanks to the specialisation and expertise of the individual companies, tailor-made solutions can be provided for a wide variety of requirements in the field of refrigeration and air conditioning technology.
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Mitsubishi Electric Europe B.V.
Postal address: Mitsubishi-Electric-Platz 1 40882 Ratingen Germany
Email address: [email protected]
Website: www.mitsubishielectric.de
| Anschließbare IG-Kombination, Anzahl: | 1x |
|---|---|
| Anschließbare IG-Kombination Typ: | SRK50ZS-WF |
| Anschließbare IGe Anzahl, max.: | 1 Stk |
| Anschließbare IGe Anzahl, min.: | 1 Stk |
| Anschlussleistung IGe, max. 1: | 5 kW |
| Anschlussleistung IGe, min. 1: | 5 kW |
| Anzahl Verdichter: | 1 Stk |
| Energiebedarf Kühlen, jährlich: | 250 kWh/a |
| Energieeffizienzklasse Heizen: | A++ |
| Energieeffizienzklasse Kühlen: | A++ |
| Heizleistung bei -15 °C: | 5,80 kW |
| Item condition: | New item |
| Korpusmaße mit Teilen (Höhe x Breite x Tiefe): | 595 mm x 842 mm x 290 mm |
| Kältemittel-Nachfüllmenge pro m Flüssigkeitsleitung, D6: | 0,020 kg/m |
| Kältemittel-Vorfüllmenge: | 1,05 kg |
| Kältemittel-Vorfüllmenge f. Leitungslänge: | 15 m |
| Nennheizleistung: | 5,80 kW |
| Nennkühlleistung: | 5 kW |
| Nominale Effizienz COP, Heizen: | 3,72 |
| Nominale Effizienz EER, Kühlen: | 3,70 |
| Oil quantity (litres): | 0,32 l |
| Oil type: | FW50S |
| Refrigerant: | R32 |
| Saisonale Effizienz SCOP, Heizen: | 4,60 |
| Saisonale Effizienz SEER, Kühlen: | 7 |
| WEEE-Registrierungsnummer: | 67164993 |
| Weight: | 36 kg |
| max. Heizleistung: | 6,60 kW |
| max. Kühlleistung: | 5,50 kW |
| min. Heizleistung: | 1,30 kW |
| min. Kühlleistung: | 1,30 kW |
