SECOP / Danfoss FRK11G compressors, LBP/MBP/HBP, R134a, R513A, 220–240 V/50 Hz

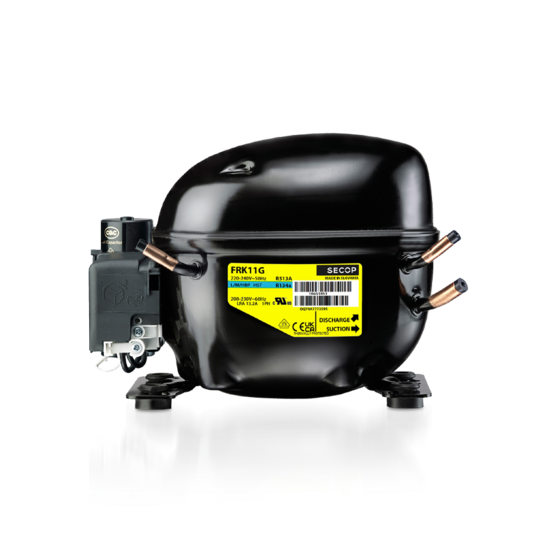

Secop FRK11G – Hermetic piston compressor for small-scale commercial refrigeration

The Secop FRK11G is a modern hermetic piston compressor for small-scale commercial refrigeration applications and the direct successor to the tried-and-tested FR compressor series (F series). The FRK series has been developed to combine the well-known robustness and reliability of its predecessor models with improved efficiency, optimised noise levels and modern compressor technology.

With a displacement of 8.6 cm³, the FRK11G is particularly suitable for flexible applications in the LBP, MBP and HBP ranges. The compressor is designed for the refrigerants R134a and R513A and offers a reliable solution for numerous commercial refrigeration units such as bottle coolers, glass-door merchandisers, refrigerated display counters, ice-cream freezers and other professional refrigeration systems.

Technical data

• Type: FRK11G
• Part number: 106G5963
• Application range: LBP, MBP, HBP (small-scale commercial refrigeration)
• Refrigerant: R134a, R513A
• Mains frequency: 50 Hz
• Supply voltage: 220–240 V
• Phases: 1~
• Motor type: CSIR
• Starting system: HST (High Starting Torque)
• Displacement: 8.6 cm³
• Rated cooling capacity: approx. 430 W (R134a, MBP reference conditions)
• Reference conditions: in accordance with EN 12900, R134a
• Oil type: Polyol ester (POE)
• Oil capacity: 0.24 l
• Cooling: System fan with an air velocity of 3 m/s
• Weight excluding packaging: 9.7 kg
• Electrical connection: including electronics

Advantages & Benefits

• Successor to the tried-and-tested FR series: The FRK11G builds on the proven features of the well-known F series and combines high mechanical robustness with modern compressor technology. This makes it ideally suited as a reliable replacement for existing applications.
• Wide range of applications: Suitable for LBP, MBP and HBP applications, the compressor offers maximum flexibility for a variety of commercial refrigeration systems.
• High robustness and long service life: The sturdy construction ensures reliable operation even under demanding operating conditions, frequent load changes and varying operating states.
• Optimised for R134a and R513A: The FRK11G is specifically designed for these refrigerants and offers a safe solution for modern and existing commercial refrigeration systems.
• Reliable CSIR motor: The powerful CSIR motor ensures reliable start-up and stable operation under varying load conditions.
• Effective system cooling: Cooling via a system fan operating at 3 m/s helps maintain constant operating temperatures and contributes to a high level of operational reliability.
• Improved noise and vibration levels: Optimised mechanical components, sound insulation and compressor mounting reduce operating noise and improve comfort in noise-sensitive applications.
• Easy installation: The integrated electronics and optimised connection design enable quick installation and simplify servicing.
• Service-friendly solution: The FRK series has been developed with a focus on interchangeability and easy maintenance, supporting installers and service technicians in their day-to-day work.

Scope of supply & notes

• Oil: The compressor is pre-filled with POE oil at the factory. Refrigerant is not included and must be charged by a specialist contractor in accordance with the system requirements.
• Electronics: The necessary electronics are included in the scope of delivery.

With the Secop FRK11G, you get a robust, efficient and versatile reciprocating compressor for small-scale commercial refrigeration applications. The combination of tried-and-tested FR technology, a reliable CSIR motor, modern design and a wide range of applications makes it a long-lasting solution for professional refrigeration systems.

Info:

• Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.
• Electronics: The electronics are included in the scope of supply.
