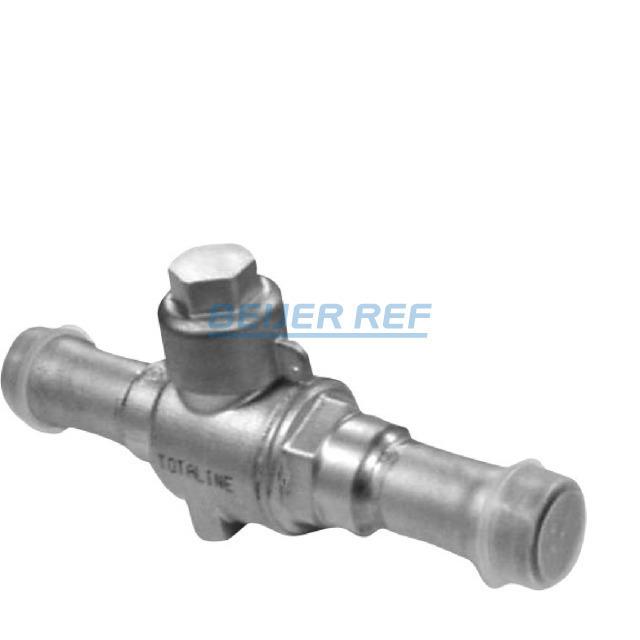

Totaline ball valve CO2 18mm 601017765 Solder BV6 120bar without Schrader
Introduction:
The Totaline ball valve CO2 18mm 601017765 solder BV6 120bar without Schrader is a high-quality valve that has been specially developed for use in refrigeration, air conditioning and ventilation technology or heat pumps. It offers reliable sealing and high pressure resistance for professional applications.
Technical details:- Pressure resistance: 120 bar
- Solder connection: 18 mm
- Schrader connection: No
- Suitable for fluorinated refrigerants and CO2
- Operating temperature: -45 °C to 15 °C
- Max. permissible operating overpressure: 45 bar
- Compliant with standards: DESP 97/23/CE, ROHS 2002/95/EC, UL207
Advantages and benefits:
1. high pressure resistance: With a maximum operating pressure resistance of 120 bar, this valve is ideal for demanding applications
2. versatile application possibilities: The Totaline ball valve is suitable for various refrigerants and can be installed in liquid, suction and hot gas lines.
3. reliable sealing: Thanks to the special PTFE sealing material and the hermetically welded construction, the valve offers optimum sealing and safety.
