Alco pressure switch
For optimum comfort at home, our online shop offers an extensive range of Alco pressure switches and differential pressure switches at great prices.
Delivery from
Low Pressure Switch ALCO PS1-A3A, 4370700, auto reset. Pressure Switch ALCO, low Pressure PS1-A3a with automatic reset, 4370700
47-32PS1-A3A
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 3.5 / 4.5 |
| Manufacturer: | Alco |
| Max. pressure: | 25 |
| Maximum pressure: | 25 |
| Pressure difference: | 0.5 - 5 |
| Pressure range: | -0.5 - 7 |
| Reset: | Automatic |
| Series: | PS1-A3A |
| Temperature range In °C: | -50 to +70 |
| pressure class: | ND |
Delivery from
Pressure Switch ALCO combined, PS2-A7K with automatic reset, 4350900
47-32PS2-A7K
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 3.5 / 4.5 / 20 |
| Manufacturer: | Alco |
| Max. pressure: | 24/35 |
| Maximum pressure: | 24/35 |
| Pressure difference: | 0.5 - 5 / 4 |
| Pressure range: | -33 |
| Series: | PS2-A7K |
| Temperature range In °C: | -50 to +70 |
| pressure class: | pressure class, pressure class |
Delivery from
Pressure Switch for high pressure protection ALCO, PS3-W6S, 0715556, 21/16 bar, auto. reset . Pressure Switch ALCO high Pressure, PS3-W6S, 21/16 bar, Auto reset, 0715556
47-32PS3-W6S-1
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 21 / 16 |
| Manufacturer: | Alco |
| Max. pressure: | 48 |
| Maximum pressure: | 48 |
| Series: | PS3-W6S |
| Temperature range In °C: | -40 to +150 |
| pressure class: | HD |
Variants from €53.92*
Delivery from
Pressure Switch Combined Double ALCO, PS2-A7A, 4353400, auto. reset. Pressure Switch ALCO combined, PS2-A7A with automatic reset, 4353400
47-32PS2-A7A
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 3.5 / 4.5 / 20 |
| Manufacturer: | Alco |
| Max. pressure: | 24/35 |
| Maximum pressure: | 24/35 |
| Pressure difference: | 0.5 - 5 / 4 |
| Pressure range: | -33 |
| Reset: | Automatic/Automatic |
| Series: | PS2-A7A |
| Temperature range In °C: | -50 to +70 |
| pressure class: | pressure class, pressure class |
Delivery from

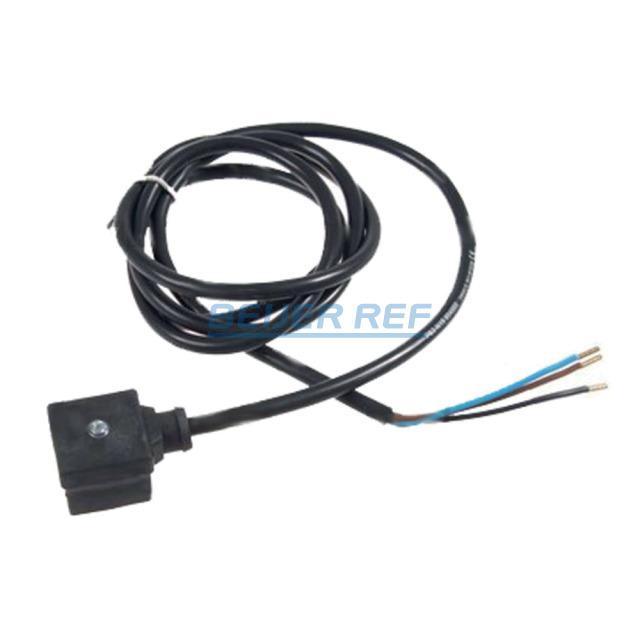

Alco Cable Connector for pressure switch PS3, l = 1,5 m, 804580
47-32PS3-N15
| Manufacturer: | Alco |
|---|
Variants from €17.42*
Delivery from
Low Pressure Switch ALCO PS1-A3K, 4370600, auto reset. Pressure Switch ALCO low Pressure, PS1-A3K with automatic reset, 4370600
47-32PS1-A3K
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 3.5 / 4.5 |
| Manufacturer: | Alco |
| Max. pressure: | 24 |
| Maximum pressure: | 24 |
| Pressure difference: | 0.5 - 5 |
| Pressure range: | -0.5 - 7 |
| Series: | PS1-A3K |
| Temperature range In °C: | -50 to +70 |
| pressure class: | ND |
Delivery from
Pressure switch combines ALCO, PS2-W7U, 4712436, autom. provision
47-32PS2-W7U
| Manufacturer: | Alco |
|---|
Delivery from
High Pressure Switch ALCO PS1-R5A, 4350700, auto reset. Pressure Switch ALCO high Pressure, PS1-R5A with manual reset, 4350700
47-32PS1-R5A
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 20 |
| Manufacturer: | Alco |
| Max. pressure: | 35 |
| Maximum pressure: | 35 |
| Pressure difference: | 3 |
| Series: | PS1-R5A |
| Temperature range In °C: | -50 to +70 |
| pressure class: | HD |
Delivery from
D16P07A01MS200, pressure switch mini Eliwell low pressure -0,3...7 [bar],
47-321227-00
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 3.5 / 4.5 |
| Manufacturer: | Alco |
| Max. pressure: | 25 |
| Maximum pressure: | 25 |
| Pressure difference: | 0.5 - 5 |
| Pressure range: | -0.5 - 7 |
| Reset: | Automatic |
| Series: | PS1-A3A |
| Temperature range In °C: | -50 to +70 |
| pressure class: | ND |
Delivery from
Pressure Switch for high pressure protection ALCO, PS3-W6S, 0715567, 29/23 bar, auto. reset. Pressure Switch ALCO high Pressure, PS3-W6S, 29/23 bar, Auto reset, 0715567
47-32PS3-W6S-2
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 29 / 23 |
| Manufacturer: | Alco |
| Max. pressure: | 48 |
| Maximum pressure: | 48 |
| Series: | PS3-W6S |
| Temperature range In °C: | -40 to +150 |
| pressure class: | HD |
Delivery from
Pressure Switch ALCO high Pressure Switch, PS3-W6S, 25/20 bar, Auto reset, 0715555
47-32PS3-W6S
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 25 / 20 |
| Manufacturer: | Alco |
| Max. pressure: | 48 |
| Maximum pressure: | 48 |
| Series: | PS3-W6S |
| Temperature range In °C: | -40 to +150 |
| pressure class: | HD |
Delivery from
Pressure switch combines ALCO, PS2-W7A, 4360100, automatic reset
47-32PS2-W7A
| Manufacturer: | Alco |
|---|
Delivery from
High Pressure Switch ALCO PS1-A5A, 4350500, auto reset. Pressure Switch ALCOf, PS1-A5A with automatic reset, 4350500
47-32PS1-A5A
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 16 / 20 |
| Manufacturer: | Alco |
| Max. pressure: | 35 |
| Maximum pressure: | 35 |
| Pressure range: | HP |
| Reset: | Automatic |
| Series: | PS1-A5A |
| Temperature range In °C: | -50 to +70 |
| pressure class: | HD |
Delivery from
Pressure Switch for low pressure protection ALCO, PS3-W1S, 0714760, -0,3/1,2 bar, auto. reset. Pressure Switch ALCO low Pressure, PS3-W1S,-0,3/1,2 bar, Auto reset, 0714760
47-32PS3-W1S-0
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | -0.3 / 1.2 |
| Manufacturer: | Alco |
| Max. pressure: | 30 |
| Maximum pressure: | 30 |
| Series: | PS3-W1S |
| Temperature range In °C: | -40 to +150 |
| pressure class: | ND |
Variants from €41.83*
Delivery from
Mini-pressure switch ALCO high pressure, PS3 W6S, 33.5 / 27.5 bar, automatic reset, 0715550
47-32PS3-W6S-3
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 33.5 / 27.5 |
| Manufacturer: | Alco |
| Max. pressure: | 48 |
| Maximum pressure: | 48 |
| Series: | PS3-W6S |
| Temperature range In °C: | -40 to +150 |
| pressure class: | HD |
Delivery from

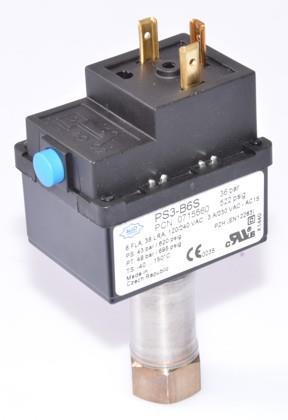

Pressure Switch for high pressure protection ALCO, PS3-B6S, 0715563, 27.3/5* bar, man. reset. Pressure Switch ALCO high Pressure, PS3-B6S, 27,3 bar, manual reset, 0715563
47-32PS3-B6S
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Manufacturer: | Alco |
| Max. pressure: | 48 |
| Maximum pressure: | 48 |
| Series: | PS3-B6S |
| Temperature range In °C: | -40 to +150 |
| pressure class: | ND |
Delivery from
low Pressure Switch ALCO PS1-W3U, 4713437, auto reset
47-32PS1-W3U
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 4.5 / 4.5 |
| Manufacturer: | Alco |
| Max. pressure: | 24 |
| Maximum pressure: | 24 |
| Pressure difference: | 0.5 - 5 |
| Pressure range: | -0.5 - 7 |
| Series: | PS1-W3U |
| Temperature range In °C: | -50 to +70 |
| pressure class: | ND |
Variants from €83.20*
Delivery from

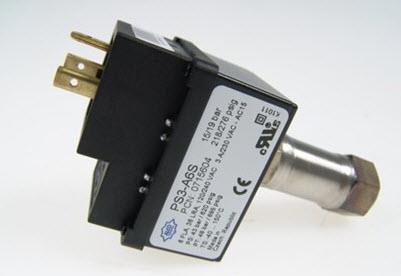

High Pressure Switch ALCO, PS3-A6S, 0715604, 19/15 bar, auto. reset. Pressure Switch ALCO high Pressure, PS3-A6S, 19/15 bar, Auto reset, 0715604
47-32PS3-A6S
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 19 / 15 |
| Manufacturer: | Alco |
| Max. pressure: | 48 |
| Maximum pressure: | 48 |
| Series: | PS3-A6S |
| Temperature range In °C: | -40 to +150 |
| pressure class: | HD |
Delivery from
Mini-pressure switch ALCO high pressure, PS3 W6S, 40/33 bar, automatic reset, 0715553
47-32PS3-W6S-4
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Fixed pressure: | 40 / 33 |
| Manufacturer: | Alco |
| Max. pressure: | 48 |
| Maximum pressure: | 48 |
| Series: | PS3-W6S |
| Temperature range In °C: | -40 to +150 |
| pressure class: | HD |
Variants from €64.64*
Delivery from
Pressure Switch ALCO combined, PS2-C7A with manual reset + Auto reset, 4353500
47-32PS2-C7A
| Connection: | Connection |
|---|---|
| Connection Size: | Connection Size |
| Manufacturer: | Alco |
| Max. pressure: | 24/35 |
| Maximum pressure: | 24/35 |
| Pressure difference: | 0.5 - 5 / 4 |
| Pressure range: | -33 |
| Series: | PS2-C7A |
| Temperature range In °C: | -50 to +70 |
| pressure class: | pressure class, pressure class |
