Johnson Controls Pressure Switches
In our online shop you will find a wide range of high quality Johnson Controls brand pressure switches at great prices. The American multinational conglomerate Johnson Controls has been manufacturing refrigeration components worldwide for around 40 years. Reliable and robust Johnson Controls pressure switches are designed to control, monitor and alarm commercial and industrial heat pumps, refrigeration and air conditioning systems.Filter
–
Delivery from

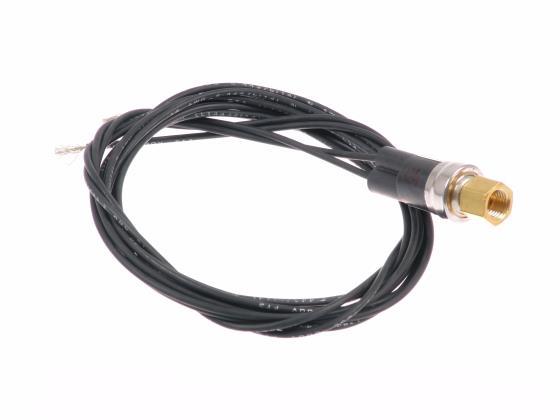

Mini Pressure Switch Johnson Controls, P100 CP-52D, NC, 23.3 to 27.99 bar
47-321220-04
Cable length: | 1.91 m |
---|---|
Connection: | Connection |
Connection Size: | Connection Size |
Manufacturer: | Johnson-Controls, Johnson Controls |
Max. pressure: | 42 |
Maximum pressure: | 42 |
Power supply: | 230 V |
Pressure range: | 23,3 - 27,99 |
Series: | P100 |
Voltage: | 240V |
pressure class: | HD |
Delivery from

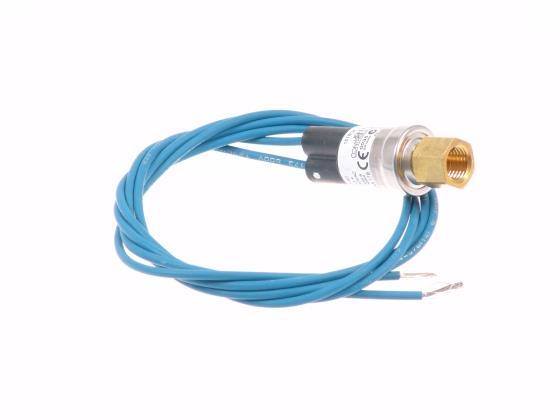

Mini Pressure Switch Johnson Controls, P100 AP-50D, NO, 0.28 to 2.21 bar
47-321220-03
Cable length: | 0.785 m |
---|---|
Connection: | Connection |
Connection Size: | Connection Size |
Manufacturer: | Johnson-Controls, Johnson Controls |
Max. pressure: | 17 |
Maximum pressure: | 17 |
Power supply: | 230 V |
Pressure range: | 0,28 - 2,21 |
Series: | P100 |
Voltage: | 240V |
pressure class: | ND |
Delivery from
Pressure Switch Johnson Controls, combined P736LCA 9300, 230V, 50Hz
47-321200-03
Connection: | Connection |
---|---|
Connection Size: | Connection Size |
Manufacturer: | Johnson-Controls, Johnson Controls |
Power supply: | 230 V |
Pressure difference: | 0.5 - 3 |
Series: | P736 |
Temperature range In °C: | -50 to +55 |
Voltage: | 230V |
pressure class: | pressure class, pressure class |
Delivery from

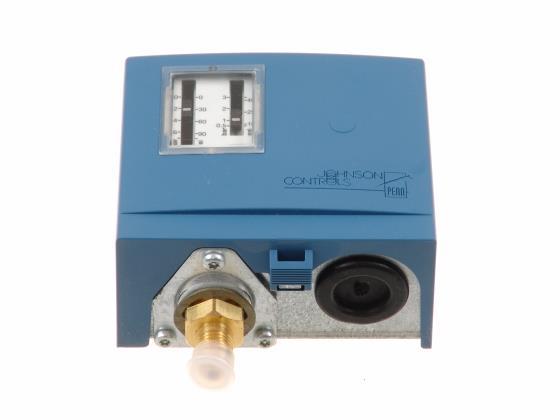

Pressure Switch Johnson Controls, low pressure, P735AAA 9300, automatic reset
47-321200-00
Connection: | Connection |
---|---|
Connection Size: | Connection Size |
Manufacturer: | Johnson-Controls, Johnson Controls |
Power supply: | 230 V |
Pressure difference: | 0.5 - 3 |
Pressure range: | -0.5 - 7 |
Series: | P735 |
Temperature range In °C: | -50 to +55 |
Voltage: | 230V |
pressure class: | ND |
Delivery from
Pressure Switch Mini Johnson Controls, P100 AP-103D, NO, 8.96 - 12,41bar
47-321220-06
Cable length: | 0.23 m |
---|---|
Connection: | Connection |
Connection Size: | Connection Size |
Manufacturer: | Johnson-Controls, Johnson Controls |
Max. pressure: | 17 |
Maximum pressure: | 17 |
Power supply: | 230 V |
Pressure range: | 8,96 - 12,41 |
Series: | P100 |
Voltage: | 240V |
pressure class: | ND |
Delivery from
Pressure Switch Johnson Controls, hypertension, P735AAA-9350, automatic reset
47-321200-01
Connection: | Connection |
---|---|
Connection Size: | Connection Size |
Manufacturer: | Johnson-Controls, Johnson Controls |
Power supply: | 230 V |
Series: | P735 |
Temperature range In °C: | -50 to +55 |
Voltage: | 230V |
pressure class: | HD |
Delivery from
Pressure Switches Johnson Controls high pressure, P735BEA-9350, 3-30 bar, manual reset
47-321200-02
Connection: | Connection |
---|---|
Connection Size: | Connection Size |
Manufacturer: | Johnson-Controls, Johnson Controls |
Max. pressure: | 33 |
Maximum pressure: | 33 |
Power supply: | 230 V |
Series: | P735 |
Temperature range In °C: | -50 to +55 |
Voltage: | 230V |
pressure class: | HD |
Delivery from
Pressure Switch Mini Johnson Controls, P100 AP-101D, NO, 10 - 7 bar
47-321220-05
Cable length: | 1.91 m |
---|---|
Connection: | Connection |
Connection Size: | Connection Size |
Manufacturer: | Johnson-Controls, Johnson Controls |
Max. pressure: | 42 |
Maximum pressure: | 42 |
Power supply: | 230 V |
Series: | P100 |
Voltage: | 240V |
pressure class: | ND |
Delivery from

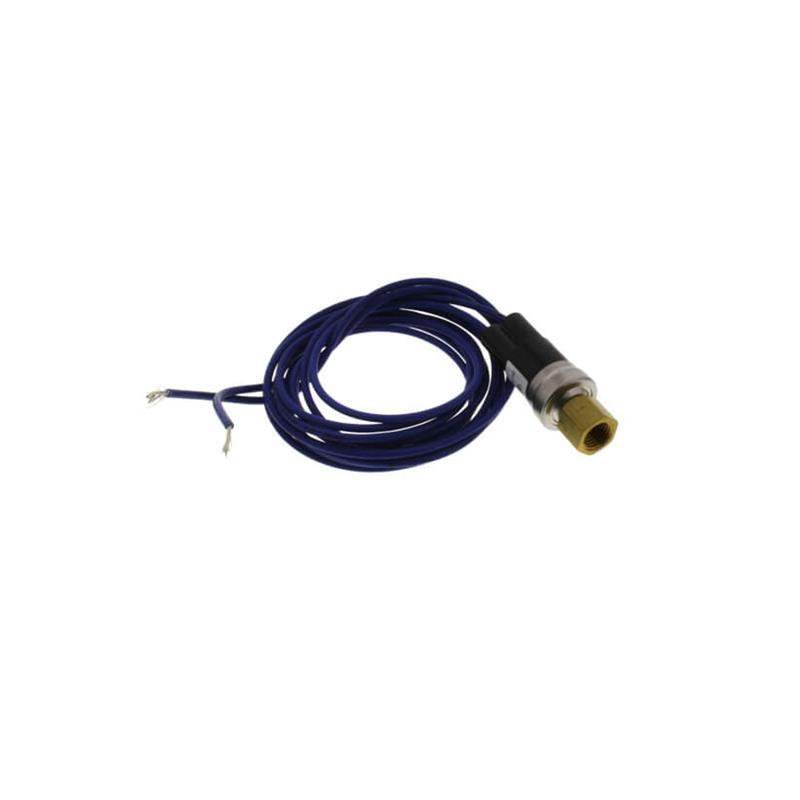

Pressure switch Johnson Controls P100AP-3C
47-P100AP-3C
Manufacturer: | Johnson-Controls |
---|
Variants from €33.94*
Delivery from

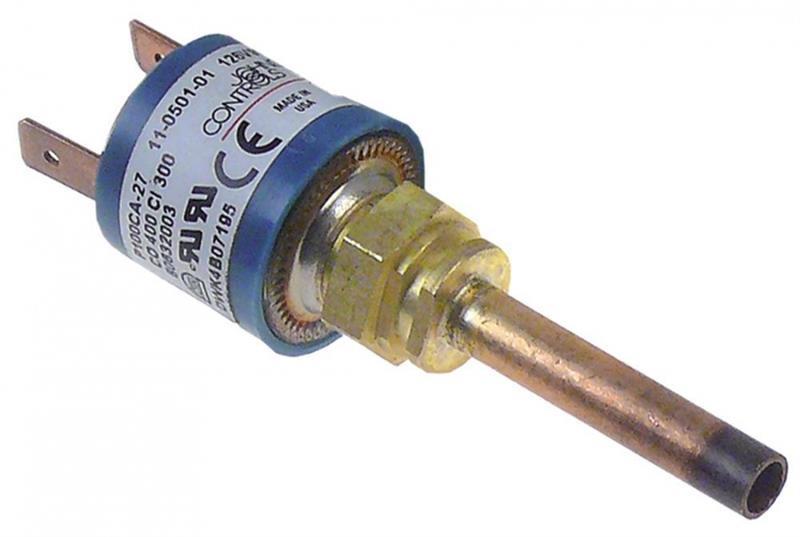

Pressure switch JOHNSON CONTROLS P100CA-27
79-7815420
Manufacturer: | Johnson-Controls |
---|
No longer available
Pressure switch Johnson Controls, P233A-4-AAC, 0.5 to 4 mbar
46-P233A4AAC
Variants from €77.03*
Delivery from
Pressure Switch Johnson Controls LP P100AP-305D
99-P100AP-305D
Manufacturer: | Johnson-Controls |
---|
No longer available
Mini pressure switch Johnson Controls, P100 AP-320D
47-321220-08
Cable length: | 2.5 m |
---|---|
Connection: | Connection |
Connection Size: | Connection Size |
Manufacturer: | Johnson-Controls, Johnson Controls |
Max. pressure: | 17 |
Maximum pressure: | 17 |
Power supply: | 230 V |
Pressure range: | 2,69 - 3,72 |
Series: | P100 |
Voltage: | 240V |
pressure class: | ND |
