Compressor Tecumseh CAJ2446Z (POE), LBP - R404A, 220-240V/1/50Hz - will be replaced by AJ2446P-FZ
Modellreihe:
CAJ
Refrigerant:
R404A | R407C | R507
Scope of application:
LBP
Typ / Serie:
CAJ2446Z
47-32CAJ2446Z
| Quantity | Unit price |
|---|---|
| Up to 2 |
€520.72
|
| Up to 4 |
€494.68
€520.72
( - 5% )
|
| Up to 4 |
€453.02
€503.36
( - 10% )
|
| From 5 |
€468.65
€520.72
( - 10% )
|
No longer available
There are successors for this article

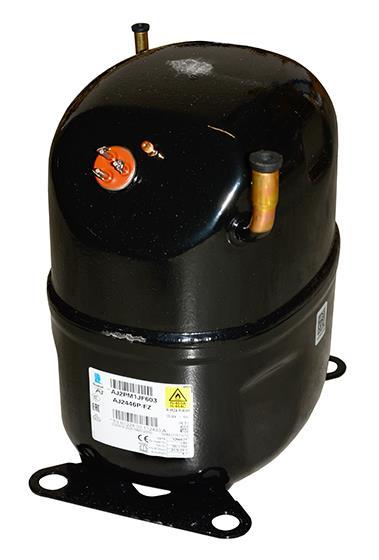

Compressor Tecumseh AJ2446P-FZ, LBP - R404A, R452A, R455A, R454C, 220 - 240V, 50 Hz, soldering version
Regular price:
From
€502.30
Product number:
47-32CAJ2446Z
Manufacturer:
Tecumseh / L'Unite
Manufacturer number:
CAJ2446Z (POE) (-> AJ2446P-FZ)
Weight:
30 kg
Do you have some questions about this product?
Description
Product information "Compressor Tecumseh CAJ2446Z (POE), LBP - R404A, 220-240V/1/50Hz - will be replaced by AJ2446P-FZ"
47-32CAJ2446Z - Compressor/compressor Tecumseh CAJ2446Z
The Tecumseh CAJ2446Z compressor/compressor is a powerful device that has been specially developed for use in refrigeration, air conditioning and ventilation technology or heat pumps. With its efficient operation and versatile application options, it is the ideal solution for professional users who need reliable cooling.
Technical details:- Oil type: POE
- Refrigeration application: LBP - R404A
- Spannung: 220-240V/1/50Hz
- Starting current: LRA 29A
- Motor type: CSR
- Operating modes: capillary operation, expansion valve operation
- Fan available
- Connections: 1/2? x 5/16?
- Stroke volume: 26.2 cm3
Advantages and benefits:
Thanks to the POE oil type and its compatibility with R404A, the Tecumseh CAJ2446Z is particularly efficient and powerful. The high cooling capacity range, measured under real conditions in accordance with EN12900 RTG 20°C, guarantees reliable cooling even at demanding temperatures. In addition, the various operating modes allow flexible adaptation to different requirements, while the low starting current and high voltage efficiency minimise energy consumption.
Info:
- Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
- Electronics: The electronics are included in the scope of delivery.
Manufacturer "Tecumseh / L'Unite"
Tecumseh – 90 years of innovation and quality in the refrigeration and air conditioning industry
For over 90 years, Tecumseh has been setting standards in the development and production of fully hermetic reciprocating compressors. The first “hermetic” compressor for refrigerators, introduced in 1937, laid the foundation for Tecumseh’s reputation as a reliable partner in commercial and domestic refrigeration. Through continuous investment in research and development and collaboration with international R&D institutions, Tecumseh develops solutions that are valued worldwide.
Particularly noteworthy are the sustainable R290 models, which use the environmentally friendly refrigerant propane and thus offer a climate-friendly alternative. These compressors are characterised by high efficiency and low emissions and represent a modern response to the industry’s growing demands for environmental sustainability.
With production facilities on four continents and an international network, Tecumseh ensures that its products are readily available worldwide and meet the highest quality standards. Thus, even after 90 years, Tecumseh remains synonymous with quality and innovation in the refrigeration and air conditioning industry.
Tecumseh 90th Anniversary Video
Tecumseh Cross-Reference List
Tecumseh manufacturer software
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Tecumseh Europe Sales & Logistics S.A.S
Postal address: M 7, 18 68161 Mannheim, Germany
Email address: [email protected]
Website: www.tecumseh.com
Properties
| Condensation temperature: | 54.5 °C |
|---|---|
| Connection Size: | Connection Size |
| Design: | Hermetic, Reciprocating piston |
| Dimensions ( height ): | 28.20 cm |
| Displacement (cm3): | 26,15 |
| Electronics: | inkl. |
| Engine type: | CSR |
| Equipment: | Equipment |
| Field of application: | Freezing |
| Item Condition: | New item |
| Max. Operating current (A): | 3,2 |
| Measuring conditions: | EN12900 |
| Modellreihe: | CAJ |
| Oil: | vorgefüllt |
| Oil quantity (l): | 887 cm³ |
| Oil type: | POE |
| Power range (C): | -40 C to -10 C |
| Power range (W): | 501 - 700 W 701 - 1000 W |
| Pressure line (inch): | 5/16 |
| Refrigerant: | R404A | R407C | R507, R407B, R507A |
| Scope of application: | LBP |
| Suction line (inch): | 1/2 |
| Suction side: | 1/2" |
| To be used with: | Capillary/Expansion |
| Typ / Serie: | CAJ2446Z |
| Voltage: | 220-240V |
| dbA @ 1m: | 62 |
Skip product gallery
![Compressor Tecumseh CAJ2440Z (POE), LBP - R404A, 220-240V/1/50Hz- will be replaced by AJ2440P]( "Compressor Tecumseh CAJ2440Z (POE), LBP - R404A, 220-240V/1/50Hz- will be replaced by AJ2440P")
![Compressor Tecumseh TFH2480Z (POE), LBP - R404A, 400V/3F/50Hz, Rotalock - not available, replaced by FH2480Z-XG]( "Compressor Tecumseh TFH2480Z (POE), LBP - R404A, 400V/3F/50Hz, Rotalock - not available, replaced by FH2480Z-XG")
![Compressor Tecumseh CAJ2432Z, LBP - R404A, 220 - 240V, 50 Hz, 1 phase- will be replaced by AJ2432P]( "Compressor Tecumseh CAJ2432Z, LBP - R404A, 220 - 240V, 50 Hz, 1 phase- will be replaced by AJ2432P")
![Schrader service valve with 6 mm x 50 mm tube]( "Schrader service valve with 6 mm x 50 mm tube")
![Compressor Tecumseh CAJ4492Y (POE), HBP - R134A, 220-240V/1Ph/50Hz - will be replaced by AJ4492N-FZ]( "Compressor Tecumseh CAJ4492Y (POE), HBP - R134A, 220-240V/1Ph/50Hz - will be replaced by AJ4492N-FZ")
Artikel Zubehör

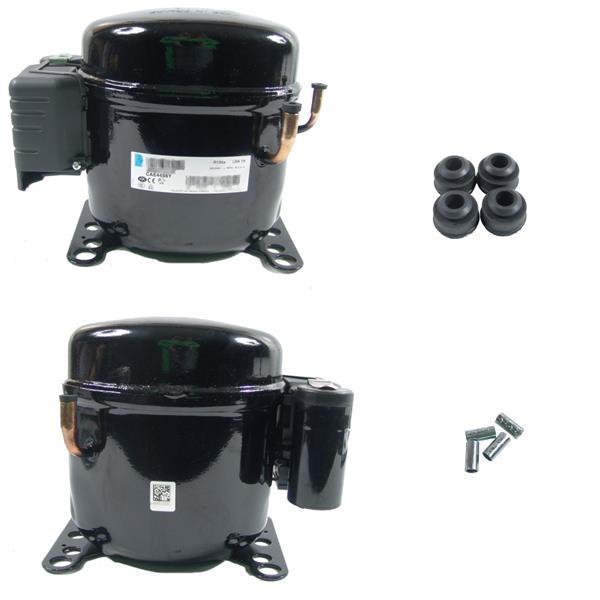

Compressor Tecumseh CAE4456Y CSIR, HMBP - R134a, 220-240V/1Ph/50Hz - not available, replaced by AE4456Y
Regular price:
€324.91
Product description: Compressor Tecumseh CAE4456Y
This high-quality compressor from Tecumseh is specially designed for use in refrigeration, air conditioning and ventilation technology as well as heat pumps. It has been developed to work reliably and efficiently to ensure optimum cooling performance.Technical details:
Model: Tecumseh CAE4456Y
Nominal voltage: 220-240V
Phases: 1Ph
Frequency: 50Hz
Stroke volume: 16.2 cm³
Net weight: 12.7 kg
Oil filling volume: 350 cm³
Oil type: POE
The main advantages of the Tecumseh CAE4456Y compressor are:
Reliable performance: The compressor works efficiently and reliably to ensure constant cooling performance
Durable quality: With high-quality materials and a robust design, this compressor is built to last.Easy installation: Thanks to its sophisticated design, the compressor is quick and easy to install and commission.
Order the Tecumseh CAE4456Y compressor now and benefit from its outstanding performance and quality for your refrigeration applications!
- No longer available
- Delivery Time : 1-2 weeks
Tip

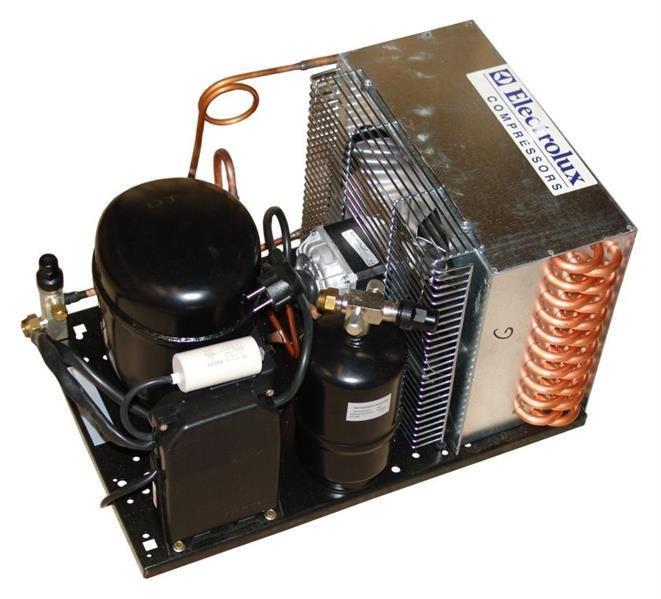

Condensing unit ACC - CMS26FB3N, LBP - R404A, 220-240V/1/50Hz
Regular price:
From
€534.43
Condensing unit ACC Cubigel / Huayi - CMS26FB3N
This condensing unit is especially suitable for use in the low-pressure range with the refrigerant R404A. With a capacity of 3/4 HP and a temperature range of -40 to -10°C, it is ideal for various refrigeration applications.Technical details:
LBP (low pressure range) - R404A, 220-240/50Hz
Cooling capacity at -23.3/55°C: 1400 W
Power consumption: 883 W / 3.97 A
Condenser: type CU-AL, model 12T 3R
Fan motor output: 25 W, diameter: 300 mm
Compressor: MS26FB, displacement: 26.2 cm3
Cylinder diameter/stroke: 39.98/20.65 mm
Motor type: CSR, voltage range: 187-264 V
Starting current: 30 A, main winding resistance: 2.04 Ohm
Dimensions (LxWxH): 525x425x355 mm, weight: 39.0 kg
Connections: 1/2? x 3/8? (12.7 x 9.5 mm)
Max. Ambient temperature: 43 ºC, max. permissible pressure: 30 kg/cm²
Advantages and benefits:
Thanks to its capillary/expansion valve operation and high cooling capacity at extreme temperatures, this condensing unit is ideal for use in various refrigeration systems. With efficient operation and a robust design, it offers reliable performance and easy installation.Info: Compressor is pre-charged with oil at the factory. Refrigerant is not included and must be charged by a specialised company.
- Available
- Delivery Time : 1-2 weeks
Tip
Phosphorus solder - brazing alloy L-CU P6, 2.0 x 2.0 mm, square, L=500 mm
Regular price:
From
€1.31
Phosphorus plumb bob - brazing alloy L-CU P6, 2.0 x 2.0 mm, square, L=500 mm
The phosphor plumb bob L-CU P6 is ideal for various applications in the field of cooling, air conditioning and ventilation technology as well as for heat pumps. The rod has a dimension of 2.0 x 2.0 mm and a length of 500 mm. With a melting point of 710 - 890 °C and a density of 8.1 g/cm3, this brazing alloy offers a reliable connection.
Technical details:
Composition (%): Cu - 94.1 - 93.5, P - 5.9 - 6.5
Melting point: 710 - 890 °C
Density: 8.1 g/cm3
Tensile strength: 250 Mpa
Standards: ISO 3677 B-Cu94P-710/890, EN 1044 CP 203, DIN 8513 L-CuP6
Advantages and benefits:
Thanks to its high tensile strength of 250 Mpa and the precise composition of copper and phosphorus, this brazing alloy offers a secure and durable connection. The square shape and standardised norms make it easy to process and use. 1 piece = 1 rod of approx. 0.1kg
- Available
- Delivery Time : 1-3 business days
Service valve for AC, 1/4" M x 1/4" F, SH
Regular price:
From
€42.73
Service valve for AC, 1/4" M x 1/4" F, SH
- Available
- Delivery Time : 2-5 business days
Compressor Tecumseh CAJ2440Z (POE), LBP - R404A, 220-240V/1/50Hz- will be replaced by AJ2440P
Regular price:
From
€542.30
Tecumseh CAJ2440Z Hermetic compressor for low pressure range (LBP)
The Tecumseh CAJ2440Z is a powerful hermetic compressor specially developed for the low-pressure range (LBP). With its impressive cooling capacity and reliability, it is ideal for use in refrigeration, air conditioning and ventilation technology as well as in heat pumps.Technical details:
Motor type: CSR
Stroke volume: 21 cm3
LBP evaporation temperature: -35°C to -10°C
Refrigeration capacity: 975 watts
Capacity: 3325 Btu/h
LRA: 27 A
Oil: POE
Mains voltage: 220-240V/1Ph/50Hz
OD connections: 1/2? x 5/16?
Refrigeration capacity measured for condensation temperature 54.5°C, suction gas temperature 46°C, measuring conditions: EN12900 RTG 20°C
The Tecumseh CAJ2440Z impresses with its outstanding performance and reliability. With its special features, it is perfect for demanding applications in refrigeration, air conditioning and ventilation technology. Thanks to its high cooling capacity and efficient operation, it guarantees reliable cooling and optimum temperature control.With the Tecumseh CAJ2440Z, you get a high-quality product that meets your requirements and will give you pleasure for a long time. Trust in the proven quality of Tecumseh and benefit from the performance of this compressor.Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- Available
- Delivery Time : 1-2 weeks

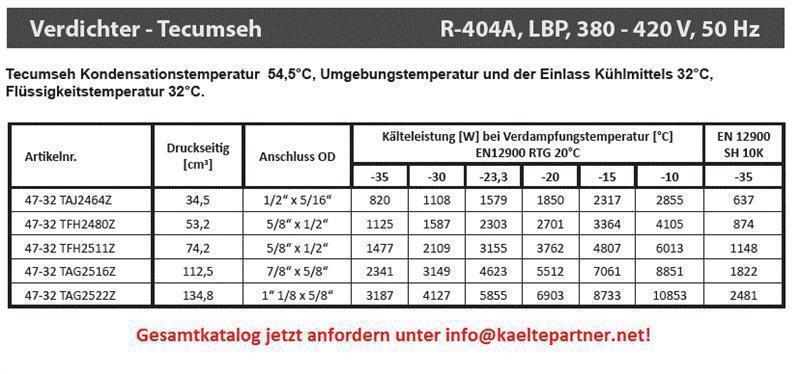

Compressor Tecumseh TFH2480Z (POE), LBP - R404A, 400V/3F/50Hz, Rotalock - not available, replaced by FH2480Z-XG
Regular price:
From
€674.73
Compressor/compressor TFH2480Z Tecumseh
The TFH2480Z compressor/compressor from Tecumseh is a powerful device that has been specially developed for use in refrigeration, air conditioning and ventilation systems as well as heat pumps. With its impressive technical features and outstanding performance characteristics, it is the ideal solution for professional applications in the HVAC industry.Technical details:
Oil type: POE
Refrigerant: R404A
Voltage: 400V/3/50Hz
Starting current (LRA): 23A
Operating mode: Expansion valve mode, capillary mode
Connections: 5/8? x 1/2?
Stroke volume: 53.2 cm3
Advantages and benefits:
1. high performance: The TFH2480Z compressor is characterised by excellent cooling performance that remains constant even under extreme conditions
2. efficient operation: Thanks to the precise displacement and special oil type, the compressor operates extremely efficiently and economically in terms of energy consumption. 3. reliability and durability: The high-quality workmanship and robust design guarantee a long service life and reliable performance of the appliance.
- Available
- Delivery Time : 1-2 weeks

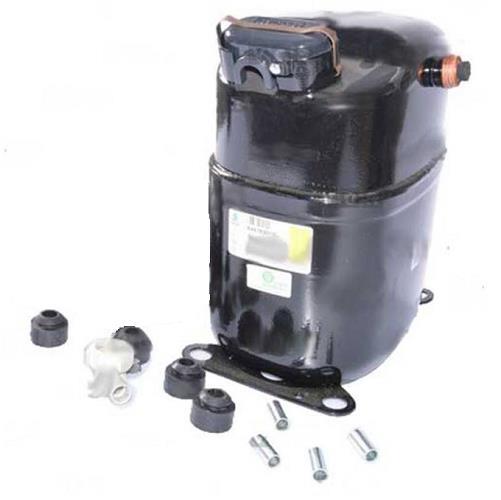

Compressor Tecumseh TAJ2446Z, LBP - R404A, 400V, 50 Hz, 3 Ph- not available, replaced by AJ2446P-TZ
Regular price:
€464.02
Compressor Tecumseh TAJ2446Z
The Tecumseh TAJ2446Z compressor is a powerful refrigeration compressor specially developed for use in refrigeration, air conditioning and ventilation technology as well as heat pumps. It offers reliable cooling performance and high efficiency for professional applications.Technical details:
Stroke volume: 26.2 cm3
Oil type: POE
Oil filling volume: 887 cm3
Motor type: 3 phases
Cooling capacity: 597 W at -35 / +40 °C
Connections: 1/2" x 5/16"
Noise level: 62 dBA
Capillary tube/expansion valve operation
Cooling with fan
Height: 282 mm
Weight: 22.5 kg
Advantages and benefits:
The Tecumseh TAJ2446Z compressor impresses with:
Reliable performance and efficiency
Compatibility with various applications
Low operating noise for pleasant working environments
- No longer available
- Delivery Time : 1-3 business days
Tip

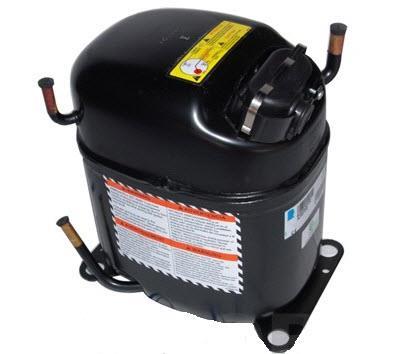

Compressor Tecumseh AJ5512C (POE), AC - R407C, 220-240V, 50Hz - not available, replaced by AJ4513P-FZ)
