Compressor Tecumseh CAJ2464Z (POE), LBP - R404A, 220-240V/1/50Hz- will be replaced by AJ2464P-FZ
Area of application:
LBP
Modellreihe:
CAJ
Refrigerant:
R404A
Typ / Serie:
CAJ2464Z
47-32CAJ2464Z
€706.26*
Available in 14 workingdays, delivery time 1-2 weeks,
within Germany, abroad different
There are successors for this article
Tip

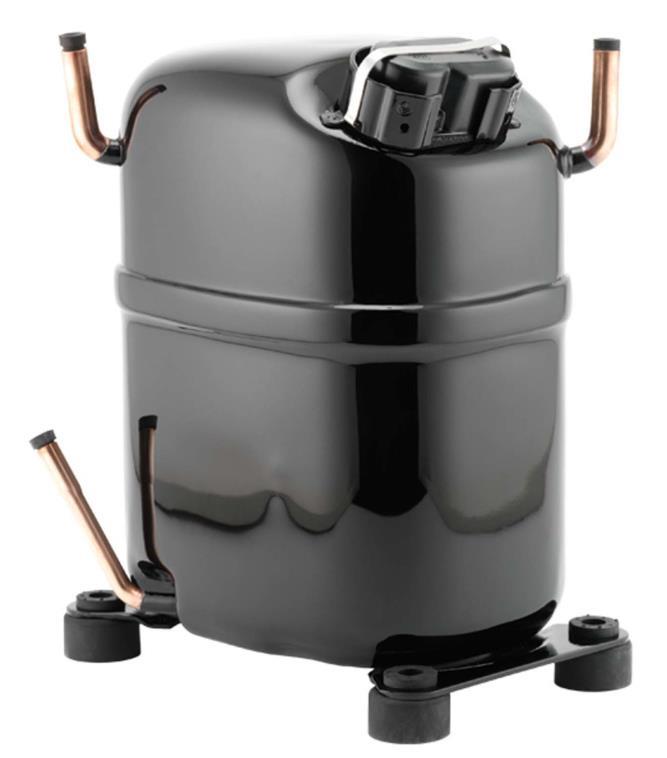

Compressor Tecumseh AJ2464P-FZ (POE), LBP - R404A, R452A, R455A, R454C, 220-240V/1/50Hz
Regular price:
From
€1,060.29
Product number:
47-32CAJ2464Z
Manufacturer:
Tecumseh / L'Unite
Manufacturer number:
CAJ2464Z (-> AJ2464P-FZ)
Length:
250 mm
Width:
190 mm
Height:
290 mm
Weight:
29.7 kg
Description
Compressor Tecumseh CAJ2464Z for refrigeration and air conditioning systems
The Tecumseh CAJ2464Z compressor/compressor is a powerful and reliable device that has been specially developed for use in refrigeration and air conditioning systems. With its oil type (POE), it is perfectly suited for use with the refrigerant R404A and offers high efficiency with low energy consumption.
Technical details:
- Spannung: 220-240V/1/50Hz
- Starting current LRA: 38A
- Motor type: CSR
- Connections: 5/8" x 3/8"
- Stroke volume: 34.4 cm3
The Tecumseh CAJ2464Z is characterised by its high cooling capacity, which is achieved at condensation temperatures of up to 54.5°C. With a suction gas temperature of 46°C, this compressor is ideally suited for operation in various air conditioning systems. Thanks to capillary operation and expansion valve operation, it offers versatile connection options and a high degree of installation flexibility.
Other highlights are the robust connections and the efficient motor, which ensures reliable performance. With the Tecumseh CAJ2464Z, you get a product that fulfils the highest standards in terms of quality and performance.
Manufacturer "Tecumseh / L'Unite"
Tecumseh – 90 years of innovation and quality in the refrigeration and air conditioning industry
For over 90 years, Tecumseh has been setting standards in the development and production of fully hermetic reciprocating compressors. The first “hermetic” compressor for refrigerators, introduced in 1937, laid the foundation for Tecumseh’s reputation as a reliable partner in commercial and domestic refrigeration. Through continuous investment in research and development and collaboration with international R&D institutions, Tecumseh develops solutions that are valued worldwide.
Particularly noteworthy are the sustainable R290 models, which use the environmentally friendly refrigerant propane and thus offer a climate-friendly alternative. These compressors are characterised by high efficiency and low emissions and represent a modern response to the industry’s growing demands for environmental sustainability.
With production facilities on four continents and an international network, Tecumseh ensures that its products are readily available worldwide and meet the highest quality standards. Thus, even after 90 years, Tecumseh remains synonymous with quality and innovation in the refrigeration and air conditioning industry.
Tecumseh 90th Anniversary Video
Tecumseh Cross-Reference List
Tecumseh manufacturer software
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Tecumseh Europe Sales & Logistics S.A.S
Postal address: M 7, 18 68161 Mannheim, Germany
Email address: [email protected]
Website: www.tecumseh.com
Properties
| Area of application: | LBP |
|---|---|
| Condensation temperature: | 54.5 °C |
| Connection size: | Connection Size |
| Dimensions ( height ): | 28.20 cm |
| Electronics: | inkl. |
| Energy efficiency class: | n. rel |
| Equipment: | Equipment |
| Field of application: | Freezing |
| Item condition: | New item |
| Max. Operating current (A): | 4,16 |
| Measuring conditions: | EN12900 |
| Modellreihe: | CAJ |
| Motor type: | CSR |
| Oil: | vorgefüllt |
| Oil quantity (litres): | 887 cm³ |
| Oil type: | POE |
| Performance range (C): | -40 C to -10 C |
| Power range (W): | 1 - 1.5 kW 1.5 - 2 kW |
| Pressure line (inch): | 3/8" |
| Refrigerant: | R404A, R407B, R507A |
| Stroke volume: | 34.4 |
| Stroke volume (cm3): | 34,45 |
| Suction line (inch): | 5/8" |
| Suction side: | 5/8" |
| Supply voltage: | 220-240V |
| To be used with: | Capillary/Expansion |
| Typ / Serie: | CAJ2464Z |
| Type of construction: | Hermetic, Reciprocating piston |
| dbA @ 1m: | 70 |
Do you have some questions about this product?
Skip product gallery
![Filter dryer DE.NA 053/MG122, V = 80 ccm, 3/8" ODS, solder connections]( "Filter dryer DE.NA 053/MG122, V = 80 ccm, 3/8\" ODS, solder connections")
![Condensing unit ACC - CMS34FB3N, LBP - R404A, 220-240V/1/50Hz]( "Condensing unit ACC - CMS34FB3N, LBP - R404A, 220-240V/1/50Hz")
![Compressor Tecumseh CAJ4517Z (POE), HBP - R404A, 220-240V/1/50Hz- will be replaced by AJ4517P-FZ]( "Compressor Tecumseh CAJ4517Z (POE), HBP - R404A, 220-240V/1/50Hz- will be replaced by AJ4517P-FZ")
![Compressor Tecumseh CAJ4519Z (POE), HBP - R404A, 220-240V/1/50Hz- will be replaced by AJ4519P-FZ]( "Compressor Tecumseh CAJ4519Z (POE), HBP - R404A, 220-240V/1/50Hz- will be replaced by AJ4519P-FZ")
![Compressor Tecumseh TFH4518Y (POE), HBP - R134a, 400V/3F/50Hz, Rotalock- not available, replaced by FH4518Y-XG]( "Compressor Tecumseh TFH4518Y (POE), HBP - R134a, 400V/3F/50Hz, Rotalock- not available, replaced by FH4518Y-XG")
![Compressor Tecumseh CAJ4492Y (POE), HBP - R134A, 220-240V/1Ph/50Hz - will be replaced by AJ4492N-FZ]( "Compressor Tecumseh CAJ4492Y (POE), HBP - R134A, 220-240V/1Ph/50Hz - will be replaced by AJ4492N-FZ")
![Flare nut / union nut Thread 3/8" Hole size 8 mm for refrigerant line]( "Flare nut / union nut Thread 3/8\" Hole size 8 mm for refrigerant line")
![Compressor Tecumseh CAJ2432Z, LBP - R404A, 220 - 240V, 50 Hz, 1 phase- will be replaced by AJ2432P]( "Compressor Tecumseh CAJ2432Z, LBP - R404A, 220 - 240V, 50 Hz, 1 phase- will be replaced by AJ2432P")
![Pipe insulation 6 mm, thickness 6 mm, length 2 m]( "Pipe insulation 6 mm, thickness 6 mm, length 2 m")

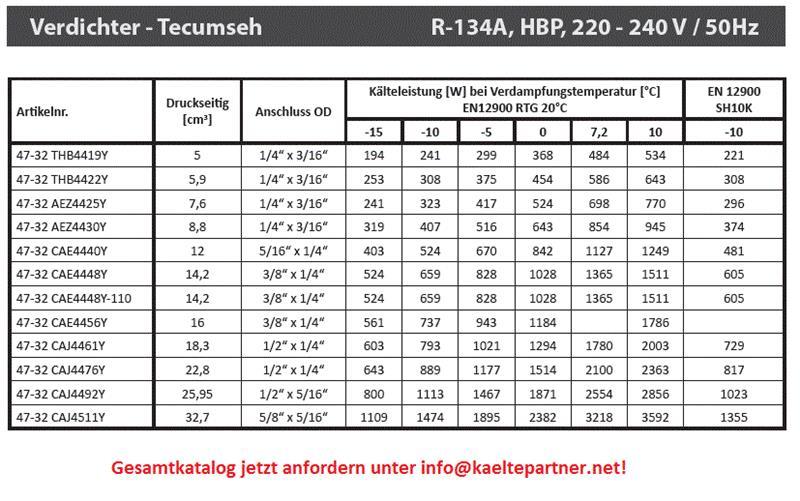

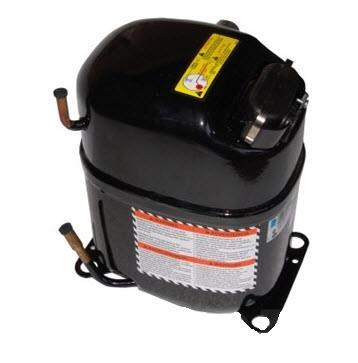

![Compressor Tecumseh CAJ4511Y (POE), HBP - R134A, 220-240V/1/50Hz - will be replaced by AJ4511N-FZ]( "Compressor Tecumseh CAJ4511Y (POE), HBP - R134A, 220-240V/1/50Hz - will be replaced by AJ4511N-FZ")
Artikel Zubehör

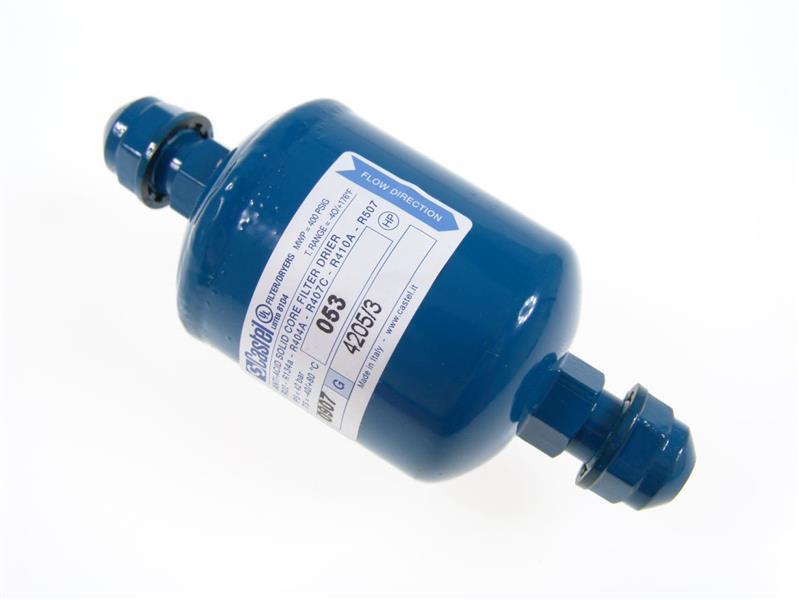

Filter dryer Castel 4205/3, ANTI-ACID, 053, 3/8" SAE, flared connections
Regular price:
From
€17.81
Special discount on limited quantities only - normal price may apply for larger quantities.
Filter dryer 42-05/3 ANTI-ACID Castel
The 42-05/3 filter dryer from Castel is a reliable and efficient product that has been specially developed for use in refrigeration, air conditioning and ventilation technology as well as heat pumps. With its volume of 50 cm3 and a temperature range of -40°C to +80°C, it is ideal for various applications. The target group are professional installers and air conditioning experts who value high-quality and durable components.Technical details:
80% molecular sieve, 20% aluminium oxide
Flanged connections 3/8? SAE
Pressure resistance: 45 bar
International code: 053
The 42-05/3 filter dryer impresses with its high-quality materials and precise workmanship. The combination of molecular sieve and aluminium oxide ensures efficient and long-lasting drying of the refrigerant. With its flared connections and wide temperature range, the filter dryer can be used flexibly in various air conditioning systems. This makes it a versatile and indispensable component of any refrigeration system.
- Available
- Delivery Time : 1-3 business days
Filter dryer DE.NA 053/MG122, V = 80 ccm, 3/8" ODS, solder connections
Regular price:
From
€22.44
Filter block dryer "MG" 053/MG122 DE.NA
The "MG" 053/MG122 DE.NA filter block dryer is a high-quality product for refrigeration, air conditioning and ventilation technology as well as for heat pumps. It was developed to carry out the filtering and drying process efficiently and reliably. With its solder connections and a volume of 80 cc, it is ideal for use in various systems. Technical details:
Solder connections: 3/8" ODS
Volume: 80 ccm
Temperature range: -40°C to +80°C
Operating overpressure: 42 bar
Sales-promoting contents:
The filter block dryer "MG" 053/MG122 DE.NA offers numerous advantages for our customers. With its high operating pressure resistance and wide temperature range, it is perfect for demanding applications. The soldered connections also ensure simple and safe installation.
- Available
- Delivery Time : 2-5 business days
Tip
Compressor Tecumseh CAJ2446Z (POE), LBP - R404A, 220-240V/1/50Hz - will be replaced by AJ2446P-FZ
47-32CAJ2446Z - Compressor/compressor Tecumseh CAJ2446Z
The Tecumseh CAJ2446Z compressor/compressor is a powerful device that has been specially developed for use in refrigeration, air conditioning and ventilation technology or heat pumps. With its efficient operation and versatile application options, it is the ideal solution for professional users who need reliable cooling.Technical details:
Oil type: POE
Refrigeration application: LBP - R404A
Spannung: 220-240V/1/50Hz
Starting current: LRA 29A
Motor type: CSR
Operating modes: capillary operation, expansion valve operation
Fan available
Connections: 1/2? x 5/16?
Stroke volume: 26.2 cm3
Advantages and benefits:
Thanks to the POE oil type and its compatibility with R404A, the Tecumseh CAJ2446Z is particularly efficient and powerful. The high cooling capacity range, measured under real conditions in accordance with EN12900 RTG 20°C, guarantees reliable cooling even at demanding temperatures. In addition, the various operating modes allow flexible adaptation to different requirements, while the low starting current and high voltage efficiency minimise energy consumption.
Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- No longer available
- Delivery Time : 1-2 weeks
Variants from €328.62
Regular price:
From
€468.65
Tip

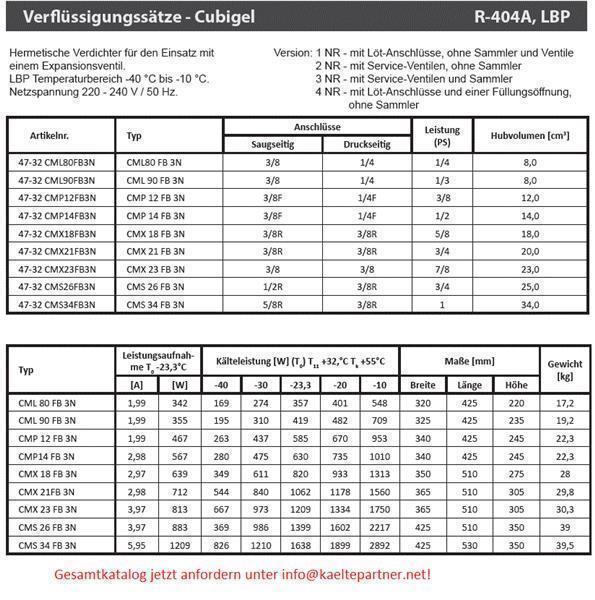

Condensing unit ACC - CMS34FB3N, LBP - R404A, 220-240V/1/50Hz
Regular price:
From
€566.56
Condensing unit ACC Cubigel/Huayi
The ACC Cubigel/Huayi 47-32CMS34FB3N condensing unit is a powerful compressor that is ideal for various applications in refrigeration, air conditioning, ventilation and heat pump technology. With an output of 1 HP and a cooling capacity of 1638 W at -23.3/55°C, it offers reliable cooling and efficiency.
Technical details:
Power: 1 HP
Cooling capacity at -23.3/55°C: 1638 W
Power consumption: 1209 W
Condenser: type CU-AL, model 12T 4R
Fan motor power: 25 W
Compressor: MS34FB
Stroke volume: 34.42 cm³
Cylinder diameter/stroke: 42.87/23.85 mm
Engine type: CSR
Voltage range: 187-264 V
Starting current: 39 A
Dimensions (LxWxH): 545x425x350 mm
Weight: 40.0 kg
Connections: 5/8? x 3/8?
Max. Ambient temperature: 43 ºC
Max. permissible pressure: 30 kg/cm²
Main winding resistance: 1.53 Ohm (25ºC)
Winding resistance: 4.79 Ohm (25ºC)
Advantages and benefits:
The 47-32CMS34FB3N condensing unit offers high cooling capacity with low energy consumption, resulting in cost savings. The robust compressor and efficient condenser ensure reliable and effective cooling in various applications. In addition, the wide voltage range of 187-264 V enables flexible installation in different environments.
- Available
- Delivery Time : 1-2 weeks
Tip
Compressor Tecumseh CAJ4517Z (POE), HBP - R404A, 220-240V/1/50Hz- will be replaced by AJ4517P-FZ
Product description: Compressor/ Compressor Tecumseh CAJ4517Z
This Tecumseh CAJ4517Z compressor/compressor is a powerful device for use in refrigeration, air conditioning and ventilation technology as well as heat pumps. It is ideal for use in commercial and industrial applications where reliable cooling is required Technical details:
Oil type: POE
Refrigerant: R404A
Spannung: 220-240V/1/50Hz
Starting current: LRA 32A
Motor type: CSR
Operating modes: Capillary operation, expansion valve operation
Fan: Yes
Connections: 5/8? x 3/8?
Stroke volume: 25.95 cm3
Performance measured at condensation temperature 54.5°C and suction gas temperature 46°C under CECOMAF conditions
Advantages and benefits:
With the Tecumseh CAJ4517Z compressor/compressor, you get a reliable and powerful device that provides efficient cooling in demanding environments. The high capacity and versatility of the operating modes make it an excellent choice for various applications. In addition, the compressor impresses with low energy consumption and a long service life, which leads to savings in operating costs.
- Available
- Delivery Time : 1-2 weeks
Variants from €328.62
Regular price:
From
€590.39
Compressor ACC - MS34FB-V with Rotalock valve, LBP - R404A, R507
Regular price:
€439.11
47-32MS34FB-V compressor for refrigeration, air conditioning and ventilation technology
The 47-32MS34FB-V compressor from Cubigel / Huayi is the ideal solution for cooling applications in various sectors. With an output of 1 HP and a wide range of technical features, this compressor offers reliability and efficiency.Technical details:
Type: Compressor ACC Cubigel / Huayi - MS34FB-V
Rotalock valve
Injection: capillary tube / expansion valve
Power: 1 HP
Cooling capacity at -25 / +55°C: 1089 W
Power consumption: 1148 W / 6.16 A
Number of cylinders: 1
Stroke volume: 34.42 cm3
Engine type: CSR
Nominal engine power: 1.36 kW
Speed: 2900 rpm
Oil capacity: 887 cm3
Oil type: ISO VG 46 ESTER
Weight: 22.7 kg
Dimensions (LxWxH): 225 x 165 x 276 mm
Refrigeration capacity measured for condensation temperature of: 55°C
Measuring conditions: ASHRAE
Advantages and benefits:
1. high performance at different temperatures from -25°C to +55°C.
2. efficient operation with low power consumption of 1148 W.
3. compact design and low weight for easy installation.
- Available
- Delivery Time : 1-2 weeks
Tip
Flare nut / union nut Thread 3/8" Hole size 10 mm for refrigerant line
Regular price:
From
€3.16
Flare nut / union nut thread 3/8" hole size 10 mm for refrigerant pipe
The flare nut / union nut thread 3/8" hole size 10 mm is the perfect accessory for refrigerant lines in refrigeration, air conditioning and ventilation technology or for heat pumps. With high-quality brass material and a precise design, it offers a reliable and secure connection. Technical details:
Type: Forged nuts
Connection A: Con-Female, SAE 3/8 in
Manufacturer article number: 8481.8090
Gross weight: 0.03 kg
EAN-Code: 7640126686431
Country of origin: CHN
Material: brass
Sales-promoting contents:
The flare nut / union nut is characterised by its high quality, precision fit and durability. It guarantees a tight connection and ensures efficient conduction of refrigerants. With the practical hole size of 10 mm, it is versatile and easy to install. The precision-manufactured 3/8" thread size enables simple installation and secure fixing of the lines. Thanks to the brass material, the flare nut is corrosion-resistant and can also withstand high pressure loads.
- Available
- Delivery Time : 1-3 business days
Tip

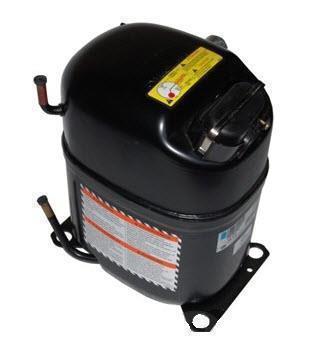

Compressor Tecumseh CAJ4519Z (POE), HBP - R404A, 220-240V/1/50Hz- will be replaced by AJ4519P-FZ
Product description: 47-32CAJ4519Z
The Tecumseh CAJ4519Z compressor/compressor is a powerful device for use in refrigeration, air conditioning and ventilation technology as well as heat pumps. This model is particularly suitable for applications that require reliable cooling performance. It is ideal for use in commercial refrigeration and air conditioning systems.
Technical details:
Oil type: POE
Refrigerant: R404A
Spannung: 220-240V/1/50Hz
Starting current: LRA 31A
Motor type: CSR
Operating modes: capillary operation, expansion valve operation
Connections: 5/8? x 3/8?
Stroke volume: 34.45 cm3
Advantages and benefits:
Thanks to its powerful cooling capacity and versatile operating modes, the Tecumseh CAJ4519Z is ideal for use in commercial refrigeration systems. The high efficiency and reliability of this compressor ensure constant temperature control and optimum cooling conditions. It also offers easy installation and maintenance, saving time and money.
- Available
- Delivery Time : 1-2 weeks
Variants from €328.62
Regular price:
From
€617.38

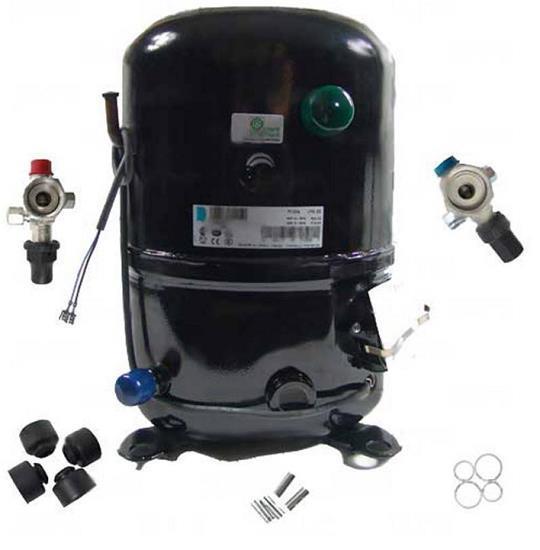

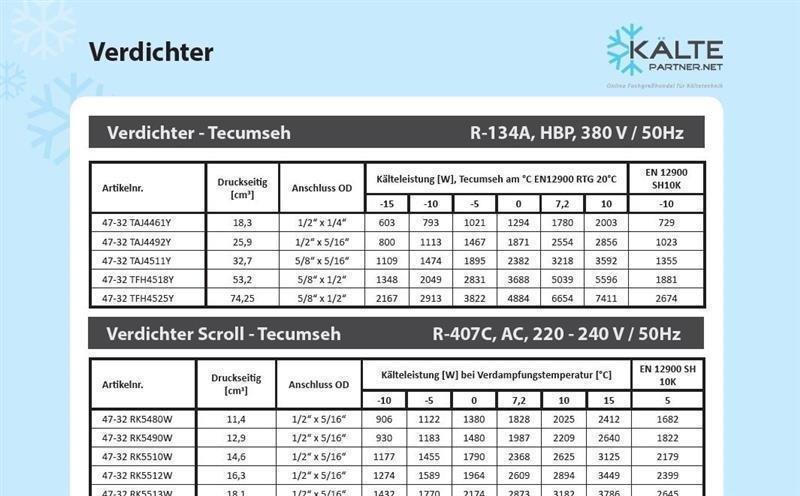

Compressor Tecumseh TFH4518Y (POE), HBP - R134a, 400V/3F/50Hz, Rotalock- not available, replaced by FH4518Y-XG
Regular price:
From
€835.67
Tecumseh TFH4518Y is a HERMETIC compressor for the high pressure range (HBP)?
? Motor type: 3PH? Displacement: 53.2 cm3? HBP evaporation temperature: -15°C to +15°C? Cooling capacity: 4583 watts? LRA: 22 A? Öl: POE? Mains voltage: 340-440/3Ph/50Hz? Rotalock connections: 5/8? x 1/2? Cooling capacity measured for condensation temperature 54.5°C, suction gas temperature 32°C, measuring conditions: EN12900 RTG 20°C
Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- No longer available
- Delivery Time : 1-2 weeks
Tip
Compressor Tecumseh CAJ4492Y (POE), HBP - R134A, 220-240V/1Ph/50Hz - will be replaced by AJ4492N-FZ
Regular price:
From
€566.44
Tecumseh CAJ4492Y
The HERMETIC compressor for the high-pressure range (HBP) is ideal for use in refrigeration, air conditioning and ventilation systems as well as in heat pumps. With the CSIR motor type and a cooling capacity of 2295 watts, this product offers the performance and reliability you need.Technical details:
Motor type: CSIR
Stroke volume: 25.95 cm3
HBP evaporation temperature: -15°C to +15°C
LRA: 26 A
Oil: POE
Mains voltage: 220-240V/1Ph/50Hz
Connections: 1/2" x 5/16"
The Tecumseh CAJ4492Y is characterised by its high cooling capacity, reliable performance and versatile application options. With a wide range of connections and easy installation, it is the ideal solution for your refrigeration and air conditioning systems.
- Available
- Delivery Time : 1-2 weeks
Tip
Flare nut / union nut Thread 3/8" Hole size 8 mm for refrigerant line
Regular price:
From
€3.16
Flanged nut / union nut thread 3/8" hole size 8 mm (article number: 47-3255-38-04)
Introduction:
The flare nut / union nut with a thread of 3/8" and a hole size of 8 mm is an indispensable accessory for refrigerant lines in refrigeration, air conditioning and ventilation technology as well as for heat pumps. It ensures a secure connection and sealing of the lines and thus contributes to the efficient operation of the system.Technical details:
Artikelnummer: 47-3255-38-04
Thread: 3/8''
Hole size: 8 mm
Material: High-quality steel
Application: Refrigerant lines in refrigeration, air conditioning and ventilation technology, heat pumps
Advantages and benefits:
Our flare nut / union nut offers numerous advantages, including:
Safe and tight connection of refrigerant lines
High-quality material for long durability and reliability
Easy installation and application
- Available
- Delivery Time : 1-3 business days
Tip

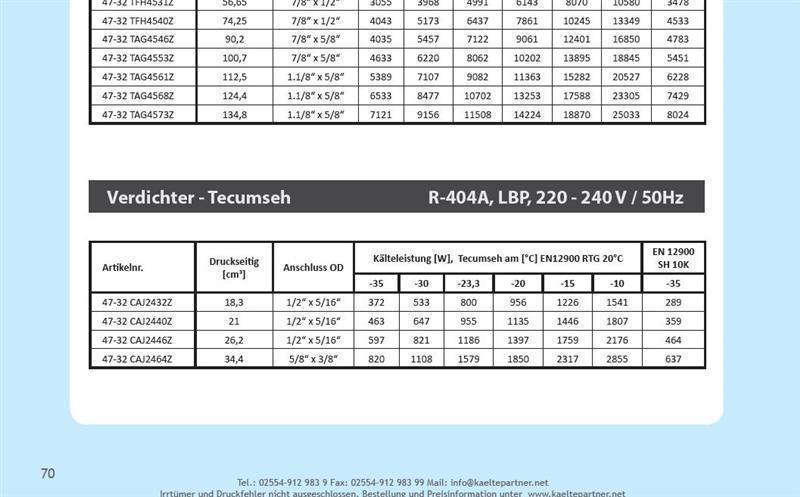

Compressor Tecumseh CAJ2432Z, LBP - R404A, 220 - 240V, 50 Hz, 1 phase- will be replaced by AJ2432P
CAJ2432Z - Compressor Tecumseh
The Tecumseh CAJ2432Z compressor is a powerful refrigeration compressor that is ideal for use in refrigeration, air conditioning and ventilation systems as well as heat pumps. With its versatile application options and reliable performance data, it is the perfect choice for professionals and DIY enthusiasts alike.Technical details:
Compressor type: LBP - R404A, R452A, R448A, R449A
Voltage: 220 - 240V, 50 Hz, 1 phase
Capacity: 18.3 [cm3]
Oil type: POE
Oil volume: 475 [cm3]
Engine type: CSR
Cooling capacity:
R452A 50 Hz: 350 [W]
R404A 50 Hz: 391 [W]
R448A 50 Hz: 304 [W]
R449A 50 Hz: 304 [W]
Temperature range: -35°C to +40°C
Solder connection: inlet: 1/2", outlet: 5/16"
Sound level: 58 [dBA]
Starting capacitor: 88 uF / 330V
Operating capacitor: 15 uF / 400V
Expansion device: expansion valve or capillary
Height: 268 [mm]
Weight: 20.1 [kg]
Advantages and benefits:
High cooling capacity for efficient climate management
Various connection options for flexible installation
Reliable and durable design for long-term use
- Available
- Delivery Time : 1-2 weeks
Variants from €328.62
Regular price:
€592.74
Pipe insulation 6 mm, thickness 6 mm, length 2 m
Regular price:
From
€2.09
Pipe insulation 6 mm, insulation thickness 6 mm, length 2 m
- Available
- Delivery Time : 2-5 business days
Tip
Compressor Tecumseh CAJ4511Y (POE), HBP - R134A, 220-240V/1/50Hz - will be replaced by AJ4511N-FZ
Regular price:
From
€416.62
Compressor/ Compressor Tecumseh CAJ4511Y
The Tecumseh CAJ4511Y compressor/compressor is a powerful device that has been specially developed for use in refrigeration, air conditioning and ventilation technology as well as in heat pumps. With its outstanding technical features, it is the ideal solution for professional users who require reliability and efficiency in their systems.Technical details:
Oil type: POE
Refrigerant: R134A
Spannung: 220-240V/1/50Hz
Starting current (LRA): 30A
Motor type: CSR
Stroke volume: 32.7 cm3
Connections: 5/8? x 5/16?
Refrigeration capacity measured for condensation temperature 54.5°C, suction gas temperature 32°C
Measuring conditions: EN12900 RTG 20°C
Advantages and benefits:
The Tecumseh CAJ4511Y compressor/compressor is characterised by the following advantages:
High performance with low energy consumption
Reliable operation even under demanding conditions
Optimal adaptation to different areas of application thanks to expansion valve operation
Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- No longer available
- Delivery Time : 1-2 weeks
Skip product gallery
Alternativ Artikel
Compressor ACC - MS34FB, LBP - R404A, R507, 1HP, 220-240V/1/50Hz
Regular price:
From
€373.78
Compressor ACC Cubigel / Huayi - MS34FB
The ACC Cubigel / Huayi - MS34FB compressor is a powerful compressor specially developed for use in refrigeration, air conditioning and ventilation systems as well as heat pumps. With its robust design and reliable performance, it is the ideal choice for professional applications in various industries.Technical details:
Type: LBP - R404A, 220-240V/50Hz
Injection: capillary tube / expansion valve
Power: 1 HP
Cooling capacity at -25 / +55°C: 1089 W
Power consumption: 1148 W / 6.16 A
Number of cylinders: 1
Stroke volume: 34.42 cm3
Engine type: CSR
Nominal engine power: 1.36 kW
Speed: 2900 rpm
Oil capacity: 887 cm3
Oil type: ISO VG 46 ESTER
Weight: 22.7 kg
Dimensions (LxWxH): 225 x 165 x 276 mm
Advantages and benefits:
The ACC Cubigel / Huayi - MS34FB compressor is characterised by the following features:
Reliable performance at various temperatures
Efficient energy consumption for cost-effective operation
Compact design for easy installation and maintenance
- Available
- Delivery Time : 1-2 weeks
Tip
Compressor Tecumseh AJ2464P-FZ (POE), LBP - R404A, R452A, R455A, R454C, 220-240V/1/50Hz
Regular price:
From
€1,060.29
Tecumseh compressor AJ2464P-FZ, LBP - R404A/R452A/R455A/R454C
The Tecumseh AJ2464P-FZ is a fully hermetic reciprocating compressor suitable for low suction pressure (LBP) applications. It is designed for a wide range of refrigerants and offers outstanding performance and reliability for refrigeration applications.Technical data
Refrigerant: R404A, R452A, R455A, R454C
Voltage: 220-240 V / 50 Hz / 1 phase
Capacity: 34.5 cm³
Engine type: CSR
Oil type: Polyolester (POE)
Oil volume: 475 cm³
Performance data
Power with R452A: 1152 W at -25 / 50°C
Power with R404A: 1226 W at -25 / 50°C
Power with R455A: 1037 W at -25 / 50°C
Power with R454C: 966 W at -25 / 50°C
Connections
Inlet connection: 5/8 inch (15.9 mm) Rotalock
Discharge connection: 5/16 inch (7.9 mm)
Connection type: solder connection
Other features
Noise development: 61 dB(A)
Cooling: fan-cooled
Start-up capacitor: 88 µF / 330 V
Operating capacitor: 20 µF / 400 V
Expansion device: capillary tube
Dimensions and weight
Height: 280 mm
Weight: 21.2 kg
The Tecumseh AJ2464P-FZ offers a reliable solution to your cooling needs by delivering both flexibility and performance. Take advantage of its efficiency and versatility by ordering it today.
- Available
- Delivery Time : 1-2 weeks
Tip

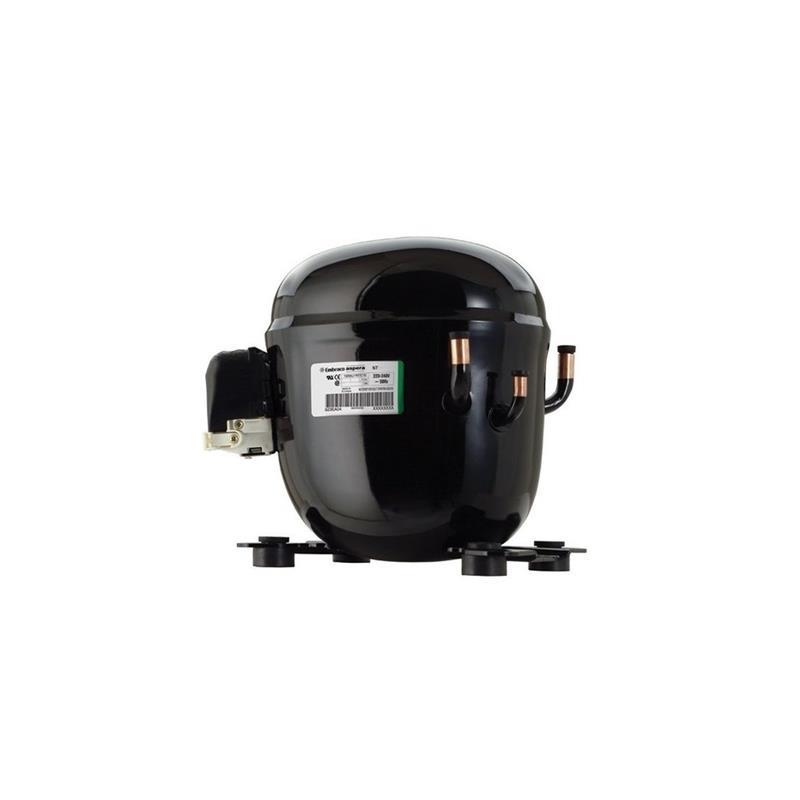

Compressor Embraco GEMINI NJ2212GJ CSR, LBP - R404a/R507, 220-240V, 50-60Hz
Regular price:
From
€363.07
Compressor Aspera NJ2212GJ CSR GEMINI, LBP - R404a/R507, 220-240V, 50-60Hz, displacement: 34.37cm³, power: 1.7hp
This compressor with the model number 38-NJ2212GJ is the ideal solution for your refrigeration, air conditioning and ventilation technology or heat pump application. With a displacement of 34.37 cc and an output of 1.7 hp, it offers high efficiency and reliability.Technical details:
Model: 38-NJ2212GJ
Type: LBP
Refrigerant: R404a/R507
Voltage: 220-240V, 50-60Hz
Stroke volume: 34.37cm³
Power: 1.7hp
The Aspera NJ2212GJ CSR GEMINI is characterised by the following advantages:
Energy-efficient: Thanks to its performance and efficiency, you save energy costs and benefit from reliable cooling.Reliability: The compressor offers high reliability and performance, which ensures a long service life.Versatile application: This compressor is suitable for various applications in refrigeration, air conditioning, ventilation and heat pumps.
Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- Available
- Delivery Time : currently not available - please ask for delivery time
Rotary compressor BOYARD, QHD-23K, horizontal, R404A, 220 - 240V, 50 Hz
Regular price:
€819.91
Rotary compressor Boyard QHD-23K, horizontal, R404A, 220/240V, 23.6 cm3 Voltage supply 220/240 V, 50 hz, 1 phStroke volume 23.6 cm3Power according to Ashrae measuring conditions, refrigerant R404A 1.52 kWR404A refrigerantSuction line connection 1/2"Drain line connection 3/8"Weight 16.00 KgOperating current 6.00 AStarting current (rotor blocked) 23 AÖlart RL-32RVSound level 63 dBTemperature medium/lowTechnologies Fixed speedW heat pump NoCooling type motor POEMotor type CSRMotor protection type ExternalSpeed 2800 rpmMax. Suction pressure 0.004 ? 0.33 / 0.002 ? 0.40 MpaMax. Ambient temperature 0~40 ºCPlease ask one of our colleagues for current prices and availability. Thank you
Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- Available
- Delivery Time : currently not available - please ask for delivery time
