Compressor Tecumseh CAJ4461Y (POE), HBP - R134A, 220-240V/1Ph/50Hz - will be replaced by AJ4461N-FZ
47-32CAJ4461Y
| Quantity | Unit price |
|---|---|
| Up to 2 |
€590.31
|
| Up to 4 |
€560.80
€590.31
( - 5% )
|
| From 5 |
€531.28
€590.31
( - 10% )
|
Available in 14 workingdays, delivery time currently not available - please ask for delivery time,
within Germany, abroad different
There are successors for this article
Tip
Tecumseh compressor AJ4461N-FZ, HBP - R134A, R123, R513A, 220 - 240V, 50 Hz, 1 phase
Regular price:
From
€397.54
Product number:
47-32CAJ4461Y
Manufacturer:
Tecumseh / L'Unite
Manufacturer number:
CAJ4461Y (-> AJ4461N-FZ)
Weight:
25.9 kg
Do you have some questions about this product?
Description
Product information "Compressor Tecumseh CAJ4461Y (POE), HBP - R134A, 220-240V/1Ph/50Hz - will be replaced by AJ4461N-FZ"
Tecumseh CAJ4461Y
This HERMETIC compressor is specially designed for the high pressure range (HBP) and offers outstanding performance for refrigeration, air conditioning and ventilation technology as well as heat pumps. With its technical features and reliable characteristics, the Tecumseh CAJ4461Y is the ideal solution for demanding refrigeration applications
Technical details:
- Motor type: CSIR
- Stroke volume: 18.3 cm3
- HBP evaporating temperature: -15°C to +15°C
- Refrigeration capacity: 1419 watts
- LRA: 43 A
- Oil: POE
- Mains voltage: 220-240V/1Ph/50Hz
- Connections: 1/2" x 1/4"
OD connections: 1/2? x 1/4?
Cooling capacity measured for condensation temperature 54.5°C, suction gas temperature 32°C, measuring conditions: EN12900 RTG 20°C
The Tecumseh CAJ4461Y impresses with a powerful CSIR motor that ensures efficient cooling. With a cooling capacity of 1419 watts and an HBP evaporating temperature of -15°C to +15°C, this compressor is the ideal choice for reliable refrigeration systems.
Other highlights are the robust design, the high mains voltage of 220-240V and the simple connections. The Tecumseh CAJ4461Y scores with long-term reliability and efficient operation, making it the ideal solution for professional refrigeration technology.
Downloads
- 47-32CAJ4461Y-Datasheet-HHKaeltetechnik - Datenblatt / Datasheet
Manufacturer "Tecumseh / L'Unite"
Tecumseh – 90 years of innovation and quality in the refrigeration and air conditioning industry
For over 90 years, Tecumseh has been setting standards in the development and production of fully hermetic reciprocating compressors. The first “hermetic” compressor for refrigerators, introduced in 1937, laid the foundation for Tecumseh’s reputation as a reliable partner in commercial and domestic refrigeration. Through continuous investment in research and development and collaboration with international R&D institutions, Tecumseh develops solutions that are valued worldwide.
Particularly noteworthy are the sustainable R290 models, which use the environmentally friendly refrigerant propane and thus offer a climate-friendly alternative. These compressors are characterised by high efficiency and low emissions and represent a modern response to the industry’s growing demands for environmental sustainability.
With production facilities on four continents and an international network, Tecumseh ensures that its products are readily available worldwide and meet the highest quality standards. Thus, even after 90 years, Tecumseh remains synonymous with quality and innovation in the refrigeration and air conditioning industry.
Tecumseh 90th Anniversary Video
Tecumseh Cross-Reference List
Tecumseh manufacturer software
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Tecumseh Europe Sales & Logistics S.A.S
Postal address: M 7, 18 68161 Mannheim, Germany
Email address: [email protected]
Website: www.tecumseh.com
Properties
| Condensation temperature: | 54.5 °C |
|---|---|
| Connection Size: | Connection Size |
| Design: | Hermetic, Reciprocating piston |
| Dimensions ( height ): | 25.80 cm |
| Displacement (cm3): | 18,3 |
| Electronics: | inkl. |
| Engine type: | CSIR TRI, TRI |
| Equipment: | Equipment |
| Field of application: | Refrigeration |
| Item Condition: | New item |
| Max. Operating current (A): | 4,25 |
| Measuring conditions: | EN12900 |
| Oil: | vorgefüllt |
| Oil quantity (l): | 887 cm³ |
| Oil type: | POE |
| Power range (W): | 401 - 500 W 1 - 1.5 kW |
| Pressure line (inch): | 1/4 |
| Scope of application: | HBP |
| Suction line (inch): | 1/2 |
| Suction side: | 1/2" |
| To be used with: | Capillary/Expansion |
| Voltage: | 220-240V |
| Voltage: | 220-240V |
| cooling capacity (W) at To 0°C: | 1294 |
| dbA @ 1m: | 54 |
Downloads
- 47-32CAJ4461Y-Datasheet-HHKaeltetechnik - Datenblatt / Datasheet
Skip product gallery
![Compressor Tecumseh CAJ4476Y (POE), HBP - R134A, 220-240V/1Ph/50H- not available, replaced by AJ4476N-FZ]( "Compressor Tecumseh CAJ4476Y (POE), HBP - R134A, 220-240V/1Ph/50H- not available, replaced by AJ4476N-FZ")
![Compressor Tecumseh CAJ4492Y (POE), HBP - R134A, 220-240V/1Ph/50Hz - will be replaced by AJ4492N-FZ]( "Compressor Tecumseh CAJ4492Y (POE), HBP - R134A, 220-240V/1Ph/50Hz - will be replaced by AJ4492N-FZ")
![Compressor Tecumseh CAJ2464Z (POE), LBP - R404A, 220-240V/1/50Hz- will be replaced by AJ2464P-FZ]( "Compressor Tecumseh CAJ2464Z (POE), LBP - R404A, 220-240V/1/50Hz- will be replaced by AJ2464P-FZ")
![Double nipple (connecting nipple) 180° - 1/4" SAE x 1/4" SAE]( "Double nipple (connecting nipple) 180° - 1/4\" SAE x 1/4\" SAE")
![Compressor Tecumseh CAJ4511Y (POE), HBP - R134A, 220-240V/1/50Hz - will be replaced by AJ4511N-FZ]( "Compressor Tecumseh CAJ4511Y (POE), HBP - R134A, 220-240V/1/50Hz - will be replaced by AJ4511N-FZ")
![Filter dryer Castel 4316/2, 162, 1/4" SAE, flared connections]( "Filter dryer Castel 4316/2, 162, 1/4\" SAE, flared connections")
![Compressor Tecumseh TFH4518Y (POE), HBP - R134a, 400V/3F/50Hz, Rotalock- not available, replaced by FH4518Y-XG]( "Compressor Tecumseh TFH4518Y (POE), HBP - R134a, 400V/3F/50Hz, Rotalock- not available, replaced by FH4518Y-XG")
![Compressor SECOP / Danfoss SC18G / SC18GX, LBP/HBP - R134a, 220-240V, 50-60 Hz]( "Compressor SECOP / Danfoss SC18G / SC18GX, LBP/HBP - R134a, 220-240V, 50-60 Hz")
![Brass reducing nipple - 180° - 1/2" SAE x 1/2" NPT]( "Brass reducing nipple - 180° - 1/2\" SAE x 1/2\" NPT")
![Filter drier with valve SD30 30g, valve + 6.35x3.1 mm]( "Filter drier with valve SD30 30g, valve + 6.35x3.1 mm")
Artikel Zubehör
Compressor Tecumseh CAJ4476Y (POE), HBP - R134A, 220-240V/1Ph/50H- not available, replaced by AJ4476N-FZ
Regular price:
From
€363.07
Tecumseh CAJ4476Y - HERMETIC compressor for high pressure range (HBP)
The Tecumseh CAJ4476Y is a powerful HERMETIC compressor specially developed for the high pressure range (HBP). With its impressive technical specifications, it is ideal for use in refrigeration, air conditioning and ventilation systems as well as in heat pumps. Its high cooling capacity and reliability make it the perfect solution for professional applications in various sectors. Technical details:
Motor type: CSIR
Stroke volume: 21.75 cm3
HBP evaporating temperature: -15°C to +15°C
Refrigeration capacity: 1794 watts
LRA: 26 A
Oil: POE
Mains voltage: 220-240V/1Ph/50Hz
Connections: 1/2" x 1/4"
With its high cooling capacity, reliable performance and easy installation, the Tecumseh CAJ4476Y is the ideal choice for professionals in refrigeration, air conditioning and ventilation technology. Thanks to its robust design and efficient cooling capacity, it enables reliable and long-term use in various applications.Another key advantage of the CAJ4476Y is its versatility in different operating conditions. Whether extreme temperatures or difficult ambient conditions - this compressor always delivers optimum performance and reliability.With the Tecumseh CAJ4476Y, you are not only investing in high-quality technology, but also in long-term efficiency and reliability for your refrigeration, air conditioning and ventilation systems.
Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- Available
- Delivery Time : 1-3 business days
Tip
Compressor Tecumseh CAJ4492Y (POE), HBP - R134A, 220-240V/1Ph/50Hz - will be replaced by AJ4492N-FZ
Regular price:
From
€566.44
Tecumseh CAJ4492Y
The HERMETIC compressor for the high-pressure range (HBP) is ideal for use in refrigeration, air conditioning and ventilation systems as well as in heat pumps. With the CSIR motor type and a cooling capacity of 2295 watts, this product offers the performance and reliability you need.Technical details:
Motor type: CSIR
Stroke volume: 25.95 cm3
HBP evaporation temperature: -15°C to +15°C
LRA: 26 A
Oil: POE
Mains voltage: 220-240V/1Ph/50Hz
Connections: 1/2" x 5/16"
The Tecumseh CAJ4492Y is characterised by its high cooling capacity, reliable performance and versatile application options. With a wide range of connections and easy installation, it is the ideal solution for your refrigeration and air conditioning systems.
- Available
- Delivery Time : 1-2 weeks
Tip
Compressor Tecumseh CAJ2464Z (POE), LBP - R404A, 220-240V/1/50Hz- will be replaced by AJ2464P-FZ
Compressor Tecumseh CAJ2464Z for refrigeration and air conditioning systems
The Tecumseh CAJ2464Z compressor/compressor is a powerful and reliable device that has been specially developed for use in refrigeration and air conditioning systems. With its oil type (POE), it is perfectly suited for use with the refrigerant R404A and offers high efficiency with low energy consumption. Technical details:
Spannung: 220-240V/1/50Hz
Starting current LRA: 38A
Motor type: CSR
Connections: 5/8" x 3/8"
Stroke volume: 34.4 cm3
The Tecumseh CAJ2464Z is characterised by its high cooling capacity, which is achieved at condensation temperatures of up to 54.5°C. With a suction gas temperature of 46°C, this compressor is ideally suited for operation in various air conditioning systems. Thanks to capillary operation and expansion valve operation, it offers versatile connection options and a high degree of installation flexibility.Other highlights are the robust connections and the efficient motor, which ensures reliable performance. With the Tecumseh CAJ2464Z, you get a product that fulfils the highest standards in terms of quality and performance.
- Available
- Delivery Time : 1-2 weeks
Variants from €328.62
Regular price:
From
€599.16
Tip
Double nipple (connecting nipple) 180° - 1/4" SAE x 1/4" SAE
Regular price:
From
€2.09
Connecting nipple 180° - 1/4 "x1/4". Price for 1 piece
- Available
- Delivery Time : 1-3 business days
Tip
Compressor Tecumseh CAJ4511Y (POE), HBP - R134A, 220-240V/1/50Hz - will be replaced by AJ4511N-FZ
Regular price:
From
€703.11
Compressor/ Compressor Tecumseh CAJ4511Y
The Tecumseh CAJ4511Y compressor/compressor is a powerful device that has been specially developed for use in refrigeration, air conditioning and ventilation technology as well as in heat pumps. With its outstanding technical features, it is the ideal solution for professional users who require reliability and efficiency in their systems.Technical details:
Oil type: POE
Refrigerant: R134A
Spannung: 220-240V/1/50Hz
Starting current (LRA): 30A
Motor type: CSR
Stroke volume: 32.7 cm3
Connections: 5/8? x 5/16?
Refrigeration capacity measured for condensation temperature 54.5°C, suction gas temperature 32°C
Measuring conditions: EN12900 RTG 20°C
Advantages and benefits:
The Tecumseh CAJ4511Y compressor/compressor is characterised by the following advantages:
High performance with low energy consumption
Reliable operation even under demanding conditions
Optimal adaptation to different areas of application thanks to expansion valve operation
Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- Available
- Delivery Time : 1-2 weeks
Tip
Filter dryer Castel 4316/2, 162, 1/4" SAE, flared connections
Filter dryer 4316/2 Castel - 47-32570-4316-2
Our 4316/2 Castel filter dryer is an indispensable element in refrigeration, air conditioning and ventilation technology as well as in heat pumps. With its 100% molecular sieve and 1/4" SAE connections, it is ideal for use in various systems. Technical details:
International code: 162
2 flared connections for easy installation
Volume: 250 cm3
Temperature range: -40°C to +80°C
Maximum operating pressure: 45 bar
Advantages and benefits:
1. efficient filtering thanks to the 100% molecular sieve
2. robust construction for a long service life
3. easy installation and versatile application options
- Available
- Delivery Time : 2-5 business days
Variants from €13.87
Regular price:
From
€20.76
Compressor Tecumseh TFH4518Y (POE), HBP - R134a, 400V/3F/50Hz, Rotalock- not available, replaced by FH4518Y-XG
Regular price:
From
€835.67
Tecumseh TFH4518Y is a HERMETIC compressor for the high pressure range (HBP)?
? Motor type: 3PH? Displacement: 53.2 cm3? HBP evaporation temperature: -15°C to +15°C? Cooling capacity: 4583 watts? LRA: 22 A? Öl: POE? Mains voltage: 340-440/3Ph/50Hz? Rotalock connections: 5/8? x 1/2? Cooling capacity measured for condensation temperature 54.5°C, suction gas temperature 32°C, measuring conditions: EN12900 RTG 20°C
Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- No longer available
- Delivery Time : 1-2 weeks
Tip
Compressor SECOP / Danfoss SC18G / SC18GX, LBP/HBP - R134a, 220-240V, 50-60 Hz
Regular price:
From
€185.76
DANFOSS SC18G compressor for commercial refrigeration applications
Technical details:
Motor type: CSIR
Stroke volume: 17.69 cm3
Temperature range: LBP/HBP
Net weight: 13.7 kg
Height: 219 mm
Oil volume: 550 cm3
Liquefaction temperature: 60 (70) °C
Winding temperature: 125 (135) °C
Voltage range: 187 - 254 V
Evaporation temperature: -35 to 15 °C
Resistance/main start winding: 3.7/14.1 (25°C) Ohm
Starting torque: LST
Starting current: 18.6 A
Refrigerant charge: 1300 g
Gas volume: 1460 cm3
Connections: 10.2 x 6.2 x 6.2 mm
Connection tolerance: ±0.09 mm
Advantages and benefits:
The DANFOSS SC18G compressor guarantees efficient cooling for compact commercial refrigeration applications. With a displacement of 17.69 cm3 and a temperature range of LBP/HBP, it is versatile and offers reliable performance. The low net weight of 13.7 kg and the compact height of 219 mm make it particularly space-saving. The compressor also impresses with a high oil volume of 550 cm3, which ensures a long service life. The various connection options and the high voltage range of 187 - 254 V offer flexibility during installation. Thanks to its efficient operation and high cooling capacity, the DANFOSS SC18G is the ideal choice for commercial refrigeration applications.
- Available
- Delivery Time : 1-3 business days

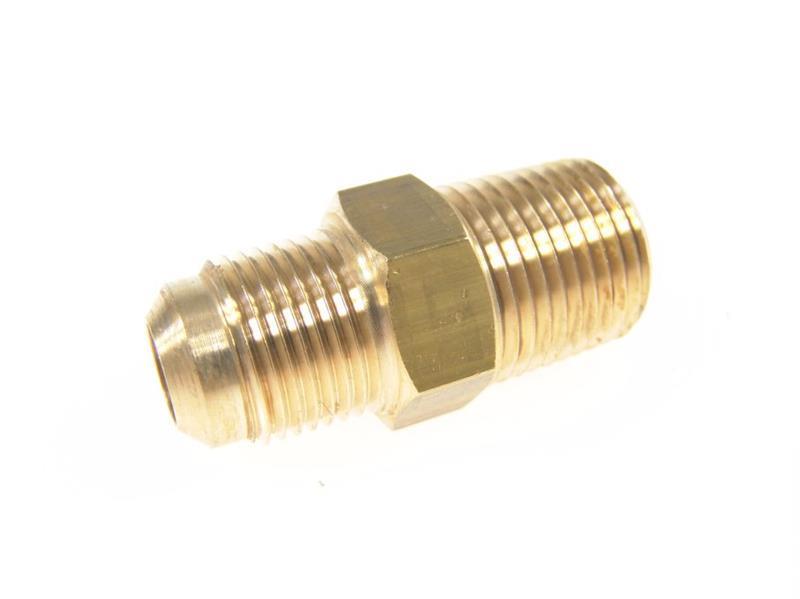

Brass reducing nipple - 180° - 1/2" SAE x 1/2" NPT
Regular price:
€7.08
Brass connection - 180° - 1/2" SAE x 1/2" NPT
- Available
- Delivery Time : 1-3 business days
Tip
Flare nut / union nut Thread 1/4" Hole size 6 mm
Regular price:
From
€2.09
Flanged nut / union nut thread 1/4" hole size 6 mm
Introduction:
The flare nut / union nut with a thread of 1/4" and a hole size of 6 mm is an indispensable accessory for the installation of cooling, air conditioning and ventilation systems or heat pumps. It ensures a secure and reliable connection and is easy to fit. This high-quality brass nut is ideal for use in demanding environments.Technical details:
Type designation: E035N
Type of connection: F
Connection dimension: 1/4 in
Operating pressure (max.): 140 bar
Working pressure: 60 bar
Material: Brass
Wrench size: 14
Product information: Union nut DIN8912
Sales-promoting content:
This flare nut / union nut offers numerous advantages, including:
High-quality brass material for durability and resistance
Easy installation and secure connection for reliable performance
Ideal for use in refrigeration, air conditioning and ventilation systems and heat pumps
- Available
- Delivery Time : 1-3 business days
Filter dryer Castel 4303/2S, 032S, 1/4" ODS, solder connections
Regular price:
From
€13.13
Filter dryer 4303/2S Castel
The 4303/2S filter dryer from Castel is an indispensable component in refrigeration, air conditioning and ventilation technology or in heat pumps. With its 100% molecular sieve and a volume of 50 cm3, it ensures efficient dehumidification of the refrigerant and thus reliably protects your systems from contamination. The connections are either 1/4" ODS or 3/8" ODM and the filter dryer is suitable for a temperature range of -40°C to +80°C.
Technical details:
Connections: 1/4" ODS or 3/8" ODM
Volume: 50 cm3
Temperature range: -40°C to +80°C
Pressure rating (PS): 45 bar
International code: 032S
Specially developed for solder connections
Advantages and benefits:
The 4303/2S Castel filter dryer impresses with:
Efficient dehumidification thanks to 100% molecular sieve
Robust design for reliable protection of the systems
Flexibility thanks to various connection options
- Available
- Delivery Time : 2-5 business days
Tip
Filter drier with valve SD30 30g, valve + 6.35x3.1 mm
Regular price:
From
€19.22
Universal service dryer with valve SD30 30g
The universal service dryer with valve SD30 30g (article number: 47-3234-30-00) is an indispensable accessory for your air conditioning system or heat pump. With a size of 24x150(275) mm and a valve + 6.35x3.1 mm, this dryer is perfect for various applications in refrigeration, air conditioning and ventilation technology.
Technical details:
Weight: 30g
Size: 24x150(275) mm
Valve: 6.35x3.1 mm
Manufacturer: De.Na
Advantages and benefits:
The universal usability of the service dryer enables easy implementation in various systems. Thanks to its high-quality workmanship and reliable performance, it ensures efficient and long-term maintenance of your systems. It also helps to extend the service life of your air conditioning system or heat pump and minimise downtime.
- Available
- Delivery Time : 1-3 business days
Skip product gallery

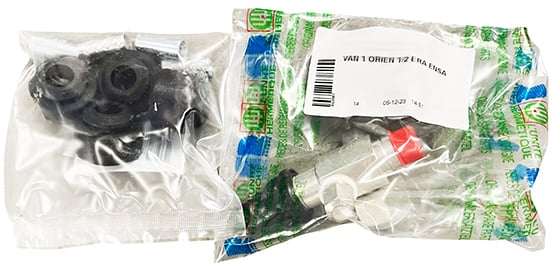

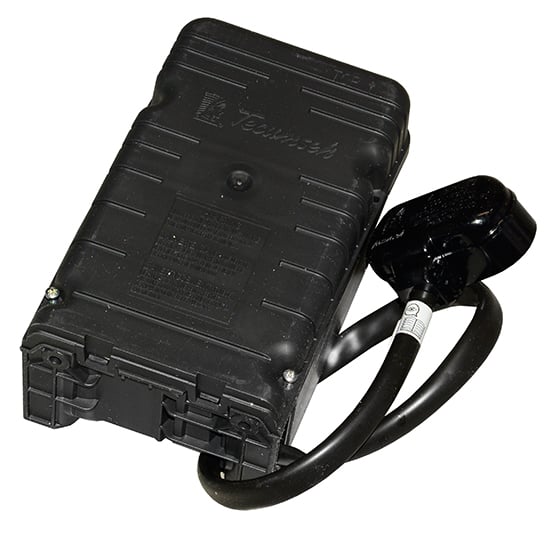

![Tecumseh compressor AJ4461N-FZ, HBP - R134A, R123, R513A, 220 - 240V, 50 Hz, 1 phase]( "Tecumseh compressor AJ4461N-FZ, HBP - R134A, R123, R513A, 220 - 240V, 50 Hz, 1 phase")

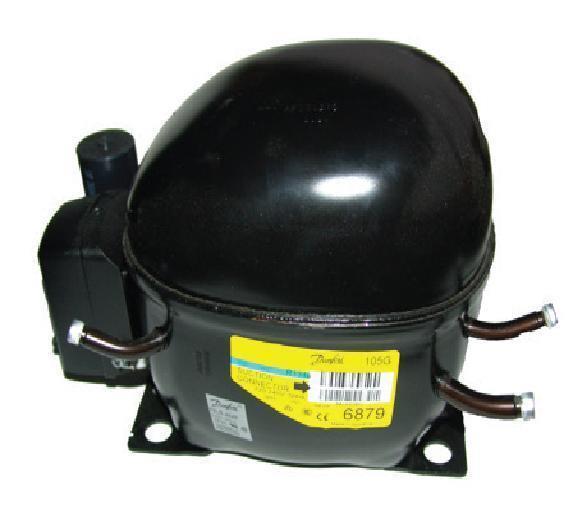

![Compressor SECOP / Danfoss SC18GH, HBP - R134a, 200-240V/50-60 Hz]( "Compressor SECOP / Danfoss SC18GH, HBP - R134a, 200-240V/50-60 Hz")
Alternativ Artikel
Tip
Tecumseh compressor AJ4461N-FZ, HBP - R134A, R123, R513A, 220 - 240V, 50 Hz, 1 phase
Regular price:
From
€397.54
Tecumseh compressor AJ4461N-FZ
The Tecumseh AJ4461N-FZ compressor is a powerful component for refrigeration, air conditioning and ventilation systems as well as heat pumps. It is ideal for use in various applications and is suitable for both professional and domestic use.Technical details:
Compressor: Tecumseh AJ4461N-FZ
Refrigerant: HBP - R134a, R1234yf, R513A
Voltage: 220 - 240V
Frequency: 50Hz
Phase: 1
Capacity: 18.3 cm3
Oil type: POE
Oil volume: 475 cm3
Engine type: CSIR
Power output:
R123yf: 717W at -10 / 50°C
R134a: 719W at -10 / 50°C
R513A: 770W at -10 / 50°C
Solder connection: inlet: 1/2" (12.7mm), outlet: 1/4" (6.35mm)
Noise level: 54 dBA
Capillary operation
Fan cooling
Starting capacitor: 64uF / 330V
Height: 268mm
Weight: 18.4kg
Advantages and benefits:
High performance at various temperatures for efficient cooling and air conditioning applications
Low noise level of 54 dBA ensures pleasant working conditions
- Available
- Delivery Time : 1-2 weeks
Compressor Aspera Embraco NEU6214Z CSIR, HBP - R134a, 220-240V, 50-60Hz
Regular price:
€181.09
Compressor Aspera NEU6214Z CSIR
The Aspera NEU6214Z CSIR compressor is a powerful and reliable compressor that has been specially developed for use in refrigeration, air conditioning and ventilation systems as well as heat pumps. With a rated cooling capacity of 1459-1636 W and a displacement of 16.80 cm³, this compressor is ideal for applications in the high-pressure range (HBP) with the refrigerant R134a.Technical details:
Model: 38-NEU6214Z
Voltage: 220-240V, 50-60Hz
Motor type: CSIR
Power: 1/2hp
Nominal cooling capacity: 1459-1636 W
Stroke volume: 16.80cm³
Advantages and benefits:
1. high performance: with 1/2hp, this compressor offers a powerful and efficient cooling capacity for your system
2. versatile application: The Aspera NEU6214Z CSIR compressor is suitable for various applications in refrigeration, air conditioning and heat pumps. 3. reliability: Thanks to its high-quality workmanship and durable materials, this compressor guarantees long-term and reliable operation.
- Available
- Delivery Time : 1-3 business days
Tip
Compressor SECOP / Danfoss SC18GH, HBP - R134a, 200-240V/50-60 Hz
Regular price:
€296.31
Compressor DANFOSS SC18GH HBP - R134a 220-240V/50Hz
This compressor is perfect for the high-pressure range and is ideal for use in refrigeration, air conditioning and ventilation technology or heat pumps. With the CSIR motor type, an output of 1/2 hp and a cooling capacity of 2389 watts (20°C), the DANFOSS SC18GH offers outstanding performance. Technical details:
Stroke volume: 17.69 cm3
Temperature range: HBP
Net weight: 13.7 kg
Height: 137 mm
Oil volume (POE): 219 cm3
Ambient temperature: 43 °C
Voltage range: 198 - 254 V/50 Hz
Evaporation temperature: -15 to 15 °C
Resistance/main start winding: 3.7/14.1 Ohm (25°C)
Starting torque: LST
Motor size: 495 W
Starting current: 18.6 A
Refrigerant charge: 1300 g
Gas volume: 1460 cm3
Connections: 10.2 x 6.2 x 8.2 mm
Refrigeration capacity measured for condensation temperature 55°C, suction gas temperature 32 °C, voltage 220V/1F/50Hz
Advantages and benefits:
The DANFOSS SC18GH impresses with its high performance, compact design and reliable functionality. Thanks to its efficient cooling capacity and wide temperature range, it is suitable for a wide range of applications in cooling, air conditioning and ventilation technology. With top quality and precise control, this compressor ensures optimum cooling and climate conditions.
Info:
Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
Electronics: The electronics are included in the scope of delivery.
- Available
- Delivery Time : 2-5 business days
