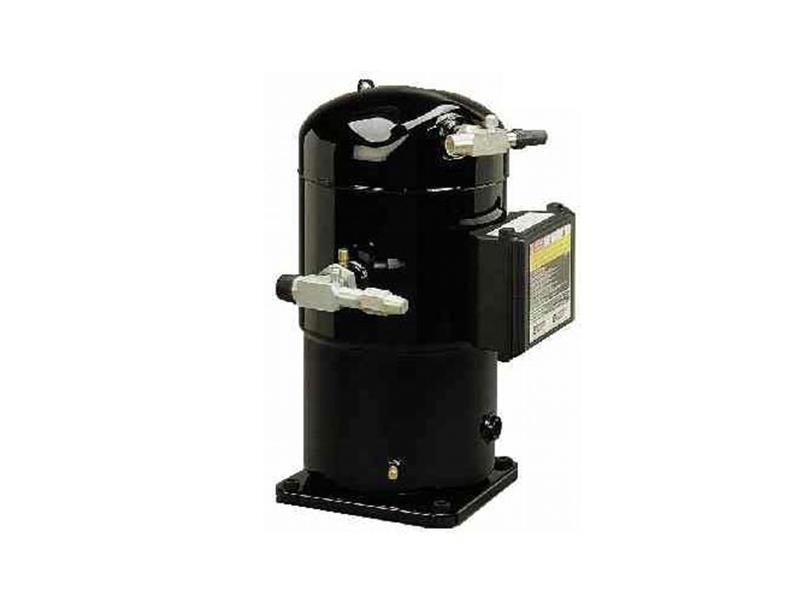

Copeland ZP54KUE-TFM-50E Scroll Compressor for Air Conditioning/Heat Pumps R410A
Copeland Emerson Buy products online for less: Compressor Copeland Scroll, ZP54K3E-TFD-522 R410A, 380V, 50Hz // Fast worldwide delivery
- R410A A1 GWP 2,088
Technical data
Performance
- Cooling capacity i
- 11,75 kW
- Performance at operating conditions i
- 5°C evap, temp,; 50°C cond, temp,; 10 K suction superheat; 0 K subcooling for R-410A at 50 Hz
- Displacement
- 8,93 m³/h
Refrigerant & oil
- Refrigerant
- R410A
- Oil
- vorgefüllt, POE
- Oil quantity
- 1,95 l
Operating range
- Area of application i
- AC, HBP
Electrical
- Voltage
- 380-420V
- Electronics
- inkl.
- Max. operating current
- 10 A
- Protection class
- IP21
Connections
- Discharge line
- 1/2″ (12,7 mm)
- Suction line
- 7/8″ (22,2 mm)
Dimensions & weight
- Dimensions (L × W × H)
- 24,6 × 24,6 × 44,3 cm
- Weight
- 38,1 kg
General
- COP
- 2,96
- Frequency
- 50 Hz
- Max. operating overpressure LP/HP [bar(g)]
- 29,5/45
- Motor code
- TFM
- Number of phases
- 3
- Product family
- ZP
- Recommended crankcase heater
- 70
- Type of compression
- Scroll
- Type of construction
- Hermetic
- dbA
- 69
- dbA @ 1m
- 58
Description
Copeland ZP54KUE-TFM-50E Scroll Compressor for Air Conditioning/Heat Pumps R410A
The Copeland ZP scroll compressor for R410A is designed for comfort and precision cooling. It is particularly suitable for air-cooled chillers up to approx. 600 kW and offers high seasonal efficiency whilst maintaining compact dimensions.
Copeland ZP scroll compressors for R410A are designed for comfort and precision coolingThey are particularly suitable for air-cooled chillers up to approx. 600 kW (up to approx. 730 kW for water-cooled systems)High seasonal efficiency (SEER/SEPR/SCOP) combined with compact dimensionsZP compressors can be used in single, tandem and trio configurationsThe ZP104, ZP122 and ZP143KCE models for light commercial applications feature a reduced footprint and low weightCertified tandem and trio combinations (including mixed combinations) for high seasonal efficiencyCopeland scroll technology with axial and radial flexibility for high reliability and efficiencyExtended operating range (suitable for heat pump applications, amongst others)Extensive range of R410A scroll units with low noise and vibration levelsLow oil carryoverMaximum permissible operating pressure (PS): ZP24 to ZP91: ND 29.5 bar(g) / HD 45 bar(g); ZP104 to ZP485: ND 29.5 bar(g) / HD 45 bar(g)Technical details
- Dimensions (length × width × height) 24.6 × 24.6 × 44.3 cm
- HBP application range
- Application range AC
- Number of phases 3
- Design Hermetic
- COP 2.96
- dB(A) @ 1 m 58
- dB(A) 69
- Pressure line (inches) 1/2"
- Electronics included
- Recommended crankcase heater 70
- Frequency 50 Hz
- Weight 38.1
- Airflow 8.93 m³/h
- Cooling capacity (kW) 11.75
- Refrigerant R410A
- Capacity under operating conditions: 5°C evaporator temperature; 50°C condenser temperature; 10 K suction superheat; 0 K subcooling for R-410A at 50 Hz
- Power consumption [kW] 3.98
- Max. operating current (A) 10
- Max. operating pressure (low/high) [bar(g)] 29.5/45
- Motor code TFM
- Oil pre-filled
- Oil capacity (l) 1.95
- Oil type POE
- Product family ZP
- Suction pipe (inches) 7/8"
- Protection class IP21
- Compression type: Scroll
- Supply voltage 380–420 V
Advantages and benefits
- High seasonal efficiency thanks to certified tandem and trio combinations
- Compact design enables efficient systems with low running costs
- High reliability and efficiency thanks to Copeland Scroll technology
- Extended operating range for versatile applications
Note:
- Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.
- Electronics: The electronics are included in the scope of supply.
Matching accessories
Matching this compressor according to the product data. Please check against the compressor manufacturer's specifications before installation.
Refrigeration oil
Replacement compressors are usually supplied with an oil charge – check the type and quantity on the nameplate or data sheet. Top up only with the oil type specified by the manufacturer (depending on the compressor, e.g. POE or PVE); do not mix oil types without the manufacturer's approval.
-
Compressor oil Emkarate RL32-3MAF (POE 1.0 l), ISO 32, viscosity Item no. 47-326504-32-3MAF
In stock
€46.31*
Valves and adapters
-
Copeland adapter set 8030303 Solder to Rotalock for ZR48-72/ZF13-18/ZS30-45,ZP54+67 Item no. 73-8030303
Available
€77.23*
Crankcase heater
-
Oil sump heater 70 W, 230 V, d min/max=150 / 205 mm Replacement for Copeland 8561105 Item no. 47-327900-51
In stock
€47.48*
Mounting and sound insulation
-
€46.35*
-
Copeland sound insulation bonnet with base plate 8561729 for ZR49-81, ZP54-91 Item no. 73-8561729
Available
€272.51*
Alternatives compared
|
This item
Copeland ZP54KUE-TFM-50E Scroll Compressor for Air Conditioning/Heat Pumps R410A
€1,081.71
|
Compressor Scroll DAIKIN, JT125G-P8Y1, 45570 BTU, R410, 380 V, 50H €772.31 €309.40 cheaper | Compressor Scroll Sanyo / Panasonic C-SBN353H8H, R410A, 380V/3F/50Hz, 13.0 kW €915.11 €166.60 cheaper | Compressor Scroll Sanyo / Panasonic C SBP160H38B MBP/HBP - R410A, 380-420V/3/50/60Hz €1,129.31 €47.60 more | Copeland ZP54K5E-TFD-422 Scroll Compressor for Air Conditioning/Heat Pumps R410A €1,416.10 €334.39 more |
|---|---|---|---|---|---|
| Availability | In stock | Available | Ready to ship in approx. 7 business days | Available | Ready to ship in approx. 7 business days |
| Area of application | AC, HBP | — | MBP/HBP | MBP/HBP | HBP, AC |
| Refrigerant | R410A | R407C, R410A | R410A, R407C, R410A | R410A | R410A |
| Supply voltage | 380-420V | 400V | 380-415V | 400V | 380-420V, 460V |
| COP | 2,96 | 3,5 (better) | — | — | 3 (better) |
| Cooling capacity (kW) | 11,75 | — | 13 | — | — |
| Dimensions ( length × width × height ) | 24,6 × 24,6 × 44,3 cm | — | 23,80 × 23,80 × 45,10 cm | 23,80 × 23,80 × 45,10 cm | 24,6 × 24,6 × 41,8 cm |
| Frequency | 50 Hz | — | — | — | 50-60 Hz |
| Max. Operating current (A) | 10 | 6,5 | — | — | 10,3 |
| view item | view item | view item | view item |
Same for all: Electronics: inkl.Oil: vorgefüllt
