Copeland ZH12K1P-TFM-524 Scroll Compressor for Heat Pumps, R410A

18-C-SBP160H38A chiller - Perfect cooling for your home Technical details: Power supply: 220/240 V | 50 Hz | 1 Ph Horse power: 5 CV Stroke volume: 83.2 cm3 Power (ARI measuring conditions, R407C): 14.7 kW Power (cooling conditions, R404A): 11.15 kW Power (Ashrae measuring conditions, R134a): 10.29 kW Refrigerant: R407C, R404A, R134a, R407F Solder connection suction line: 7/8" Solder connection drain line: 1/2" Weight: 40 kg Operating current: 26.6 A Starting current (rotor blocked): 136 A Max. Operating current: 37.3 A Oil type: FV68S Oil refill: 1300 cc Sound level: 61 dB Technologies: Fixed speed, heat pump Advantages and benefits: The 18-C-SBP160H38A chiller offers an impressive output of up to 14.7 kW under ARI measurement conditions with the refrigerant R407C. Thanks to its efficient design and the use of high-quality refrigerants such as R404A and R134a, it is versatile and provides reliable cooling in various environments. With a weight of just 40 kg and a sound level of 61 dB, it is also particularly compact and quiet in operation. The heat pump function allows you to not only cool but also heat, making the 18-C-SBP160H38A a versatile appliance for use all year round. Please ask one of our colleagues for current prices and availability. Thank you Info: Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company. Electronics: The electronics are included in the scope of delivery.

Copeland ZH45K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C The Copeland ZH45K4E-TFD-524 is a fixed-speed heating compressor designed for heat pump and reversible applications. It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating. Copeland ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A) The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kW ZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiency Variants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compression This extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilers Axial and radial flexibility of the scrolls ensures high reliability High efficiency and increased heating capacity, even at low source temperatures High water temperatures for various heating systems Low noise and vibration levels Tandem configurations possible for improved seasonal efficiency Extended vapour injection (EVI) for maximum output and efficiency Maximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g) Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g) Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g) Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g) Technical details Dimensions (length × width × height) 25 × 24.6 × 43.8 cm Application range HBP Application range HT Number of phases 3 Design: Hermetic COP 3.44 dB(A) @ 1 m 64 dB(A) 75 Pressure line (inches) 1/2" Electronics included Recommended crankcase heater 70 Frequency 50–60 Hz Weight 40 Airflow 17.1 m³/h Cooling capacity (kW) 17.15 Refrigerant R134A Refrigerant R407C Capacity at operating conditions: 7.2°C evap, temp; 54.4°C cond, temp, for R407C at 50 Hz Power consumption [kW] 3.35 Max. operating current (A) 11.8 Max. operating pressure (low/high) [bar(g)] 22.6/32 Motor code TFD Pre-filled with oil Oil capacity (l) 1.9 Oil type POE Product family ZH Suction line (inches) 7/8" Compression type: Scroll Supply voltage 380–420 V Supply voltage 460V Advantages and benefits High efficiency and heating output, even at low source temperatures Low noise and vibration levels for quiet operation Tandem combinations enable improved seasonal efficiency Enhanced vapour injection (EVI) ensures maximum performance and efficiency Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.

18-C-SBP160H38K Compressor Scroll Sanyo / Panasonic C-SBP160H38K This Scroll Sanyo / Panasonic C-SBP160H38K compressor is a powerful device for heat pumps that has been specially developed for use in air conditioning and ventilation systems. With an output of 16.8 kW and a supply voltage of 380V/3F/50Hz, this compressor is ideal for professional use in various applications.Technical details: Modell: 18-C-SBP160H38K Type: Scroll compressor Refrigerant: R410A Power: 16.8 kW Supply voltage: 380V/3F/50Hz Advantages and benefits: 1. high performance: With an output of 16.8 kW, this compressor offers efficient cooling and heating performance for a wide range of applications 2. reliability: The Sanyo / Panasonic C-SBP160H38K compressor is characterised by its reliability and longevity, which ensures long-term safety of use. 3. energy efficiency: Thanks to its efficient operation, this compressor helps to optimise energy consumption and thus save costs.Please ask one of our colleagues for current prices and availability. Thank you Info: Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company. Electronics: The electronics are included in the scope of delivery.

Compressor Scroll Sanyo / Panasonic C-SBN353H8H This compressor from Sanyo / Panasonic with the model number C-SBN353H8H is a powerful device for use in various cooling, air conditioning and ventilation applications as well as in heat pumps. Technical details: Model: C-SBN353H8H Refrigerant: R410A Voltage: 380V/3F/50Hz Cooling capacity: 13.0 kW Advantages and benefits: 1. high performance: With a cooling capacity of 13 kW, this compressor is particularly effective and reliable in cooling and air conditioning technology 2. versatile application options: The Sanyo / Panasonic compressor can be used as an equivalent to various other models such as JT170BC-YE, ZH38K4E-TFD-424 and more, which emphasises its flexibility and adaptability. 3. reliable brand quality: Sanyo / Panasonic stands for high-quality and durable products, so you can rely on the performance and durability of this compressor. Info: Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company. Electronics: The electronics are included in the scope of delivery.

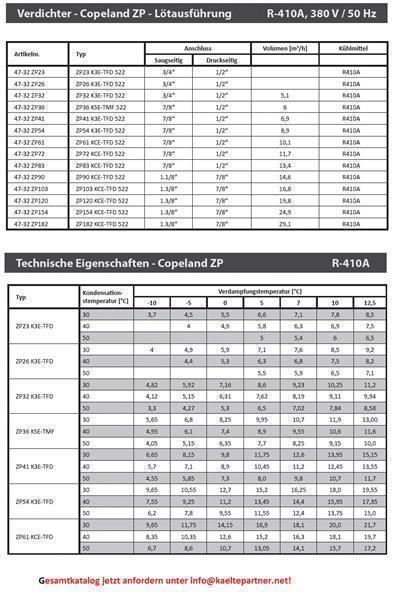

Copeland ZP54KUE-TFM-50E Scroll Compressor for Air Conditioning/Heat Pumps R410AThe Copeland ZP scroll compressor for R410A is designed for comfort and precision cooling. It is particularly suitable for air-cooled chillers up to approx. 600 kW and offers high seasonal efficiency whilst maintaining compact dimensions.Copeland ZP scroll compressors for R410A are designed for comfort and precision coolingThey are particularly suitable for air-cooled chillers up to approx. 600 kW (up to approx. 730 kW for water-cooled systems)High seasonal efficiency (SEER/SEPR/SCOP) combined with compact dimensionsZP compressors can be used in single, tandem and trio configurationsThe ZP104, ZP122 and ZP143KCE models for light commercial applications feature a reduced footprint and low weightCertified tandem and trio combinations (including mixed combinations) for high seasonal efficiencyCopeland scroll technology with axial and radial flexibility for high reliability and efficiencyExtended operating range (suitable for heat pump applications, amongst others)Extensive range of R410A scroll units with low noise and vibration levelsLow oil carryoverMaximum permissible operating pressure (PS): ZP24 to ZP91: ND 29.5 bar(g) / HD 45 bar(g); ZP104 to ZP485: ND 29.5 bar(g) / HD 45 bar(g)Technical detailsDimensions (length × width × height) 24.6 × 24.6 × 44.3 cmHBP application rangeApplication range ACNumber of phases 3Design HermeticCOP 2.96dB(A) @ 1 m 58dB(A) 69Pressure line (inches) 1/2"Electronics includedRecommended crankcase heater 70Frequency 50 HzWeight 38.1Airflow 8.93 m³/hCooling capacity (kW) 11.75Refrigerant R410ACapacity under operating conditions: 5°C evaporator temperature; 50°C condenser temperature; 10 K suction superheat; 0 K subcooling for R-410A at 50 HzPower consumption [kW] 3.98Max. operating current (A) 10Max. operating pressure (low/high) [bar(g)] 29.5/45Motor code TFMOil pre-filledOil capacity (l) 1.95Oil type POEProduct family ZPSuction pipe (inches) 7/8"Protection class IP21Compression type: ScrollSupply voltage 380–420 VAdvantages and benefitsHigh seasonal efficiency thanks to certified tandem and trio combinationsCompact design enables efficient systems with low running costsHigh reliability and efficiency thanks to Copeland Scroll technologyExtended operating range for versatile applications Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.

LG ARA049Y scroll compressor for efficient cooling Technical details: Refrigerant: R410A Voltage: 380-420V, 3-phase Frequency: 50Hz Cooling capacity at 54.4 / 7.2 °C: 42400 Btu/h Oil volume: 1800 cm3 Weight: 37 kg Dimensions: 185x290x407x436x22.4x125 mm The LG ARA049Y scroll compressor impresses with its high performance and efficiency. With a cooling capacity of 42400 Btu/h, it is ideal for use in demanding air conditioning systems and cooling technology. Thanks to its compact dimensions and low weight of just 37 kg, it is easy to install and space-saving.Another advantage of the LG ARA049Y is the use of the environmentally friendly refrigerant R410A, which contributes to efficient cooling performance and protects the environment. The high oil volume of 1800 cm3 also ensures a long compressor service life and minimises maintenance requirements.

Scroll Sanyo / Panasonic C-SBP160H38B compressor The Scroll Sanyo / Panasonic C-SBP160H38B compressor is a powerful device for use in refrigeration, air conditioning and ventilation technology as well as heat pumps. It is ideal for use in MBP /HBP systems with R410A and impresses with its reliability and efficiency.Technical details: Stroke volume: 52.00 cm3 Motor type: 3-PH Oil type: FV68S Oil filling quantity: 1.6 litres Dimensions (LxWxH): 238.2 x 238.2 x 451.4 mm Connections (suction x pressure): 7/8" x 1/2" Noise level: 59 dB Weight: 39 kg Advantages and benefits: The Scroll Sanyo / Panasonic C-SBP160H38B compressor is characterised by its high performance and efficiency. Thanks to its quiet operation at just 59 dB, it is ideal for use in sensitive environments. Its compact dimensions and low weight make it a space-saving and easy-to-handle solution for various applications. The use of high-quality oil type FV68S also ensures a long service life and reliable operation. This compressor is equivalent / alternative to: ZP54K3E-TFD, AN52YEJMT, BN52YEAMT, ZP54KSE-TFMN, ZP54K5E-TFD COPELAND, HRH051U4LP6 DANFOSS, ARA053YAA LG, BN52YFAMT MITSUBISHI, AN52YBUMT SIAM" for the product: "" a detailed and structured article description for our online shop in the field of refrigeration, air conditioning and ventilation technology or heat pumps. Requirements: Start with a concise introduction that briefly explains the product. Go into the main application, target group and key benefits. Use engaging and active language to speak directly to customers. Technical features: List the technical details in a clearly structured list format. Make sure that all relevant specifications are understandable and easy to find. Sales-promoting content: Describe 2?3 key selling points that emphasise the product's unique selling points, key benefits and special advantages. Structure (in HTML format): Short and convincing explanation of the product. Technical details: Concise listing of the most important specifications (list form). Advantages and benefits: Focus on customer benefits, specific applications and unique selling points. Tone and style: A clear, professional and customer-orientated tone that combines technical details with practical applications and benefits. The text should provide comprehensive information without being overloaded. Please do not use words such as "introduction" or "promotional content" Output format: Create the text directly in HTML format. Use semantically meaningful HTML tags such as , , , , to ensure the structure and readability of the description. Info: Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company. Electronics: The electronics are included in the scope of delivery.

Compressor Scroll DAIKIN JT125G-P8Y1 The Scroll DAIKIN JT125G-P8Y1 compressor is the ideal solution for refrigeration, air conditioning and ventilation technology as well as heat pumps. With an output of 13.36 kW and a displacement of 46.0 cm3, it offers reliable cooling and heating for various applications.Technical details: R410A Voltage: 380-420V/3/50Hz, 380-440V/3/60Hz 4 HP Power: 13.36 kW / 45570 BTU/H Connections (suction x pressure): 19.17 x 16 mm Current: 6.5 A COP 3.5 w/w Weight: 37.2 kg 1. efficient and powerful: The compressor guarantees a high cooling capacity with low energy consumption. Ideal for professional use in various applications. 2. reliable technology: With proven scroll technology, this compressor offers high efficiency and durability, making it the ideal choice for your air conditioning system or heat pump.
