Copeland Compressors
Copeland compressors are among the most widely installed compressors in the world. Scroll compressors, in particular, are found in a wide range of solutions, from refrigeration to freezer to air conditioning and heat pump applications. The compressors manufactured by Emerson Copeland are characterised by a long service life. We offer a full range of Copeland compressors and spare parts. Data sheets and technical specifications for all models can also be found in our product categories.
Do you have some questions about this products?
- Your personal contact person
- Ipek Gülen
- [email protected]
- +49 2554 912 983 9
-
🙋 Ipek Gülen
Not found what you are looking for?
You need Individual Solutions or larger Quantities?
226 Products
Tip

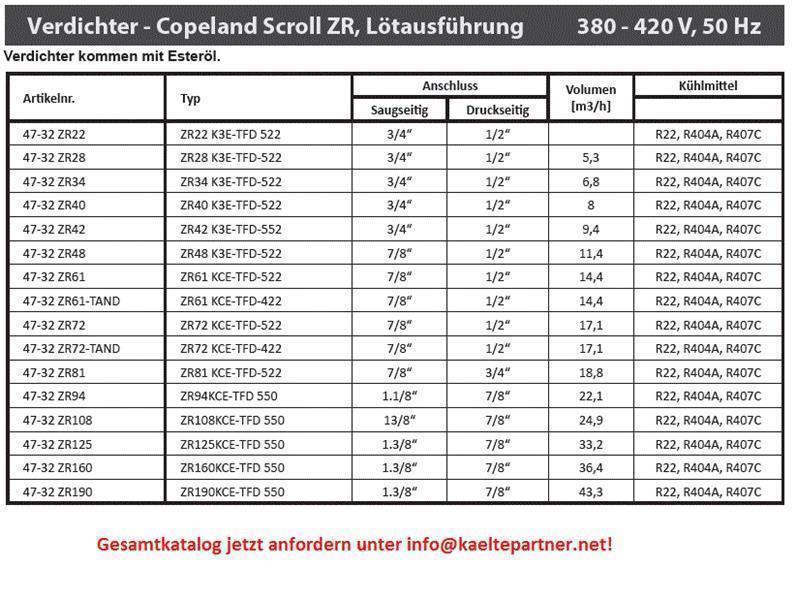

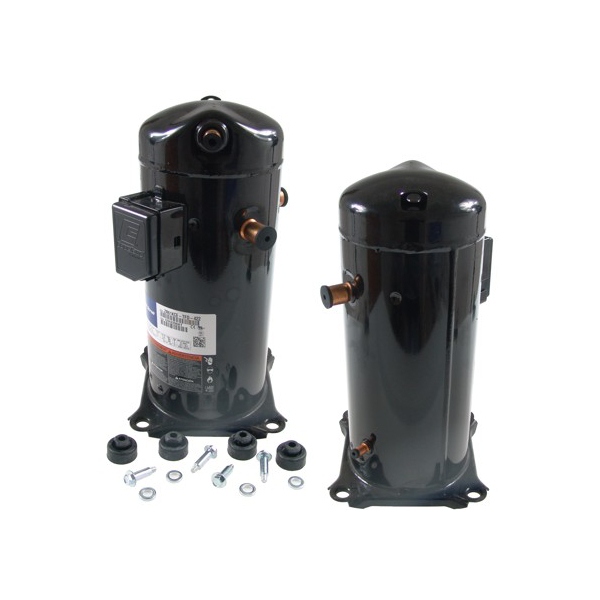

Copeland ZR61KCE-TFD-522 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
From
€941.41
47-32ZR61
| Area of application | AC , HBP , MBP |
|---|---|
| Cooling capacity (kW) | 12,45 |
| Dimensions ( length × width × height ) | 24,6 × 24,6 × 45,1 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Item condition | New item |
| Max. Operating current (A) | 11 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,66 |
| Oil type | POE |
| Performance at operating conditions | 5°C evap, temp,; 50°C cond, temp,; 10 K suction superheat; 0 K subcooling for R-407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZR |
| Recommended crankcase heater | 70 |
| Refrigerant | R22 , R134a , R407C |
| Stroke volume | 14,3 m³/h |
| Suction line (inch) | 7/8 |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 39 |
| dbA @ 1m | 60 |
Tip

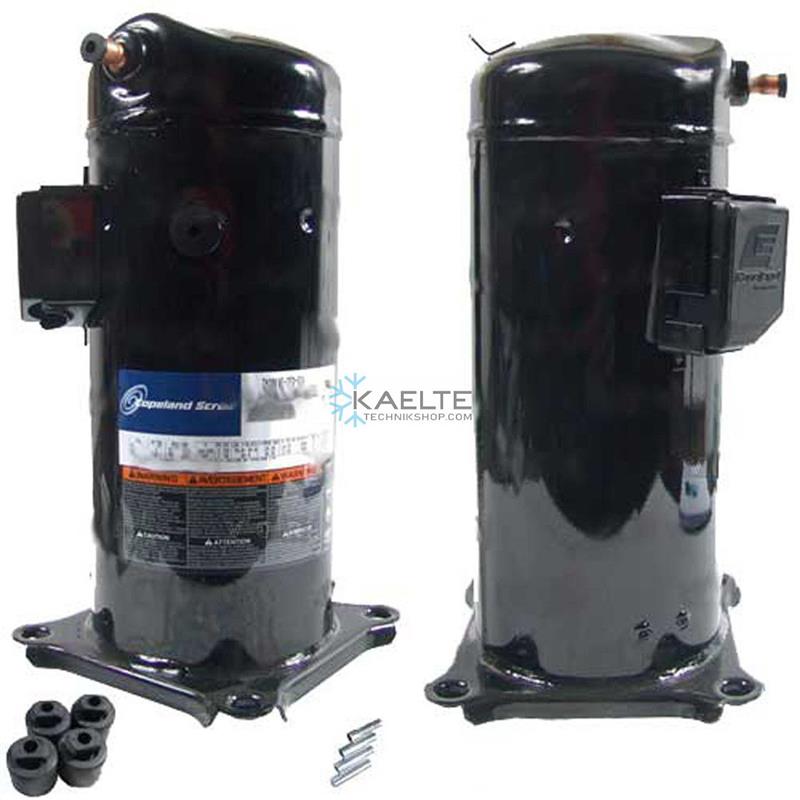

Copeland ZH38K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
€1,178.10
47-32ZH38-K4E
| Area of application | HBP , HT |
|---|---|
| COP | 3,54 |
| Cooling capacity (kW) | 14,55 |
| Dimensions ( length × width × height ) | 24,7 × 24,1 × 43,8 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 10,1 |
| Max. operating overpressure LP/HP [bar(g)] | 22,6/32 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,90 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp, for R407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZH |
| Recommended crankcase heater | 70 |
| Refrigerant | R134a , R407C |
| Stroke volume | 14,4 m³/h |
| Suction line (inch) | 7/8 |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 38 |
| dbA | 74 |
| dbA @ 1m | 63 |
Tip
Copeland ZH45K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
From
€1,251.71
47-32ZH45-K4E
| Area of application | HBP , HT |
|---|---|
| COP | 3,44 |
| Cooling capacity (kW) | 17,15 |
| Dimensions ( length × width × height ) | 25 × 24,6 × 43,8 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 11,8 |
| Max. operating overpressure LP/HP [bar(g)] | 22,6/32 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,9 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp, for R407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZH |
| Recommended crankcase heater | 70 |
| Refrigerant | R134a , R407C |
| Stroke volume | 17,1 m³/h |
| Suction line (inch) | 7/8 |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 40 |
| dbA | 75 |
| dbA @ 1m | 64 |
Tip

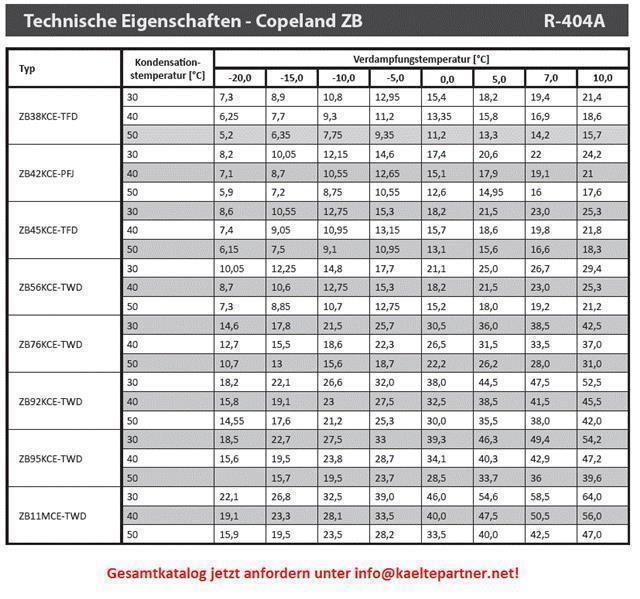

Copeland ZB38KCE-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
Regular price:
From
€1,381.59
47-32ZB38
| Area of application | MBP |
|---|---|
| COP | 2,03 |
| Cooling capacity (kW) | 8,53 |
| Electronics | inkl. |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 12,8 |
| Max. operating overpressure LP/HP [bar(g)] | 21/32 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,90 |
| Oil type | POE |
| Performance at operating conditions | -10°C evap, temp,; 45°C cond, temp,; 20 °C suction gas return; 0 K subcooling for R-404A at 50 Hz |
| Pressure line (inch) | 1 |
| Product family | ZB |
| Protection class | IP21 |
| Recommended crankcase heater | 70 |
| Refrigerant | R22 , R134a , R134a | R404A , R404A , R407A , R407C , R407F , R448A , R449A , R450A , R513A |
| Stroke volume | 14,4 m³/h |
| Suction line (inch) | 1 1/4" |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Voltage | 380-420V |
| Weight | 37,5 |
| dbA | 74 |
| dbA @ 1m | 61 |
Tip
Copeland ZH26K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
From
€922.09
47-32ZH26-K4E
| Area of application | HBP , HT |
|---|---|
| COP | 3,53 |
| Cooling capacity (kW) | 9,99 |
| Dimensions ( length × width × height ) | 24,3 × 24,2 × 40 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 7 |
| Max. operating overpressure LP/HP [bar(g)] | 22,6/32 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 3,10 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp, for R407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZH |
| Recommended crankcase heater | 70 |
| Refrigerant | R134a , R407C |
| Stroke volume | 10 m³/h |
| Suction line (inch) | 3/4 |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 28 |
| dbA | 75 |
| dbA @ 1m | 63 |
Tip
Copeland ZH18KVE-TFD-526 Scroll Compressor for Heat Pumps, R407C
Regular price:
€2,017.10
47-32ZH18-KVE
| Area of application | HBP , HT |
|---|---|
| COP | 3,61 |
| Cooling capacity (kW) | 18,75 |
| Dimensions ( length × width × height ) | 24,4 × 24,1 × 43,8 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 14 |
| Max. operating overpressure LP/HP [bar(g)] | 22,6/32 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,90 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp,; R407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZH |
| Refrigerant | R407C |
| Stroke volume | 17,1 m³/h |
| Suction line (inch) | 7/8 |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 40 |
| dbA | 78 |
| dbA @ 1m | 67 |
Tip
Copeland ZH15K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
€888.72
47-32ZH15-K4E
| Area of application | HBP , HT |
|---|---|
| COP | 3,38 |
| Cooling capacity (kW) | 5,73 |
| Dimensions ( length × width × height ) | 24,3 × 24,3 × 36,4 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 4,1 |
| Max. operating overpressure LP/HP [bar(g)] | 22,6/32 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,30 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp, for R-407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZH |
| Refrigerant | R134a , R407C |
| Stroke volume | 5,76 m³/h |
| Suction line (inch) | 3/4 |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 26 |
| dbA | 71 |
| dbA @ 1m | 60 |
Tip

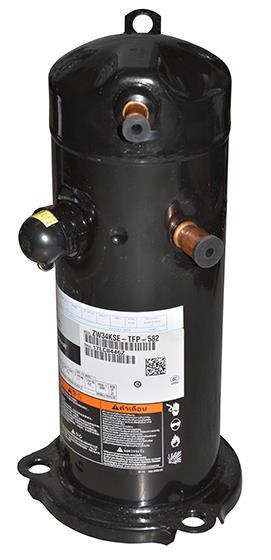

Copeland ZW34KSE-TFP-582 Scroll Compressor for Air Conditioning/Heat Pumps R407C
Regular price:
€974.61
47-32ZW34KSE-TFP-582
| Area of application | AC |
|---|---|
| COP | 3 |
| Cooling capacity (kW) | 10,80 |
| Electronics | inkl. |
| Frequency | 50 Hz |
| Max. Operating current (A) | 5 |
| Motor code | TFP |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 0,74 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp,; Superheat 11,1K; Subcooling 8,3K, 35°C amb, temp, for R407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZW |
| Refrigerant | R22 , R407C |
| Stroke volume | 8 m³/h |
| Suction line (inch) | 3/4 |
| Supply voltage | 380-420V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 22 |
| dbA @ 1m | 57 |
Tip
Copeland ZR81KCE-TFD-522 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
€1,297.10
47-32ZR81
| Area of application | AC , HBP , MBP |
|---|---|
| COP | 3,17 |
| Compressor type | Scroll |
| Condensation temperature | 40 °C |
| Connection size | 3/4" |
| Cooling capacity (kW) | 16,7 |
| Delivery and suction volume (m3) | 18,7 |
| Dimensions ( length × width × height ) | 24.20 × 24.20 × 44.60 cm |
| Dimensions ( length × width × height ) | 24,6 × 24,6 × 45,6 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Item condition | New item |
| Max. Operating current (A) | 15 |
| Max. Starting current (A) | 101 |
| Max. operating overpressure LP/HP [bar(g)] | 20/29,5 |
| Measuring conditions | EN12900 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,77 |
| Oil type | POE |
| Performance at operating conditions | 5°C evap, temp,; 50°C cond, temp,; 10 K suction superheat; 0 K subcooling for R-407C at 50 Hz |
| Performance range (C) | -20 C to +12.5 C |
| Power range (PS) | 6-8 |
| Power range (W) | 15 - 20 kW |
| Pressure line (inch) | 3/4 , 3/4 |
| Product family | ZR |
| Protection class | IP21 |
| Recommended crankcase heater | 70 |
| Refrigerant | R22 , R134a , R407C , R507A |
| Stroke volume | 18,8 m³/h , 108.29 |
| Suction line (inch) | 7/8 , 7/8 |
| Suction side | 7/8" |
| Supply voltage | 380-420V , 460V |
| Typ / Serie | ZR81KCE-TFD-522 |
| Type of compression | Scroll |
| Type of construction | Hermetic , Scroll |
| Voltage | 380-420V |
| Weight | 39 |
| dbA | 75 |
| dbA @ 1m | 61 |
Tip
Copeland ZR61KCE-TFD-422 TANDEM Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
From
€994.96
47-32ZR61-TAND
| Area of application | AC , HBP , MBP |
|---|---|
| COP | 3,09 |
| Cooling capacity (kW) | 12,45 |
| Dimensions ( length × width × height ) | 24,6 × 24,6 × 45,1 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Item condition | New item |
| Max. Operating current (A) | 11 |
| Max. operating overpressure LP/HP [bar(g)] | 20/29,5 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,66 |
| Oil type | POE |
| Performance at operating conditions | 5°C evap, temp,; 50°C cond, temp,; 10 K suction superheat; 0 K subcooling for R-407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZR |
| Protection class | IP21 |
| Refrigerant | R22 , R134a , R407C |
| Replacement for the following models | ZRT122KCE-TFD-522 |
| Stroke volume | 14,3 m³/h |
| Suction line (inch) | 7/8 |
| Supply voltage | 380-420V , 380V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 39,5 |
| dbA | 74 |
| dbA @ 1m | 60 |
Tip
Copeland ZP54KUE-TFM-50E Scroll Compressor for Air Conditioning/Heat Pumps R410A
Regular price:
€1,081.71
47-32ZP54
| Area of application | AC , HBP |
|---|---|
| COP | 2,96 |
| Cooling capacity (kW) | 11,75 |
| Dimensions ( length × width × height ) | 24,6 × 24,6 × 44,3 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50 Hz |
| Max. Operating current (A) | 10 |
| Max. operating overpressure LP/HP [bar(g)] | 29,5/45 |
| Motor code | TFM |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,95 |
| Oil type | POE |
| Performance at operating conditions | 5°C evap, temp,; 50°C cond, temp,; 10 K suction superheat; 0 K subcooling for R-410A at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZP |
| Protection class | IP21 |
| Recommended crankcase heater | 70 |
| Refrigerant | R410A |
| Stroke volume | 8,93 m³/h |
| Suction line (inch) | 7/8 |
| Supply voltage | 380-420V , 380V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 38,1 |
| dbA | 69 |
| dbA @ 1m | 58 |
Tip
Copeland ZR40K3E-PFJ-522 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
€808.01
47-32ZR40-1F
| Area of application | AC , HBP , MBP |
|---|---|
| COP | 2,98 |
| Cooling capacity (kW) | 8,28 |
| Dimensions ( length × width × height ) | 24,2 × 24,2 × 40 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Item condition | New item |
| Max. Operating current (A) | 23,1 |
| Max. operating overpressure LP/HP [bar(g)] | 20/29,5 |
| Motor code | PFJ |
| Number of phases | 1 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,10 |
| Oil type | POE |
| Performance at operating conditions | 5°C evap, temp,; 50°C cond, temp,; 10 K suction superheat; 0 K subcooling for R-407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZR |
| Protection class | IP21 |
| Recommended crankcase heater | 70 |
| Refrigerant | R22 , R134a , R407C |
| Stroke volume | 9,43 m³/h |
| Suction line (inch) | 3/4 |
| Supply voltage | 220-240V , 265V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 27 |
| dbA | 68 |
| dbA @ 1m | 57 |
Tip
Copeland ZH09K1P-TFM-524 Scroll Compressor for Heat Pumps, R410A
Regular price:
€1,062.69
47-32ZH09-K1P
| Area of application | HBP , HT |
|---|---|
| Condensation temperature | 50 °C |
| Connection size | 1/2" |
| Cooling capacity (kW) | 10,3 |
| Delivery and suction volume (m3) | 6,9 |
| Dimensions ( length × width × height ) | 24,2 × 24,2 × 42,2 cm |
| Dimensions ( length × width × height ) | 24,20 × 24,20 × 42,20 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Field of application | Heat pump, heating |
| Frequency | 50 Hz |
| Item condition | New item |
| Max. Operating current (A) | 7 |
| Max. Starting current (A) | 52 |
| Measuring conditions | EN12900 |
| Motor code | TFM |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,2 , 1,24 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp,; R410A at 50 Hz |
| Power range (PS) | 2-4 |
| Power range (W) | 7 - 10 kW |
| Pressure line (inch) | 1/2 , 1/2 |
| Product family | ZH |
| Recommended crankcase heater | 40 |
| Refrigerant | R407C , R410A , R507A |
| Stroke volume | 6,93 m³/h , 39.74 |
| Stroke volume (cm3) | 39,74 |
| Suction line (inch) | 7/8 , 7/8 |
| Suction side | 7/8" |
| Supply voltage | 380-420V |
| Typ / Serie | ZH09KCE-TFM-524 |
| Type of compression | Scroll |
| Type of construction | Hermetic , Scroll |
| Weight | 33 |
| dbA @ 1m | 62 |
Tip
Copeland ZH38K4E-TFD-424 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
From
€2,880.99
73-ZH38K4E-TFD-424
| Area of application | HBP , HT |
|---|---|
| COP | 3,54 |
| Cooling capacity (kW) | 14,55 |
| Dimensions ( length × width × height ) | 24,7 × 24,1 × 43,8 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 10,1 |
| Max. operating overpressure LP/HP [bar(g)] | 22,6/32 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,90 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp, for R407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZH |
| Refrigerant | R134a , R407C |
| Stroke volume | 14,4 m³/h |
| Suction line (inch) | 7/8 |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 41 |
| dbA | 74 |
| dbA @ 1m | 63 |
Tip
Copeland ZR48K3E-TFD-422 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
€2,606.10
33-ZR48K3E
| Area of application | AC , HBP , MBP |
|---|---|
| COP | 3,11 |
| Cooling capacity (kW) | 10,1 |
| Dimensions ( length × width × height ) | 24,6 × 24,6 × 43,1 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Item condition | New item |
| Max. Operating current (A) | 10 |
| Max. operating overpressure LP/HP [bar(g)] | 20/29,5 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,36 |
| Oil type | POE |
| Performance at operating conditions | 5°C evap, temp,; 50°C cond, temp,; 10 K suction superheat; 0 K subcooling for R-407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZR |
| Protection class | IP21 |
| Refrigerant | R22 , R134a , R407C |
| Replacement for the following models | ZRT96K3E-TFD-522 |
| Stroke volume | 11,4 m³/h |
| Suction line (inch) | 7/8 |
| Supply voltage | 380-420V , 400V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 32,7 |
| dbA | 71 |
Tip

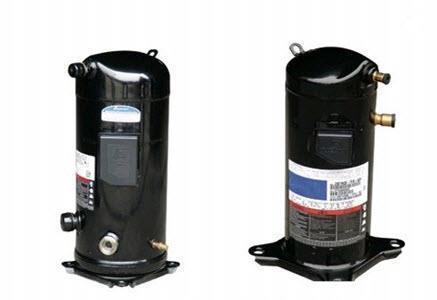

Copeland ZF49K5E-TFD-567 Scroll Compressor for Refrigeration R404A/R448A/R449A
Regular price:
€3,439.10
47-32ZF49
| Area of application | LBP |
|---|---|
| COP | 1,37 |
| Cooling capacity (kW) | 9,12 |
| Electronics | inkl. |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 30 |
| Max. operating overpressure LP/HP [bar(g)] | 22,6/32 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 3,20 |
| Oil type | POE |
| Performance at operating conditions | -35°C evap, temp,; 40°C cond, temp,; 20°C suction gas return; 0 K subcooling for R-448A at 50 Hz |
| Pressure line (inch) | 1 1/4" |
| Product family | ZF |
| Protection class | IP54 |
| Recommended crankcase heater | 70 |
| Refrigerant | R404A , R407A , R407F , R448A , R449A |
| Stroke volume | 42,3 m³/h |
| Suction line (inch) | 1 3/4" |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 66,2 |
| dbA | 86 |
| dbA @ 1m | 71 |
Tip
Copeland ZP31KSE-TFM-522 Scroll Compressor for Air Conditioning/Heat Pumps R410A
Regular price:
€962.71
47-32ZP31
| Area of application | AC , HBP |
|---|---|
| Cooling capacity (kW) | 6,50 |
| Dimensions ( length × width × height ) | 24,2 × 24,2 × 38,8 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50 Hz |
| Max. Operating current (A) | 6 |
| Motor code | TFM |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 0,74 |
| Oil type | POE |
| Performance at operating conditions | 5°C evap, temp,; 50°C cond, temp,; 10 K suction superheat; 0 K subcooling for R-410Aat 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZP |
| Recommended crankcase heater | 40 |
| Refrigerant | R410A |
| Stroke volume | 5,13 m³/h |
| Suction line (inch) | 3/4 |
| Supply voltage | 380-420V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 22 |
| dbA @ 1m | 55 |
Copeland ZH05K1P-TFM-524 Scroll Compressor for Heat Pumps, R410A
Regular price:
€838.40
22-ZH05K1P
| Area of application | HBP , HT |
|---|---|
| Cooling capacity (kW) | 5,75 |
| Dimensions ( length × width × height ) | 24,2 × 24,2 × 40,7 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50 Hz |
| Max. Operating current (A) | 5 |
| Motor code | TFM |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 0,74 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp,; 410A at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZH |
| Recommended crankcase heater | 40 |
| Refrigerant | R410A |
| Stroke volume | 3,96 m³/h |
| Suction line (inch) | 3/4 |
| Supply voltage | 380-420V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 22 |
| dbA @ 1m | 62 |
Tip
Copeland ZH21K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C
Regular price:
€1,010.31
47-32ZH21-K4E
| Area of application | HBP , HT |
|---|---|
| COP | 3,47 |
| Cooling capacity (kW) | 83 |
| Dimensions ( length × width × height ) | 24,3 × 24,2 × 38,7 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 5,6 |
| Max. operating overpressure LP/HP [bar(g)] | 22,6/32 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,50 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp, for R-407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZH |
| Recommended crankcase heater | 70 |
| Refrigerant | R134a , R407C |
| Stroke volume | 8 m³/h |
| Suction line (inch) | 3/4 |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 27 |
| dbA | 72 |
| dbA @ 1m | 59 |
Tip
Copeland ZH09KVE-TFD-526 Scroll Compressor for Heat Pumps, R407C
Regular price:
€1,745.36
47-32ZH09-KVE
| Area of application | HBP , HT |
|---|---|
| COP | 3,53 |
| Cooling capacity (kW) | 9,16 |
| Dimensions ( length × width × height ) | 24,3 × 24,3 × 38,6 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 6,5 |
| Max. operating overpressure LP/HP [bar(g)] | 22,6/32 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,50 |
| Oil type | POE |
| Performance at operating conditions | 7,2°C evap, temp,; 54,4°C cond, temp,; R407C at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZH |
| Refrigerant | R407C |
| Stroke volume | 8 m³/h |
| Suction line (inch) | 3/4 , 7/8 |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 29,9 |
| dbA | 73 |
| dbA @ 1m | 62 |
Tip

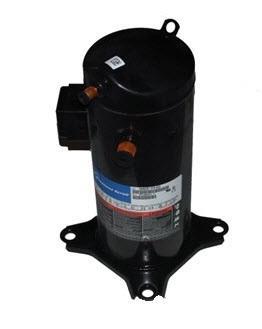

Copeland ZF15K4E-TFD-551 Scroll Compressor for Refrigeration R404A/R448A/R449A
Regular price:
From
€1,595.79
47-32ZF15
| Area of application | LBP |
|---|---|
| COP | 1,09 |
| Condensation temperature | 40 °C |
| Cooling capacity (kW) | 31 |
| Delivery and suction volume (m3) | 14,5 |
| Dimensions ( length × width × height ) | 24.10 × 24.40 × 49.00 cm |
| Electronics | inkl. |
| Energy efficiency class | n. rel |
| Field of application | Freezing |
| Frequency | 50-60 Hz |
| Item condition | New item |
| Max. Operating current (A) | 10 |
| Max. Starting current (A) | 64 |
| Max. operating overpressure LP/HP [bar(g)] | 21/28,8 |
| Measuring conditions | EN12900 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 1,7 , 1,70 |
| Oil type | POE |
| Performance at operating conditions | -35°C evap, temp,; 40°C cond, temp,; 20°C suction gas return; 0 K subcooling for R-448A at 50 Hz |
| Power range (PS) | 4-6 |
| Power range (W) | 3 - 5 kW |
| Pressure line (inch) | 1 , 1 |
| Product family | ZF |
| Protection class | IP21 |
| Recommended crankcase heater | 70 |
| Refrigerant | R22 , R404A , R407A , R407F , R448A , R449A |
| Stroke volume | 14,4 m³/h , 83.52 |
| Stroke volume (cm3) | 83,52 |
| Suction line (inch) | 1 1/4" |
| Supply voltage | 380-420V , 460V |
| Typ / Serie | ZF15K4E-TFD 551 |
| Type of compression | Scroll |
| Type of construction | Hermetic , Scroll |
| Voltage | 380-420V |
| Weight | 39 |
| dbA | 78 |
| dbA @ 1m | 65 |
Copeland ZR160KCE-TFD-550 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
€3,082.10
07-ZR160KCE-TFD-550
| Area of application | AC , HBP , MBP |
|---|---|
| Cooling capacity (kW) | 33,4 |
| Electronics | inkl. |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 28 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 3,4 |
| Oil type | POE |
| Performance at operating conditions | 5°C evap, temp,; 50°C cond, temp, for R407C at 50 Hz |
| Pressure line (inch) | 7/8 |
| Product family | ZR |
| Refrigerant | R22 , R134a , R407C |
| Stroke volume | 36,4 m³/h |
| Suction line (inch) | 1 3/8" |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 65 |
| dbA @ 1m | 67 |
Copeland ZR108KCE-TFD-550 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C
Regular price:
€2,725.10
07-ZR108KCE-TFD-550
| Area of application | AC , HBP , MBP |
|---|---|
| Cooling capacity (kW) | 23 |
| Electronics | inkl. |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 18 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 3,3 |
| Oil type | POE |
| Performance at operating conditions | 5°C evap, temp,; 50°C cond, temp, for R407C at 50 Hz |
| Pressure line (inch) | 7/8 |
| Product family | ZR |
| Refrigerant | R22 , R134a , R407C |
| Stroke volume | 25 m³/h |
| Suction line (inch) | 1 3/8" |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 60 |
| dbA @ 1m | 63 |
Copeland ZP31K5E-TFD-522 Scroll Compressor for Air Conditioning/Heat Pumps R410A
Regular price:
€1,105.51
07-ZP31K5E-TFD-522
| Area of application | AC , HBP |
|---|---|
| COP | 2,8 |
| Cooling capacity (kW) | 6,5 |
| Dimensions ( length × width × height ) | 24,3 × 24,3 × 38,8 cm |
| Electronics | inkl. |
| Frequency | 50-60 Hz |
| Max. Operating current (A) | 6,5 |
| Max. operating overpressure LP/HP [bar(g)] | 29,5/45 |
| Motor code | TFD |
| Number of phases | 3 |
| Oil | vorgefüllt |
| Oil quantity (litres) | 0,7 |
| Oil type | POE |
| Performance at operating conditions | 5°C evap, temp,; 50°C cond, temp,; 10 K suction superheat; 0 K subcooling for R-410A at 50 Hz |
| Pressure line (inch) | 1/2 |
| Product family | ZP |
| Protection class | IP21 |
| Refrigerant | R410A |
| Replacement for the following models | ZP31KSE-TFM-522, ZP32K3E-TFD-522 |
| Stroke volume | 5,13 m³/h |
| Suction line (inch) | 3/4 |
| Supply voltage | 380-420V , 460V |
| Type of compression | Scroll |
| Type of construction | Hermetic |
| Weight | 21,8 |
| dbA @ 1m | 55 |
