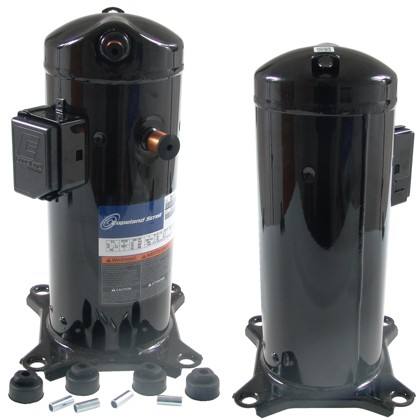

Copeland ZR61KCE-TFD-522 Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407C

Our oil sump heater (heating cable with clamp) is the ideal replacement for the Copeland 8561105 heating cable. With an output of 70 W and a voltage of 230 V, it is the perfect fit for Copeland compressors with a diameter of 150 to 205 mm. Technical details: Power: 70 W Voltage: 230 V Diameter: 150 to 205 mm Advantages and benefits: Our oil sump heater provides reliable heat for your Copeland compressor to ensure optimum performance. With easy installation and efficient heat transfer, it keeps your system running smoothly and protected from cold damage.

Copeland ZH45K4E-TFD-524 Scroll Compressor for Heat Pumps R134A/R407C The Copeland ZH45K4E-TFD-524 is a fixed-speed heating compressor designed for heat pump and reversible applications. It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating. Copeland ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A) The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kW ZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiency Variants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compression This extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilers Axial and radial flexibility of the scrolls ensures high reliability High efficiency and increased heating capacity, even at low source temperatures High water temperatures for various heating systems Low noise and vibration levels Tandem configurations possible for improved seasonal efficiency Extended vapour injection (EVI) for maximum output and efficiency Maximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g) Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g) Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g) Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g) Technical details Dimensions (length × width × height) 25 × 24.6 × 43.8 cm Application range HBP Application range HT Number of phases 3 Design: Hermetic COP 3.44 dB(A) @ 1 m 64 dB(A) 75 Pressure line (inches) 1/2" Electronics included Recommended crankcase heater 70 Frequency 50–60 Hz Weight 40 Airflow 17.1 m³/h Cooling capacity (kW) 17.15 Refrigerant R134A Refrigerant R407C Capacity at operating conditions: 7.2°C evap, temp; 54.4°C cond, temp, for R407C at 50 Hz Power consumption [kW] 3.35 Max. operating current (A) 11.8 Max. operating pressure (low/high) [bar(g)] 22.6/32 Motor code TFD Pre-filled with oil Oil capacity (l) 1.9 Oil type POE Product family ZH Suction line (inches) 7/8" Compression type: Scroll Supply voltage 380–420 V Supply voltage 460V Advantages and benefits High efficiency and heating output, even at low source temperatures Low noise and vibration levels for quiet operation Tandem combinations enable improved seasonal efficiency Enhanced vapour injection (EVI) ensures maximum performance and efficiency Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified contractor.Electronics: The electronics are included in the scope of supply.

Copeland Rotalock set 8025772 Set for ZR18-72;ZS06-18;ZB15-45;ZP23-67 Introduction: The Copeland Rotalock set 8025772 is a set of Rotalock valves specially designed for the ZR18-72, ZS06-18, ZB15-45 and ZP23-67 compressors. Manufactured by the renowned manufacturer Copeland, it bears the article number 8025772. This quality product offers the perfect solution for your refrigeration, air conditioning and ventilation technology as well as heat pumps. Technical details: Article number: 8025772 Type: Rotalock valve set Assignment: for ZR18-72, ZS06-18, ZB15-45, ZP23-67 Sales-promoting content: 1. this rotary lock kit ensures reliable and efficient performance for a wide range of compressors. 2. the high-quality workmanship and materials ensure a long service life and minimised maintenance costs 3. easy installation and compatibility with various models make this kit a versatile solution for your equipment.

Copeland ZR61KCE-TFD-422 TANDEM Scroll Compressor for Air Conditioning/Heat Pumps R134A/R407CThe Copeland ZR scroll compressor is designed for comfort, process and precision cooling using the refrigerants R513A, R407C and R134a. Typical applications include chillers, rooftop air-handling units and precision air-handling units. By using multiple Copeland-certified Tandem and Trio combinations, higher capacities can also be achieved with high seasonal efficiency.Copeland ZR scroll compressors are designed for comfort, process and precision cooling using the refrigerants R513A, R407C and R134aTypical applications include chillers, rooftop air-handling units and precision air-handling unitsBy using multiple Copeland-certified tandem and trio combinations, even higher capacities (e.g. air-cooled chillers up to approx. 500 kW) can be achieved with high seasonal efficiencySpecial ZR models for R513A (GWP 631) are available to meet current requirements for low GWP valuesThe series covers approximately 2 HP to 30 HP (ZR24–ZR380 for R407C/R134a, ZR24KRE–ZR190KRE for R513A/R407C/R134a) and, thanks to low superheat (approx. 5 K), enables good system optimisation and cost reductionAxial and radial flexibility of the scrolls ensures high reliability and efficiencyExtensive ZR range for R407C, R134a and R513ALow TEWI (Total Equivalent Warming Impact)Low noise and vibration levelsLow oil carryoverCopeland-certified tandem and trio configurations for high seasonal efficiencyMaximum permissible operating pressure (PS): ZR24 to ZR81: ND 21 bar(g) / HD 29 bar(g)Maximum permissible operating pressure (PS): ZR108 to ZR380: ND 20 bar(g) / HD 32 bar(g)Technical detailsDimensions (length × width × height) 24.6 × 24.6 × 45.1 cmApplication range ACApplication range HBPMBP application rangeNumber of phases 3Design: HermeticCOP 3.09dB(A) @ 1 m 60dB(A) 74Pressure line (inches) 1/2"Electronics includedReplacement for the following models: ZRT122KCE-TFD-522Frequency 50–60 HzWeight 39.5Displacement 14.3 m³/hCooling capacity (kW) 12.45Refrigerant R134ARefrigerant R22Refrigerant R407CCapacity under operating conditions: 5°C evap. temp.; 50°C cond. temp.; 10 K suction superheat; 0 K subcooling for R-407C at 50 HzPower consumption [kW] 4.02Max. operating current (A) 11Max. operating pressure ND/HD [bar(g)] 20/29.5Motor code TFDOil pre-filledOil capacity (l) 1.66Oil type POEProduct family ZRSuction pipe (inches) 7/8"Protection class IP21Compression type: ScrollSupply voltage 380–420 VSupply voltage 460 VAdvantages and benefitsHigh reliability and efficiency thanks to the axial and radial flexibility of the scrollsLow noise and vibration levels ensure quiet operationOptimisation of operating costs thanks to low overheating and minimal oil carry-overFlexibility of application thanks to a wide range of models for various refrigerants Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified specialist.Electronics: The electronics are included in the scope of supply.

Filter dryer ALCO, ADK-1612MMS, 12 mm ODF, solder connections, 003619 This filter dryer from ALCO's ADK-Plus series is specially designed for liquid refrigerants in closed systems. It offers an optimum mixture of molecular sieve and activated aluminium oxide for effective filtration and drying of the refrigerant Technical details: Optimal mixture of molecular sieve and activated aluminium oxide Copper connections (ODF) for flux-free and fast soldering High water and acid absorption capacity Fine filtration up to 20 microns Temperature range: -40 to +65°C Maximum operating overpressure PS: 45 bar CE marking according to PED 97/23 EC not required Sales-promoting contents: This filter dryer is characterised by its robust block design, a hermetic design with corrosion-resistant epoxy coating and a stabilised flow rate. Thanks to its high water and acid absorption capacity and high filtration performance, it offers optimum protection against contamination in the refrigerant system. Other features include high filtration performance, a uniform drying process and a maximum operating pressure resistance of 46 bar (680 psi).

COPELAND thermostat, for ZR series, 8557419

Copeland Scroll ZR61KCE compressor sound enclosure

Compressor oil Emkarate RL32-3MAF (POE 1.0 l), ISO 32, viscosity Introduction: Emkarate RL32-3MAF compressor oil is a synthetic polyoester (POE) lubricant specially developed for use in compressors of refrigeration and air conditioning systems and heat pumps with HFC refrigerants. It ensures effective wear protection for steel and aluminium surfaces, which increases the service life of the entire system. With improved efficiency features, it is suitable for both the initial filling and the service refilling process of the compressor.Technical details: Density at 20 °C: 0.981 g/ml Flash point (according to Clev.): 240 °C Kin. Viscosity at 40 °C: 31.2 mm2/s Kin. Viscosity at 100 °C: 5.6 mm2/s Viscosity index (VI): 125 Pour point: -40 °C Type: synthetic refrigeration oil Type designation: RL323MAF1L Viscosity (max.): 32 cSt Advantages and benefits: The Emkarate RL32-3MAF provides an effective wear protection solution for bearing surfaces, extending system life and increasing efficiency. With its excellent low temperature properties and high chemical and thermal stability, this product is suitable for a wide operating temperature range. The ester oil optimises the performance of Copeland compressors and provides reliable lubrication, contributing to system efficiency and longevity. Info: Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company. Electronics: The electronics are included in the scope of delivery.
