TECUMSEH Buy products online for less: L'Unite SILFH2511ZXG SH70220210 Tecumseh Silensys R404A/R452A 400V // Fast worldwide delivery
€3,395.31*
On stock
Shipping from warehouse in Germany from , Subject to prior sale
Product number:
73-SH70220210
Manufacturer number:
FH2511Z-XG1A
Length:
7300 mm
Width:
12900 mm
Height:
10000 mm
Weight:
105 kg
Do you have some questions about this product?
- Your personal contact person
- Andrey Chudinov
- [email protected]
- +49 2554 912 983 9
- Nicht das gefunden wonach Sie suchen?

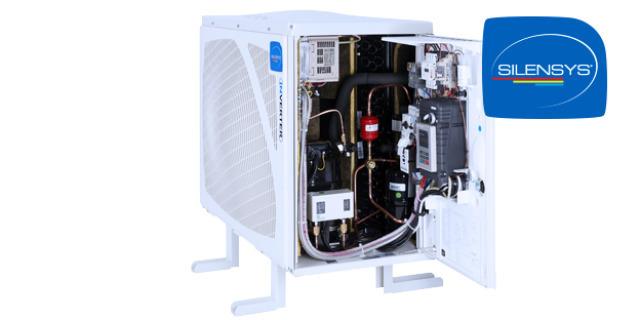

Product information "L'Unite SILFH2511ZXG SH70220210 Tecumseh Silensys R404A/R452A 400V"
The LUNITE SILFH2511ZXG SH70220210 TECUMSEH SILENSYS R404A/R452A 400V compressor is equipped with R404A, R448A, R449A and R452A refrigerants. It has a power consumption of 400/3/50+N V/Ph/Hz and a maximum current consumption of 8.7 A. The compressor model is FH2511Z-XG and the air flow rate is 2700 m3/h. A crankcase heater, HP safety switch, LP safety switch, HP control unit and suction valve are provided. The suction valve has an inlet diameter of 5/8 inch and the liquid line has an outlet diameter of 3/8 inch and is equipped with a shut-off valve. The receiver has a volume of 2.35 dm³ and the sound pressure level is 34 dBA. The condenser fan has a power consumption of 95 W and a diameter of 450 mm. The application is LBP. Manufacturer - article number: SH70220210
Article description: LUNITE SILFH2511ZXG SH70220210 TECUMSEH SILENSYS R404A/R452A 400V
Refrigerant: R404A, R448A, R449A, R452A
Power supply C-Unit: 400/3/50+N V/Ph/Hz
R448A Max current C-Unit: 8.7 A
R449A Max current C-Unit: 8.7 A
R452A Max current C-Unit: 8.7 A
Power supply compressor: 400/3/50 V/Ph/Hz
Compressor model: FH2511Z-XG
Air flow: 2700 m3/h
Crankcase heater provided: Yes
HP safety switch provided: Yes
LP safety switch provided: Yes
HP control device provided: Yes
HP control device type: Fan speed controller
Suction valve provided: Yes
Suction valve inlet diameter: 5/8 inch
Liquid line provided: Yes
Liquid line outlet diameter: 3/8 inch
Liquid line fitted with shut off valve: Yes
Receiver volume: 2.35 dm³
Sound pressure level Lp 10m: 34 dBA
Power supply fan: 240/1/50 V/Ph/Hz
Number of fans: 1
Fan size: 450 mm
Power input condenser fan: 95 W
Application: LBP
R452A Cooling Cap. rated -40: 0.89
R452A Cooling Cap. rated -35: 1.35
R452A Cooling Cap. rated -30: 1.92
R452A Cooling Cap. rated -25: 2.61
R452A Cooling Cap. rated -20: 3.40
R452A Cooling Cap. rated -15: 4.32
R452A Cooling Cap. rated -10: 5.37
R452A Power input rated -35: 1.49
R452A COP -35: 0.91
R449A Cooling Cap. rated -30: 1.98
R449A Cooling Cap. rated -25: 2.72
R449A Cooling Cap. rated -20: 3.58
R449A Cooling Cap. rated -15: 4.60
R448A Cooling Cap. rated -30: 2.00
R448A Cooling Cap. rated -25: 2.74
R448A Cooling Cap. rated -20: 3.61
R448A Cooling Cap. rated -15: 4.63
Height: 842 mm
Width: 654 mm
Length: 1174 mm
Net weight: 71 kg
