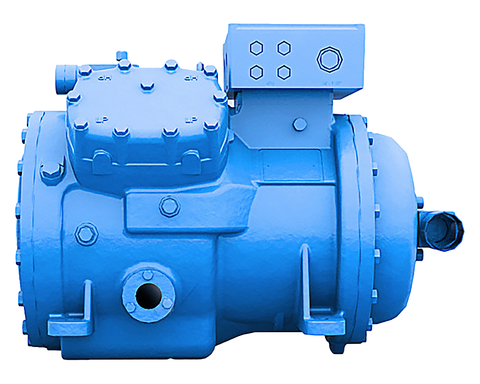

Compressor Frascold S10-52Y, LBP, R404A/R134a/R22/R407C 380-420V/3Ph/50Hz, 51.5 m3/h
€3,320.10*
Available, delivery time: 1-2 weeks,
within Germany, abroad different, Subject to prior sale
Do you have some questions about this product?
Product information "Compressor Frascold S10-52Y, LBP, R404A/R134a/R22/R407C 380-420V/3Ph/50Hz, 51.5 m3/h"
Frascold S10-52Y – reciprocating compressor, 51.5 m³/h, LBP, R404A/R134a/R22/R407C, 400V/3Ph/50Hz
The Frascold S10-52Y is a powerful, semi-hermetic 4-cylinder reciprocating compressor for commercial and industrial refrigeration systems. With a displacement of 51.5 m³/h (at 50 Hz) and a refrigeration capacity range of approx. 24.1 kW (depending on operating conditions and refrigerant), it is ideal for LBP (low back pressure) applications in supermarket, warehouse, process and cryogenic applications.
The compressor is approved for a wide range of common refrigerants, including R22, R134a, R404A, R407A, R407F, R448A, R449A, R450A, R452A, R507 and R513A. The robust design with injection lubrication, integrated oil sump of 2.9 litres POE32 and PWS motor connection ensure reliable and efficient operation in the continuous load range.
Technical data Frascold S10-52Y
- Manufacturer / type: Frascold S10-52Y
- Design: semi-hermetic reciprocating compressor
- Application range: LBP (Low Back Pressure), low temperature
- Number of cylinders: 4
- Displacement: 51.5 m³/h (at 50 Hz)
- Cooling power: approx. 24.1 kW (depending on cooling medium and operating conditions)
- Approved refrigerants: R22, R134a, R404A, R407A, R407F, R448A, R449A, R450A, R452A, R507, R513A
Electrical data
- Supply voltage: 400 V / 3 Ph / 50 Hz (380–420 V permissible range)
- Nominal motor power (50 Hz): 7.46 kW (≈ 10 HP)
- Max. Power consumption: 14.9 kW
- Max. Operating current: 24.5 A
- Locked rotor amperage (LRA): 59.1 A
- LRA DOL (direct start): 102.3 A
- Motor connection: PWS
- Min. motor rotation frequency: 25 Hz
- Max. Motor rotation frequency: 87 Hz
Öl and lubrication
- Öltyp: POE32
- Ölfilling quantity: 2.9 litres
- Lubrication: Splash lubrication
Ports and dimensions
- Suction connection (SV): 1 3/8" (35.0 mm)
- Pressure connection (DV): 1 1/8" (28.6 mm)
- Length: 550 mm
- Width: 405 mm
- Height: 405 mm
- Net weight: 120 kg
Special features
- Powerful 4-cylinder compressor with 51.5 m³/h displacement for commercial/industrial LBP applications
- Broad refrigerant approval, incl. classic and HFO/HFC blends (R404A, R448A, R449A, R452A, R507, R513A and others)
- Robust semi-hermetic design with splash lubrication and 2.9 litre POE32 filling
- Suitable for 400 V / 3 Ph / 50 Hz networks with variable frequency operation (25–87 Hz, use with frequency inverter possible, observe manufacturer's specifications)
- Largely dimensioned suction and discharge connections (1 3/8" / 1 1/8") for low flow losses
The Frascold S10-52Y is a reliable choice for new and replacement systems in the refrigeration and deep-freeze sector. Please always observe the Frascold manufacturer's documentation (performance data, application limits, pipework dimensioning, oil management) as well as the relevant standards and safety regulations when planning, converting or replacing.
Info:
- Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company.
- Electronics: The electronics are included in the scope of delivery.
Frascold – Innovative manufacturer of semi-hermetic compressors
Frascold, founded in Milan, Italy, in 1936, is a leading manufacturer of semi-hermetic compressors and offers a wide range of solutions for refrigeration and air conditioning technology. With over 80 years of experience and continuous innovation, the company has built a reputation for quality and reliability.
Semi-hermetic compressors from Frascold
Frascold offers an extensive range of semi-hermetic piston compressors designed for various applications in refrigeration technology. These compressors are characterised by the following features:
-
High efficiency: Optimised design and advanced technology ensure energy-efficient operation.
-
Versatility: Compatible with a wide range of refrigerants, including HFCs, HFOs and natural refrigerants, they offer flexibility for diverse applications.
-
Reliability: Robust construction and high-quality materials ensure durability and trouble-free operation.
-
Innovative control: The integration of modern control systems enables easy monitoring and adjustment of operating parameters.
Areas of application
Frascold’s semi-hermetic compressors are used in:
-
Commercial refrigeration: Supermarkets, cold stores and catering.
-
Air conditioning: Office buildings, hotels and public facilities.
-
Heat pumps: Efficient heating solutions for residential and commercial properties.
With a strong focus on research and development, Frascold sets standards in refrigeration technology and offers tailor-made solutions for the demands of today and tomorrow.
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Frascold S.p.A.
Postal address: Via Barbara Melzi, 103 20027 Rescaldina (MI) Italy
Email address: [email protected]
Website: www.frascold.it
| Design: | Reciprocating piston |
|---|---|
| Electronics: | inkl. |
| Item Condition: | New item |
| Oil: | vorgefüllt |
| Scope of application: | LBP |
| Voltage: | 380-420V/3Ph |
| Voltage: | 380-420V/3Ph |
