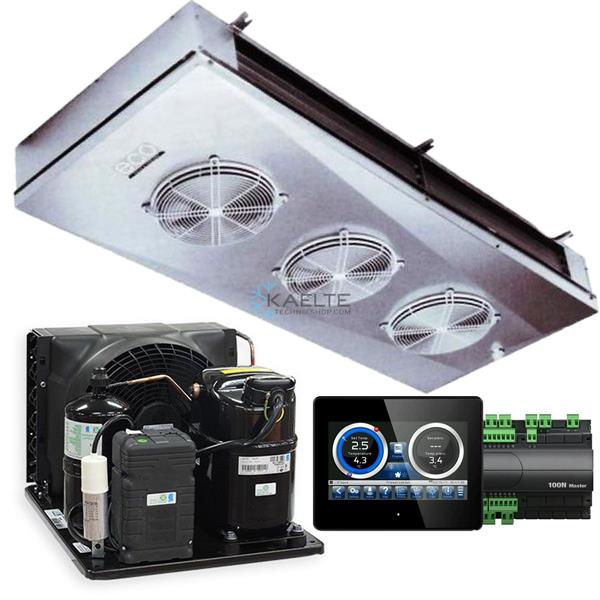

Refrigeration set Premium normal cooling with electric defrosting R134A, 1.00 kW, up to 10 m³

Deep / normal cooling: Normal cooling Room volume: 10 m³ Typ: Premium

01-234508

Contact

Salutation

First name

Last name

Your email address

Phone

Subject

Comment

Privacy

By selecting continue you confirm that you have read our and accepted our .

Fields marked with asterisks (*) are required.

Premium SET Tecumseh flushing kit + ECO air cooler

The cooling set for normal cooling with the Tecumseh CAJN4476YHR condensing kit and the ECO EVS-201ED vaporiser is the ideal solution for cooling rooms with a temperature of 0°C. It is particularly suitable for the use of refrigerant R134a, but also offers the option of using R404a.

Technical data:

Temperature: approx. 0°C
Room size: 10m³

Properties for cold room:

Cell: PU 100 mm insulation with floor
Load: 150 kg/m²
Input: approx. 20 % of the filling quantity
Initial temperature of the goods: +10°C
Air exchange rate: adapted to the room size
Maximum ambient temperature: +32°C

Included in the scope of delivery:

Tecumseh CAJN4476YHR condensing unit, HBP - R134a, 380 - 420V,50Hz Evaporator ECO EVS-201ED Cooling point controller PEGO ECP202 Double pressure switch Danfoss KP15 Danfoss TEN2 thermostatic expansion valve + nozzle insert Sight glass Danfoss SGP 10N Danfoss DML 033 filter dryer Danfoss EVR 3 solenoid valve + coil for solenoid valve 2x pressure equalisation line/capillary tube 1/4" SAE, 1m without valve handle

This premium cooling set offers reliable and efficient cooling for pipes with a size of 10m³. With the Tecumseh condensation kit and the ECO air cooler, you are ideally equipped to fulfil your cooling requirements. The high-quality components ensure optimum performance and reliability.

Data and Illustrations without Guarantee

Manufacturer "Embraco Nidec (Aspera)"

Embraco Nidec (Aspera)

Embraco is a leading global supplier of refrigeration solutions for domestic and commercial applications. Since its foundation in 1971 in Joinville, Brazil, the company has specialised in the development and production of hermetic compressors and condensing units. With production facilities in Brazil, China, Mexico and Slovakia, as well as sales offices in Italy, Russia and the USA, Embraco serves customers in over 90 countries. In 2019, Embraco was acquired by the Japanese Nidec Corporation, a leading global manufacturer of electric motors.

Product groups and specialisations:

Fixed-speed compressors: Reliable and efficient solutions for various applications, including the EM series, Embraco’s best-selling range of compressors worldwide.
Variable-speed compressors: Innovative technologies for greater energy efficiency and performance, such as the VES series, which offers up to 50% greater efficiency.
Refrigeration solutions: Comprehensive systems such as Bioma, a condensing unit for cold rooms featuring low-noise operation and innovative design.

Embraco places great emphasis on energy efficiency, environmental friendliness and reliability. The products are suitable for use with natural refrigerants such as R290 and R600a and comply with the latest ECODESIGN regulations.

Link to Embraco’s Refrigeration Club

Manufacturer details (information requirements under the GPSR Product Safety Regulation):

Manufacturer: Nidec Global Appliance Europe S.R.L.

Postal address: Via Consorziale 13 33170 Pordenone Italy

Contact: https://www.nidec.com/en/inquiry/request/corporate/

Website: www.nidec.com

Note: Nidec Global Appliance Europe S.R.L. is a leading European manufacturer that develops and produces motors and drive systems for domestic appliances.

More products from Embraco Nidec (Aspera)

Deep / normal cooling:	Normal cooling
Item condition:	New item
Room volume:	10 m³
Typ:	Premium

Data and Illustrations without Guarantee
