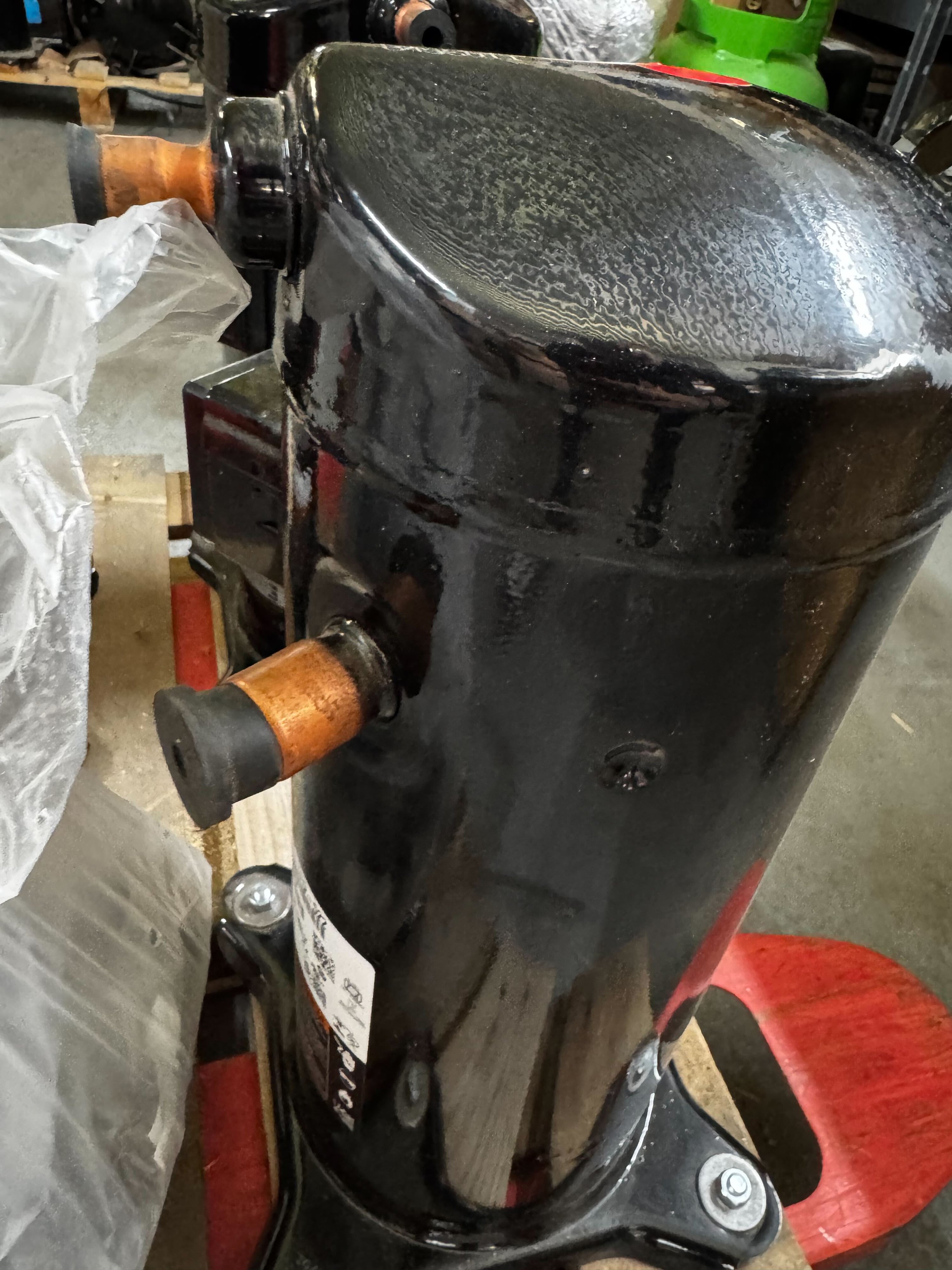

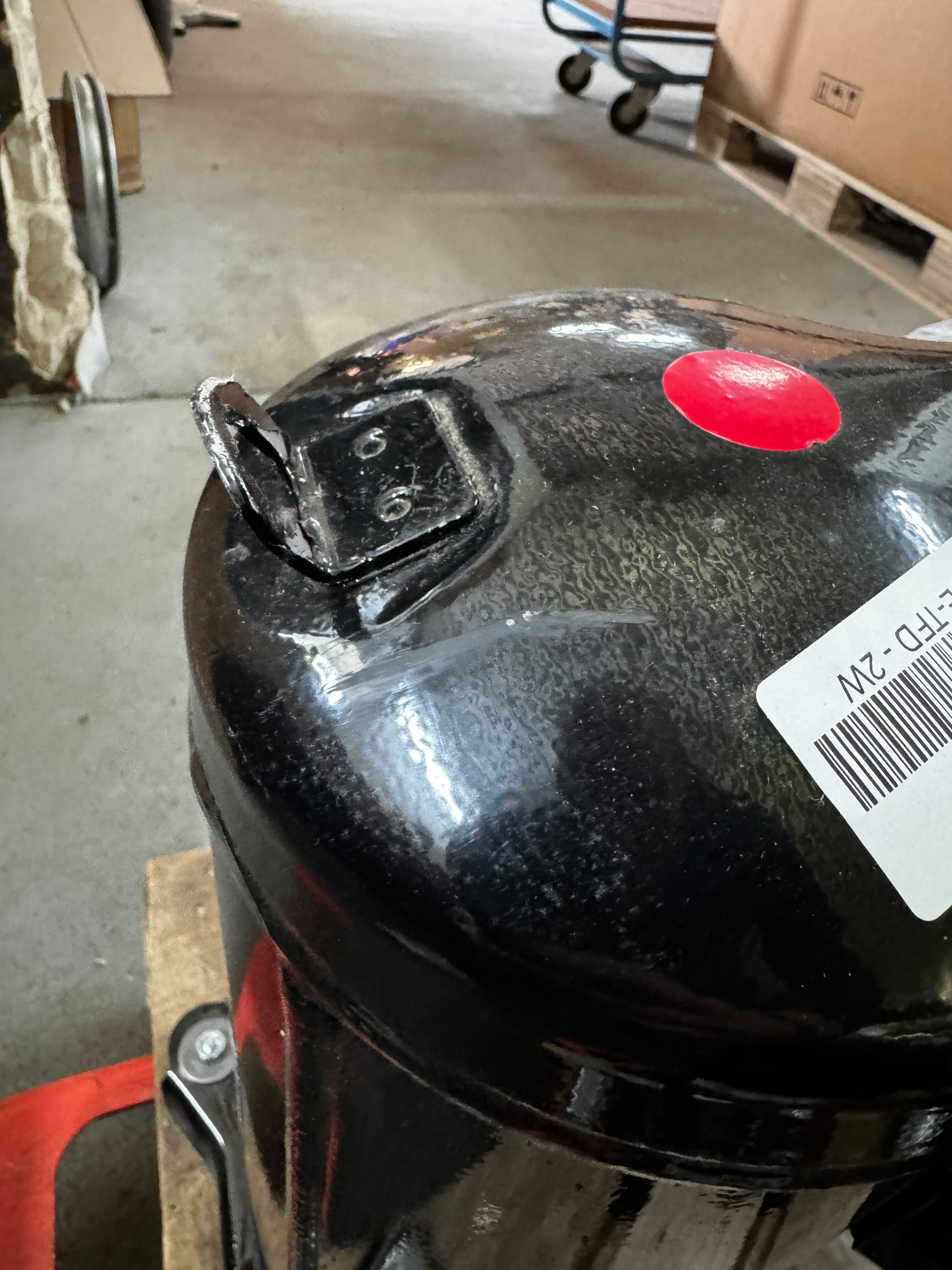

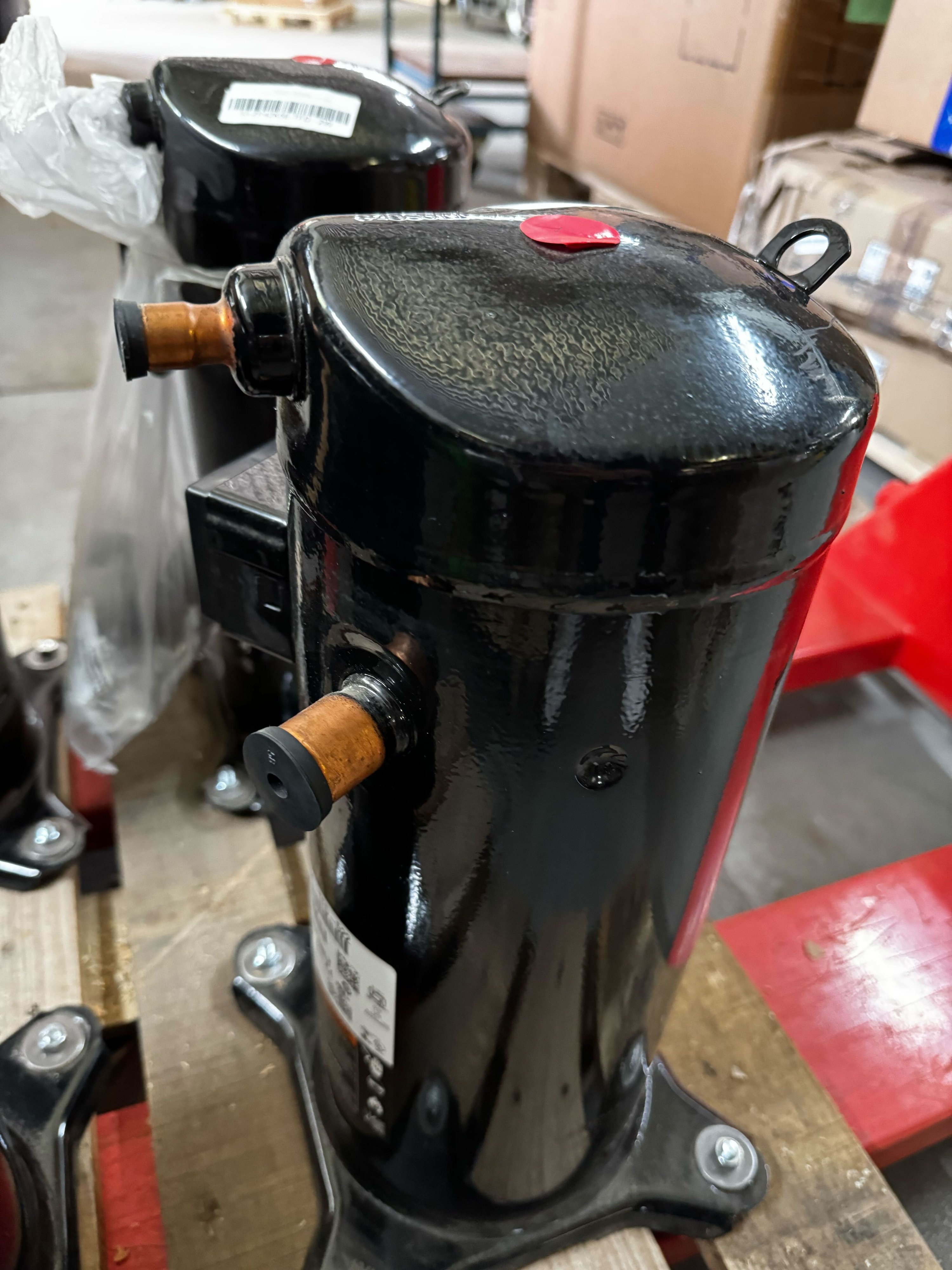

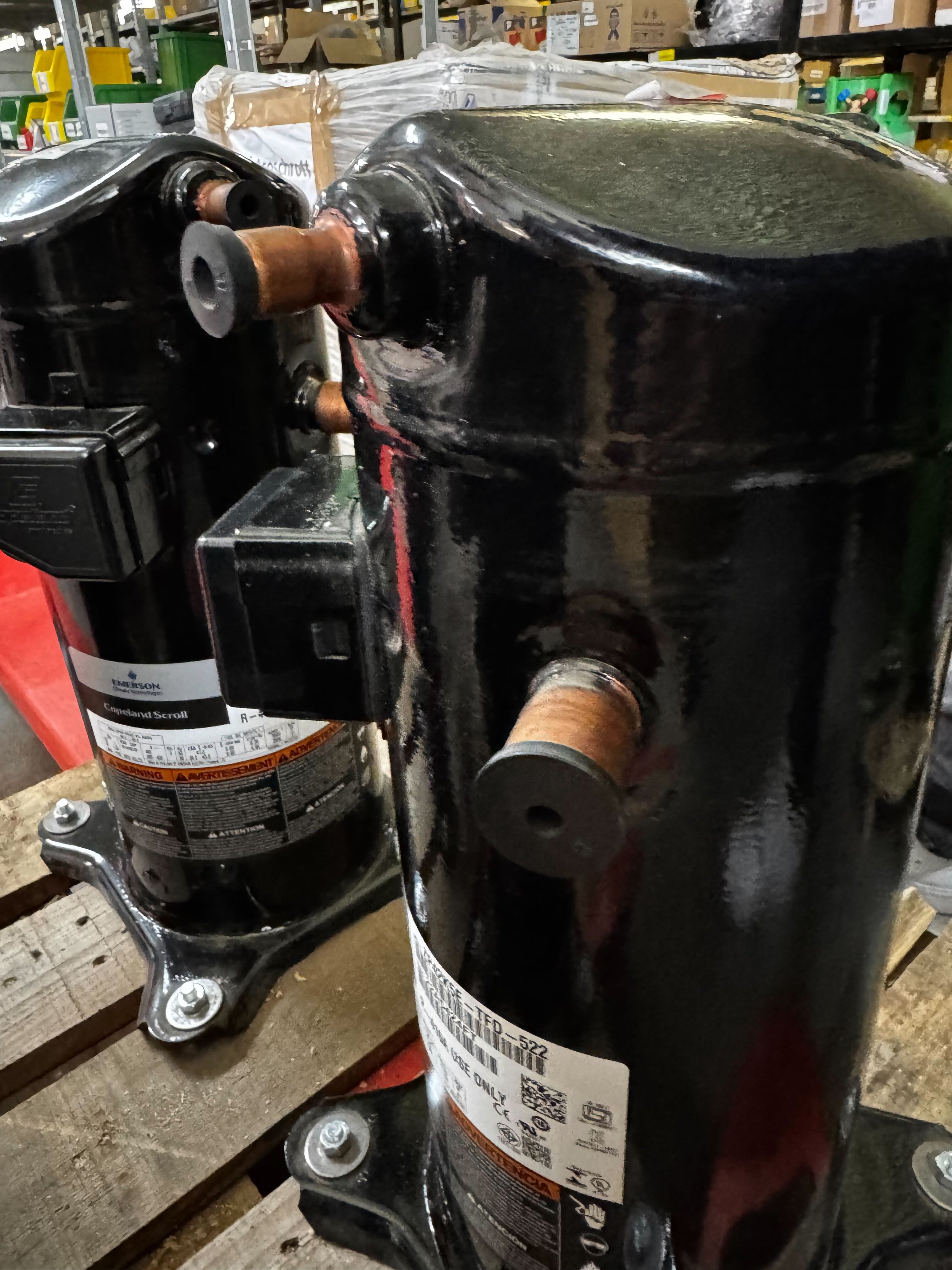

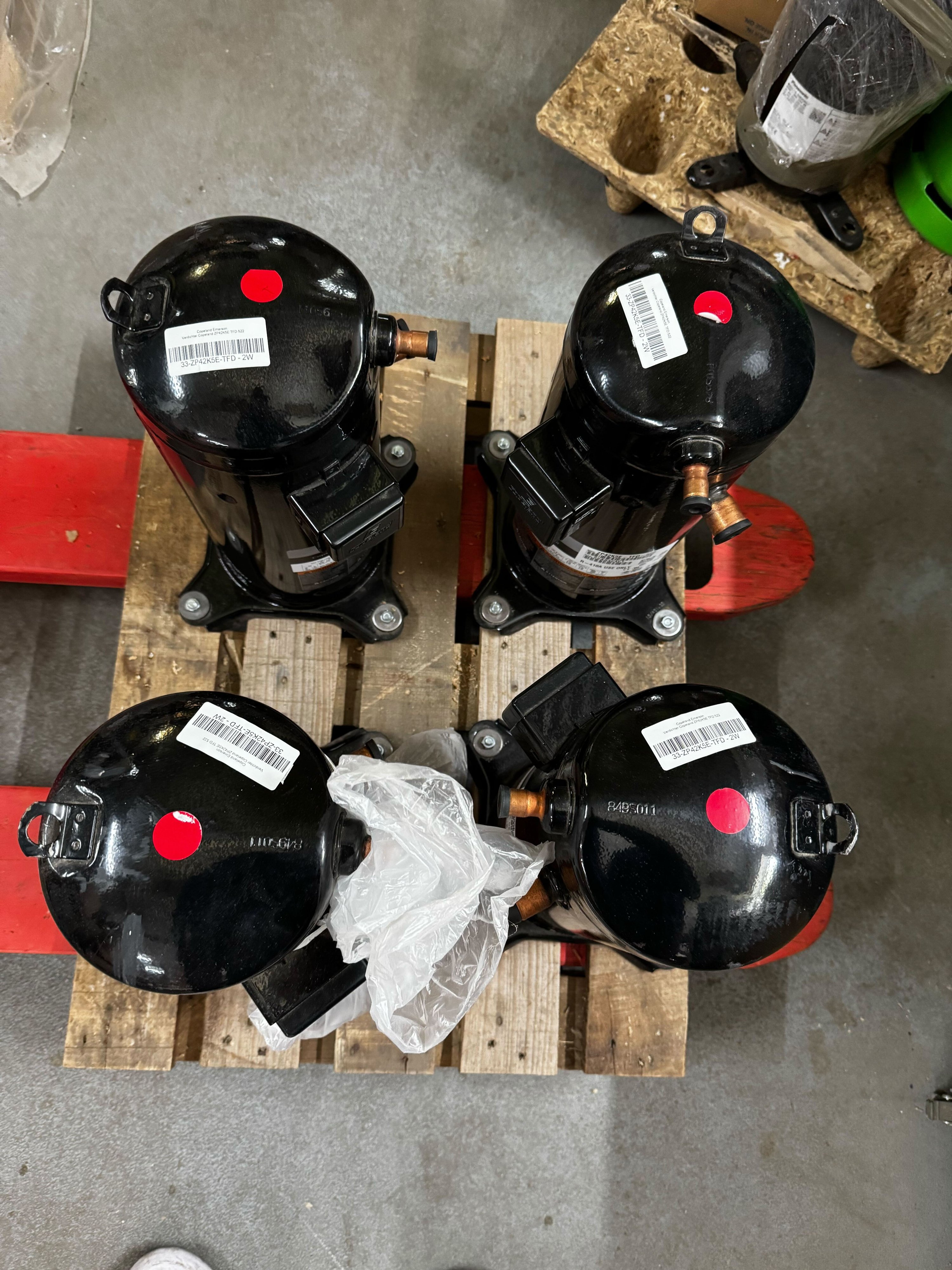

Second choice - Compressor Copeland ZP42K5E TFD 522 - second hand

Copeland ZP42KSE(KUE)-TFM-522(52E) Scroll Compressor for Air Conditioning/Heat Pumps R410AThe Copeland ZP scroll compressor for R410A is designed for comfort and precision cooling. It is particularly suitable for air-cooled chillers up to approx. 600 kW (up to approx. 730 kW for water-cooled systems) and offers high seasonal efficiency (SEER/SEPR/SCOP) whilst maintaining compact dimensions.ZP compressors can be used in single, tandem and trio configurations, making them highly flexible in system designCertified tandem and trio combinations (including mixed configurations) for high seasonal efficiencyCopeland scroll technology with axial and radial flexibility for high reliability and efficiencyExtended operating range (suitable for heat pump applications, amongst others)Wide range of R410A scroll models with low noise and vibration levelsLow oil carry-overMaximum permissible operating pressure (PS): ZP24 to ZP91: ND 29.5 bar(g) / HD 45 bar(g)Maximum permissible operating pressure (PS): ZP104 to ZP485: ND 29.5 bar(g) / HD 45 bar(g)Technical detailsDimensions (length × width × height) 24.2 × 24.2 × 42.1 cmHBP application rangeApplication range ACNumber of phases 3Design: HermeticdB(A) @ 1 m 57Pressure line (inches) 1/2"Electronics includedRecommended crankcase heater 40Frequency 50 HzWeight 31Airflow 6.9 m³/hCooling capacity (kW) 10.1Refrigerant R410ACapacity under operating conditions: 5°C evaporator temperature; 50°C condenser temperature; 11.1 K suction superheat; 8.3 K subcooling for R-410A at 50 HzMax. operating current (A) 8Motor code TFMOil pre-filledOil quantity (l) 1.25Oil type: POEProduct family ZPSuction pipe (inches) 7/8"Compression type: ScrollSupply voltage 380–420 VAdvantages and benefitsHigh seasonal efficiency thanks to certified combinationsFlexibility in system design thanks to various configurationsHigh reliability and efficiency thanks to Copeland Scroll technologyLow noise and vibration levels for quiet operation Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified technician.Electronics: The electronics are included in the scope of supply.

Copeland ZH05K1P-TFM-524 Scroll Compressor for Heat Pumps, R410A The Copeland ZH scroll compressor is a fixed-speed heating compressor designed for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A). It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating. ZH heating compressors are optimised for low evaporation temperatures, delivering high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating – resulting in correspondingly better seasonal efficiency Variants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compression Key features: Axial and radial flexibility of the scrolls for high reliability High efficiency and increased heating output, even at low source temperatures High water temperatures for various heating systems Low noise and vibration levels Tandem configurations possible for improved seasonal efficiency Extended vapour injection (EVI) for maximum output and efficiency Maximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g) ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g) ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g) ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g) Technical details Dimensions (length × width × height) 24.2 × 24.2 × 40.7 cm Application range HBP Application range HT Number of phases 3 Design: Hermetic dB(A) @ 1 m 62 Pressure line (inches) 1/2" Electronics included Recommended crankcase heater 40 Frequency 50 Hz Weight 22 Displacement 3.96 m³/h Cooling capacity (kW) 5.75 Refrigerant R410A Capacity under operating conditions: 7.2°C evap, temp; 54.4°C cond, temp; 410A at 50 Hz Max. operating current (A) 5 Motor code TFM Pre-filled with oil Oil quantity (l) 0.74 Oil type: POE Product family ZH Suction pipe (inches) 3/4" Compression type: Scroll Supply voltage 380–420 V Advantages and benefits High efficiency and heating output, even at low source temperatures Low noise and vibration levels for quiet operation Tandem configurations enable improved seasonal efficiency Enhanced vapour injection (EVI) ensures maximum performance and efficiency Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified technician.Electronics: The electronics are included in the scope of supply.

Copeland ZH09K1P-TFM-524 Scroll Compressor for Heat Pumps, R410AThe Copeland ZH09K1P-TFM-524 is a fixed-speed heating compressor designed for heat pump and reversible applications using R410A. It offers high heating capacity and efficiency, thereby reducing the need for supplementary electric or gas-fired heating.Copeland ZH scroll compressors are fixed-speed heating compressors for heat pump and reversible applications using R410A, R407C (and, in some cases, R134a/R513A)The series is based on three platform sizes and covers a capacity range from approximately 4 kW to 38 kWZH heating compressors are optimised for low evaporation temperatures, deliver high heating capacity and efficiency, and thus reduce the need for supplementary electric or gas heating – resulting in correspondingly better seasonal efficiencyVariants with ‘Enhanced Vapour Injection’ (EVI) feature an additional connection for vapour injection during compressionThis extends the heating capacity and operating range and enables high flow temperatures, often making them suitable as a replacement for conventional boilersAxial and radial flexibility of the scrolls ensures high reliabilityHigh efficiency and increased heating capacity, even at low source temperaturesHigh water temperatures for various heating systemsLow noise and vibration levelsTandem configurations possible for improved seasonal efficiencyExtended vapour injection (EVI) for maximum output and efficiencyMaximum permissible operating pressure (PS): ZH(i)04K1P to ZH(i)23K1P: ND 28 bar(g) / HD 45 bar(g)Maximum permissible operating pressure (PS): ZHi27K1P to ZHi46K1P: ND 29.5 bar(g) / HD 53 bar(g)Maximum permissible operating pressure (PS): ZH12K4E to ZH45K4E: ND 20 bar(g) / HD 32 bar(g)Maximum permissible operating pressure (PS): ZH09KVE to ZH18KVE: ND 20 bar(g) / HD 32 bar(g)Technical detailsDimensions (length × width × height) 24.2 × 24.2 × 42.2 cmApplication range HBPApplication range HTNumber of phases 3Design HermeticdB(A) @ 1 m 62Pressure line (inches) 1/2"Electronics includedRecommended crankcase heater 40Frequency 50 HzWeight 33Air flow rate 6.93 m³/hCooling capacity (kW) 10.3Refrigerant R410ACapacity under operating conditions: 7.2°C evap, temp; 54.4°C cond, temp; R410A at 50 HzMax. operating current (A) 7Motor code TFMPre-filled oilOil quantity (l) 1.24Oil type: POEProduct family ZHSuction line (inches) 7/8"Compression type: ScrollSupply voltage 380–420 VAdvantages and benefitsHigh efficiency and heating output, even at low source temperaturesLow noise and vibration levels for quiet operationTandem configurations enable improved seasonal efficiencyEnhanced vapour injection (EVI) ensures maximum performance and efficiency Note:Oil: The compressor is pre-filled with oil at the factory. Refrigerant is not included and must be charged by a qualified technician.Electronics: The electronics are included in the scope of supply.
