Description

Product information "Supermarket pump Aspen COLD CABINET - WITH SIDE INLET - 585X400X100 mm"

Supermarket pump Aspen COLD CABINET - WITH SIDE INLET - 585X400X100 mm

This Aspen COLD CABINET supermarket pump is the ideal solution for use in air conditioning condensate trays. With a flow rate of up to 225 L/h and a maximum height of 35 m (at 10 L/h), it offers reliable performance in a variety of applications.

Technical details:

  • Flow rate: 225 L/h max.
  • Height: 35 m max. (at 10 L/h)
  • Noise level: 60 dB
  • Max. Water temperature: 40°C
  • Mains voltage: 230 V
  • Inlet: 50 mm; outlet: 10 mm
  • Dimensions: 585x400x100 mm (LxWxH)
  • Weight: 7.80 kg

Sales-promoting contents:

The Aspen COLD CABINET supermarket pump is characterised by its high-quality workmanship and versatility. The anti-lift valve ensures safe and reliable operation by preventing the pump from starting up dry. This makes it particularly suitable for use in air conditioning systems where a constant flow of water is required.

It is also worth emphasising the compact dimensions and low weight of the pump, which make it easy to install and maintain. In addition, the low noise level of 60 dB ensures a pleasant working environment.

Data and Illustrations without Guarantee

Manufacturer "Aspen Pumps"

Aspen Pumps

Aspen Pumps was founded in 1992 by three engineers in Hailsham, East Sussex, UK. The company specialises in the development and manufacture of condensate pumps and also supplies tools, installation accessories, roof mounting systems and cleaning products for the HVAC (heating, ventilation and air conditioning) industry. Aspen Pumps operates internationally in over 100 countries and has branches on several continents.

Product groups and specialisations:

  • Condensate pumps: Aspen Pumps is renowned for its wide range of condensate pumps, including:

    • Mini pumps for confined installation spaces.
    • Tank pumps for handling larger volumes of condensate.
    • Peristaltic pumps for flexible applications.
    • Condensing boiler pumps, specially designed for use in condensing boilers.

  • Accessories: Under the Xtra brand, Aspen Pumps offers a wide range of installation accessories such as duct and pipework systems, pipe brackets and condensate drains, which facilitate the installation and operation of HVAC systems.

  • Cleaning products: Through its subsidiary Advanced, the company offers cleaning and maintenance products for HVAC systems, including evaporator and condenser cleaners as well as all-purpose cleaners.

  • Tools: Under the JAVAC brand, high-quality tools for technicians are offered, including refrigerant recovery units, vacuum pumps, leak detectors and pressure gauges.

  • Roof mounting systems: Aspen Pumps’ Big Foot Systems provide modular support solutions and mounting systems for the installation of air conditioning units and HVAC components on roofs.

Aspen Pumps’ product range and specialisations facilitate installation and maintenance and offer comprehensive solutions for refrigeration, air conditioning and ventilation technology.



Manufacturer details (information requirements under the GPSR Product Safety Regulation):

Manufacturer: Aspen Pumps Deutschland GmbH

Postal address: Tichauer Weg 30 40231 Düsseldorf Germany

Email address: [email protected]

Website: www.aspenpumps.com/de

More products from Aspen Pumps
Properties
Item Condition: New item

Data and Illustrations without Guarantee

Skip product gallery

Artikel Zubehör

Condensate pump Container pump Tank pump Hi-Lift Aspen - 1 litre
Condensate pump Container pump Tank pump Hi-Lift Aspen - 1 litre
Condensate pump container pump tank pump Hi-Lift Aspen - 1 litre The Aspen Hi-Lift is the ideal solution for the efficient and reliable drainage of condensate in air conditioning and refrigeration systems up to an output of 14 kW. With a delivery head of 12 m and a tank volume of 1 litre, this container pump is particularly powerful and versatile. It is perfect for use in ducted units, cassette units and cold rooms.Technical details: Container size: 1 litre Conveying height: 12m Pumping capacity: 11l/h 230V, 50 Hz, 140W Dimensions: 132 mm(H) x 235 mm(W) x 140 mm(D) Advantages and benefits: The Aspen Hi-Lift impresses with its quiet operation and reliable operation, even when running dry. Thanks to the transparent plastic cover, quick and easy inspection is guaranteed at all times. The pump is insensitive to impurities in the water and has two floats for optimum control and safety. Installation is also particularly easy thanks to the option of wall mounting and the compact design. Other highlights include the anti-lift valve, which is already included in the scope of delivery, and the pre-wired safety switch for additional safety. The Aspen Hi-Lift impresses with its reliability, ease of installation and quiet running, making it the ideal choice for condensate drainage.
  • Available
  • Delivery Time : 1-2 weeks
From €213.13
Details
Tip

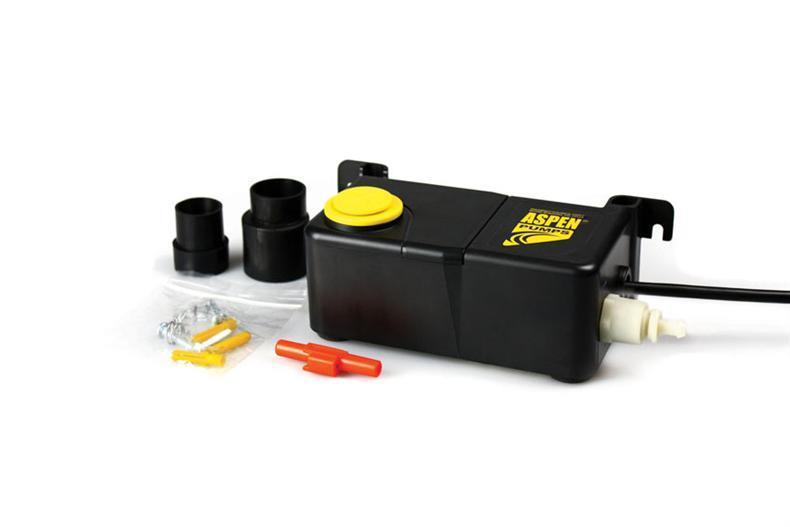

Condensate pump tank pump ASPEN - MINI TANK, 35l/h, (FP1056/2)
