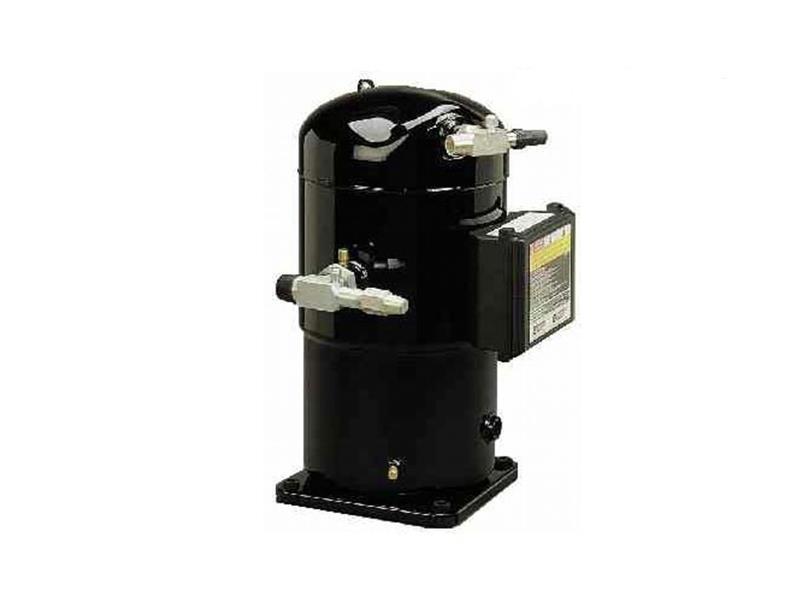

Compressor Copeland Scroll, ZP32K3E-TFD-522, R410A, 380V, 50Hz- not available, replaced by ZP31KSE-TFM-522
Typ / Serie:
ZP32KCE-TFD-522
47-32ZP32
€927.01*
No longer available
Product number:
47-32ZP32
GTIN/EAN:
8592372139478
Manufacturer:
Copeland Emerson
Manufacturer number:
ZP32K3E-TFD-522 (-> ZP31KSE-TFM-522)
Weight:
35 kg
Do you have some questions about this product?
Description
Product information "Compressor Copeland Scroll, ZP32K3E-TFD-522, R410A, 380V, 50Hz- not available, replaced by ZP31KSE-TFM-522"
Hermetic compressor for air conditioning systems and industrial cooling systems
The Copeland Scroll ZP32 K3E-TFD-522 is a powerful hermetic compressor specially developed for air conditioning and industrial refrigeration systems. It is ideal for individual installation and offers high performance with a low noise level.
Technical details:- Motor type: TFD
- Power output: 2.7 hp
- Delivery volume: 5.4 m3/h (31.1 cm3)
- Cooling capacity: 2 kW
- Noise level: 56 dBA - 1 m
- Dimensions (LxWxH): 246x246x384 mm
- Connections: 3/4" x 1/2"
- Max. Operating current (FLA): 6 A
- LRA: 35 A
- Oil filling: 1.3 L
- Winding resistance: 5.35 Ohm
- Weight: 31 kg (gross weight: 33 kg)
- Recommended oil sump heater (power/diameter): 70 W / 167 mm
- Refrigeration capacity measured for condensation temperature of: 40°C, refrigerant R410A, measurement conditions: EN12900
Advantages and benefits:
1. high cooling capacity of 2 kW for effective temperature control
.2. low noise level of 56 dBA ensures pleasant working conditions.
3. Robust design with rubber vibration damper for reliable operation and durability.
Manufacturer "Copeland Emerson"
Copeland is a world-leading provider of air conditioning technologies with over 100 years of experience. The company specialises in the development and manufacture of compressors, control and monitoring systems, and integrated solutions for heating, ventilation, air conditioning and refrigeration. Headquartered in the USA and with a global presence in over 40 countries, Copeland offers innovative and sustainable solutions for residential, commercial and industrial applications.
Product groups and specialisations:
Copeland offers a comprehensive range of products and solutions for various applications:
- Compressors: Scroll, reciprocating and screw compressors for heating, ventilation, air conditioning and refrigeration applications.
- Control and monitoring systems: Electronic controllers, sensors and monitoring solutions to optimise system performance and energy efficiency.
- Refrigeration technology: Commercial and industrial refrigeration solutions, including condensing units and compressors for refrigerated transport.
- Heating and air conditioning technology: Solutions for residential and commercial applications to improve comfort and efficiency.
- Electronics: Innovative control and protection technologies for various HVACR applications.
This broad product range underscores Copeland’s commitment to quality, innovation and sustainability in air conditioning technology.
With decades of experience and a continuous drive for innovation, Copeland sets standards in refrigeration technology and develops solutions that are both economically and environmentally sound. Copeland is represented worldwide through numerous production facilities and research centres and is actively driving the future of refrigeration and air conditioning technology.
Copeland Scroll Two-Stage Compressor – How It Works
Copeland BOM Overview
– English Version
Manufacturer details (information requirements under the GPSR Product Safety Regulation):
Manufacturer: Copeland Europe GmbH
Postal address: Pascalstraße 65 52076 Aachen Germany
Email address: [email protected]
Website: www.copeland.com
Properties
| Compressor type: | Scroll |
|---|---|
| Condensation temperature: | 40 °C |
| Connection Size: | 1/2" |
| Delivery and suction volume (m3): | 5,34 |
| Design: | Hermetic, Scroll |
| Dimensions ( length × width × height ): | 24.60 × 24.60 × 38.40 cm |
| Electronics: | inkl. |
| Field of application: | HBP |
| Item Condition: | New item |
| Measuring conditions: | EN12900 |
| Oil: | vorgefüllt |
| Oil quantity (l): | 1,24 |
| Pressure line (inch): | 1/2 |
| Refrigerant: | R410A |
| Scope of application: | HBP |
| Suction line (inch): | 3/4 |
| Typ / Serie: | ZP32KCE-TFD-522 |
| Voltage: | 380V |
| Voltage: | 380V |
| cooling capacity (W) at To 0°C: | 6310 |
| dbA @ 1m: | 56 |
