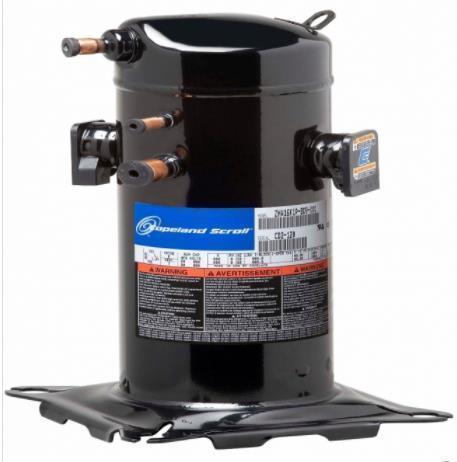

Compressor Copeland ZP72KCE TFD 422

Compressor Copeland Scroll ZP72 KCE-TFD-522 Introduction: The Copeland Scroll ZP72 KCE-TFD-522 compressor is specially designed for air conditioning applications with R410A and is ideal for use in refrigeration, air conditioning and ventilation systems as well as heat pumps. With its outstanding performance features, it ensures efficient cooling and reliable operation. Technical details: Delivery volume: 11.7 m3/h (67.39 cm3) Dimensions (LxWxH): 245x249x440 mm Rotalock connections: 7/8" x 1/2" Noise level: 64 dB - 1 m Max. Operating current (FLA): 15 A LRA: 75 A Oil filling: 1.8 L Winding resistance: 2.3 Ohm Net weight: 40 kg, gross weight: 46 kg Oil sump heater (power/diameter): 70 W / 185 mm Advantages and benefits: 1. high efficiency and reliability in air conditioning applications 2. ideal performance for air-cooled chillers and heat pumps 3. low noise level and low vibration for quiet operation

Vibration damper KIT 8000822 for ZR/ZP22-72,ZF09-18,ZS21-45 Introduction: The vibration damper KIT 8000822 is the ideal accessory for Copeland compressors and condensing units. With this damper kit, you can effectively reduce vibrations and extend the service life of your refrigeration system. Suitable for the models ZR/ZP22-72, ZF09-18 and ZS21-45. Technical details: - Suitable for models: ZR/ZP22-72, ZF09-18, ZS21-45 - Contents: Vibration damper KIT 8000822 - Dimensions: 28mm solder, 330mm long - Manufacturer: Copeland Advantages and benefits: 1. effective reduction of vibrations and noise 2. extends the service life of your cooling system 3. high quality materials for reliable performance

SENZA ANTIVIBRANTI - CODICE 8000822 WITHOUT FASTENING PARTS - CODE 8000822 Info: Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company. Electronics: The electronics are included in the scope of delivery.

Compressor Copeland ZP295KCE TWD 522 The Copeland™ ZP R410A scroll compressors for air conditioning systems are designed for high efficiency and reliability in air-cooled refrigeration systems, with evaporating temperatures around +5°C. Features such as soldered connections, tandemisation and the ability to work with multiple refrigerants meet the requirements of a more demanding market. Features Copeland qualified tandem and trio configurations (now also unequalised) for superior seasonal efficiency (ESEER and EN14825: SEER and SCOP) Copeland Scroll axial and radial compliance for superior reliability and efficiency Extended 5K operating window, suitable for heat pump applications Low TEWI (Total Equivalent Warming Impact) Wide scroll product line for R410A Low noise and vibration levels Low circulation volume Technical data Applications: Air conditioning systems, high temperature Compatible refrigerants: R-410A Cooling capacity: 63.50 kW COP: 3.18 Displacement: 46.7 m³/h Handling: IP 54 (IEC 34) Frequency [Hz]: 50, 60 Gross weight: 160 kg Height: 715 mm Length: 390 mm Low/High Side PS [bar] [g]: 29.5/45 Maximum operating current: 48.5 A Öltyp: POE PED category: 2 Power at conditions: 5°C evaporating temp.; 50°C condensing temp.; 10 K suction superheat; 0 K subcooling for R-410A at 50 Hz Phase: 3 Power consumption: 20.00 kW Product family: Copeland Scroll A/C Single/Tandem: Single Sound power [dBA]: 90 Voltage: 380-420 V Voltage@Hz: 380-420 V at 50 Hz, 460 V at 60 Hz Width: 447 mm Benefits & advantages Increased energy efficiency reduces operating costs and environmental impact Rugged design ensures durability and reliability in operation Versatile application options thanks to compatibility with various refrigerants. Discover a modern and efficient solution for your air conditioning applications that offers both performance and reliability with the Copeland ZP295KCE TWD 522. Info: Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company. Electronics: The electronics are included in the scope of delivery.

Compressor Copeland ZP36KSE-TFM-522, R410A, 380-420V/3F/50Hz The Copeland Scroll ZP36KSE-TFM-522 is a powerful hermetic compressor for air conditioning and industrial cooling systems. With its TFM motor type and an output of 2.9 HP, it is ideal for various applications in refrigeration, air conditioning and ventilation technology or heat pumps. Technical details: Manufacturer: Copeland Model: Scroll ZP36KSE-TFM-522 Spannung: 380-420V/3F/50Hz Fan volume: 6.03 m³/h (34.56 cm³) Kälte power: 2.2 kW Rotalock connections: 7/8" x 1/2" Net weight: 29.4 kg Noise level: 57 dB - 1 m Max. Noise level: 68 dBA &Ouml volume: 1.25 litres Dimensions (L x W x H): 242 x 242 x 418 mm Base mounting (hole diameter): 190 x 190 mm (8.5) Sound power level (HT): 68 dBA PED category: 1 Internal free volume: 3.7 litres High pressure PS: 43 bar(g) Low pressure PS: 28 bar(g) Max. Low pressure TS: 50°C Max. Operating current: 7 A Starting current (LRA): 46 A Standard protection class: IP 21 (IEC 34) Accessories included: mounting rubbers Optional accessories: 40 W external crankcase heater Advantages and benefits: 1. efficient cooling capacity of 2.2 kW for reliable temperature control 2. rubber vibration dampers ensure quiet and vibration-free operation. 3. ideal for stand-alone installation thanks to its compact design and easy installation. Info: Öl: Compressor is pre-filled with Öl at the factory. Refrigerant is not included and must be filled by a specialised company. Electronics: The electronics are included in the scope of delivery.

ZP23K BOM 522 Hermetic compressor The ZP23K BOM 522 is a powerful hermetic compressor specially developed for air conditioning and industrial refrigeration systems. With its Copeland Scroll ZP23 K3E-TFD-522 motor, it offers reliable performance and efficiency. Technical details: Motor type: TFD Power: 1.8 hp Delivery volume: 4.1 m3/h (23.62 cm3) Oil quantity: 1.12 litres Noise level: 54 dB - 1 m Max. Noise level: 65 dBA Dimensions (LxWxH): 246x246x362 mm Connections: 3/4" x 1/2" Max. Operating current (FLA): 5.5 A LRA: 26 A Oil filling: 1.1 dm3 Winding resistance: 7.1 Ohm Weight: 28.6 kg Gross weight: 32 kg Recommended oil sump heater (power/diameter): 70 W / 167 mm Refrigeration capacity measured for condensation temperature of: 30°C, refrigerant R410A, measurement conditions: EN12900 Advantages and benefits: Thanks to its hermetic design and rubber vibration damper, the ZP23K BOM 522 offers reliable performance and low noise levels. It is ideal for individual installation in various applications, from air conditioning systems to industrial cooling systems. The compressor's high efficiency and precise design ensure long-term reliability and ease of maintenance. With its robust design and optimum operating parameters, the ZP23K BOM 522 is the ideal choice for demanding refrigeration and air conditioning systems.
