Double discharge air cooler ECO DFE35EH3ED, 14.3 kW / 12.1 kW, fan 5x315 mm, electric defrost - not available, replaced by GDE315E4ED
€2,690.00*
No longer available
There are successors for this article
Do you have some questions about this product?
- Your personal contact person
- Oumayma Ait Omar
- [email protected]
- +49 2554 912 983 9
-
Nicht das gefunden wonach Sie suchen?
Jetzt Ersatzteil anfragen
Product information "Double discharge air cooler ECO DFE35EH3ED, 14.3 kW / 12.1 kW, fan 5x315 mm, electric defrost - not available, replaced by GDE315E4ED"

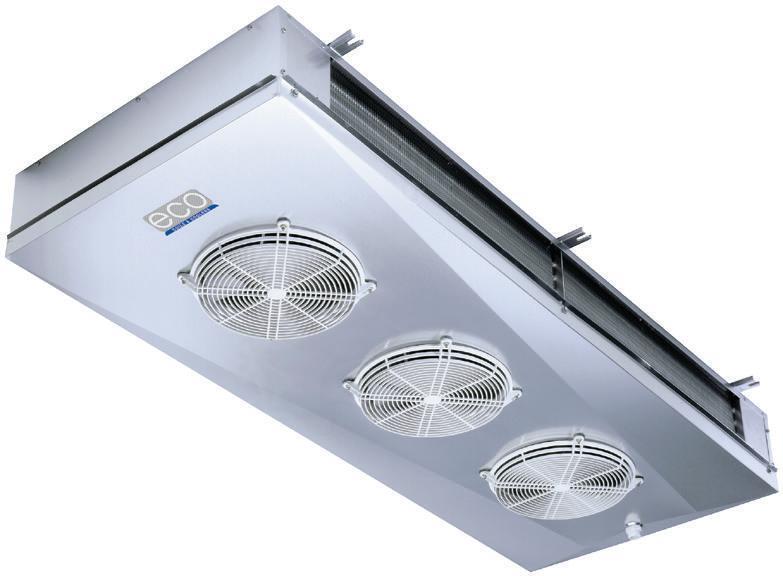

Double outlet ceiling-mounted air vaporiser ECO DFE35EH3ED
The ECO DFE35EH3ED double discharge ceiling evaporator with 3.5 mm fin spacing is the ideal solution for high temperatures up to +2°C in low cold rooms for storing fresh and frozen products. With electric defrosting and a power consumption of 7500W, this model offers efficiency and performance.
Technical details:- L/H output at -8°C: 14.3 kW / 12.1 kW
- 5 fans: D=315 mm
- L/H air flow: 5500 m3/h / 7250 m3/h
- L/H throw range: 9 m / 12 m
- Surface area: 71.5 m2

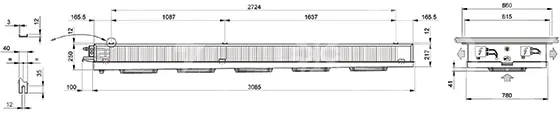

- Dimensions: 3085x2724 mm
- Battery connections: 5/8" (input), 35 mm (output)
- Dew water drain: 1"
- Current voltage: 230V/1Ph/50-60Hz
Advantages and benefits:
Thanks to the two speeds of the motor fans, the same unit can be used for normal or reduced ventilation, providing a low-noise option. With an outstanding cooling capacity and a large throw range of up to 12 metres, the ceiling air evaporator ensures even cooling and optimum air distribution in the coldroom.
The high efficiency, reliable performance and robust design make the ECO DFE35EH3ED double-discharge ceiling air evaporator an indispensable element for any cooling, air conditioning and ventilation system.
| Air flow: | 7250 |
|---|---|
| Connection Size: | Connection Size |
| Number of fans / fan blades: | 5 x 315 mm |
| Slat spacing: | 3.5 mm |
| Temperature range In °C: | +2 °C (-35 to +40) |
| Throwing distance: | 12 m |
| Voltage: | 400V |
| electric defrost: | electric defrost |
Modine / ECO / Luvata
