Cooling point controller / control box PEGO ECP202 Expert 230V Product description The PEGO ECP202 Expert 230V is a compact cold room controller or control box for the complete control of cold rooms with single-phase compressors up to 2 HP. It is suitable for standard and deep-freeze applications and combines control, protection and easy installation in a single solution. The controller handles the central management of key system components such as the compressor, evaporator fans, defrost heater and cold room lighting. This makes the PEGO ECP202 Expert particularly suitable for cold rooms, deep-freeze cells, evaporator units and smaller refrigeration systems where reliable and straightforward control is required. Your benefits Complete cold store control for single-phase systems up to 2 HP Suitable for standard and deep-freeze applications thanks to flexible parameterisation Direct control of compressors, defrosting, fans and lighting RS485 interface for TeleNET or Modbus-RTU IP65 enclosure for use in demanding environments 2 configurable auxiliary relays for additional functions such as alarm, pump-down or solenoid valve Large display with LED indicators for a quick overview of system status Simple operation via front-panel buttons and a clear menu structure Typical applications The PEGO ECP202 Expert is used to control static or ventilated refrigeration systems with electric or time-controlled defrosting. It can be used both for systems with direct compressor stop and for applications with a pump-down function. It is also possible to control individual single-phase evaporator units by activating a solenoid valve or an external compressor/condenser unit. This makes the controller versatile for use in cold stores, chilled rooms, deep-freeze rooms and commercial refrigeration systems. Technical data Manufacturer PEGO Type ECP202 Expert Product type Cold spot controller / control box Voltage 230 VAC ±10 %, 50/60 Hz Max. compressor capacity up to 2 HP / 1.5 kW Evaporator fan 500 W Defrosting electric, up to 3.0 kW Connectable sensors NTC 10K 1 % Reading range -45 to +99 °C Resolution 0.1 °C Reading accuracy ±0.5 °C Interface RS485 for TeleNET / Modbus-RTU Protection rating IP65 Dimensions 263 x 180 x 96 mm Housing material ABS, self-extinguishing Overview of functions Temperature display and setpoint adjustment with decimal point Evaporator temperature display via parameters Automatic and manual defrost Control of evaporator fans Control of cold room lighting via push-button or door contact Alarm functions for sensor faults, temperature deviations, compressor protection and door alarm Emergency operation in the event of a faulty room sensor Night-time operation / reduced settings for energy saving Configuration for cooling or heating mode possible Automatic parameter configuration Why choose the PEGO ECP202 Expert? The PEGO ECP202 Expert is a sensible choice when a cold store needs to be controlled reliably, clearly and with as little additional wiring as possible. Thanks to the integrated control of multiple loads, the configurable auxiliary relays and the RS485 interface, the control box is versatile and also suitable for professionally monitored systems. The robust IP65 enclosure with a transparent, lockable protective flap is particularly practical. This ensures that access to key operating elements remains controlled, whilst the control unit is well protected even in commercial cold storage areas.

Danfoss EVR coil for solenoid valves This coil BE230AS from Danfoss is especially suitable for solenoid valves with a 13.5 mm control head and offers a voltage of 220-230V at a frequency of 50Hz. With a power consumption of 10W and an IP 67 protection rating, it is ideal for use in various applications in the field of cooling, air conditioning and ventilation technology or heat pumps.Technical details: Frequency: 50 Hz Voltage: 220-230 V Power consumption: 10W Protection class: IP67 Electrical connection: Terminal box Resistance: 11.0 mm Max. Ambient temperature: 80 °C Min. ambient temperature: -40 °C Advantages and benefits: The BE230AS coil impresses with its high energy efficiency and reliability. Thanks to its IP67 protection rating, it can also be used in demanding conditions. With an electrical connection size of Pg13.5 and clip-on coil fastening, installation is quick and easy. It also complies with CE, EAC, LLC CDC TYSK and UKCA standards.

Tecumseh CAJN2464ZBR-FZ – LBP condensing unit, 220–240 V Product description The Tecumseh CAJN2464ZBR-FZ condensing unit is a high-performance LBP condensing unit for deep-freeze and low-temperature applications. It is suitable for commercial refrigeration systems, deep-freeze chambers, deep-freeze cabinets and similar applications, where reliable cooling capacity is required in the low evaporation temperature range . The condensing unit is designed for operation with R404A and R452A . Depending on technical approval, other refrigerants such as R448A and R449A may also be suitable. Please check the specific operating conditions and manufacturer’s specifications before sizing the system. Your benefits LBP version for deep-freeze and low-temperature applications High cooling capacity with compact dimensions Suitable for R404A and R452A CSR motor for reliable start-up behaviour EC fan with efficient airflow Integrated liquid receiver with a capacity of 2.35 l Compact design for easy integration into refrigeration systems Proven Tecumseh quality for professional applications Typical applications The Tecumseh CAJN2464ZBR-FZ is primarily used in commercial deep-freeze systems. These include, for example, deep-freeze rooms, deep-freeze display counters, storage rooms, refrigerated display units, catering and food applications, as well as replacement and servicing in existing refrigeration systems. Thanks to its LBP design, the condensing unit is particularly suitable for applications with low evaporation temperatures. For standard refrigeration, air-conditioning applications or heat pumps, however, it should be checked whether an MBP/HBP unit is a better technical fit. Technical data Manufacturer Tecumseh Type CAJN2464ZBR-FZ Model Condensing unit Application LBP / Deep-freezing Refrigerant R404A, R452A Voltage 220–240 V / 50 Hz Motor type CSR Rated current 6 A Maximum starting current 40 A Number of fans 1 Air flow rate 900 m³/h Fan power 30 W Fan blade diameter 300 mm Liquid collector 2.35 l / 32 bar Expansion device Expansion valve Solder connection Suction line 5/8" Solder connection, discharge pipe 3/8" Sound level 64 dB(A) Ambient temperature 32 °C Dimensions 432 x 488 x 340 mm Weight approx. 33 kg Cooling capacity at -25 / +32 °C R452A 1256 W R404A 1352 W R448A 1124 W R449A 1124 W R452A (Te = −35 °C, Tamb = +32 °C, SH = 10 K, SC = 3 K) 0.66 kW Why choose the Tecumseh CAJN2464ZBR-FZ? The Tecumseh CAJN2464ZBR-FZ is a suitable solution for professional deep-freeze systems where a robust, compact and high-performance condensing unit is required. Thanks to the combination of a tried-and-tested Tecumseh compressor, fan, liquid receiver and ready-to-connect design, the unit is suitable for both new installations and replacement and service applications.

Danfoss EVR 3 NC solenoid valve, solder 6 mm ODF, kv 0.27 The EVR 3 solenoid valve from Danfoss is a normally closed solenoid valve for liquid, suction and hot gas lines with fluorinated refrigerants. It is suitable for refrigerants such as R22, R32, R134a and many more. Technical details: Type: EVR 3 Type designation: 032F1207 Function: NC (normally closed) Outlet connection: 6.00 mm ODF Inlet connection: 6.00 mm ODF Kv value: 0.270 m³/h Operating overpressure: 45.2 bar Media temperature range: -40°C to +105°C Sales-promoting contents: This solenoid valve offers reliable and precise control of the refrigerant flow in air conditioning systems, cooling systems and heat pumps. With its normally closed design and high operating pressure resistance, it is ideal for demanding applications. Additional benefits include versatile compatibility with a wide range of refrigerants, easy installation thanks to the solder connection and a high operating temperature of up to 105°C.

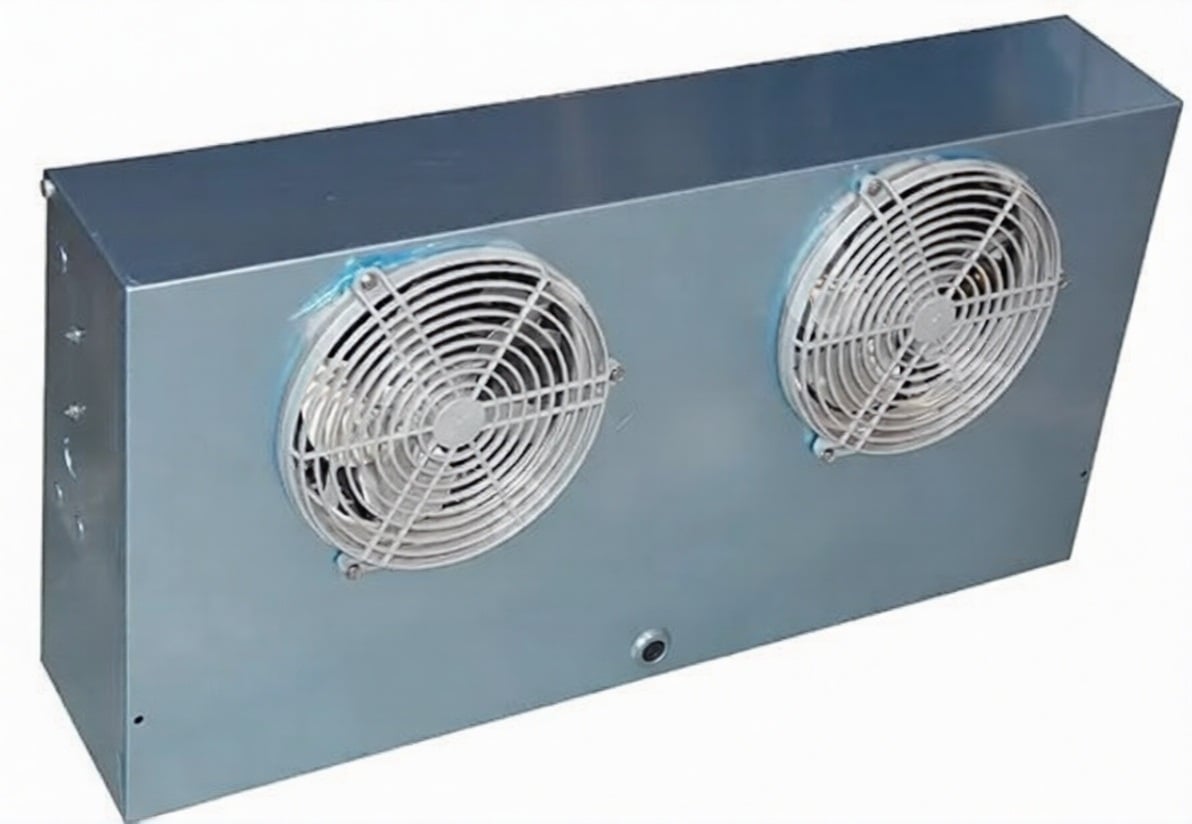

PREMIUM SET Tecumseh flushing kit + ECO air cooler The refrigeration set for deep-freeze storage offers the perfect solution for storing food or other cold-sensitive goods. With the R452A / R404A / R448A / R449A Tecumseh condensation kit and the ECO EVSB-271ED evaporator, you are ideally equipped to ensure reliable and efficient refrigeration. Technical data: Temperature: approx. -20°C Room size: 7.5m³ Refrigerant: R452A Properties for cold room: Cell: PU 100 mm insulation with floor Load: 150 kg/m² Input: approx. 20% of the filling quantity Initial temperature of the goods: +10°C Air exchange rate: adapted to the room size Maximum ambient temperature: +32°C Included in the scope of delivery: Tecumseh CAJN2464ZBR condensation kit Evaporator ECO EVSB-271ED Cooling point controller PEGO ECP202 Double pressure switch Danfoss KP15 Danfoss T2 thermostatic expansion valve + nozzle insert Sight glass Danfoss SGP 10N Danfoss DML 033 filter dryer Danfoss EVR 3 solenoid valve + coil for solenoid valve 2x pressure equalisation line/capillary tube 1/4" SAE, 1m without valve handle Advantages & benefits This set offers a reliable and efficient solution for deep cooling in your business. With high-quality components from Tecumseh and Danfoss, you can rely on stable cooling performance.

Filter dryer DML 033 The DML 033 filter dryer from Danfoss with the type designation 023Z5090 and flare connection has been specially optimised for HFC refrigerants as well as mineral, ester and alcylbenzene oils. It has hermetic filter dryers with an operating pressure of 46 bar and a connection size of 3/8 inch.Technical details: Type: DML 033 Type designation: 023Z5090 Connections: Flare connection, 3/8 inch Operating pressure: Max. 46.0 bar Molecular sieve: 100% Refrigerant: Suitable for a wide range of refrigerants such as R22, R134a, R404A, R407C, R410A and more Advantages and benefits: The DML 033 filter dryer is characterised by its high dehumidification performance at various temperatures. With a solid core and outstanding acid absorption capacity, it ensures efficient filtration and drying of the refrigerant. It also offers a high liquid capacity and is suitable for use in various air conditioning and cooling systems.Discover the reliable filter dryer solution from Danfoss for your air conditioning and refrigeration applications now!

EVSB-201ED ceiling air evaporator with electric defrosting The EVSB-201ED ceiling air evaporator is an air cooler that has been specially developed for cabinets and small cold rooms. With a differentiated fin spacing of 4.5 / 9 mm, it is ideal for high temperatures down to -35°C. It is suitable for various refrigerants such as R404A/R507C, R22, R134a and R407C. Technical details: Power: 1.40 kW (R404A) 2 fans: diameter 200 mm Air volume: 605 m3/h Connections: 1/2" SAE (inlet), 16 mm (outlet) Condensate seal: 1/2" Mains voltage: 230V/1Ph/50-60Hz Dimensions: 611 x 471 x 170 mm Advantages and benefits: The EVSB-201ED ceiling-mounted air vaporiser scores with the following unique features and benefits: Effective air cooling for cabinets and cold rooms Electric defrosting for smooth operation Optimal adaptation to high temperatures down to -35°C
